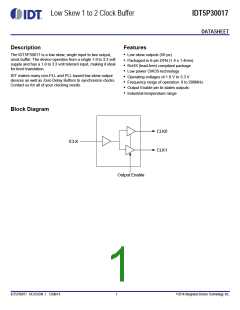

Low Skew 1 to 2 Clock Buffer
IDT5P30017
DATASHEET
Description
Features
The IDT5P30017 is a low skew, single input to two output,
clock buffer. The device operates from a single 1.8 to 3.3 volt
supply and has a 1.8 to 3.3 volt tolerant input, making it ideal
for level translation.
• Low skew outputs (50 ps)
• Packaged in 6-pin DFN (1.4 x 1.4mm)
• RoHS (lead-free) compliant package
• Low power CMOS technology
IDT makes many non-PLL and PLL based low skew output
devices as well as Zero Delay Buffers to synchronize clocks.
Contact us for all of your clocking needs.
• Operating voltages of 1.8 V to 3.3 V
• Frequency range of operation: 0 to 200MHz
• Output Enable pin tri-states outputs
• Industrial temperature range
Block Diagram
CLK0
CLK1
ICLK
Output Enable
IDT5P30017 REVISION F 12/08/14
1
©2014 Integrated Device Technology, Inc.
IDT5P30017 DATASHEET
Pin Assignment (6-pin DFN)
1
6
ICLK
CLK1
GND
OE
VDD
CLK0
4
3
Pin Descriptions
Pin
Pin
Pin
Type
Pin Description
Clock Input. 1.8 to 3.3 V tolerant input.
Number Name
1
ICLK
CLK1
GND
CLK0
VDD
OE
Input
2
3
4
5
6
Output Clock Output 1.
Power Connect to ground.
Output Clock Output 0.
Power Connect to +1.8 V or +3.3 V.
Input
Output Enable with 250kohm internal series resistor. Tri-states outputs when low.
External Components
A minimum number of external components are required for proper operation. A decoupling capacitor of 0.01F should
be connected between VDD on pin 5 and GND, as close to the device as possible. A 33 series terminating resistor
may be used on each clock output if the trace is longer than 1 inch.
To achieve the low output skew that the IDT5P30017 is capable of, careful attention must be paid to board layout.
Essentially, all four outputs must have identical terminations, identical loads and identical trace geometries. If they do
not, the output skew will be degraded. For example, using a 30series termination on one output (with 33on the
others) will cause at least 15 ps of skew.
LOW SKEW 1 TO 2 CLOCK BUFFER
2
REVISION F 12/08/14
IDT5P30017 DATASHEET
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the IDT5P30017. These ratings, which are
standard values for IDT commercially rated parts, are stress ratings only. Functional operation of the device at these or
any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods can affect product reliability. Electrical parameters are
guaranteed only over the recommended operating temperature range.
Item
Rating
Supply Voltage, VDD
0.5 to 5.0V
Output Enable and All Outputs
Ambient Operating Temperature (industrial)
Storage Temperature
-0.5 V to VDD+0.5 V
-40 to +85 C
-65 to +150C
125C
Junction Temperature
Soldering Temperature
260C
Recommended Operation Conditions
Parameter
Min.
Typ.
Max.
+85
3.6
Units
C
Ambient Operating Temperature (industrial)
Power Supply Voltage (measured in respect to GND)
-40
1.71
V
REVISION F 12/08/14
3
LOW SKEW 1 TO 2 CLOCK BUFFER
IDT5P30017 DATASHEET
DC Electrical Characteristics
VDD=1.8 to 3.3V ±5%, Ambient temperature -40 to +85C, unless stated otherwise
Parameter
Operating Voltage
Symbol
VDD
VIH
Conditions
Min.
1.71
Typ.
Max.
3.465
Units
V
Input High Voltage
Note 1, ICLK, OE
Note 1, ICLK, OE
IOH = -2 mA
0.65VDD
3.465
V
Input Low Voltage
VIL
0.35VDD
V
Output High Voltage
Output Low Voltage
Operating Supply Current
Nominal Output Impedance
Input Capacitance
VOH
VOL
IDD
ZO
0.75VDD
V
IOL = 2 mA
0.25VDD
V
No load, 133 MHz
TBD
40
mA
W
CIN
ICLK, OE pin
5
pF
mA
Short Circuit Current
IOS
±40
Notes: 1. Nominal switching threshold is VDD/2
AC Electrical Characteristics
VDD =2.5 - 3.3V, Ambient Temperature -40 to +85C, unless stated otherwise
Parameter
Input Frequency
Symbol
Conditions
Min.
Typ. Max. Units
0
200
1.5
1.5
5
MHz
ns
Output Rise Time
Output Fall Time
tOR
tOF
20% to 80%, Note 3
80% to 20%, Note 3
1.0
1.0
3
ns
Propagation Delay
Output to Output Skew
Note 1
Note 2
TBD
ns
Rising edges at VDD/2
0
±50
ps
Notes: 1. With rail to rail input clock
2. Between any 2 outputs with equal loading.
3. Measured with a 15 pF load.
VDD = 1.8 - 2.4V, Ambient Temperature -40 to +85C, unless stated otherwise
Parameter
Input Frequency
Symbol
Conditions
Min.
Typ. Max. Units
0
200
1.5
1.5
5
MHz
ns
Output Rise Time
Output Fall Time
tOR
tOF
20% to 80%, Note 3
80% to 20%, Note 3
1.0
1.0
3
ns
Propagation Delay
Output to Output Skew
Note 1
Note 2
TBD
ns
Rising edges at VDD/2
0
±50
ps
Notes: 1. With rail to rail input clock
2. Between any 2 outputs with equal loading.
3. Measured with a 5 pF load.
LOW SKEW 1 TO 2 CLOCK BUFFER
4
REVISION F 12/08/14
IDT5P30017 DATASHEET
Thermal Characteristics
Parameter
Symbol
JA
Conditions
Still air
Min.
Typ.
150
140
120
40
Max. Units
Thermal Resistance Junction to Ambient
C/W
C/W
C/W
C/W
C/W
JA
1 m/s air flow
3 m/s air flow
JA
Thermal Resistance Junction to Case
JC
Thermal Resistance Junction to Top of
Case
JT
Still air
20
Marking Diagram
**
7
Notes:
1. “**” is the lot sequence number.
2. “7” is the truncated part number.
3. Bottom marking: country of origin.
REVISION F 12/08/14
5
LOW SKEW 1 TO 2 CLOCK BUFFER
IDT5P30017 DATASHEET
Package Outline and Package Dimensions (6-pin DFN 1.4x1.4mm, 0.4mm pitch)
Package dimensions are kept current with JEDEC Publication No. 95,
Millimeters
Symbol
Min
.51
0
Max
0.6
0.05
A
A1
N
D
E
6
1.40 BASIC
1.40 BASIC
0.40 BASIC
e
b
L
0.15
0.36
0.25
0.56
Ordering Information
Part / Order Number
Marking
see page 5
Shipping Packaging
Tray
Package
6-pin DFN
6-pin DFN
Temperature
-40 to +85C
-40 to +85C
5P30017NDGI
5P30017NDGI8
Tape and Reel
“G” after the two-letter package code denotes Pb-Free configuration, RoHS compliant.
LOW SKEW 1 TO 2 CLOCK BUFFER
6
REVISION F 12/08/14
IDT5P30017 DATASHEET
Revision History
Rev.
Originator
Date
Description of Change
D
J. Chao
04/02/12 1. Corrected VDD typo of 1.14V; changed to 1.71V
2. Added "Frequency range of operation: 0 to 200MHz" in Features bullets on page 1
E
F
R. Willner
05/14/12 1. Updated Supply Voltage (VDD) from 1.8~3.3V to 0.5~5.0V
2. Updated "Operating Voltage" and "Input High Voltage" specs from 3.6V max to 3.465V max.
3. Removed "Case Temperature" spec from Thermal Characteristics
4. Added marking diagram
B. Chandhoke 12/08/14 1. Updated to latest doc template.
2. Moved from Preliminary to Final.
REVISION F 12/08/14
7
LOW SKEW 1 TO 2 CLOCK BUFFER
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
Sales
Tech Support
email: clocks@idt.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected
names, logos and designs, are the property of IDT or their respective third party owners.
Copyright ©2014 Integrated Device Technology, Inc.. All rights reserved.
