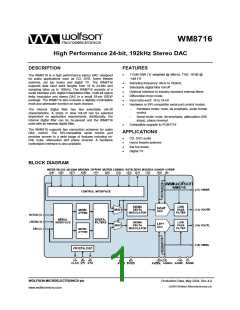

WM8716
w
High Performance 24-bit, 192kHz Stereo DAC
DESCRIPTION
FEATURES
•
112dB SNR (‘A’ weighted @ 48kHz), THD: -97dB @
-1dB FS
The WM8716 is a high performance stereo DAC designed
for audio applications such as CD, DVD, home theatre
systems, set top boxes and digital TV. The WM8716
supports data input word lengths from 16 to 24-bits and
sampling rates up to 192kHz. The WM8716 consists of a
serial interface port, digital interpolation filter, multi-bit sigma
delta modulator and stereo DAC in a small 28-pin SSOP
package. The WM8716 also includes a digitally controllable
mute and attenuator function on each channel.
•
•
•
•
•
•
Sampling frequency: 8kHz to 192kHz
Selectable digital filter roll-off
Optional interface to industry standard external filters
Differential mono mode
Input data word: 16 to 24-bit
Hardware or SPI compatible serial port control modes:
−
Hardware mode: mute, de-emphasis, audio format
control
The internal digital filter has two selectable roll-off
characteristics. A sharp or slow roll-off can be selected
dependent on application requirements. Additionally, the
internal digital filter can be by-passed and the WM8716
used with an external digital filter.
−
Serial mode: mute, de-emphasis, attenuation (256
steps), phase reversal
•
Compatible upgrade to PCM1716
The WM8716 supports two connection schemes for audio
DAC control. The SPI-compatible serial control port
provides access to a wide range of features including on-
chip mute, attenuation and phase reversal. A hardware
controllable interface is also available.
APPLICATIONS
•
•
•
•
CD, DVD audio
Home theatre systems
Set top boxes
Digital TV
BLOCK DIAGRAM
WOLFSON MICROELECTRONICS plc
Production Data, May 2004, Rev 4.0
2004 Wolfson Microelectronics plc
www.wolfsonmicro.com
WM8716
Production Data
TABLE OF CONTENTS
DESCRIPTION .......................................................................................................1
FEATURES.............................................................................................................1
APPLICATIONS .....................................................................................................1
BLOCK DIAGRAM .................................................................................................1
TABLE OF CONTENTS .........................................................................................2
PIN CONFIGURATION...........................................................................................3
ORDERING INFORMATION ..................................................................................3
ABSOLUTE MAXIMUM RATINGS.........................................................................4
RECOMMENDED OPERATING CONDITIONS .....................................................4
ELECTRICAL CHARACTERISTICS ......................................................................5
TERMINOLOGY............................................................................................................ 6
PIN DESCRIPTION ................................................................................................7
DEVICE DESCRIPTION.........................................................................................9
SYSTEM CLOCK .......................................................................................................... 9
AUDIO DATA INTERFACE ..................................................................................10
NORMAL SAMPLE RATE ........................................................................................... 10
8 X FS INPUT SAMPLE RATE.................................................................................... 11
MODES OF OPERATION ........................................................................................... 12
HARDWARE CONTROL MODES ............................................................................... 12
SOFTWARE CONTROL INTERFACE......................................................................... 13
REGISTER MAP ......................................................................................................... 13
MUTE MODES ............................................................................................................ 18
FILTER RESPONSES................................................................................................. 19
APPLICATIONS INFORMATION .........................................................................22
RECOMMENDED EXTERNAL COMPONENTS.......................................................... 22
RECOMMENDED EXTERNAL COMPONENTS VALUES........................................... 22
PACKAGE DIMENSIONS ....................................................................................25
IMPORTANT NOTICE..........................................................................................26
ADDRESS: .................................................................................................................. 26
w
PD Rev 4.0 May 2004
2
Production Data
WM8716
PIN CONFIGURATION
ML/I2S
MC/DM1
MD/DM0
MUTEB
MODE
LRCIN
DIN
1
2
3
4
5
6
7
8
9
10
28
27
26
25
24
23
22
21
20
19
18
17
16
15
BCKIN
CLKO
XTI
XTO
CSBIWO
RSTB
DGND
DVDD
AVDDR
AGNDR
VMIDR
ZERO
AVDDL
AGNDL
VMIDL
DIFFHW
VOUTL
AVDD
11
12
13
14
MODE8X
VOUTR
AGND
ORDERING INFORMATION
MOISTURE
SENSITIVITY
TEMPERATURE
PEAK SOLDERING
TEMPERATURE
DEVICE
RANGE
PACKAGE
LEVEL
28-pin SSOP
XWM8716EDS
XWM8716EDS/R
WM8716SEDS
WM8716SEDS/R
-25 to +85°C
-25 to +85°C
-25 to +85°C
-25 to +85°C
MSL1
240°C
240°C
260°C
260°C
28-pin SSOP
(tape and reel)
MSL1
MSL1
MSL1
28-pin SSOP
(lead free)
28-pin SSOP
(lead free, tape and reel)
Note:
Reel quantity = 2,000
w
PD Rev 4.0 May 2004
3
WM8716
Production Data
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified.
Wolfson tests its package types according to IPC/JEDEC J-STD-020B for Moisture Sensitivity to determine
acceptable storage conditions prior to surface mount assembly. These levels are:
MSL1 = unlimited floor life at <30°C / 85% Relative Humidity. Not normally stored in moisture barrier bag.
MSL2 = out of bag storage for 1 year at <30°C / 60% Relative Humidity. Supplied in moisture barrier bag.
MSL3 = out of bag storage for 168 hours at <30°C / 60% Relative Humidity. Supplied in moisture barrier bag.
CONDITION
MIN
MAX
Supply voltage
-0.3V
+7.0V
Reference input
VDD + 0.3V
Operating temperature range, TA
Storage temperature
°
°
+85 C
-25 C
°
°
+150 C
-65 C
RECOMMENDED OPERATING CONDITIONS
PARAMETER
SYMBOL
DVDD
TEST CONDITIONS
MIN
TYP
3.3 to 5
3.3 to 5
0
MAX
UNIT
V
Digital supply range
Analogue supply range
Ground
-10%
-10%
+10%
+10%
AVDD
V
AGND, DGND
V
Difference DGND to AGND
Analogue supply current
Digital supply current
Analogue supply current
Digital supply current
-0.3
0
+0.3
40
V
AVDD = 5V
DVDD = 5V
AVDD = 3.3V
DVDD = 3.3V
26
mA
mA
mA
mA
22
35
25
13
w
PD Rev 4.0 May 2004
4
Production Data
WM8716
ELECTRICAL CHARACTERISTICS
TEST CONDITIONS
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
DAC Circuit Specifications
SNR (See Notes 1 and 2)
THD (full-scale)
105
112
-92
-97
112
dB
dB
dB
dB
0dB FS
-1dB FS
(See Note 2)
Dynamic range
(See Note 2)
THD @ -60dB FS
105
Filter Characteristics (Sharp Roll-off)
Passband
0.0012 dB
-3dB
0.4535fs
dB
Stopband
0.491fs
30/fs
Passband ripple
0.0012
0.001
dB
dB
s
Stopband Attenuation
Delay time
f > 0.5465fs
-82
Filter Characteristics (Slow Roll-off)
Passband
0.001dB
-3dB
0.274fs
0.459fs
Stopband
Passband ripple
dB
dB
s
Stopband Attenuation
Delay time
f > 0.732fs
-82
9/fs
Internal Analogue Filter
Bandwidth
-3dB
195
kHz
dB
Passband edge response
Digital Logic Levels
20kHz
-0.043
Input LOW level
Input HIGH level
(See Note 3)
VIL0.8
VIH
2.0
V
V
Output LOW level
Output HIGH level
VOL
VOH
IOL = 2mA
IOH = 2mA
AVSS + 0.3V
AVDD - 0.3V
Analogue Output Levels
Output level
Into 10kohm, full scale 0dB,
(5V supply)
Into 10kohm, full scale 0dB,
(3.3V supply)
To midrail or AC coupled
(5V supply)
1.1
0.72
1
VRMS
VRMS
Minimum resistance load
kohms
ohms
To midrail or AC coupled
(3.3V supply)
600
Maximum capacitance load
Output DC level
5V or 3.3V
100
AVDD/2
0.5
pF
V
Gain mismatch channel to
channel
2
%FSR
Reference Levels
Potential divider resistance
10
kohms
AVDD to VMIDL/VMIDR and
VMIDL/VMIDR to AGND
Voltage at VMIDL/VMIDR
POR
AVSS/2
2.5V
POR threshold
V
Notes:
w
PD Rev 4.0 May 2004
5
WM8716
Production Data
1. Ratio of output level with 1kHz full scale input, to the output level with all zeros into the digital input, measured ‘A’
weighted over a 20Hz to 20kHz bandwidth.
2. All performance measurements done with 20kHz low pass filter. Failure to use such a filter will result in higher THD+N
and lower SNR and Dynamic Range readings than are found in the Electrical Characteristics. The low pass filter
removes out of band noise; although it is not audible it may affect dynamic specification values.
3. Except for Pin 12 (MODE8X) and Pin 17 (DIFFHW), where VIH = 2.6V min.
TERMINOLOGY
1. Signal-to-noise ratio (dB) (SNR) is a measure of the difference in level between the full-scale output and the output
with no signal applied.
2. Dynamic range (dB) (DNR) is a measure of the difference between the highest and lowest portions of a signal.
Normally a THD+N measurement at 60dB below full scale. The measured signal is then corrected by adding the 60dB
to it. (eg THD+N @ -60dB= -32dB, DR= 92dB).
3. THD+N (dB) is a ratio of the r.m.s. values, of (Noise + Distortion)/Signal.
4. Stop band attenuation (dB) is the degree to which the frequency spectrum is attenuated (outside audio band).
5. Channel Separation (dB) (also known as Cross-Talk) is a measure of the amount one channel is isolated from the
other. Normally measured by sending a full-scale signal down one channel and measuring the other.
6. Pass-Band Ripple - Any variation of the frequency response in the pass-band region.
LRCIN
tBCH
tBCL
tLB
BCKIN
DIN
tBCY
tBL
tDS
tDH
Figure 1 Audio Data Input Timing
TEST CONDITIONS
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Audio Data Input Timing Information
BCKIN pulse cycle time
BCKIN pulse width high
BCKIN pulse width low
tBCY
tBCH
tBCL
tBL
100
50
ns
ns
ns
ns
50
BCKIN rising edge
to LRCIN edge
30
LRCIN rising edge
tLB
30
ns
to BCKIN rising edge
DIN setup time
DIN hold time
tDS
tDH
30
30
ns
ns
tSCKIL
SCKI
tSCKIH
w
PD Rev 4.0 May 2004
6
Production Data
WM8716
Figure 2 System Clock Timing Requirements
TEST CONDITIONS
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
System Clock Timing Information
SCKI System clock pulse width high
SCKI System clock pulse width low
tSCKIH
tSCKIL
13
13
ns
ns
tMLL
tMHH
ML/I2S (PIN 28)
MC/DM1 (PIN 27)
MD/DM0 (PIN 26)
CSBIWO (PIN 23)
tMCY
tMCH
tMCL
tMLH
tMLS
tMDS
tMDH
LSB
tCSML
tMLCS
Figure 3 Program Register Input Timing
TEST CONDITIONS
AVDD, DVDD = 5V, AGND, DGND = 0V, TA = +25oC, fs = 48kHz, SCKI = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Program Register Input Information
MC/DM1 Pulse cycle time
MC/DM1 Pulse width LOW
MC/DM1 Pulse width HIGH
MD/DM0 Hold time
tMCY
tMCL
tMCH
tMDH
tMDS
tMLL
100
40
40
40
40
ns
ns
ns
ns
ns
ns
MD/DM0 Set-up time
ML/I2S Low level time
(See Note 3)
40 +
1SYSCLK
ML/I2S High level time
(See Note 3)
tMHH
40 +
1SYSCLK
ns
ML/I2S Hold time
tMLH
tMLS
tCSML
tMLCS
40
40
10
10
ns
ns
ns
ns
ML/I2S Set-up time
CSBIWO Low to ML/I2S low time
ML/I2S High to CSBIWO high time
Note:
3.
System clock cycle.
PIN DESCRIPTION
PIN
NAME
TYPE
DESCRIPTION
Hardware Mode
Normal Mode
Software
Mode
Differential Mode
8X Mode
1
LRCIN
Digital input
Sample rate clock input.
w
PD Rev 4.0 May 2004
7
WM8716
Production Data
PIN
NAME
TYPE
DESCRIPTION
Hardware Mode
Normal Mode
Software
Mode
Differential Mode
8X Mode
2
DIN
Digital input
Audio data serial input
DINL
Audio data
serial input
3
BCKIN
CLKO
Digital input
Digital output
Analogue input
Analogue output
Supply
Audio data bit clock input.
4
Oscillator buffered output (system clock).
Oscillator input.
5
XTI
6
XTO
Oscillator output.
7
DGND
DVDD
Digital ground supply.
8
Supply
Digital positive supply.
9
AVDDR
AGNDR
VMIDR
MODE8X
VOUTR
AGND
AVDD
Supply
Analogue positive supply.
Analogue ground supply.
Mid rail right channel.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Supply
Analogue output
Digital input
Analogue output
Supply
Internal pull-down, active high, 8 x fs mode.
Right channel DAC output.
Analogue ground supply.
Analogue positive supply.
Left channel DAC output.
Supply
VOUTL
DIFFHW
VMIDL
AGNDL
AVDDL
ZERO
Analogue output
Digital input
Analogue output
Supply
Internal pull-down, active high, differential mono mode
Mid rail left channel.
Analogue ground supply.
Supply
Analogue positive supply.
Digital output
Digital input
Infinite zero detect – active low. Open drain type output with active pull-down.
Reset input – active low. Internal pull-up.
RSTB
CSBIWO
Digital input
Internal pull-down
Wordlength:
Wordlength:
Wordlength:
Low for
serial
interface
operation.
Low for 16-bit data.
Low for 16-bit data.
Low for 20-bit data.
High for 24-bit data.
High for 20-bit
(normal) or 24-bit
I2S data.
High for 20-bit
(normal) or 24-bit
I2S data.
24
25
MODE
Digital input
Internal pull-up
Low for hardware
mode.
Low for left
mono mode. High for
right mono mode
DINR
High for
software
mode.
MUTEB
Digital input
Internal pull-up
Low to soft mute.
Low to soft mute.
Low to soft mute.
Low to soft
mute.
High for normal
operation.
High for normal
operation.
High for normal
operation.
High for
normal
operation.
Z for automute.
Z for automute.
Z for automute.
Z for
automute.
26
27
28
MD/DM0
MC/DM1
ML/I2S
Digital input
Internal pull-up
De-emphasis mode
select bit 0.
Low for no
de-emphasis.
LRP – LRCLK
polarity select.
Control serial
interface
data signal.
High for 44.1kHz
de-emphasis.
Digital input
Internal pull-up
De-emphasis mode
select bit 1.
Low for normal filter
operation.
Unused.
Control serial
interface
clock signal.
Leave unconnected.
High for filter slow
roll-off.
Digital input
Internal pull-up
Audio serial format:
Low – right justified.
High – I2S.
Audio serial format:
Low – right justified.
High – I2S.
Input data format:
Low – right justified.
High – left justified.
Control serial
interface
load signal.
Note: Digital input pins have Schmitt trigger input buffers except Pin 12 and Pin 17.
w
PD Rev 4.0 May 2004
8
Production Data
WM8716
DEVICE DESCRIPTION
The WM8716 is a high performance 128fs oversampling rate stereo DAC employing a novel 64 level
sigma delta DAC design which provides optimised signal-to-noise performance and clock jitter
tolerance. It is ideally suited to high quality audio applications such as CD, DVD-audio, home theatre
receivers and professional mixing consoles. The WM8716 supports sample rates from 8ks/s to
192ks/s.
The control functions of the WM8716 are either pin selected (hardware mode) or programmed via the
serial interface (software mode). Control functions that are available include: data input word length
and format selection (16-24 bits: I2S, left justified or right justified): de-emphasis sample rate
selection (48kHz, 44.1kHz and 32kHz); differential output modes; a software or hardware mute and
independently digitally controllable attenuation on both channels.
The digital filtering may be bypassed entirely by selecting MODE8X. Data is then input directly to the
DAC, bypassing the digital filters. Left and right channels are input separately, using the MODE pin
as the right channel input. This mode allows the use of alternative digital filters, such as the Pacific
Microsonics PMD100 HDCD filter.
In addition to the normal stereo operating mode the WM8716 may also be used in dual differential
mode with either the left or right channel (selectable) being output differentially. Two WM8716s can
then be used in parallel to implement a stereo channel, each supporting a single channel
differentially. This mode is available in both software and hardware modes and may also be used in
conjunction with MODE8X.
SYSTEM CLOCK
Sample rates from 8ks/s up to 96ks/s are available, and automatically selected, with a system clock
of 256fs, 384fs, 512fs or 768fs. In addition a system clock of 128fs or 192fs may be used, with
sample rates up to 192ks/s. With a 128fs or 192fs system clock 64x oversampling mode operation is
automatically selected and the first stage of the digital filter is bypassed.
WM8716 has an asynchronous monitor circuit, which in the event of removal of the master system
clock, resets the digital filters and analogue circuits, muting the output. Re-application of the system
clock re-starts the filters from an intitialised state. Control registers are not reset under this condition.
The WM8716 is tolerant of asynchronous bit clock jitter. The internal signal processing
resynchronises to the external LRCIN once the phase difference between bit clock and the system
clock exceeds half an LRCIN period. During this re-synch period the interpolating filters will either
miss or repeat an audio sample, minimising the audible effects of the operation. Table 1 shows the
typical system clock frequency inputs for the WM8716.
SAMPLING
RATE
SYSTEM CLOCK FREQUENCY (MHZ)
128fs
192fs
256fs
384fs
512fs
768fs
(LRCIN)
32kHz
44.1kHz
48kHz
4.096
5.6448
6.114
12.288
24.576
6.144
8.467
8.192
11.2896
12.288
24.576
12.288
16.9340
18.432
36.864
16.384
22.5792
24.576
24.576
33.8688
36.864
9.216
18.432
36.864
96kHz
Unavailable Unavailable
192kHz
Unavailable Unavailable Unavailable Unavailable
Table 1 System Clock Frequencies Versus Sampling Rate
w
PD Rev 4.0 May 2004
9
WM8716
Production Data
AUDIO DATA INTERFACE
Data may be input at a rate corresponding to the system clock having a rate of 256fs or 384fs or
512fs or 768fs, in which case an oversampling ratio of 128x is selected. Alternatively a rate of 128fs
or 192fs may be used, in which case the first filter stage is bypassed and an oversampling ratio of
64x results. Finally, in MODE8X, data may be input at 8x the normal rate, in which case separate
input pins are used to input the two stereo channels of data (unless DIFFHW mode and MODE8X
are both selected, in which case only a mono channel is converted differentially). In MODE8X all filter
stages are by-passed, prior to the sigma delta modulator. Data is input MSB first in all modes.
NORMAL SAMPLE RATE
In normal mode, the data is input serially on one pin for both left and right channels.
Data can be “right justified” meaning that the last 16, 20 or 24 bits (depending on chosen PCM word
length) that were clocked in prior to the transition on LRCIN are valid.
Alternatively data can be “left justified” (20 and 24-bit PCM data only), where the bits are clocked in
as the first 20 or 24 bits after a transition on LRCIN.
For the three I2S modes supported (16-bit, 20-bit and 24-bit PCM data), data is clocked “left justified”
except with one additional preceding clock cycle.
1/fs
LEFT
RIGHT
LRCIN (PIN 1)
BCKIN (PIN 3)
16-BIT RIGHT
JUSTIFIED
DIN (PIN 2)
B2 B1 B0
B2 B1 B0
B2 B1 B0
B0
B15
B2 B1 B0
B2 B1 B0
B2 B1 B0
B15
B2 B1 B0
B2 B1 B0
B2 B1 B0
20-BIT RIGHT
JUSTIFIED
DIN (PIN 2)
B19 B18 B17
B19 B18 B17
24-BIT RIGHT
JUSTIFIED
DIN (PIN 2)
B23 B22 B21 B20 B19
B23 B22 B21 B20 B19
24-BIT LEFT
JUSTIFIED
DIN (PIN 2)
B23 B22 B21
B4 B3 B2 B1 B0
B23 B22 B21
B4 B3 B2 B1 B0
20-BIT LEFT
JUSTIFIED
DIN (PIN 2)
B0
B19 B18 B17
B0
B19 B18 B17
B0
LEFT
RIGHT
LRCIN (PIN 1)
BCKIN (PIN 3)
16-BIT I2S
DIN (PIN 2)
B15
B23
B19
B2 B1 B0
B15
B23
B19
B2 B1 B0
B15
B23
B19
24-BIT I2S
DIN (PIN 2)
B6 B5 B4 B3 B2 B1 B0
B6 B5 B4 B3 B2 B1 B0
20-BIT I2S
DIN (PIN 2)
B2 B1 B0
B2 B1 B0
Figure 4 Audio Data Input Format
w
PD Rev 4.0 May 2004
10
Production Data
WM8716
8 X FS INPUT SAMPLE RATE
Due to the higher speed of the interface in 8 x fs mode, audio data is input on two pins. The MODE
pin (pin 24) is used as the second input for the right channel data and left data is input on DIN (pin 2).
In this mode, software control of the device is not available. The data can be input in two formats, left
or right justified, selectable by ML/I2S and two word lengths (20 or 24 bit), selectable by CSBIWO. In
both modes the data is always clocked in MSB first.
For left justified data the word start is marked by the falling edge of LRCIN. The data is clocked in on
the next 20/24 BCKIN rising edges. This format is compatible with devices such as the PMD100.
For right justified the data is justified to the rising edge of LRCIN and the data is clocked in on the
preceding 20/24 BCKIN rising edges before the LRCIN rising edge. This format is compatible with
devices such as the DF1704 or SM5842.
In both modes the polarity of LRCIN can be switched using MD/DM0.
Differential hardware mode can be used in conjunction with 8fs mode by setting the DIFFHW
pin high. In differential 8fs mode the data is input on DIN and output differentially. MODE is unused
and must be tied low.
1/8fs
LRCIN (PIN 1)
BCKIN (PIN 3)
LEFT AUDIO
B23
B23
B22 B21 B20
B19
B19
B2
B2
B1
B1
B0
B0
B23 B22
B23 B22
B21
B21
B20
B20
DATA DIN
(PIN 2)
RIGHT AUDIO
DATA MODE
(PIN 24)
B22 B21 B20
1/8fs
LRCIN (PIN 1)
BCKIN (PIN 3)
LEFT AUDIO
DATA DIN
(PIN 2)
B23
B23
B22
B22
B21 B20
B21 B20
B19
B19
B2
B2
B1
B1
B0
B0
RIGHT AUDIO
DATA MODE
(PIN 24)
Figure 5 Audio Data Input Format (8 x fs Operation)
w
PD Rev 4.0 May 2004
11
WM8716
Production Data
MODES OF OPERATION
Control of the various modes of operation is either by software control over the serial interface, or
by hard-wired pin control. Selection of software or hardware mode is via MODE pin. The following
functions may be controlled either via the serial control interface or by hard wiring of the
appropriate pins.
HARDWARE CONTROL MODES
When the MODE pin is held ‘low’ the following hardware modes of operation are available. In
Hardware differential mode or 8X mode some of these modes/control words are altered or
unavailable.
DE-EMPHASIS CONTROL
MDDM1
MCDMO
DE-EMPHASIS
PIN 27
PIN 26
L
L
H
L
Off
L
48kHz
44.1kHz
32kHz
H
H
H
Table 2 De-Emphasis Control
AUDIO INPUT FORMAT
CSBIIS
CSBIWO
DATA FORMAT
PIN 28
PIN 23
L
L
H
L
16 bit normal right justified
20 bit normal right justified
16 bit I2S
L
H
H
H
24 bit I2S
Table 3 Audio Input Format
SOFT MUTE
MUTEB
FUNCTION
PIN 25
L
Mute On (no output)
Automute
Z
H
Mute Off (normal operation)
Table 4 Soft Mute
A logic low on the MUTEB pin will cause the attenuation to ramp to infinite attenuation at a rate of
128/fs seconds per 0.5dB step. Setting MUTEB high will cause the attenuation to ramp back to its
previous value.
Leaving MUTEB undriven allows operation of the automute circuit in both hardware and software
modes. On receiving 1024 consecutive zero value audio samples, the analogue stage output mute is
asserted. This may be overdriven from the MUTEB pin to disable the automute function, or output as
a weak (10kohm) output signal.
w
PD Rev 4.0 May 2004
12
Production Data
WM8716
SOFTWARE CONTROL INTERFACE
The WM8716 can be controlled using a 3-wire serial interface. MD/DM0 (pin 26) is used for the
program data, MC/DM1 (pin 22) is used to clock in the program data and ML/I2S (pin 28) is use to
latch in the program data. The 3-wire interface protocol is shown in Figure 6. CSB/IWO (pin 23) must
be low when writing.
ML/I2S (PIN 28)
MC/DM1 (PIN 27)
MD/DM0 (PIN 26)
B15 B14 B13
B2
B1
B0
Figure 6 Three-Wire Serial Interface
REGISTER MAP
WM8716 controls the special functions using 4 program registers, which are 16-bits long. These
registers are all loaded through input pin MD/DM0. After the 16 data bits are clocked in, ML/I2S is
used to latch in the data to the appropriate register. Table 5 shows the complete mapping of the
4 registers. Note that in hardware differential mode and 8X modes, software control is not available.
The hardware differential mode (Diff[1:0]) clock loss detector disable (CDD) can only be accessed by
writing to M2[8:5] with the pattern 1111. Register M4 is then accessible by setting A[2:0] to 110.
B15
B14
B13
B12
B11
B10
B9
B8
B7
AL7
AR7
-
B6
AL6
AR6
-
B5
AL5
AR5
-
B4
AL4
AR4
IW1
B3
AL3
AR3
B2
AL2
AR2
B1
AL1
AR1
B0
AL0
AR0
M0
M1
M2
M3
M4
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
A2 (0) A1(0) A0(0) LDL
A2(0) A1(0) A0(1) LDR
A2(0) A1(1) A0(0)
A2(0) A1(1) A0(1) IZD
A2(1) A1(1) A0(0)
-
IW0 OPE DEM MUT
SF1
-
SF0
CK0 REV SR0 ATC LRP
I2S
-
CDD DIFF1 DIFF0
-
-
-
-
Table 5 Mapping of Program Registers
w
PD Rev 4.0 May 2004
13
WM8716
Production Data
REGISTER
BITS
NAME
AL[7:0]
LDL
DEFAULT
DESCRIPTION
0
[7:0]
FF
Attenuation data for left channel.
Attenuation data load control for left channel.
Attenuation data for right channel.
Attenuation data load control for right channel.
Left and right DACs soft mute control.
De-emphasis control.
8
[7:0]
8
0
1
2
AR[7:0]
LDR
FF
0
0
0
0
0
0
0
0
0
0
0
0
0
MUT
DEM
OPE
IW[1:0]
I2S
1
2
Left and right DACs operation control.
Input audio data bit select.
Audio data format select.
[4:3]
0
3
1
LRP
Polarity of LRCIN select.
2
ATC
Attenuator control.
3
SR0
Digital filter slow roll-off select.
Output phase reverse.
4
REV
5
CKO
SF[1:0]
IZD
CLKO frequency select.
[7:6]
8
Sampling rate select.
0
Infinite zero detection circuit control.
Differential output mode.
4
[5:4]
6
DIFF
CDD
0
0
Clock loss detector disable.
Table 6 Register Bit Descriptions
DAC OUTPUT ATTENUATION
The level of attenuation for eight bit code X, is given by:
0.5 ∗ (X - 255) dB, 1 ≤ X ≤ 255
- ∞dB (mute),
X = 0
Bit 8 in register 0 (LDL) is used to control the loading of attenuation data in B[7:0]. When LDL is set
to 0, attenuation data will be loaded into AL[7:0], but it will not affect the filter attenuation. LDR in
register 1 has the same function for right channel attenuation. Only when LDL or LDR is set to '1' will
the filter attenuation be updated. This permits left and right channel attenuation to be updated
simultaneously.
Attenuation level is controlled by AL[7:0] (left channel) or AR[7:0] (right channel). Attenuation levels
are given in Table 4.
X[7:0]
00(hex)
01(hex)
:
ATTENUATION LEVEL
- ∞dB (mute)
-127.0dB
:
:
:
FD(hex)
FE(hex)
FF(hex)
-1.0dB
-0.5dB
0.0dB
Table 7 Attenuation Control Level
Bit 2 in Reg3 is used to control the attenuator (ATC). When ATC is “high”, the attenuation data
loaded in program register 0 is used for both the left and the right channels. When ATC is low, the
attenuation data for each register is applied separately to left and right channels.
w
PD Rev 4.0 May 2004
14
Production Data
WM8716
SOFT MUTE
MUT
(REG2, B0)
L
Soft Mute off (normal operation)
Soft Mute on (no output)
H
Table 8 Soft Mute
Setting MUT causes the attenuation to ramp from the current value down to 00. The values held in
the attenuation registers are unchanged. When MUT is reset the attenuation will ramp back up to the
previous value. The ramp rate is 128/fs s/0.5dB step.
DIGITAL DE-EMPHASIS
DEM
(REG2, B1)
L
De-emphasis off
De-emphasis on
H
Table 9 Digital De-Emphasis
DAC OPERATION ENABLE
OPE
(REG2,B2)
L
Normal operation
H
DAC output forced to bipolar zero,
irrespective of input data.
Table 10 DAC Operation Enable
AUDIO DATA INPUT FORMAT
I2S
IW1
IW0
AUDIO INTERFACE
(REG3, B0)
(REG2, B4)
(REG2, B3)
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
16-bit standard right justified
20-bit standard right justified
24-bit standard right justified
24-bit left justified (MSB first)
16-bit I2S
24-bit I2S
20-bit I2S
20-bit left justified (MSB first)
Table 11 Audio Data Input Format
POLARITY OF LR INPUT CLOCK
The left channel data for a particular sample instant is always input first, then the right channel data.
LRP
(REG3, B1)
L
LR High – left channel
LR Low – right channel
LR Low – left channel
LR High – right channel
H
Table 12 Polarity of LR Input Clock
w
PD Rev 4.0 May 2004
15
WM8716
Production Data
INDIVIDUAL OR COMMON ATTENUTATION CONTROL
ATC
(REG3, B2)
L
Individual control
H
Common control from Reg0
Table 13 Individual or Common Attenuation Control
DIGITAL FILTER ROLL-OFF SELECTION
SRO
(REG3, B3)
L
Sharp
Slow
H
Table 14 Digital Filter Roll-Off Selection
ANALOGUE OUTPUT POLARITY REVERSAL
REV
(REG3, B4)
L
Normal
H
Inverted
Table 15 Analogue Output Polarity Reversal
CLKO OUTPUT FREQUENCY
CKO
(REG3, B5)
L
XTI
H
XTI/2
Table 16 CLKO Output Frequency
DE-EMPHASIS SAMPLE RATE
SF1
SF0
SAMPLE RATE
(REG3, B7)
(REG3, B6)
0
0
1
1
0
1
0
1
No de-emphasis
48kHz
44.1kHz
32kHz
Table 17 De-Emphasis Sample Rate
INFINITE ZERO DETECT
IZD
(REG3, B8)
L
Zero detect mute off
Zero detect mute on
H
Table 18 Infinite Zero Detect
w
PD Rev 4.0 May 2004
16
Production Data
WM8716
DIFFERENTIAL MONO MODE
Using bits 4 and 5, the differential output mode may be selected to be one of normal stereo, reversed
stereo, mono left or mono right, as shown in Table 19.
DIFF[1:0]
B[4:5])
00
DIFFERENTIAL OUTPUT MODE
Stereo
01
Stereo reverse.
10
Mono left – differential outputs.
VOUTL is left channel.
VOUTR is the negative of left channel.
Mono right – differential outputs.
VOUTL is the negative right channel.
VOUTR is right channel.
11
Table 19 Differential Output Modes
Using these controls a pair of WM8716 devices may be used to build a ‘dual differential’ stereo
implementation with higher performance and differential output.
CLOCK LOSS DETECTOR DISABLE
CDD (REG4, B6)
L
Clock loss detector on
Clock loss detector off
R
Table 20 Clock Loss Detector Disable
When the system clock is inactive for approximately 100µs, the clock loss detector circuit detects the
loss of clock and the analogue circuitry is forced into a mute condition and the digital filters reset.
Setting the CDD bit disables this behaviour.
w
PD Rev 4.0 May 2004
17
WM8716
Production Data
MUTE MODES
The device has various mute modes.
DIGITAL FILTER
ANALOGUE
ANRES
ANMUTE
Reg bit OPE = ‘1’
MUTEB pin
Unaffected
Asserted
Gain ramped to zero
Asserted when
gain = 0
On release volume ramps
to previous value
AUTOMUTE
Automute has no effect on digital
filters
Asserted after
1024 zero input
samples if IZD = 1
(detect 1024 zero
input samples)
Reg bit MUT
As MUTEB pin
As MUTEB pin
Asserted
Gain = 00
(left & right)
Gain = -∞dB
RAM initialise
Gain initialised to 0dB
Asserted
Asserted
Loss of system
clock
Not running (no clock). On clock
restart, filters initialised, RAM
initialised. Registers unchanged
Asserted
Asserted
No LRCLK or invalid
SCLK/LRCLK ratio
Filters initialised, RAM initialised.
Registers unchanged
Asserted
RB
Reset – gain initialised to 0dB
Reset
Asserted
Asserted
Asserted
Asserted
Power-on reset
Table 21 Mute Modes
•
•
ANRES is the reset to the switched capacitor filter.
ANMUTE is an analogue muting signal gating the analogue signal at the output (after the
SC filter)
•
•
AUTOMUTE is asserted when both the IZD register bit is asserted and the input audio data has
been zero on both left and right channels for 1024 input samples. The first non-zero sample de-
asserts.
Applying a logic low to MUTEB or setting MUT in Reg2 causes the gain registers to ramp to zero.
When a logic high is applied, the gain ramps slowly back up to the value held in the appropriate
attenuation register (AL or AR). The ramp rate = 128/fs s/0.5dB step.
If SOFTMUTE is set or
MUTEB=0 then GAINL and
GAINR are overridden to 00
GAINL[0:7]
Signal
Processing
GAINR[0:7]
SOFTMUTE
MUTEB
gain ramps between
previous and new gain
setting
Automute:
Detect 1024
zero input
samples
IZD
OPE
FREQ_INVALID
INIT
ANMUTE
ZERO
Figure 7 Mute Modes
w
PD Rev 4.0 May 2004
18
Production Data
WM8716
FILTER RESPONSES
Figure 8 Digital Filter Response (Sharp Roll-off Mode)
Figure 9 Digital Filter Response (Sharp Roll-off Mode)
Figure 10 Digital Filter Response (Slow Roll-off Mode)
Figure 11 Digital Filter Response (Slow Roll-off Mode)
0
-20
-40
-60
-80
-100
-120
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
Frequency (Fs)
Figure 12 Digital Filter Response 128fs Mode (192kHz
Sample Rate) Normal Mode – Solid, Slow Mode – Dashed
w
PD Rev 4.0 May 2004
19
WM8716
Production Data
1
0.8
0.6
0.4
0.2
0
1
0.8
0.6
0.4
0.2
0
-0.2
-0.2
-0.4
-0.4
0
10
20
30
40
50
60
0
10
20
30
40
50
60
Time (input samples)
Time (input samples)
Figure 13 Impulse Response (Normal Roll-off,
no De-emphasis)
Figure 14 Impulse Response (Slow Roll-off,
no De-emphasis)
0.0
-1.0
-2.0
-3.0
-4.0
-5.0
-6.0
-7.0
-8.0
-9.0
-10.0
0.0
-1.0
-2.0
-3.0
-4.0
-5.0
-6.0
-7.0
-8.0
-9.0
-10.0
0
2000
4000
6000
8000
10000
12000
14000
16000
0
5000
10000
15000
20000
Frequency (Fs)
Frequency (Fs)
Figure 15 De-emphasis frequency response (fs=32kHz)
Figure 15 De-emphasis frequency response (fs=44.1kHz)
0.0
-1.0
-2.0
-3.0
-4.0
-5.0
-6.0
-7.0
-8.0
-9.0
-10.0
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
0
2000
4000
6000
8000
10000 12000 14000 16000 18000 20000
0
2000
4000
6000
8000
10000
12000
14000
16000
Frequency (Fs)
Frequency (Fs)
Figure 16 De-emphasis frequency response (fs=48kHz)
Figure 17 De-emphasis frequency response error
(fs=32kHz)
w
PD Rev 4.0 May 2004
20
Production Data
WM8716
0.4
0.3
0.4
0.3
0.2
0.2
0.1
0.1
0.0
0.0
-0.1
-0.2
-0.3
-0.4
-0.1
-0.2
-0.3
-0.4
0
2000
4000
6000
8000
10000 12000 14000 16000 18000 20000
0
2000
4000
6000
8000
10000 12000 14000 16000 18000 20000
Frequency (Fs)
Frequency (Fs)
Figure 18 De-emphasis frequency response error
(fs=44.1kHz)
Figure 19 De-emphasis frequency response error
(fs=48kHz)
w
PD Rev 4.0 May 2004
21
WM8716
Production Data
APPLICATIONS INFORMATION
RECOMMENDED EXTERNAL COMPONENTS
DVDD
AVDD
8
15
9
DVDD
AVDD
AVDDR
AVDDL
+
C1
C2
7
20
DGND
+
C3
C4
C5
C6
DGND
14
10
19
AGND
AGNDR
AGNDL
AGND
28
27
26
23
22
ML/I2S
MC/DM1
MD/DM0
CSB/IWO
RSTB
Software I/F or
Hardware Control
C7
13
16
VOUTR
VOUTL
AC-Coupled Output
to External LPF
C8
12
17
24
25
MODE8X
WM8716
AVDD
R1
DIFFHW
MODE
21
ZERO
11
18
MUTEB
VMIDR
VMIDL
+
C
C12
+
11
1
2
3
LRCIN
DIN
C9
C10
Audio Serial Data I/F
BCKIN
AGND
4
CLKO
XTI Buffered Output
5
6
XTI
System Clock Input or
Oscillator Input/Output
XTO
NOTES:
1. AGND and DGND should be connected as close to the WM8716 as possible.
2. C2 to C5, C9 and C11 should be positioned as close to the WM8716 as possible.
3. Capacitor type used can have a big effect on device performance. It is
recommended that capacitors with very low ESR are used and that ceramics
are either NPO or COG type material to achieve best performance from the
WM8716.
Figure 20 External Components Diagram
RECOMMENDED EXTERNAL COMPONENTS VALUES
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1 and C6
C2 to C5
10µF
0.1µF
10µF
0.1µF
10µF
10kΩ
De-coupling for DVDD and AVDD.
De-coupling for DVDD and AVDD.
C7 and C8
C9 and C11
C10 and C12
R1
Output AC coupling caps to remove VMID DC level from outputs.
Reference de-coupling capacitors for VMIDR and VMIDL.
Resistor to AVDD for open drain output operation.
Table 22 External Components Description
w
PD Rev 4.0 May 2004
22
Production Data
WM8716
RIGHT DAC
DVDD
+
AVDD
8
7
15
9
DVDD
DGND
AVDD
AVDDR
AVDDL
20
+
1
2
3
14
10
19
LRCIN
DIN
LRCIN
DIN
AGND
AGNDR
AGNDL
AUDIO
SERIAL
DATA
BCKIN
BCKIN
5
6
4
13
16
21
SCKI
XTI
VOUTR
VOUTL
ZERO
+
-
RIGHT
OUTPUT
DATA
XTO
CLKO
LPF
WM8716
DVDD
24
25
22
MODE
MUTEB
RSTB
11
18
VMIDR
VMIDL
+
+
28
27
26
23
ML/I2S
MC/DM1
MD/DM0
CSB/IWO
Hardware
Control
12
17
MODE8X
DIFFHW
AVDD
LEFT DAC
DVDD
+
AVDD
8
7
15
9
DVDD
DGND
AVDD
AVDDR
AVDDL
20
+
1
2
3
14
10
19
LRCIN
DIN
AGND
AGNDR
AGNDL
BCKIN
5
6
4
13
16
21
XTI
VOUTR
VOUTL
ZERO
+
-
LEFT
OUTPUT
DATA
XTO
CLKO
LPF
WM8716
DVDD
24
25
22
MODE
MUTEB
RSTB
11
18
VMIDR
VMIDL
+
+
28
27
26
23
ML/I2S
MC/DM1
MD/DM0
CSB/IWO
12
17
MODE8X
DIFFHW
AVDD
NOTE:
1. MODE selects left/right data. High for right, Low for left.
Figure 21 Example of 2 WM8716 Stereo DACs Configured in Hardware Differential Mode to Provide an Optimum
Performance Stereo Output
w
PD Rev 4.0 May 2004
23
WM8716
Production Data
+VDD
MODE8X
XTI
SCKI
PMD-100
XTI
Serial Interface Data
WCKO
BCKO
DOL
LRCIN
BCKIN
DIN
LRCIN
BCKIN
DIN
LRCI
BCKI
DIN
VOUTL
VOUTR
DOR
MODE
PROG
WM8716
+VDD
(STAND ALONE
MODE)
ML/I2S
CSB/IWO
MD/DM0
MUTEB
NOTES:
1. ML/I2S selects left or right justified inputs.
2. MD/DM0 selects LRCLK polarity.
3. CSBIWO selects 20 or 24-bit data.
Figure 22 Example of WM8716 in MODE8X Operation
w
PD Rev 4.0 May 2004
24
Production Data
WM8716
PACKAGE DIMENSIONS
DS: 28 PIN SSOP (10.2 x 5.3 x 1.75 mm)
DM007.D
b
e
28
15
E1
E
GAUGE
PLANE
Θ
14
1
D
0.25
L
c
A1
L1
A A2
-C-
0.10 C
SEATING PLANE
Dimensions
(mm)
NOM
-----
Symbols
MIN
-----
0.05
1.65
0.22
0.09
9.90
MAX
A
A1
A2
b
c
D
e
E
E1
L
2.0
0.25
1.85
0.38
0.25
10.50
-----
1.75
0.30
-----
10.20
0.65 BSC
7.80
7.40
5.00
0.55
8.20
5.60
0.95
5.30
0.75
L1
θ
0.125 REF
0o
4o
8o
JEDEC.95, MO-150
REF:
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS.
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.20MM.
D. MEETS JEDEC.95 MO-150, VARIATION = AH. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
w
PD Rev 4.0 May 2004
25
WM8716
Production Data
IMPORTANT NOTICE
Wolfson Microelectronics plc (WM) reserve the right to make changes to their products or to discontinue any product or
service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing
orders, that information being relied on is current. All products are sold subject to the WM terms and conditions of sale
supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation
of liability.
WM warrants performance of its products to the specifications applicable at the time of sale in accordance with WM’s
standard warranty. Testing and other quality control techniques are utilised to the extent WM deems necessary to support
this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by
government requirements.
In order to minimise risks associated with customer applications, adequate design and operating safeguards must be used
by the customer to minimise inherent or procedural hazards. Wolfson products are not authorised for use as critical
components in life support devices or systems without the express written approval of an officer of the company. Life
support devices or systems are devices or systems that are intended for surgical implant into the body, or support or
sustain life, and whose failure to perform when properly used in accordance with instructions for use provided, can be
reasonably expected to result in a significant injury to the user. A critical component is any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
WM assumes no liability for applications assistance or customer product design. WM does not warrant or represent that
any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual
property right of WM covering or relating to any combination, machine, or process in which such products or services might
be or are used. WM’s publication of information regarding any third party’s products or services does not constitute WM’s
approval, license, warranty or endorsement thereof.
Reproduction of information from the WM web site or datasheets is permissible only if reproduction is without alteration and
is accompanied by all associated warranties, conditions, limitations and notices. Representation or reproduction of this
information with alteration voids all warranties provided for an associated WM product or service, is an unfair and deceptive
business practice, and WM is not responsible nor liable for any such use.
Resale of WM’s products or services with statements different from or beyond the parameters stated by WM for that
product or service voids all express and any implied warranties for the associated WM product or service, is an unfair and
deceptive business practice, and WM is not responsible nor liable for any such use.
ADDRESS:
Wolfson Microelectronics plc
Westfield House
26 Westfield Road
Edinburgh
EH11 2QW
Tel :: +44 (0)131 272 7000
Fax :: +44 (0)131 272 7001
Email :: sales@wolfsonmicro.com
w
PD Rev 4.0 May 2004
26
厂商 型号 描述 页数 下载

WOLFSON

 		XWM8146CDW/V 12位（8 + 4位）的线性传感器图像处理器[ 12-bit(8+4-bit) Linear Sensor Image Processor ] 17 页

WOLFSON

 		XWM8148CFT/V 12位/ 12MSPS CCD / CIS模拟前端/数字转换器[ 12-bit/12MSPS CCD/CIS Analogue Front End/Digitiser ] 43 页

WOLFSON

 		XWM8170CFT/V 3.3V集成信号处理器的面阵CCD的[ 3.3V Integrated Signal Processor for Area Array CCDs ] 41 页

WOLFSON

 		XWM8181CDW 12位2MSPS串行输出CIS / CCD数字转换器[ 12-bit 2MSPS Serial Output CIS/CCD Digitiser ] 14 页

WOLFSON

 		XWM8190CDW/V （ 8 + 6 ）位输出14位CIS / CCD AFE /数字转换器[ (8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser ] 25 页

WOLFSON

 		XWM8191CFT 14位6MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 6MSPS CIS/CCD Analogue Front End/Digitiser ] 27 页

WOLFSON

 		XWM8192 （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

WOLFSON

 		XWM8192CDW/V （88）位输出16位CIS / CCD AFE /数字转换器[ (88) Bit Output 16-bit CIS/CCD AFE/Digitiser ] 24 页

CIRRUS

 		XWM8194CDW/V [ Analog Circuit, 1 Func, CMOS, PDSO28, 7.50 MM, 1.27 MM PITCH, MS-013AE, SOIC-28 ] 27 页

WOLFSON

 		XWM81955CFT/RV 14位12MSPS CIS / CCD模拟前端/数字转换器[ 14-bit 12MSPS CIS/CCD Analogue Front End/Digitiser ] 33 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201502s
