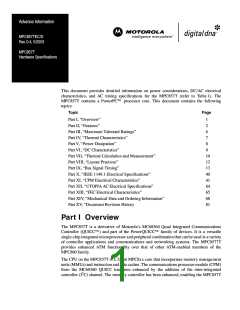

Advance Information
MPC857TEC/D
Rev. 0.4, 5/2003
MPC857T
Hardware Specifications
This document provides detailed information on power considerations, DC/AC electrical
characteristics, and AC timing specifications for the MPC857T (refer to Table 1). The
MPC857T contains a PowerPC™ processor core. This document contains the following
topics:
Topic
Page
Part I, “Overview”
1
Part II, “Features”
2
Part III, “Maximum Tolerated Ratings”
Part IV, “Thermal Characteristics”
Part V, “Power Dissipation”
6
7
8
Part VI, “DC Characteristics”
9
Part VII, “Thermal Calculation and Measurement”
Part VIII, “Layout Practices”
10
12
13
40
41
64
65
68
81
Part IX, “Bus Signal Timing”
Part X, “IEEE 1149.1 Electrical Specifications”
Part XI, “CPM Electrical Characteristics”
Part XII, “UTOPIA AC Electrical Specifications”
Part XIII, “FEC Electrical Characteristics”
Part XIV, “Mechanical Data and Ordering Information”
Part XV, “Document Revision History
Part I Overview
The MPC857T is a derivative of Motorola’s MC68360 Quad Integrated Communications
Controller (QUICC™) and part of the PowerQUICC™ family of devices. It is a versatile
single-chip integrated microprocessor and peripheral combination that can be used in a variety
of controller applications and communications and networking systems. The MPC8577T
provides enhanced ATM functionality over that of other ATM-enabled members of the
MPC860 family.
The CPU on the MPC857T is a 32-bit MPC8xx core that incorporates memory management
units (MMUs) and instruction and data caches. The communications processor module (CPM)
from the MC68360 QUICC has been enhanced by the addition of the inter-integrated
2
controller (I C) channel. The memory controller has been enhanced, enabling the MPC857T
Features
to support any type of memory, including high-performance memories and new types of DRAMs. A
PCMCIA socket controller supports up to two sockets. A real-time clock has also been integrated.
Table 1 shows the functionality supported by the MPC857T and MPC857DSL.
Table 1. MPC857T Functionality
Cache
Ethernet
Part
SCC
Instruction
Cache
Data Cache
10T
10/100
MPC857T
4 Kbyte
4 Kbyte
4 Kbyte
4 Kbyte
Up to 4
Up to 4
1
1
1
1
MPC857DSL
Unless otherwise specified, the PowerQUICC unit is referred to as the MPC857T in this document.
Part II Features
The following list summarizes the key MPC857T features:
•
Embedded single-issue, 32-bit MPC8xx core (implementing the PowerPC architecture) with
thirty-two 32-bit general-purpose registers (GPRs)
— The core performs branch prediction with conditional prefetch, without conditional execution
— 4-Kbyte data cache and 4- Kbyte instruction cache (see Table 1).
– 4-Kbyte instruction cache is two-way, set-associative with 128 sets.
– 4-Kbyte data cache is two-way, set-associative with 128 sets.
– Cache coherency for both instruction and data caches is maintained on 128-bit (4-word)
cache blocks.
– Caches are physically addressed, implement a least recently used (LRU) replacement
algorithm, and are lockable on a cache block basis.
— MMU with 32-entry TLB, fully associative instruction and data TLBs
— MMU supports multiple page sizes of 4, 16, and 512 Kbytes, and 8 Mbytes; 16 virtual address
spaces and 16 protection groups
— Advanced on-chip-emulation debug mode
•
The MPC857T provides enhancedATM functionality over that of the MPC860SAR. The MPC857T
adds major new features available in “enhanced SAR” (ESAR) mode, including the following:
— Multiple APC priority levels available to support a range of traffic pace requirements
— Port-to-port switching capability without the need for RAM-based microcode
— Simultaneous MII (100Base-T) and UTOPIA (half-duplex) capability
— Optional statistical cell counters per PHY
2
— Parameter RAM for both SPI and I C can be relocated without RAM-based microcode.
— Supports full-duplex UTOPIA master (ATM side) operation using a “split” bus
Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits)
32 address lines
•
•
•
•
Operates at up to 80 MHz
Memory controller (eight banks)
2
MPC857THardwareSpecifications
MOTOROLA
Features
— Contains complete dynamic RAM (DRAM) controller
— Each bank can be a chip select or RAS to support a DRAM bank
— Up to 30 wait states programmable per memory bank
— Glueless interface to DRAM, SIMMS, SRAM, EPROMs, flash EPROMs, and other memory
devices.
— DRAM controller programmable to support most size and speed memory interfaces
— Four CAS lines, four WE lines, one OE line
— Boot chip-select available at reset (options for 8-, 16-, or 32-bit memory)
— Variable block sizes (32 Kbyte–256 Mbyte)
— Selectable write protection
— On-chip bus arbitration logic
•
General-purpose timers
— Four 16-bit timers or two 32-bit timers
— Gate mode can enable/disable counting
— Interrupt can be masked on reference match and event capture
Fast Ethernet controller (FEC)
•
•
— Simultaneous MII (100Base-T) and UTOPIA operation when using the UTOPIA multiplexed
bus.
System integration unit (SIU)
— Bus monitor
— Software watchdog
— Periodic interrupt timer (PIT)
— Low-power stop mode
— Clock synthesizer
— Decrementer, time base, and real-time clock (RTC) from the PowerPC architecture
— Reset controller
— IEEE 1149.1 test access port (JTAG)
Interrupts
•
•
— Seven external interrupt request (IRQ) lines
— 12 port pins with interrupt capability
— 20 internal interrupt sources
— Programmable highest priority request
Communications processor module (CPM)
— RISC controller
— Communication-specific commands (for example, GRACEFUL STOP TRANSMIT, ENTER HUNT
MODE, and RESTART TRANSMIT)
— Supports continuous mode transmission and reception on all serial channels
— Up to 8-Kbytes of dual-port RAM
— 10 serial DMA (SDMA) channels
— Three parallel I/O registers with open-drain capability
Four baud rate generators
•
MOTOROLA
MPC857THardwareSpecifications
3
Features
— Independent (can be connected to any SCC or SMC)
— Allow changes during operation
— Autobaud support option
•
One SCC (serial communication controller) (The MPC857DSL supports ethernet only)
— Serial ATM capability
— Ethernet/IEEE 802.3 supporting full 10-Mbps operation
— HDLC/SDLC
— HDLC bus (implements an HDLC-based local area network (LAN))
— Asynchronous HDLC to support PPP (point-to-point protocol)
— AppleTalk
— Universal asynchronous receiver transmitter (UART)
— Synchronous UART
— Serial infrared (IrDA)
— Binary synchronous communication (BISYNC)
— Totally transparent (bit streams)
— Totally transparent (frame based with optional cyclic redundancy check (CRC))
Two SMCs (serial management channels) (The MPC857DSL has one SMC, for UART)
— UART
•
— Transparent
— General circuit interface (GCI) controller
— Can be connected to the time-division multiplexed (TDM) channel
One serial peripheral interface (SPI)
•
•
•
— Supports master and slave modes
— Supports multiple-master operation on the same bus
2
One inter-integrated circuit (I C) port
— Supports master and slave modes
— Multiple-master environment support
Time-slot assigner (TSA) (The MPC857DSL does not have the TSA)
— Allows SCC and SMCs to run in multiplexed and/or non-multiplexed operation
— Supports T1, CEPT, PCM highway, user defined
— 1- or 8-bit resolution
— Allows independent transmit and receive routing, frame synchronization, clocking
— Allows dynamic changes
— Can be internally connected to three serial channels (one SCC and two SMCs)
Parallel interface port (PIP)
•
•
— Centronics interface support
— Supports fast connection between compatible ports on MPC857T or MC68360
PCMCIA interface
— Master (socket) interface, release 2.1 compliant
— Supports two independent PCMCIA sockets
4
MPC857THardwareSpecifications
MOTOROLA
Features
— 8 memory or I/O windows supported
Low power support
•
— Full on—All units fully powered
— Doze—Core functional units disabled except time base decrementer, PLL, memory controller,
RTC, and CPM in low-power standby
— Sleep—All units disabled except RTC, PIT, time base, and decrementer with PLL active for fast
wake up
— Deep sleep—All units disabled including PLL except RTC, PIT, time base, and decrementer.
— Power down mode— All units powered down except PLL, RTC, PIT, time base and
decrementer
•
Debug interface
— Eight comparators: four operate on instruction address, two operate on data address, and two
operate on data
— Supports conditions: = ≠ < >
— Each watchpoint can generate a break point internally
3.3 V operation with 5-V TTL compatibility except EXTAL and EXTCLK
357-pin ball grid array (BGA) package
•
•
The MPC857T is comprised of three modules that each use the 32-bit internal bus—the MPC8xx core, the
system integration unit (SIU), and the communication processor module (CPM). The MPC857T block
diagram is shown in Figure 1.
MOTOROLA
MPC857THardwareSpecifications
5
Maximum Tolerated Ratings
4-Kbyte
Instruction Cache
Instruction
Bus
System Interface Unit (SIU)
Unified
Bus
Memory Controller
Instruction MMU
32-Entry ITLB
Embedded
MPC8xx
Internal BusExternal Bus
Interface
Unit
Interface
Unit
Processor
4-Kbyte
Data Cache
Load/Store
Bus
Core
System Functions
Real-Time Clock
Data MMU
32-Entry DTLB
PCMCIA/ATA Interface
Fast Ethernet
Controller
DMAs
FIFOs
4
Interrupt
8-Kbyte
10 Virtual
Serial
Parallel I/O
Timers ControllersDual-Port RAM
10/100
Base-T
Media
Access
Control
and
2
Independent
DMA
Channels
4 Baud Rate
Generators
32-Bit RISC Controller
and Program
ROM
Parallel Interface
Port and UTOPIA
Timers
MII
SCC1
SMC1 SMC2*
SPI
I2C
Time Slot Assigner
Serial Interface
Figure 1. MPC857T Block Diagram
NOTE
The MPC857DSL does not contain SMC2 nor the Time Slot Assigner, and
provides eight SDMA channels.
Part III Maximum Tolerated Ratings
This section provides the maximum tolerated voltage and temperature ranges for the MPC857T. Table 2
provides the maximum ratings.
6
MPC857THardwareSpecifications
MOTOROLA
Thermal Characteristics
Table 2. Maximum Tolerated Ratings
(GND = 0V)
Rating
Symbol
VDDH
Value
Unit
1
Supply voltage
-0.3 to 4.0
-0.3 to 4.0
-0.3 to 4.0
-0.3 to 4.0
V
V
VDDL
KAPWR
VDDSYN
V
V
2
Input voltage
V
GND-0.3 to VDDH
V
in
3
Temperature (standard)
T
0
˚C
˚C
˚C
˚C
˚C
A(min)
T
95
j(max)
3
Temperature (extended)
T
-40
A(min)
T
105
j(max)
stg
Storage temperature range
T
-55 to +150
1
The power supply of the device must start its ramp from 0.0 V.
2
Functional operating conditions are provided with the DC electrical specifications in Table 5.
Absolute maximum ratings are stress ratings only; functional operation at the maxima is not
guaranteed. Stress beyond those listed may affect device reliability or cause permanent damage
to the device.
Caution: All inputs cannot be more than 2.5 V greater than the supply voltage. This restriction
applies to power-up and normal operation (that is, if the MPC857T is unpowered, voltage greater
than 2.5 V must not be applied to its inputs).
3
Minimum temperatures are guaranteed as ambient temperature, T . Maximum temperatures are
A
guaranteed as junction temperature, T .
j
This device contains circuitry protecting against damage due to high-static voltage or electrical fields;
however, it is advised that normal precautions be taken to avoid application of any voltages higher than
maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused
inputs are tied to an appropriate logic voltage level (for example, either GND or V ).
CC
Part IV Thermal Characteristics
Table 3 shows the thermal characteristics for the MPC857T.
MOTOROLA
MPC857THardwareSpecifications
7
Power Dissipation
Table 3. MPC857T Thermal Resistance Data
Rating
Environment
Single layer board (1s)
Symbol
Value
Unit
1
2
Junction to ambient
Natural Convection
R
40
25
32
21
15
7
°C/W
θJA
3
Four layer board (2s2p)
Single layer board (1s)
Four layer board (2s2p)
R
θJMA
3
Air flow (200 ft/min)
R
R
θJMA
3
θJMA
4
Junction to board
R
θJB
θJC
5
Junction to case
R
6
Junction to package top Natural Convection
Air flow (200 ft/min)
Ψ
2
JT
JT
Ψ
3
1
Junction temperature is a function of on-chip power dissipation, package thermal resistance, mounting site
(board) temperature, ambient temperature, air flow, power dissipation of other components on the board,
and board thermal resistance.
2
3
4
Per SEMI G38-87 and JEDEC JESD51-2 with the single layer board horizontal.
Per JEDEC JESD51-6 with the board horizontal.
Thermal resistance between the die and the printed circuit board per JEDEC JESD51-8. Board temperature
is measured on the top surface of the board near the package.
5
Indicates the average thermal resistance between the die and the case top surface as measured by the cold
plate method (MIL SPEC-883 Method 1012.1) with the cold plate temperature used for the case
temperature. For exposed pad packages where the pad would be expected to be soldered, junction to case
thermal resistance is a simulated value from the junction to the exposed pad without contact resistance.
6
Thermal characterization parameter indicating the temperature difference between package top and the
junction temperature per JEDEC JESD51-2.
Part V Power Dissipation
Table 4 provides power dissipation information. The modes are 1:1, where CPU and bus speeds are equal,
and 2:1 mode, where CPU frequency is twice bus speed.
Table 4. Power Dissipation (P )
D
1
2
Die Revision
Frequency
Typical
Maximum
Unit
0
50 MHz
66 MHz
66 MHz
80 MHz
656
TBD
722
851
735
TBD
762
909
mW
mW
mW
mW
(1:1 Mode)
0
(2:1 Mode)
1
2
Typical power dissipation is measured at 3.3V.
Maximum power dissipation is measured at 3.5V.
NOTE
Values in Table 4 represent VDDL based power dissipation and do not
include I/O power dissipation over VDDH. I/O power dissipation varies
widely by application due to buffer current, depending on external
circuitry.
8
MPC857THardwareSpecifications
MOTOROLA
DC Characteristics
Part VI DC Characteristics
Table 5 provides the DC electrical characteristics for the MPC857T.
Table 5. DC Electrical Specifications
Uni
t
Characteristic
Symbol
Min
Max
3.6
Operating voltage at 40 MHz or less
VDDH, VDDL, VDDSYN
3.0
V
V
V
KAPWR (power-down mode) 2.0
3.6
KAPWR (all other operating VDDH -
VDDH
modes)
0.4
Operating voltage greater than 40 MHz
VDDH, VDDL, KAPWR,
VDDSYN
3.135
3.465
V
KAPWR (power-down mode) 2.0
3.6
V
V
KAPWR (all other operating VDDH -
VDDH
modes)
0.4
Input High Voltage (all inputs except EXTAL and EXTCLK) VIH
2.0
5.5
0.8
V
V
Input Low Voltage
VIL
GND
EXTAL, EXTCLK Input High Voltage
VIHC
0.7*(VCC) VCC+0.3 V
Input Leakage Current, Vin = 5.5V (Except TMS, TRST,
DSCK and DSDI pins)
I
I
I
—
—
—
100
µA
µA
µA
in
In
In
Input Leakage Current, Vin = 3.6V (Except TMS, TRST,
DSCK, and DSDI)
10
Input Leakage Current, Vin = 0V (Except TMS, TRST,
DSCK and DSDI pins)
10
1
Input Capacitance
C
—
20
—
pF
V
in
Output High Voltage, IOH = -2.0 mA, VDDH = 3.0V
Except XTAL, XFC, and Open drain pins
VOH
2.4
Output Low Voltage
VOL
—
0.5
V
IOL = 2.0 mA (CLKOUT)
2
IOL = 3.2 mA
IOL = 5.3 mA
3
IOL = 7.0 mA (TXD1/PA14, PA12)
IOL = 8.9 mA (TS, TA, TEA, BI, BB, HRESET, SRESET)
1
Input capacitance is periodically sampled.
2
A(0:31), TSIZ0/REG, TSIZ1, D(0:31), DP(0:3)/IRQ(3:6), RD/WR, BURST, RSV/IRQ2, IP_B(0:1)/IWP(0:1)/VFLS(0:1),
IP_B2/IOIS16_B/AT2, IP_B3/IWP2/VF2, IP_B4/LWP0/VF0, IP_B5/LWP1/VF1, IP_B6/DSDI/AT0, IP_B7/PTR/AT3,
RXD1 /PA15, PA13, PA11, PA10, L1TXDA/PA9, L1RXDA/PA8, TIN1/L1RCLKA/BRGO1/CLK1/PA7,
BRGCLK1/TOUT1/CLK2/PA6, TIN2/L1TCLKA/BRGO2/CLK3/PA5, TOUT2/CLK4/PA4, TIN3/BRGO3/CLK5/PA3,
BRGCLK2/TOUT3/CLK6/PA2, TIN4/BRGO4/CLK7/PA1, TOUT4/CLK8/PA0, REJCT1/SPISEL/PB31, SPICLK/PB30,
SPIMOSI/PB29, BRGO4/SPIMISO/PB28, BRGO1/I2CSDA/PB27, BRGO2/I2CSCL/PB26, SMTXD1/PB25,
SMRXD1/PB24, SMSYN1/SDACK1/PB23, SMSYN2/SDACK2/PB22, SMTXD2/PB21, SMRXD2/L1CLKOA/PB20,
L1ST1/RTS1/PB19, L1ST2/PB18, L1ST3/PB17, L1ST4/L1RQA/PB16, BRGO3/PB15, RSTRT1/PB14,
L1ST1/RTS1/DREQ0/PC15, L1ST2/DREQ1/PC14, L1ST3/PC13, L1ST4/L1RQA/PC12, CTS1/PC11,
TGATE1/CD1/PC10, PC9, TGATE2/PC8, SDACK2/PC7, PC6, SDACK1/L1TSYNCA/PC5, L1RSYNCA/PC4, PD15,
PD14, PD13, PD12, PD11, PD10, PD9, PD8, PD5, PD6, PD7, PD4, PD3, MII_MDC, MII_TX_ER, MII_EN, MII_MDIO,
MII_TXD[0:3]
MOTOROLA
MPC857THardwareSpecifications
9
Thermal Calculation and MeasurementEstimation with Junction-to-Ambient Thermal Resistance
3
BDIP/GPL_B(5), BR, BG, FRZ/IRQ6, CS(0:5), CS(6)/CE(1)_B, CS(7)/CE(2)_B, WE0/BS_B0/IORD,
WE1/BS_B1/IOWR, WE2/BS_B2/PCOE, WE3/BS_B3/PCWE, BS_A(0:3), GPL_A0/GPL_B0, OE/GPL_A1/GPL_B1,
GPL_A(2:3)/GPL_B(2:3)/CS(2:3), UPWAITA/GPL_A4, UPWAITB/GPL_B4, GPL_A5, ALE_A, CE1_A, CE2_A,
ALE_B/DSCK/AT1, OP(0:1), OP2/MODCK1/STS, OP3/MODCK2/DSDO, BADDR(28:30)
Part VII Thermal Calculation and Measurement
For the following discussions, P = (VDD x IDD) + PI/O, where PI/O is the power dissipation of the I/O
D
drivers.
7.1Estimation with Junction-to-Ambient Thermal
Resistance
An estimation of the chip junction temperature, TJ, in °C can be obtained from the equation:
T = T +( R
x P )
D
J
A
θJA
where:
T = ambient temperature ºC
A
R
= package junction-to-ambient thermal resistance (ºC/W)
θJA
P = power dissipation in package
D
The junction-to-ambient thermal resistance is an industry standard value which provides a quick and easy
estimation of thermal performance. However, the answer is only an estimate; test cases have demonstrated
that errors of a factor of two (in the quantity T -T ) are possible.
J
A
7.2 Estimation with Junction-to-Case Thermal
Resistance
Historically, the thermal resistance has frequently been expressed as the sum of a junction-to-case thermal
resistance and a case-to-ambient thermal resistance:
R
= R
+ R
θJA
θJC θCA
where:
R
= junction-to-ambient thermal resistance (ºC/W)
= junction-to-case thermal resistance (ºC/W)
= case-to-ambient thermal resistance (ºC/W)
θJA
θJC
θCA
R
R
R
is device related and cannot be influenced by the user. The user adjusts the thermal environment to
θJC
affect the case-to-ambient thermal resistance, R
. For instance, the user can change the air flow around
θCA
the device, add a heat sink, change the mounting arrangement on the printed circuit board, or change the
thermal dissipation on the printed circuit board surrounding the device. This thermal model is most useful
for ceramic packages with heat sinks where some 90% of the heat flows through the case and the heat sink
to the ambient environment. For most packages, a better model is required.
10
MPC857THardwareSpecifications
MOTOROLA
Thermal Calculation and MeasurementEstimation with Junction-to-Board Thermal Resistance
7.3 Estimation with Junction-to-Board Thermal
Resistance
A simple package thermal model which has demonstrated reasonable accuracy (about 20%) is a two resistor
model consisting of a junction-to-board and a junction-to-case thermal resistance. The junction-to-case
covers the situation where a heat sink is used or where a substantial amount of heat is dissipated from the
top of the package. The junction-to-board thermal resistance describes the thermal performance when most
of the heat is conducted to the printed circuit board. It has been observed that the thermal performance of
most plastic packages and especially PBGA packages is strongly dependent on the board temperature; see
Figure 2.
100
9 0
8 0
7 0
6 0
5 0
4 0
3 0
2 0
1 0
0
0
2 0
4 0
6 0
8 0
Board Temperture Rise Above Ambient Divided by Package
Power
Figure 2. Effect of Board Temperature Rise on Thermal Behavior
If the board temperature is known, an estimate of the junction temperature in the environment can be made
using the following equation:
T = T +( R
x P )
D
J
B
θJB
where:
R
= junction-to-board thermal resistance (ºC/W)
θJB
T = board temperature ºC
B
P = power dissipation in package
D
If the board temperature is known and the heat loss from the package case to the air can be ignored,
acceptable predictions of junction temperature can be made. For this method to work, the board and board
mounting must be similar to the test board used to determine the junction-to-board thermal resistance,
namely a 2s2p (board with a power and a ground plane) and vias attaching the thermal balls to the ground
plane.
MOTOROLA
MPC857THardwareSpecifications
11
Layout PracticesEstimation Using Simulation
7.4 Estimation Using Simulation
When the board temperature is not known, a thermal simulation of the application is needed. The simple
two resistor model can be used with the thermal simulation of the application [2], or a more accurate and
complex model of the package can be used in the thermal simulation.
7.5 Experimental Determination
To determine the junction temperature of the device in the application after prototypes are available, the
thermal characterization parameter (Ψ ) can be used to determine the junction temperature with a
JT
measurement of the temperature at the top center of the package case using the following equation:
T = T +( Ψ x P )
J
T
JT
D
where:
Ψ
= thermal characterization parameter
JT
T = thermocouple temperature on top of package
T
P = power dissipation in package
D
The thermal characterization parameter is measured per JESD51-2 specification published by JEDEC using
a 40 gauge type T thermocouple epoxied to the top center of the package case. The thermocouple should be
positioned so that the thermocouple junction rests on the package. A small amount of epoxy is placed over
the thermocouple junction and over about 1 mm of wire extending from the junction. The thermocouple wire
is placed flat against the package case to avoid measurement errors caused by cooling effects of the
thermocouple wire.
7.6 References
Semiconductor Equipment and Materials International
(415) 964-5111
805 East Middlefield Rd
Mountain View, CA 94043
MIL-SPEC and EIA/JESD (JEDEC) specifications
(Available from Global Engineering Documents)
800-854-7179 or
303-397-7956
JEDEC Specifications
http://www.jedec.org
1. C.E. Triplett and B. Joiner, “An Experimental Characterization of a 272 PBGA Within an Automotive
Engine Controller Module,” Proceedings of SemiTherm, San Diego, 1998, pp. 47-54.
2. B. Joiner and V. Adams, “Measurement and Simulation of Junction to Board Thermal Resistance and Its
Application in Thermal Modeling,” Proceedings of SemiTherm, San Diego, 1999, pp. 212-220.
Part VIII Layout Practices
Each VCC pin on the MPC857T should be provided with a low-impedance path to the board’s supply. Each
GND pin should likewise be provided with a low-impedance path to ground. The power supply pins drive
distinct groups of logic on chip. The VCC power supply should be bypassed to ground using at least four 0.1
µF by-pass capacitors located as close as possible to the four sides of the package. The capacitor leads and
associated printed circuit traces connecting to chip VCC and GND should be kept to less than half an inch
per capacitor lead.A four-layer board is recommended, employing two inner layers asVCC and GND planes.
12
MPC857THardwareSpecifications
MOTOROLA
Bus Signal TimingReferences
All output pins on the MPC857T have fast rise and fall times. Printed circuit (PC) trace interconnection
length should be minimized in order to minimize undershoot and reflections caused by these fast output
switching times. This recommendation particularly applies to the address and data busses. Maximum PC
trace lengths of six inches are recommended. Capacitance calculations should consider all device loads as
well as parasitic capacitances due to the PC traces. Attention to proper PCB layout and bypassing becomes
especially critical in systems with higher capacitive loads because these loads create higher transient
currents in the VCC and GND circuits. Pull up all unused inputs or signals that will be inputs during reset.
Special care should be taken to minimize the noise levels on the PLL supply pins.
Part IX Bus Signal Timing
Table 6 provides the bus operation timing for the MPC857T at 33 MHz, 40 Mhz, 50 MHz and 66 Mhz.
The maximum bus speed supported by the MPC857T is 66 MHz. Higher-speed parts must be operated in
half-speed bus mode (for example, an MPC857T used at 80MHz must be configured for a 40 MHz bus).
The timing for the MPC857T bus shown assumes a 50-pF load for maximum delays and a 0-pF load for
minimum delays.
Table 6. Bus Operation Timings
33 MHz
Min Max
30.30 30.30 25.00 30.30 20.00 30.30 15.15 30.30 ns
40 MHz
50 MHz
66 MHz
Num
Characteristic
Unit
Min Max
Min Max
Min Max
B1 CLKOUT period
B1a EXTCLK to CLKOUT phase skew
(EXTCLK > 15 MHz and MF <= 2)
-0.90
-2.30
-0.60
0.90
2.30
0.60
-0.90 0.90 -0.90 0.90 -0.90 0.90
-2.30 2.30 -2.30 2.30 -2.30 2.30
-0.60 0.60 -0.60 0.60 -0.60 0.60
-2.00 2.00 -2.00 2.00 -2.00 2.00
ns
ns
ns
B1b EXTCLK to CLKOUT phase skew
(EXTCLK > 10 MHz and MF < 10)
B1c CLKOUT phase jitter (EXTCLK > 15
1
MHz and MF <= 2)
1
B1d CLKOUT phase jitter
-2.00
—
2.00
0.50
2.00
ns
%
%
1
B1e CLKOUT frequency jitter (MF < 10)
—
—
0.50
2.00
—
—
0.50
2.00
—
—
0.50
2.00
B1f CLKOUT frequency jitter (10 < MF <
—
1
500)
1
B1g CLKOUT frequency jitter (MF > 500)
—
—
3.00
0.50
—
—
—
3.00
0.50
—
—
—
3.00
0.50
—
—
—
3.00
0.50
—
%
%
2
B1h Frequency jitter on EXTCLK
B2 CLKOUT pulse width low
B3 CLKOUT width high
12.12
12.12
—
10.00
10.00
—
8.00
8.00
—
6.06
6.06
—
ns
ns
ns
ns
ns
—
—
—
—
3
B4 CLKOUT rise time
4.00
4.00
—
4.00
4.00
—
4.00
4.00
—
4.00
4.00
—
33
3
B5
CLKOUT fall time
—
—
—
—
B7 CLKOUT to A(0:31), BADDR(28:30),
RD/WR, BURST, D(0:31), DP(0:3)
invalid
7.58
6.25
5.00
3.80
B7a CLKOUT to TSIZ(0:1), REG, RSV,
AT(0:3), BDIP, PTR invalid
7.58
—
6.25
—
5.00
—
3.80
—
ns
MOTOROLA
MPC857THardwareSpecifications
13
Bus Signal TimingReferences
Table 6. Bus Operation Timings (continued)
33 MHz
40 MHz
50 MHz
66 MHz
Num
Characteristic
Unit
Min
7.58
Max
Min
6.25
Max
Min
5.00
Max
Min
3.80
Max
B7b CLKOUT to BR, BG, FRZ, VFLS(0:1),
VF(0:2) IWP(0:2), LWP(0:1), STS
—
—
—
—
ns
4
invalid
B8 CLKOUT to A(0:31), BADDR(28:30)
RD/WR, BURST, D(0:31), DP(0:3) valid
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.04 ns
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.04 ns
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.04 ns
B8a CLKOUT to TSIZ(0:1), REG, RSV,
AT(0:3) BDIP, PTR valid
B8b CLKOUT to BR, BG, VFLS(0:1),
VF(0:2), IWP(0:2), FRZ, LWP(0:1),
4
STS Valid
B9 CLKOUT to A(0:31), BADDR(28:30),
RD/WR, BURST, D(0:31), DP(0:3),
TSIZ(0:1), REG, RSV, AT(0:3), PTR
High-Z
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.04 ns
B11 CLKOUT to TS, BB assertion
7.58 13.58 6.25 12.25 5.00 11.00 3.80 11.29 ns
B11 CLKOUT to TA, BI assertion (when
2.50
9.25
2.50
9.25
2.50
9.25
2.50
9.75
ns
a
driven by the memory controller or
PCMCIA interface)
B12 CLKOUT to TS, BB negation
7.58 14.33 6.25 13.00 5.00 11.75 3.80
2.50 11.00 2.50 11.00 2.50 11.00 2.50
8.54
9.00
ns
ns
B12 CLKOUT to TA, BI negation (when
a
driven by the memory controller or
PCMCIA interface)
B13 CLKOUT to TS, BB High-Z
7.58 21.58 6.25 20.25 5.00 19.00 3.80 14.04 ns
B13 CLKOUT to TA, BI High-Z (when driven 2.50 15.00 2.50 15.00 2.50 15.00 2.50 15.00 ns
a
by the memory controller or PCMCIA
interface)
B14 CLKOUT to TEA assertion
B15 CLKOUT to TEA High-Z
2.50 10.00 2.50 10.00 2.50 10.00 2.50
9.00
ns
2.50 15.00 2.50 15.00 2.50 15.00 2.50 15.00 ns
B16 TA, BI valid to CLKOUT (setup time)
9.75
—
—
9.75
—
—
9.75
—
—
6.00
4.50
—
—
ns
ns
B16 TEA, KR, RETRY, CR valid to CLKOUT 10.00
(setup time)
10.00
10.00
a
B16 BB, BG, BR, valid to CLKOUT (setup
8.50
—
—
—
—
8.50
1.00
2.00
6.00
—
—
—
—
8.50
1.00
2.00
6.00
—
—
—
—
4.00
2.00
2.00
6.00
—
—
—
—
ns
ns
ns
ns
5
b
time)
B17 CLKOUT to TA, TEA, BI, BB, BG, BR
valid (hold time).
1.00
B17 CLKOUT to KR, RETRY, CR valid (hold 2.00
time)
a
B18 D(0:31), DP(0:3) valid to CLKOUT
6.00
6
rising edge (setup time)
14
MPC857THardwareSpecifications
MOTOROLA
Bus Signal TimingReferences
Table 6. Bus Operation Timings (continued)
33 MHz
40 MHz
50 MHz
66 MHz
Num
Characteristic
Unit
Min
Max
Min
Max
Min
Max
Min
Max
B19 CLKOUT rising edge to D(0:31),
1.00
4.00
2.00
—
1.00
4.00
2.00
—
1.00
4.00
2.00
—
2.00
4.00
2.00
—
ns
ns
ns
6
DP(0:3) valid (hold time)
B20 D(0:31), DP(0:3) valid to CLKOUT
—
—
—
—
—
—
—
—
7
falling edge (setup time)
B21 CLKOUT falling edge to D(0:31),
7
DP(0:3) valid (hold Time)
B22 CLKOUT rising edge to CS asserted
GPCM ACS = 00
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.04 ns
B22 CLKOUT falling edge to CS asserted
—
8.00
—
8.00
—
8.00
—
8.00
ns
a
GPCM ACS = 10, TRLX = 0
B22 CLKOUT falling edge to CS asserted
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.54 ns
10.86 17.99 8.88 16.00 7.00 14.13 5.18 12.31 ns
b
GPCM ACS = 11, TRLX = 0, EBDF = 0
B22 CLKOUT falling edge to CS asserted
c
GPCM ACS = 11, TRLX = 0, EBDF = 1
B23 CLKOUT rising edge to CS negated
GPCM read access, GPCM write
access ACS = 00, TRLX = 0 & CSNT =
0
2.00
8.00
2.00
8.00
2.00
8.00
2.00
8.00
ns
B24 A(0:31) and BADDR(28:30) to CS
asserted GPCM ACS = 10, TRLX = 0.
5.58
13.15
—
—
—
4.25
—
—
3.00
8.00
—
—
1.79
5.58
—
—
ns
ns
ns
B24 A(0:31) and BADDR(28:30) to CS
10.50
a
asserted GPCM ACS = 11 TRLX = 0
B25 CLKOUT rising edge to OE, WE(0:3)
asserted
9.00
9.00
9.00
9.00
B26 CLKOUT rising edge to OE negated
2.00
9.00
—
2.00
9.00
—
2.00
9.00
—
2.00
9.00
—
ns
ns
B27 A(0:31) and BADDR(28:30) to CS
asserted GPCM ACS = 10, TRLX = 1
35.88
29.25
23.00
16.94
B27 A(0:31) and BADDR(28:30) to CS
43.45
—
—
35.50
—
—
28.00
—
—
20.73
—
—
ns
ns
a
asserted GPCM ACS = 11, TRLX = 1
B28 CLKOUT rising edge to WE(0:3)
negated GPCM write access CSNT = 0
9.00
9.00
9.00
9.00
B28 CLKOUT falling edge to WE(0:3)
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.54 ns
a
negated GPCM write accessTRLX = 0,
CSNT = 1, EBDF = 0
B28 CLKOUT falling edge to CS negated
—
14.33
—
13.00
—
11.75
—
10.54 ns
b
GPCM write accessTRLX = 0, CSNT =
1 ACS = 10 or ACS = 11, EBDF = 0
B28 CLKOUT falling edge to WE(0:3)
10.86 17.99 8.88 16.00 7.00 14.13 5.18 12.31 ns
c
negated GPCM write accessTRLX = 0,
CSNT = 1 write access TRLX = 0,
CSNT = 1, EBDF = 1
MOTOROLA
MPC857THardwareSpecifications
15
Bus Signal TimingReferences
Table 6. Bus Operation Timings (continued)
33 MHz
40 MHz
50 MHz
66 MHz
Num
Characteristic
Unit
Min
Max
Min
Max
Min
Max
Min
Max
B28 CLKOUT falling edge to CS negated
—
17.99
—
16.00
—
14.13
—
12.31 ns
d
GPCM write accessTRLX = 0, CSNT =
1, ACS = 10, or ACS = 11, EBDF = 1
B29 WE(0:3) negated to D(0:31), DP(0:3)
High-Z GPCM write access, CSNT = 0,
EBDF = 0
5.58
13.15
—
—
—
—
—
—
—
—
—
—
—
—
4.25
10.5
4.25
10.5
35.5
35.5
6.88
6.88
31.38
31.38
4.25
10.50
—
—
—
—
—
—
—
—
—
—
—
—
3.00
8.00
3.00
8.00
28.00
28.00
5.00
5.00
24.50
24.50
3.00
8.00
—
—
—
—
—
—
—
—
—
—
—
—
1.79
5.58
—
—
—
—
—
—
—
—
—
—
—
—
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
B29 WE(0:3) negated to D(0:31), DP(0:3)
a
High-Z GPCM write access, TRLX = 0,
CSNT = 1, EBDF = 0
B29 CS negated to D(0:31), DP(0:3), High Z 5.58
1.79
b
GPCM write access, ACS = 00,TRLX =
0 & CSNT = 0
B29 CS negated to D(0:31), DP(0:3) High-Z 13.15
5.58
c
GPCM write access, TRLX = 0, CSNT
= 1, ACS = 10, or ACS = 11 EBDF = 0
B29 WE(0:3) negated to D(0:31), DP(0:3)
43.45
20.73
29.73
3.18
d
High-Z GPCM write access, TRLX = 1,
CSNT = 1, EBDF = 0
B29 CS negated to D(0:31), DP(0:3) High-Z 43.45
e
GPCM write access, TRLX = 1, CSNT
= 1, ACS = 10, or ACS = 11 EBDF = 0
B29f WE(0:3) negated to D(0:31), DP(0:3)
High Z GPCM write access, TRLX = 0,
CSNT = 1, EBDF = 1
8.86
B29 CS negated to D(0:31), DP(0:3) High-Z 8.86
3.18
g
GPCM write access, TRLX = 0, CSNT
= 1 ACS = 10 or ACS = 11, EBDF = 1
B29 WE(0:3) negated to D(0:31), DP(0:3)
38.67
17.83
17.83
1.79
h
High Z GPCM write access, TRLX = 1,
CSNT = 1, EBDF = 1
B29i CS negated to D(0:31), DP(0:3) High-Z 38.67
GPCM write access, TRLX = 1, CSNT
= 1, ACS = 10 or ACS = 11, EBDF = 1
B30 CS, WE(0:3) negated to A(0:31),
BADDR(28:30) Invalid GPCM write
5.58
8
access
B30 WE(0:3) negated to A(0:31),
13.15
5.58
a
BADDR(28:30) Invalid GPCM, write
access, TRLX = 0, CSNT = 1, CS
negated to A(0:31) invalid GPCM write
access TRLX = 0, CSNT =1 ACS = 10,
or ACS == 11, EBDF = 0
16
MPC857THardwareSpecifications
MOTOROLA
Bus Signal TimingReferences
Table 6. Bus Operation Timings (continued)
33 MHz
40 MHz
50 MHz
66 MHz
Num
Characteristic
Unit
Min
Max
Min
Max
Min
Max
Min
Max
B30 WE(0:3) negated to A(0:31) Invalid
43.45
—
35.50
—
28.00
—
20.73
—
ns
b
GPCM BADDR(28:30) invalid GPCM
write access, TRLX = 1, CSNT = 1. CS
negated to A(0:31) Invalid GPCM write
accessTRLX = 1, CSNT = 1, ACS = 10,
or ACS == 11 EBDF = 0
B30 WE(0:3) negated to A(0:31),
8.36
—
—
6.38
—
—
4.50
—
—
2.68
—
—
ns
ns
ns
c
BADDR(28:30) invalid GPCM write
access, TRLX = 0, CSNT = 1. CS
negated to A(0:31) invalid GPCM write
access,TRLX = 0, CSNT = 1 ACS = 10,
ACS == 11, EBDF = 1
B30 WE(0:3) negated to A(0:31),
38.67
1.50
31.38
1.50
24.50
1.50
17.83
1.50
d
BADDR(28:30) invalid GPCM write
access TRLX = 1, CSNT =1, CS
negated to A(0:31) invalid GPCM write
access TRLX = 1, CSNT = 1, ACS = 10
or 11, EBDF = 1
B31 CLKOUT falling edge to CS valid - as
requested by control bit CST4 in the
corresponding word in the UPM
6.00
6.00
6.00
6.00
B31 CLKOUT falling edge to CS valid - as
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.54 ns
a
requested by control bit CST1 in the
corresponding word in the UPM
B31 CLKOUT rising edge to CS valid - as
1.50
8.00
1.50
8.00
1.50
8.00
1.50
8.00
ns
b
requested by control bit CST2 in the
corresponding word in the UPM
B31 CLKOUT rising edge to CS valid- as
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.04 ns
13.26 17.99 11.28 16.00 9.40 14.13 7.58 12.31 ns
c
requested by control bit CST3 in the
corresponding word in the UPM
B31 CLKOUT falling edge to CS valid, as
d
requested by control bit CST1 in the
corresponding word in the UPM EBDF
= 1
B32 CLKOUT falling edge to BS valid- as
requested by control bit BST4 in the
corresponding word in the UPM
1.50
6.00
1.50
6.00
1.50
6.00
1.50
6.00
ns
B32 CLKOUT falling edge to BS valid - as
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.54 ns
a
requested by control bit BST1 in the
corresponding word in the UPM, EBDF
= 0
B32 CLKOUT rising edge to BS valid - as
1.50
8.00
1.50
8.00
1.50
8.00
1.50
8.00
ns
b
requested by control bit BST2 in the
corresponding word in the UPM
MOTOROLA
MPC857THardwareSpecifications
17
Bus Signal TimingReferences
Table 6. Bus Operation Timings (continued)
33 MHz
Min Max
40 MHz
Min Max
50 MHz
Min Max
66 MHz
Min Max
Num
Characteristic
Unit
B32 CLKOUT rising edge to BS valid - as
7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.54 ns
c
requested by control bit BST3 in the
corresponding word in the UPM
B32 CLKOUT falling edge to BS valid- as
13.26 17.99 11.28 16.00 9.40 14.13 7.58 12.31 ns
d
requested by control bit BST1 in the
corresponding word in the UPM, EBDF
= 1
B33 CLKOUT falling edge to GPL valid - as 1.50
requested by control bit GxT4 in the
6.00
1.50
6.00
1.50
6.00
1.50
6.00
ns
corresponding word in the UPM
B33 CLKOUT rising edge to GPL Valid - as 7.58 14.33 6.25 13.00 5.00 11.75 3.80 10.54 ns
a
requested by control bit GxT3 in the
corresponding word in the UPM
B34 A(0:31), BADDR(28:30), and D(0:31)
to CS valid - as requested by control bit
CST4 in the corresponding word in the
UPM
5.58
13.15
20.73
—
—
4.25
—
—
3.00
8.00
—
—
1.79
5.58
—
—
ns
ns
B34 A(0:31), BADDR(28:30), and D(0:31)
10.50
a
to CS valid - as requested by control bit
CST1 in the corresponding word in the
UPM
B34 A(0:31), BADDR(28:30), and D(0:31)
—
—
—
—
16.75
4.25
—
—
—
—
13.00
3.00
—
—
—
—
9.36
1.79
5.58
9.36
—
—
—
—
ns
ns
ns
ns
b
to CS valid - as requested by CST2 in
the corresponding word in UPM
B35 A(0:31), BADDR(28:30) to CS valid - as 5.58
requested by control bit BST4 in the
corresponding word in the UPM
B35 A(0:31), BADDR(28:30), and D(0:31)
13.15
20.73
10.50
16.75
8.00
a
to BS valid - As Requested by BST1 in
the corresponding word in the UPM
B35 A(0:31), BADDR(28:30), and D(0:31)
13.00
b
to BS valid - as requested by control bit
BST2 in the corresponding word in the
UPM
B36 A(0:31), BADDR(28:30), and D(0:31)
to GPL valid as requested by control bit
GxT4 in the corresponding word in the
UPM
5.58
—
4.25
—
3.00
—
1.79
—
ns
B37 UPWAIT valid to CLKOUT falling edge 6.00
—
—
—
6.00
1.00
7.00
—
—
—
6.00
1.00
7.00
—
—
—
6.00
1.00
7.00
—
—
—
ns
ns
ns
9
B38 CLKOUT falling edge to UPWAIT valid 1.00
9
10
B39 AS valid to CLKOUT rising edge
7.00
18
MPC857THardwareSpecifications
MOTOROLA
Bus Signal TimingReferences
Table 6. Bus Operation Timings (continued)
33 MHz
40 MHz
50 MHz
66 MHz
Num
Characteristic
Unit
Min
7.00
Max
Min
Max
Min
Max
Min
Max
B40 A(0:31), TSIZ(0:1), RD/WR, BURST,
valid to CLKOUT rising edge
—
7.00
7.00
2.00
—
—
7.00
7.00
2.00
—
—
7.00
7.00
2.00
—
—
ns
ns
ns
ns
B41 TS valid to CLKOUT rising edge (setup 7.00
time)
—
—
—
—
—
—
—
—
B42 CLKOUT rising edge to TS valid (hold
time)
2.00
B43 AS negation to memory controller
signals negation
—
TBD
TBD
TBD
TBD
1
2
Phase and frequency jitter performance results are only valid if the input jitter is less than the prescribed value.
If the rate of change of the frequency of EXTAL is slow (I.e. it does not jump between the minimum and maximum
values in one cycle) or the frequency of the jitter is fast (I.e., it does not stay at an extreme value for a long time) then
the maximum allowed jitter on EXTAL can be up to 2%.
3
4
The timings specified in B4 and B5 are based on full strength clock.
The timing for BR output is relevant when the MPC857T is selected to work with external bus arbiter. The timing for
BG output is relevant when the MPC857T is selected to work with internal bus arbiter.
5
6
7
The timing required for BR input is relevant when the MPC857T is selected to work with internal bus arbiter.The timing
for BG input is relevant when the MPC857T is selected to work with external bus arbiter.
The D(0:31) and DP(0:3) input timings B18 and B19 refer to the rising edge of the CLKOUT in which the TA input
signal is asserted.
The D(0:31) and DP(0:3) input timings B20 and B21 refer to the falling edge of the CLKOUT. This timing is valid only
for read accesses controlled by chip-selects under control of the UPM in the memory controller, for data beats where
DLT3 = 1 in the UPM RAM words. (This is only the case where data is latched on the falling edge of CLKOUT.)
8
9
The timing B30 refers to CS when ACS = 00 and to WE(0:3) when CSNT = 0.
The signal UPWAIT is considered asynchronous to the CLKOUT and synchronized internally. The timings specified
in B37 and B38 are specified to enable the freeze of the UPM output signals as described in Figure 18.
10
The AS signal is considered asynchronous to the CLKOUT.The timing B39 is specified in order to allow the behavior
specified in Figure 21.
Figure 3 is the control timing diagram.
MOTOROLA
MPC857THardwareSpecifications
19
Bus Signal TimingReferences
Figure 3. Control Timing
Figure 4 provides the timing for the external clock.
Figure 4. External Clock Timing
Figure 5 provides the timing for the synchronous output signals.
20
MPC857THardwareSpecifications
MOTOROLA
厂商 型号 描述 页数 下载

TYSEMI

 		KXP20N15 VDS （V ） = 150V RDS （ ON ）， 0.13 （ VGS = 10V ）漏源电压VDSS 150 V[ VDS (V) = 150V RDS(ON) 0.13 (VGS = 10V) Drain-Source Voltage VDSS 150 V ] 2 页

ROHM

 		KXP84-1050 [ Analog Circuit, ] 2 页

ROHM

 		KXP84-2050 [ Analog Circuit, ] 2 页

ROHM

 		KXP94-2050 [ Analog Circuit, ] 2 页

ETC

 		KXPA4 加速度计和倾角多路模拟输出[ Accelerometers and Inclinometers Multiplexed Analog Output ] 3 页

ETC

 		KXPA4-1050 加速度计和倾角多路模拟输出[ Accelerometers and Inclinometers Multiplexed Analog Output ] 3 页

ETC

 		KXPA4-2050 加速度计和倾角多路模拟输出[ Accelerometers and Inclinometers Multiplexed Analog Output ] 3 页

ROHM

 		KXPB5-2050 [ Analog Circuit, ] 2 页

ROHM

 		KXPB5-2353 [ Analog Circuit, ] 2 页

MOTOROLA

 		KXPC7441RX700LG [ 32-BIT, 700MHz, RISC PROCESSOR, CBGA360, 25 X 25 MM, 3.24 MM HEIGHT, 1.27 MM PITCH, CERAMIC, FCBGA-360 ] 47 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.241084s
