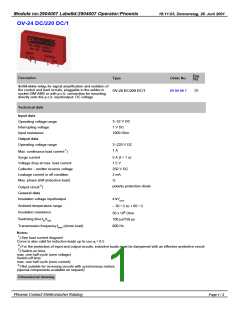

Module no:2904007 LabelId:2904007 Operator:Phoenix
18:11:03, Donnerstag, 28. Juni 2001
OV-24 DC/220 DC/1
Pcs.
Description
Type
Order No.
29 04 00 7
Pkt.
for signal amplification and isolation of
Solid-state relay,
the control and load circuits, pluggable in the solder-in
socket SIM-AMS or with p.c.b. connection for mounting
directly onto the p.c.b. input/output: DC voltage
25
OV-24 DC/220 DC/1
Technical data
Input data
Operating voltage range
Interrupting voltage
Input resistance
3–32 V DC
1 V DC
1000 Ohm
Output data
Operating voltage range
Max. continuous load current1)
3–220 V DC
1 A
Surge current
5 A (t = 1 s)
1.5 V
Voltage drop at max. load current
Collector – emitter reverse voltage
Leakage current in off condition
Max. phase shift (inductive load)
250 V DC
2 mA
2
)
Output circuit 3)
polarity protection diode
General data
Insulation voltage input/output
4 kVrms
Ambient temperature range
Insulation resistance
– 30 C to + 80
50 x 109 Ohm
C
°
°
Switching time tin/tout
100 s/750 s
µ
µ
Transmission frequencyflimit (ohmic load)
600 Hz
Notes:
1) See load current diagram!
Curve is also valid for inductive loads up to cos. = 0.5
ϕ
2) For the protection of input and output circuits, inductive loads must be dampened with an effective protective circuit
3) Switch-on time:
max. one half cycle (zero voltage)
Switch-off time:
max. one half cycle (zero current)
4) Not suitable for reversing circuits with synchronous motors
(special components available on request)
Dimensional drawing
