OV-24DC/280AC/5

型号：

OV-24DC/280AC/5

品牌：

PHOENIX[ PHOENIX CONTACT ]

页数：

2 页

PDF大小：

93 K

下载PDF手册

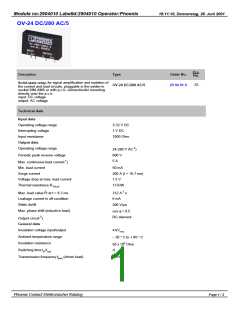

Module no:2904010 LabelId:2904010 Operator:Phoenix

18:11:10, Donnerstag, 28. Juni 2001

OV-24 DC/280 AC/5

Pcs.

Description

Type

Order No.

29 04 01 0

Pkt.

for signal amplification and isolation of

Solid-state relay,

OV-24 DC/280 AC/5

the control and load circuits, pluggable in the solder-in

socket SIM-AMS or with p.c.b. connectionfor mounting

directly onto the p.c.b.

input: DC voltage

output: AC voltage

Technical data

Input data

Operating voltage range

Interrupting voltage

Input resistance

3-32 V DC

1 V DC

1000 Ohm

Output data

24-280 V AC ⁴)

600 V

Operating voltage range

Periodic peak reverse voltage

Max. continuous load current¹)

5 A

Min. load current

50 mA

Surge current

200 A (t = 16.7 ms)

1.5 V

Voltage drop at max. load current

Thermal resistance R_THJG

13 K/W

Max. load valueI²t at t = 8.3 ms

Leakage current in off condition

Static du/dt

312 A ²s

6 mA

200 V/ s

Max. phase shift (inductive load)

cos = 0.5

Output circuit ³)

RC element

General data

Insulation voltage input/output

4 kV_rms

Ambient temperature range

Insulation resistance

– 30 C to + 80

50 x 10⁹Ohm

)

Switching time t_in/t_out

Transmission frequencyf_limit(ohmic load)

25 Hz

Phoenix Contact Elektronischer Katalog

Page 1 / 2

Module no:2904010 LabelId:2904010 Operator:Phoenix

18:11:10, Donnerstag, 28. Juni 2001

Notes:

¹) See load current diagram!

Curve is also valid for inductive loads up to cos. = 0.5

²) For the protection of input and output circuits, inductive loads must be dampened with an effective protective circuit

³) Switch-on time:

max. one half cycle (zero voltage)

Switch-off time:

max. one half cycle (zero current)

⁴) Not suitable for reversing circuits with synchronous motors

(special components available on request)

Dimensional drawing

Block diagram

Hole diameter 1.3

Diagram

zero voltage switch

Phoenix Contact Elektronischer Katalog

Page 2 / 2
