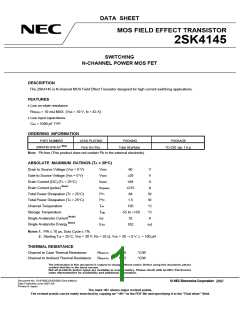

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK4145
SWITCHING
N-CHANNEL POWER MOS FET
DESCRIPTION
The 2SK4145 is N-channel MOS Field Effect Transistor designed for high current switching applications.
FEATURES
• Low on-state resistance
RDS(on) = 10 mΩ MAX. (VGS = 10 V, ID = 42 A)
• Low input capacitance
Ciss = 5300 pF TYP.
ORDERING INFORMATION
PART NUMBER
LEAD PLATING
Pure Sn (Tin)
PACKING
PACKAGE
2SK4145-S19-AY Note
Tube 50 p/tube
TO-220 typ. 1.9 g
Note Pb-free (This product does not contain Pb in the external electrode).
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage (VGS = 0 V)
Gate to Source Voltage (VDS = 0 V)
Drain Current (DC) (TC = 25°C)
Drain Current (pulse) Note1
VDSS
VGSS
ID(DC)
ID(pulse)
PT1
60
V
V
20
84
A
215
A
Total Power Dissipation (TC = 25°C)
Total Power Dissipation (TA = 25°C)
Channel Temperature
84
W
W
°C
°C
A
PT2
1.5
Tch
150
Storage Temperature
Tstg
−55 to +150
32
Single Avalanche Current Note2
Single Avalanche Energy Note2
IAS
EAS
102
mJ
Notes 1. PW ≤ 10 μs, Duty Cycle ≤ 1%
2. Starting Tch = 25°C, VDD = 30 V, RG = 25 Ω, VGS = 20 → 0 V, L = 100 μH
THERMAL RESISTANCE
Channel to Case Thermal Resistance
Channel to Ambient Thermal Resistance
Rth(ch-C)
Rth(ch-A)
1.49
83.3
°C/W
°C/W
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D18760EJ2V0DS00 (2nd edition)
Date Published June 2007 NS
Printed in Japan
2007
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
2SK4145
ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS
Zero Gate Voltage Drain Current
Gate Leakage Current
Gate to Source Cut-off Voltage
Forward Transfer Admittance Note
Drain to Source On-state Resistance Note
Input Capacitance
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
10
UNIT
μA
nA
V
IDSS
VDS = 60 V, VGS = 0 V
IGSS
VGS(off)
| yfs |
RDS(on)
Ciss
VGS = 20 V, VDS = 0 V
VDS = 10 V, ID = 1 mA
VDS = 10 V, ID = 30 A
VGS = 10 V, ID = 42 A
VDS = 10 V,
100
4.0
2.0
16
3.0
31
S
7
10
mΩ
pF
pF
pF
ns
5300
540
330
25
Output Capacitance
Coss
Crss
VGS = 0 V,
Reverse Transfer Capacitance
Turn-on Delay Time
f = 1 MHz
td(on)
tr
VDD = 30 V, ID = 42 A,
VGS = 10 V,
Rise Time
17
ns
Turn-off Delay Time
td(off)
tf
RG = 0 Ω
66
ns
Fall Time
9
ns
Total Gate Charge
QG
VDD = 48 V,
90
nC
nC
nC
V
Gate to Source Charge
QGS
QGD
VF(S-D)
trr
VGS = 10 V,
21
Gate to Drain Charge
ID = 84 A
30
Body Diode Forward Voltage Note
Reverse Recovery Time
Reverse Recovery Charge
Note Pulsed
IF = 84 A, VGS = 0 V
IF = 84 A, VGS = 0 V,
di/dt = 100 A/μs
1.0
43
1.5
ns
Qrr
62
nC
TEST CIRCUIT 1 AVALANCHE CAPABILITY
TEST CIRCUIT 2 SWITCHING TIME
D.U.T.
L
D.U.T.
V
V
GS
RG
= 25 Ω
50 Ω
R
L
90%
V
GS
Wave Form
VGS
10%
90%
0
R
G
PG.
VDD
PG.
GS = 20 → 0 V
VDD
V
DS
90%
V
DS
V
0
GS
BVDSS
10% 10%
V
DS
Wave Form
0
I
AS
V
DS
I
D
τ
t
d(on)
t
r
t
d(off)
tf
V
DD
t
on
toff
τ = 1
μs
Duty Cycle ≤ 1%
Starting Tch
TEST CIRCUIT 3 GATE CHARGE
D.U.T.
= 2 mA
I
G
RL
50 Ω
PG.
VDD
2
Data Sheet D18760EJ2V0DS
2SK4145
TYPICAL CHARACTERISTICS (TA = 25°C)
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
120
100
80
60
40
20
0
100
80
60
40
20
0
0
25
50
75 100 125 150 175
0
25
50
75 100 125 150 175
TC - Case Temperature - °C
TC - Case Temperature - °C
FORWARD BIAS SAFE OPERATING AREA
<R>
1000
100
10
I
D(pulse)
I
D(DC)
1
T
C
= 25°C
Single Pulse
0.1
0.1
1
10
100
VDS - Drain to Source Voltage - V
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
<R>
1000
R
R
th(ch-A) = 83.3°C/Wi
100
10
1
th(ch-C) = 1.49°C/Wi
Single Pulse
0.1
100 μ
1 m
10 m
100 m
1
10
100
1000
PW - Pulse Width - s
3
Data Sheet D18760EJ2V0DS
2SK4145
DRAIN CURRENT vs.
FORWARD TRANSFER CHARACTERISTICS
DRAIN TO SOURCE VOLTAGE
250
200
150
100
50
1000
100
10
T
A
= −55°C
25°C
75°C
150°C
1
0.1
0.01
V
GS = 10 V
VDS = 10 V
Pulsed
Pulsed
0
0
0.5
1
1.5
2
2.5
3
0
1
2
3
4
5
6
VDS - Drain to Source Voltage - V
VGS - Gate to Source Voltage - V
GATE TO SOURCE CUT-OFF VOLTAGE vs.
CHANNEL TEMPERATURE
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
4
3.5
3
100
10
1
T
A
= −55°C
25°C
75°C
150°C
2.5
2
1.5
1
V
DS = 10 V
= 1 mA
V
DS = 10 V
0.5
0
I
D
Pulsed
-75
-25
25
75
125
175
0.1
1
10
100
Tch - Channel Temperature - °C
ID - Drain Current - A
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
DRAIN CURRENT
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
20
20
Pulsed
V
GS = 10 V
Pulsed
16
12
8
16
I
D
= 16.8 A
42 A
12
8
84 A
4
4
0
0
0.1
1
10
100
1000
0
5
10
15
20
ID - Drain Current - A
VGS - Gate to Source Voltage - V
4
Data Sheet D18760EJ2V0DS
2SK4145
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
CAPACITANCE vs. DRAIN TO SOURCE VOLTAGE
20
10000
1000
100
V
GS = 10 V
= 42 A
C
iss
I
D
16
12
8
C
oss
rss
4
V
GS = 0 V
C
f = 1 MHz
Pulsed
125 175
0
0.1
1
10
100
-75
-25
25
75
VDS - Drain to Source Voltage - V
Tch - Channel Temperature - °C
SWITCHING CHARACTERISTICS
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
60
1000
100
10
12
10
8
V
DD = 48 V
50
40
30
20
10
0
30 V
12 V
t
t
d(off)
t
d(on)
6
V
GS
t
r
4
f
V
V
DD = 30 V
GS = 10 V
V
DS
2
I = 84 A
D
R = 0 Ω
G
1
0
0.1
1
10
100
0
10 20 30 40 50 60 70 80 90
QG - Gate Charge - nC
ID - Drain Current - A
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
REVERSE RECOVERY TIME vs.
DIODE FORWARD CURRENT
1000
100
10
1000
100
10
V
GS = 10 V
0 V
1
di/dt = 100 A/μs
VGS = 0 V
Pulsed
1.5
0.1
1
0
0.5
1
0.1
1
10
100
VF(S-D) - Source to Drain Voltage - V
IF - Diode Forward Current - A
5
Data Sheet D18760EJ2V0DS
2SK4145
PACKAGE DRAWING (Unit: mm)
TO-220
4.8 MAX.
1.3±0.2
10.2 MAX.
3.6±0.2
8.7 TYP.
4
1 2 3
1.52±0.2
0.8±0.1
0.5±0.2
2.4±0.2
2.54 TYP.
2.54 TYP.
1.Gate
2.Drain
3.Source
4.Fin (Drain)
EQUIVALENT CIRCUIT
Drain
Body
Diode
Gate
Source
Remark Strong electric field, when exposed to this device, can cause destruction of the gate oxide and ultimately
degrade the device operation. Steps must be taken to stop generation of static electricity as much as
possible, and quickly dissipate it once, when it has occurred.
6
Data Sheet D18760EJ2V0DS
2SK4145
MARKING INFORMATION
NEC
Pb-free plating marking
K4145
Abbreviation of part number
Lot code
RECOMMENDED SOLDERING CONDITIONS
The 2SK4145 should be soldered and mounted under the following recommended conditions.
For soldering methods and conditions other than those recommended below, please contact an NEC Electronics
sales representative.
For technical information, see the following website.
Semiconductor Device Mount Manual (http://www.necel.com/pkg/en/mount/index.html)
Recommended
Soldering Method
Wave soldering
Soldering Conditions
Condition Symbol
THDWS
Maximum temperature (Solder temperature): 260°C or below
Time: 10 seconds or less
Maximum chlorine content of rosin flux: 0.2% (wt.) or less
Maximum temperature (Pin temperature): 350°C or below
Time (per side of the device): 3 seconds or less
Maximum chlorine content of rosin flux: 0.2% (wt.) or less
Partial heating
P350
Caution Do not use different soldering methods together (except for partial heating).
7
Data Sheet D18760EJ2V0DS
2SK4145
•
The information in this document is current as of June, 2007. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC Electronics data sheets or
data books, etc., for the most up-to-date specifications of NEC Electronics products. Not all
products and/or types are available in every country. Please check with an NEC Electronics sales
representative for availability and additional information.
• No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
•
NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
•
• While NEC Electronics endeavors to enhance the quality, reliability and safety of NEC Electronics products,
customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To
minimize risks of damage to property or injury (including death) to persons arising from defects in NEC
Electronics products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment and anti-failure features.
• NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customer-
designated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1)
"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2)
"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E 02. 11-1
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.240070s
