2SK4161D

型号:

2SK4161D

品牌:

SANKEN[ SANKEN ELECTRIC ]

页数:

7 页

PDF大小:

370 K

http://www.sanken-ele.co.jp
SANKEN ELECTRIC

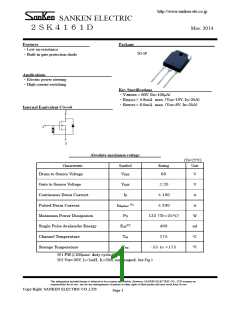

2SK4161D
Mar. 2014
Features
Package
Low on-resistance
Built-in gate protection diode
TO-3P
Applications
Electric power steering
High current switching
Key Specifications
V(BR)DSS = 60V (ID=100μA)
RDS(ON) = 4.8mΩ max. (VGS=10V, ID=35A)
RDS(ON) = 6.0mΩ max. (VGS=8V, ID=35A)
Internal Equivalent Circuit
2
1
3
Absolute maximum ratings
(Ta=25°C)
Unit
Characteristic
Symbol
Rating
V
V
Drain to Source Voltage
Gate to Source Voltage
Continuous Drain Current
Pulsed Drain Current
VDSS
60
±20
±100
VGSS
ID
A
1
ID(pulse)
PD
±200
A
Maximum Power Dissipation
Single Pulse Avalanche Energy
Channel Temperature
132 (Tc=25°C)
400
W
mJ
°C
°C
2
EAS
Tch
175
Storage Temperature
Tstg
-55 to +175
1 PW100μsec. duty cycle1%
2 VDD=20V, L=1mH, IL=20A, unclamped, See Fig.1
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 1
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
2SK4161D
Mar. 2014
Electrical characteristics
(Ta=25°C)
Unit
Limits
TYP
Characteristic
Symbol
Test Conditions
MIN
60
MAX
Drain to Source breakdown Voltage
Gate to Source Leakage Current
Drain to Source Leakage Current
Gate Threshold Voltage
V(BR)DSS
IGSS
ID=100μA,VGS=0V
VGS=±15V
V
μA
μA
V
±10
100
3.95
IDSS
VDS=60V, VGS=0V
VDS=10V, ID=1mA
VDS=10V, ID=35A
ID=35A, VGS=10V
ID=35A, VGS=8V
VTH
3.25
30
3.6
80
Forward Transconductance
Static Drain to Source On-Resistance
Static Drain to Source On-Resistance
Input Capacitance
Re(yfs)
RDS(ON)
RDS(ON)
Ciss
S
3.8
4.8
6.0
mΩ
mΩ
4.2
(8250)
(800)
(585)
(120)
(290)
(240)
(100)
10000
1000
730
160
490
400
200
0.9
(11250)
(1200)
(875)
(200)
(690)
(500)
(300)
1.2
VDS=10V
VGS=0V
f=1MHz
Output Capacitance
Coss
pF
Reverse Transfer Capacitance
Turn-On Delay Time
Crss
td(on)
tr
ID=40A
V
DD20V
Rise Time
RG=30Ω
RL=0.5Ω
VGS=10V
See Fig.2
ns
Turn-Off Delay Time
td(off)
tf
Fall Time
ISD=50A,
VGS=0V
Source-Drain Diode Forward Voltage
Source-Drain Diode Reverse Recovery Time
Thermal Resistance Junction to Case
Thermal Resistance Junction to Ambient
VSD
V
ISD=25A,
di/dt=50A/µs
trr
80
ns
Rth(ch-c)
Rth(ch-a)
1.13
°C/W
°C/W
35.71
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 2
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
2SK4161D
Mar. 2014
Characteristic Curves
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 3
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
2SK4161D
Mar. 2014
Characteristic Curves
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 4
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
2SK4161D
Mar. 2014
Characteristic Curves
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 5
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
2SK4161D
Mar. 2014
Fig.1
Unclamped Inductive Test Method
1
V(BR)DSS
EAS= LILP2・
2
V(BR)DSS VDD
() Test Circuit
(b) Waveforms
Fig.2 Switching Time Test Method
90%
RL
VGS
10%
90%
ID
VDS
R
G
VDS
VDD
VGS
0V
RGS
10%
td(on)
tr
td(off)
tf
P.W.=10μs
ton
toff
Duty cycle≦1%
() Test Circuit
(b) Waveforms
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 6
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
2SK4161D
Mar. 2014
Outline
TO3P
(1) Gate
(2) Drain (Back Side)
(3) Source
Weight Approx. 6g
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 7
