PXAC243502FVV1R250

型号：

PXAC243502FVV1R250

品牌：

INFINEON[ Infineon ]

页数：

10 页

PDF大小：

1371 K

下载PDF手册

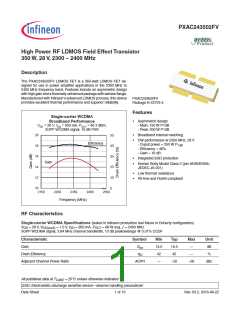

PXAC243502FV
High Power RF LDMOS Field Effect Transistor
350 W, 28 V, 2300 – 2400 MHz
Description
The PXAC243502FV LDMOS FET is a 350-watt LDMOS FET de-
signed for use in power amplifier applications in the 2300 MHz to
2400 MHz frequency band. Features include an asymmetric design
with high gain and a thermally-enhanced package with earless flange.
Manufactured with Infineon's advanced LDMOS process, this device
provides excellent thermal performance and superior reliability.
PXAC243502FV
Package H-37275-4
Features
Single-carrier WCDMA
Broadband Performance
VDD = 28 V, IDQ = 850 mA, POUT = 48.3 dBm,
3GPP WCDMA signal, 10 dB PAR
•ꢀ Asymmetric design
- Main: 150 W P1dB
- Peak: 200 W P1dB
•ꢀ Broadband internal matching
20
55
•ꢀ CW performance at 2350 MHz, 28 V
Efficiency
- Ouput power = 250 W P
- Efficiency = 46%
- Gain = 16 dB
1dB
18
45
16
35
•ꢀ Integrated ESD protection
Gain
•ꢀ Human Body Model Class 2 (per ANSI/ESDA/
14
25
JEDEC JS-001)
•ꢀ Low thermal resistance
12
15
•ꢀ Pb-free and RoHS-compliant
c243502fv-gr3
10
2150
5
2250
2350
2450
2550
Frequency (MHz)
RF Characteristics
Single-carrier WCDMA Specifications (tested in Infineon production test fixture in Doherty configuration)
= 28 V, V = 1.0 V, I = 850 mA, P = 68 W avg, ƒ = 2400 MHz
V
DD
GS(peak)
DQ
OUT
3GPP WCDMA signal, 3.84 MHz channel bandwidth, 10 dB peak/average @ 0.01% CCDF
Characteristic
Gain
Symbol
Min
14.0
42
Typ
15.0
45
Max
—
Unit
dB
G
ps
Drain Efficiency
Adjacent Channel Power Ratio
hD
—
%
ACPR
—
–32
–26
dBc
All published data at T
= 25°C unless otherwise indicated
CASE
ESD: Electrostatic discharge sensitive device—observe handling precautions!
Data Sheet 1 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
DC Characteristics
Characteristic
Conditions
Symbol
Min
65
—
Typ
—
Max
—
Unit
V
Drain-Source Breakdown Voltage
Drain Leakage Current
V
GS
= 0 V, I = 10 mA
V(
BR)DSS
DS
V
V
= 28 V, V = 0 V
I
I
—
1
µA
µA
µA
W
DS
DS
GS
DSS
DSS
= 63 V, V = 0 V
—
—
10
1
GS
Gate Leakage Current
V
GS
= 10 V, V = 0 V
I
—
—
DS
GSS
On-State Resistance
main
peak
main
peak
V
GS
= 10 V, V = 0.1 V
R
—
0.088
0.088
2.6
—
DS
DS(on)
DS(on)
V
GS
= 10 V, V = 0.1 V
R
—
—
W
DS
Operating Gate Voltage
V
= 28 V, I
= 28 V, I
= 850 mA
= 0 mA
V
GS
2.3
0.8
3.0
1.6
V
DS
DS
DQ
DQ
V
V
GS
1.2
V
Maximum Ratings
Parameter
Symbol
Value
65
Unit
V
Drain-Source Voltage
Gate-Source Voltage
Operating Voltage
Junction Temperature
V
DSS
V
–6 to +10
0 to +32
225
V
GS
DD
V
V
T
J
°C
Storage Temperature Range
Thermal Resistance (T
T
–65 to +150
0.22
°C
STG
= 70°C, 250 W CW)
R
°C/W
CASE
JC
q
Ordering Information
Type and Version
Order Code
Package and Description
H-37275-4
Shipping
PXAC243502FV V1 R0
PXAC243502FV V1 R250
PXAC243502FVV1R0XTMA1
PXAC243502FVV1R250XTMA1
Tape & Reel, 50 pcs
Tape & Reel, 250 pcs
H-37275-4
Data Sheet
2 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Typical RF Performance (data taken in production test fixture)
Single-carrier WCDMA Drive-up
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 850 mA, ƒ = 2300 MHz
VDD = 28 V, IDQ = 850 mA, ƒ = 2350 MHz
3GPP WCDMA signal,
3GPP WCDMA signal,
10 dB PAR, 3.84 MHz BW
10 dB PAR, 3.84 MHz BW
24
20
16
12
8
60
40
20
0
24
20
16
12
8
60
40
20
0
Efficiency
Efficiency
Gain
Gain
-20
-40
-60
-20
-40
-60
PAR @ 0.01% CCDF
PAR @ 0.01% CCDF
4
4
c243502fv-gr1b
c243502fv-gr1a
0
0
27
32
37
42
47
52
27
32
37
42
47
52
Average Output Power (dBm)
Average Output Power (dBm)
Single-carrier WCDMA Drive-up
VDD = 28 V, IDQ = 850 mA, ƒ = 2400 MHz
Single-carrier WCDMA 3GPP Drive-up
VDD = 28 V, IDQ = 850 mA,
ƒ = 2300 to 2400 MHz. 3GPP WCDMA signal,
3GPP WCDMA signal,
10 dB PAR, 3.84 MHz BW
10 dB PAR, 3.84 MHz BW
2300 ACPL
2400 ACPL
2350 ACPU
2300 EFF
2350 ACPL
2300 ACPU
2400 ACPU
2350 EFF
24
20
16
12
8
60
40
20
0
-10
-20
-30
-40
-50
-60
-70
60
50
40
30
20
10
0
Efficiency
2400 EFF
Gain
ACP up, ACP low
-20
-40
-60
PAR @ 0.01% CCDF
4
Efficiency
37 42
Average Output Power (dBm)
c243502fv-gr2a
0
c243502fv-gr1c
27
32
37
42
47
52
27
32
47
52
Average Output Power (dBm)
Data Sheet
3 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Typical RF Performance (cont.)
Single-carrier WCDMA
CW Performance
VDD = 28 V, IDQ = 850 mA
Broadband Performance
VDD = 28 V, IDQ = 850 mA, POUT = 48.3 dBm,
3GPP WCDMA signal, 10 dB PAR
-10
-5
20
15
10
5
60
50
40
30
20
10
0
Efficiency
Input Return Loss
-15
-10
-15
-20
-25
-30
-35
-20
-25
-30
Gain
ACP up
-35
2400 MHz
2350 MHz
2300 MHz
-40
2150
c243502fv-gr4
c243502fv-gr5
2250
2350
2450
2550
29
33
37
41
45
49
53
57
Frequency (MHz)
Output Power (dBm)
Pulse CW Performance
at selected VDD
IDQ = 850 mA, ƒ = 2300 MHz
Pulse CW Performance
at selected VDD
IDQ = 850 mA, ƒ = 2350 MHz
20
60
40
20
0
20
15
10
5
60
40
20
0
Efficiency
Efficiency
15
10
5
Gain
Gain
VDD = 24 V
VDD = 24 V
V
V
DD = 28 V
DD = 32 V
V
V
DD = 28 V
DD = 32 V
c243502fv-gr6a
c243502fv-gr6b
27
35
43
51
59
27
35
43
51
59
Output Power (dBm)
Output Power (dBm)
Data Sheet
4 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Typical RF Performance (cont.)
Small Signal CW
Gain & Input Return Loss
VDD = 28 V, IDQ = 850 mA
Pulse CW Performance
at selected VDD
IDQ = 850 mA, ƒ = 2400 MHz
20
60
40
20
0
18
17
16
15
14
13
12
11
10
-8
Efficiency
Input Return Loss
-9
Gain
-10
-11
-12
-13
-14
-15
-16
15
10
5
Gain
VDD = 24 V
DD = 28 V
DD = 32 V
V
V
c243502fv-gr6c
c243502fv-gr7
27
35
43
51
59
2150
2250
2350
2450
2550
Output Power (dBm)
Frequency (MHz)
See next page for Load Pull Performance
Data Sheet
5 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Load Pull Performance
Main Side – Pulsed CW signal: 160 µsec, 10% duty cycle; V
= 28 V, I
= 850 mA
DQ
DD
P
1dB
Class AB
Max Output Power
Max PAE
Freq
[MHz]
Zs
[W]
Zl
[W]
Gain
[dB]
P
[dBm]
P
OUT
[W]
PAE
[%]
Zl
[W]
Gain
[dB]
P
[dBm]
P
OUT
[W]
PAE
[%]
OUT
OUT
2300
2350
2400
6.82 – j9.56
8.29 – j9.42
10.06 – j7.29
1.28 – j3.64
1.25 – j3.62
1.30 – j3.61
16.16
16.44
16.46
52.39
52.20
51.82
173.38
165.96
152.05
49.67
49.05
45.61
2.37 – j2.28
1.97 – j2.50
1.99 – j2.24
18.79
18.63
18.90
50.39
50.66
50.15
109.47
116.49
103.49
59.01
57.37
54.87
Peak Side – Pulsed CW signal: 160 µsec, 10% duty cycle; V
= 28 V, I
= 1350 mA
DQ
DD
P
1dB
Class AB
Max Output Power
Max PAE
Freq
[MHz]
Zs
[W]
Zl
[W]
Gain
[dB]
P
P
PAE
[%]
Zl
[W]
Gain
[dB]
P
P
OUT
[W]
PAE
[%]
OUT
OUT
[W]
OUT
[dBm]
53.03
52.77
52.61
[dBm]
51.17
51.31
51.45
2300
2350
2400
3.27 – j6.01
4.08 – j6.00
5.14 – j6.25
2.09 – j3.76
2.03 – j3.86
1.90 – j3.64
17.42
17.54
18.08
200.91
189.23
182.39
48.19
45.76
45.91
1.43 – j2.25
1.33 – j2.63
1.49 – j2.71
19.79
19.82
20.01
130.98
135.33
139.57
55.51
53.60
51.41
Peak Side – Pulsed CW signal: 160 µsec, 10% duty cycle; V
= 28 V, V
= 1.5 V
DD
GS(peak)
P
1dB
Class C
Max Output Power
Max PAE
Freq
[MHz]
Zs
[W]
Zl
[W]
Gain
[dB]
P
P
PAE
[%]
Zl
[W]
Gain
[dB]
P
P
OUT
[W]
PAE
[%]
OUT
OUT
[W]
OUT
[dBm]
53.71
53.57
53.43
[dBm]
52.51
51.75
51.79
2300
2350
2400
3.27 – j6.01
4.08 – j6.00
5.14 – j6.25
1.67 – j4.02
1.62 – j4.07
1.96 – j4.15
12.90
13.16
13.39
234.96
227.51
220.29
50.13
50.21
48.66
1.42 – j2.66
1.37 – j2.69
1.47 – j2.71
14.27
14.53
14.74
178.28
149.62
150.83
59.99
58.18
56.64
Reference Circuit, 2300 to 2400 MHz
DUT
PXAC243502FV V1
LTA/PXAC243502FV V1
Test Fixture Part No.
PCB
Rogers 4350, 0.508 mm [.020"] thick, 2 oz. copper, εr = 3.66
Find Gerber files for this reference fixture on the Infineon Web site at (http://www.infineon.com/rfpower)
Data Sheet
6 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Reference Circuit (cont.)
RO4350, 20 MIL (61)
RO4350, 20 MIL (61)
VDD
C103
C107
R103
VGG
C201 C206 C213
C104 C106
C207
C205
C212
R102
C204
C202
C209
S1
RF_OUT
RF_IN
C101
C102
VDD
R101
C208
VGG
C203 C211 C210
C105
PXAC243502FV_IN_01
PXAC243502FV_OUT_01
p x f c 2 4 3 5 0 2 f v _ C D _ 1 - 1 5 - 1 5
Reference circuit assembly diagram (not to scale)
Component Information
Component
Description
Manufacturer
Part Number
Input
C101, C102, C103, C104
Capacitor, 15 pF
ATC
ATC600F150JT250XT
UMK325C7106MM-T
ATC600F0R5BT250XT
ERJ-3GEYJ100V
C16A50Z4
C105, C107
C106
Capacitor, 10 µF
Taiyo Yuden
Capacitor, 0.5 pF
Chip resistor, 10 ohms
Chip resistor, 50 ohms
Hybrid coupler
ATC
R101, R103
R102
Panasonic Electronic Components
Anaren
Anaren
S1
X3C25P1-02S
(table cont. next page)
Data Sheet
7 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Reference Circuit (cont.)
Component Information (cont.)
Component
Output
C201, C203
C207
Description
Manufacturer
Part Number
Capacitor, 15 pF
Capacitor, 0.8 pF
Capacitor, 3 pF
Capacitor, 3.9 pF
ATC
ATC600F150JT250XT
ATC600F0R8BT250XT
ATC600F3R0BT250XT
ATC600F3R9BT250XT
UMK325C7106MM-T
ATC
C204
ATC
C202
ATC
C205, C206, C209, C210, Capacitor, 10 µF
C211, C213
Taiyo Yuden
C212, C208
Capacitor, 220 µF
Panasonic Electronic Components
EEE-FP1V221AP
Pinout Diagram (top view)
Main
Peak
D1
D2
Pin
D1
D2
G1
G2
S
Description
Drain device 1 (main)
Drain device 2 (peak)
Gate device 1 (main)
Gate device 2 (peak)
Source (flange)
S
H - 3 7 2 7 5 - 4 _ f l_ p d _ 0 1 _ 0 8 - 1 3 - 2 0 1 4
G1
G2
Data Sheet
8 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV
Package Outline Specifications
Package H-37275-4
13.72
[.540]
2X 45° X 1.19
[45° X .047]
2x (2.03
[.080])
C
L
3.226±0.508
[.127±.020]
D1
D2
10.160
[.400]
C
L
9.14
[.360]
(16.61
[.654])
G1
G2
C
C
L
L
+0.38
4X R0.51
–0.13
4X 11.68
[.460]
+.015
R.020
–.005
[
]
24.40
[1.000]
31.242±0.28
[1.230±.011]
2.13
[.084] SPH
+0.25
4.57
–0.13
+.010
.180
C
-.005
[
]
L
1.63
[.064]
C
66065-A0004-C250-01-0027 H-37275-4-X
37275-4-r02_PO_12-22-2014
h
-
32.26
[1.270]
S
Diagram Notes—unless otherwise specified:
1. Interpret dimensions and tolerances per ASME Y14.5M-1994.
2. Primary dimensions are mm. Alternate dimensions are inches.
3. All tolerances 0.13 [0.005].
4. Pins: D1, D2 – drain; G1, G2 – gate; S (flange) – source.
5. Lead thickness: 0.127 0.001 [.005 0.002].
6. Gold plating thickness: 1.1 0.38 micron [45 15 microinch].
Find the latest and most complete information about products and packaging at the Infineon Internet page
http://www.infineon.com/rfpower
Data Sheet
9 of 10
Rev. 03.2, 2016-06-22
PXAC243502FV V1
Revision History
Revision Date
Data Sheet
Advance
Page
all
Subjects (major changes at each revision)
01
02
2013-03-05
2014-12-24
Proposed specification for new product development.
Producton
all
Includes released-product specifications, including performance graphs and load
pull data.
03
2015-01-16
2015-04-13
Production
Production
6 – 8
1, 2
Include reference circuit information.
Update RF and DC tables. Removed 1C WCDMA performance from Features, added HBM
rating. Updated ordering table.
03.1
Updated ordering information
03.2
2016-06-22
Production
2
We Listen toYour Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send your proposal (including a reference to this document) to:
(highpowerRF@infineon.com)
To request other information, contact us at:
+1 877 465 3667 (1-877-GO-LDMOS) USA
or +1 408 776 0600 International
Edition 2016-06-22
Published by
Infineon Technologies AG
85579 Neubiberg, Germany
© 2013 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics.
With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the
application of the device, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind,
including without limitation, warranties of non-infringement of intellectual property rights of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com/rfpower).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the types in question,
please contact the nearest Infineon Technologies Office.
Infineon Technologies components may be used in life-support devices or systems only with the express written approval of
Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support
device or system or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended
to be implanted in the human body or to support and/or maintain and sustain and/or protect human life. If they fail, it is
reasonable to assume that the health of the user or other persons may be endangered.
Data Sheet
10 of 10
Rev. 03.2, 2016-06-22
厂商 型号 描述 页数 下载

ETC

 		PXA.M0.5GG.NB [ CONN RCPT FMALE 5POS GOLD SOLDER ] 76 页

MARVELL

 		PXA1088 WCDMA / TD -SCDMA通信处理器[ WCDMA/TD-SCDMA Communication Processor ] 2 页

MARVELL

 		PXA168 高性能，高集成度处理器可扩展到1.2 GHz的对成本敏感的，智能消费类和嵌入式设备[ High Performance, Highly Integrated Processor Scalable to 1.2 GHz for Cost-Sensitive, Intelligent Consumer and Embedded Devices ] 2 页

INTEL

 		PXA210 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

 		PXA250 英特尔-R PXA250和PXA210应用处理器[ Intel-R PXA250 and PXA210 Applications Processors ] 46 页

INTEL

 		PXA255 PXA255处理器[ PXA255 Processor ] 40 页

INTEL

 		PXA270 电气，机械和热规格[ Electrical, Mechanical, and Thermal Specification ] 126 页

ACTEL

 		PXA270 为PXA270平台的存储解决方案[ Storage solution for PXA270 platform ] 2 页

ACTEL

 		PXA300 为Marvell公司的PXA300 / 310平台存储解决方案[ Storage Solution for Marvell’s PXA300/310 Platform ] 2 页

MARVELL

 		PXA300 可扩展性能高达624兆赫的高性价比和高能效的智能手机，嵌入式解决方案，以及手持设备[ Scalable Performance up to 624 MHz for Cost-Effective and Power-Efficient Smartphones, Embedded Solutions, and Handheld Devices ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.218632s
