2SK2386

型号:

2SK2386

品牌:

ISC[ INCHANGE SEMICONDUCTOR COMPANY LIMITED ]

页数:

2 页

PDF大小:

64 K

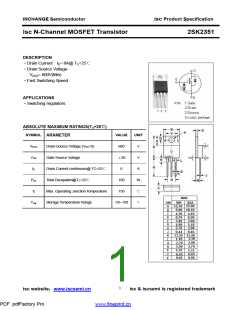

INCHANGE Semiconductor
isc Product Specification
isc N-Channel MOSFET Transistor
2SK2351
DESCRIPTION
·Drain Current ID= 6A@ TC=25℃
·Drain Source Voltage-
: VDSS= 600V(Min)
·Fast Switching Speed
APPLICATIONS
·Switching regulators
ABSOLUTE MAXIMUM RATINGS(Ta=25)
SYMBOL
VDSS
VGS
ID
VALUE
600
UNIT
V
ARAMETER
Drain-Source Voltage (VGS=0)
Gate-Source Voltage
±30
6
V
Drain Current-continuous@ TC=25℃
Total Dissipation@TC=25℃
Max. Operating Junction Temperature
Storage Temperature Range
A
Ptot
100
W
Tj
150
Tstg
-55~150
1
isc websitewww.iscsemi.cn
isc & iscsemi is registered trademark
PDF pdfFactory Pro
www.fineprint.cn
INCHANGE Semiconductor
isc Product Specification
isc N-Channel Mosfet Transistor
·ELECTRICAL CHARACTERISTICS (TC=25)
2SK2351
SYMBOL
V(BR)DSS
VGS
PARAMETER
CONDITIONS
MIN
600
2.0
TYPE
MAX
UNIT
V
Drain-Source Breakdown Voltage
Gate Threshold Voltage
VGS= 0; ID= 1mA
VDS= VGS; ID=1mA
VGS= 10V; ID= 3A
VGS= ±30V;VDS= 0
VDS=600V; VGS= 0
4.0
1.25
±100
500
V
)
(th
Drain-Source On-Resistance
Gate-Body Leakage Current
Zero Gate Voltage Drain Current
Ω
RDS(
)
on
IGSS
nA
µA
IDSS
2
isc websitewww.iscsemi.cn
isc & iscsemi is registered trademark
PDF pdfFactory Pro
www.fineprint.cn
