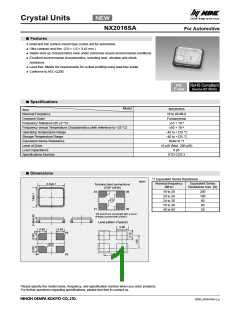

Crystal Units
NX2016SA
For Automotive
Features
■
A small and thin surface-mount type crystal unit for automotive.
● Ultra compact and thin. (2.0 × 1.6 × 0.45 mm )
● Stable start-up characteristics even under extremely severe environmental conditions.
● Excellent environmental characteristics, including heat, vibration and shock
resistance.
● Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
● Conforms to AEC-Q200.
Specifications
■
Model
NX2016SA
Item
Nominal Frequency
16 to 80 MHz
Fundamental
±15 × 10−6
Overtone Order
Frequency Tolerance (25 ±3 °C)
Frequency versus Temperature Characteristics (with reference to +25 °C)
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Level of Drive
±50 × 10−6
−40 to +125 °C
−40 to +125 °C
Refer to *1
10 μW (Max. 200 μW)
8 pF
Load Capacitance
Specifications Number
STD-CZS-3
Dimensions
■
*1 Equivalent Series Resistance
mm
Nominal frequency
(MHz)
Equivalent Series
Resistance max. [Ω]
2.0 0.1
Terminal land connections
(TOP VIEW)
#4
#3
16 to 20
20 to 24
24 to 26
26 to 40
40 to 80
200
100
80
60
#1
#2
50
*#2 and #4 are connected with a cover.
(Please connect with a GND.)
Land pattern (Typical)
0.85
0.65
0.65
#1
#2
#3
C0.2
1.35
#4
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
