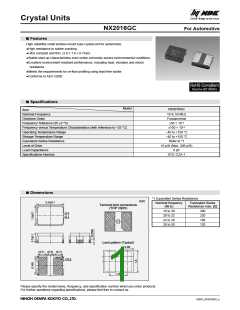

Crystal Units
NX2016GC
For Automotive
Features
■
High reliability small surface-mount type crystal unit for automotive.
●High resistance to solder cracking.
●Ultra compact and thin. (2.0 x 1.6 x 0.7mm)
●Stable start-up characteristics even under extremely severe environmental conditions.
●Excellent environment-resistant performance, including heat, vibration and shock
resistance.
●Meets the requirements for re-flow profiling using lead-free solder.
●Conforms to AEC-Q200.
Specifications
■
Model
NX2016GC
Item
Nominal Frequency
16 to 50 MHz
Fundamental
±50 × 10−6
Overtone Order
Frequency Tolerance (25 ±3 °C)
Frequency versus Temperature Characteristics (with reference to +25 °C)
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Level of Drive
±150 × 10−6
−40 to +150 °C
−40 to +150 °C
Refer to *1
10 μW (Max. 200 μW)
8 pF
Load Capacitance
Specifications Number
STD−CZA-1
Dimensions
■
*1 Equivalent Series Resistance
mm
2.0 0.1
Nominal frequency
(MHz)
Equivalent Series
Resistance max. [Ω]
Terminal land connections
(TOP VIEW)
16 to 20
20 to 22
22 to 26
26 to 50
300
220
180
120
Land pattern (Typical)
0.90
(0.7) (0.5) (0.7)
C0.2
1.35
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
