2SK4035-A

型号：

2SK4035-A

描述：

切换N沟道功率MOSFET[ SWITCHING N-CHANNEL POWER MOSFET ]

品牌：

NEC[ NEC ]

页数：

6 页

PDF大小：

150 K

下载PDF手册

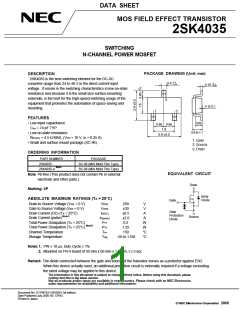

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK4035
SWITCHING
N-CHANNEL POWER MOSFET
PACKAGE DRAWING (Unit: mm)
DESCRIPTION
2SK4035 is the best switching element for the DC-DC
converter usage from 24 to 48 V in the direct current input
voltage. It excels in the switching characteristics in low on-state
resistance and because it is the small size surface mounting
externals, is the best for the high-speed switching usage of the
equipment that promotes the automation of space-saving and
mounting.
+0.1
0.4
+0.1
–0.05
0.16
–0.06
3
0 to 0.1
1
2
FEATURES
0.65
• Low input capacitance
0.95 0.95
1.9
Ciss = 74 pF TYP.
• Low on-state resistance
RDS(on) = 4.5 Ω MAX. (VGS = 10 V, ID = 0.25 A)
• Small and surface mount package (SC-96)
0.9 to 1.1
1. Gate
2. Source
3. Drain
2.9 0.2
ORDERING INFORMATION
PART NUMBER
PACKAGE
2SK4035
2SK4035-A
SC-96 (Mini Mold Thin Type)
SC-96 (Mini Mold Thin Type)
Note
EQUIVALENT CIRCUIT
Note Pb-free (This product does not contain Pb in external
electrode and other parts.)
Drain
Marking: XP
Body
Diode
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Gate
Drain to Source Voltage (VGS = 0 V)
Gate to Source Voltage (VDS = 0 V)
Drain Current (DC) (TA = 25°C)
Drain Current (pulse) Note1
Total Power Dissipation (TA = 25°C)
Total Power Dissipation (TA = 25°C) Note2
Channel Temperature
VDSS
VGSS
ID(DC)
ID(pulse)
PT1
250
±30
V
V
Gate
Protection
Diode
±0.5
A
Source
±2.0
A
0.2
W
W
°C
°C
PT2
1.25
Tch
Tstg
150
Storage Temperature
−55 to +150
Notes 1. PW ≤ 10 µs, Duty Cycle ≤ 1%
2. Mounted on FR-4 board of 50 mm x 50 mm x 1.6 mm, t ≤ 5 sec
Remark The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage exceeding
the rated voltage may be applied to this device.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D17447EJ1V0DS00 (1st edition)
Date Published July 2005 NS CP(K)
Printed in Japan
2005
2SK4035
ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS
Zero Gate Voltage Drain Current
Gate Leakage Current
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
10
UNIT
µA
µA
V
IDSS
VDS = 250 V, VGS = 0 V
IGSS
VGS(off)
| yfs |
RDS(on)
Ciss
VGS = 30 V, VDS = 0 V
VDS = 10 V, ID = 1.0 mA
VDS = 10 V, ID = 0.25 A
VGS = 10 V, ID = 0.25 A
VDS = 10 V
10
Gate Cut-off Voltage
2.5
0.2
3.5
0.5
3.2
74
16
7
4.5
Note
Forward Transfer Admittance
Drain to Source On-state Resistance
Input Capacitance
S
Note
4.5
Ω
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
Output Capacitance
Reverse Transfer Capacitance
Turn-on Delay Time
Rise Time
Coss
Crss
VGS = 0 V
f = 1.0 MHz
td(on)
tr
VDD = 125 V, ID = 0.25 A
VGS = 10 V
7
5
Turn-off Delay Time
Fall Time
td(off)
tf
RG = 10 Ω
12
40
4
Total Gate Charge
QG
VDD = 200 V
Gate to Source Charge
Gate to Drain Charge
QGS
QGD
VF(S-D)
trr
VGS = 10 V
0.9
2
ID = 0.5 A
Note
Body Diode Forward Voltage
IF = 0.5 A, VGS = 0 V
IF = 0.5 A, VGS = 0 V
di/dt = 100 A/µs
0.84
42
57
Reverse Recovery Time
Reverse Recovery Charge
ns
nC
Qrr
Note Pulsed
TEST CIRCUIT 1 SWITCHING TIME
TEST CIRCUIT 2 GATE CHARGE
D.U.T.
D.U.T.
IG
= 2 mA
R
L
V
V
GS
0
R
L
90%
V
GS
Wave Form
V
GS
10%
90%
R
G
PG.
VDD
50 Ω
PG.
VDD
DS
90%
V
0
GS
V
DS
10% 10%
V
DS
Wave Form
0
τ
td(on)
tr
td(off)
t
f
τ = 1 s
µ
Duty Cycle ≤ 1%
t
on
t
off
2
Data Sheet D17447EJ1V0DS
2SK4035
TYPICAL CHARACTERISTICS (TA = 25°C)
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
120
100
80
60
40
20
0
1.4
1.2
1
Mounted on FR-4 board of
50 mm x 50 mm x 1.6 mm,
t ≤ 5 sec
0.8
0.6
0.4
0.2
0
0
25
50
75 100 125 150 175
0
25
50
75 100 125 150 175
TA - Ambient Temperature - °C
TA - Ambient Temperature - °C
FORWARD BIAS SAFE OPERATING AREA
10
1
I
I
D(pulse)
D(DC)
0.1
0.01
0.001
Single pulse
Mounted on FR-4 board of
50 mm x 50 mm x 1.6 mm
0.01
0.1
1
10
100
1000
VDS - Drain to Source Voltage - V
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
Without board
1000
100
10
Mounted on FR-4 board of
50 mm x 50 mm x 1.6 mm
1
Single pulse
100 1000
0.1
1 m
10 m
100 m
1
10
PW - Pulse Width - s
3
Data Sheet D17447EJ1V0DS
2SK4035
DRAIN CURRENT vs.
FORWARD TRANSFER CHARACTERISTICS
DRAIN TO SOURCE VOLTAGE
2
1
0
10
1
VDS = 10 V
Pulsed
V
GS = 10 V
Pulsed
0.1
TA = −55°C
−25°C
25°C
0.01
75°C
0.001
0.0001
0.00001
125°C
150°C
0
2
4
6
8
10
0
5
10
15
VDS - Drain to Source Voltage - V
VGS - Gate to Source Voltage - V
GATE CUT-OFF VOLTAGE vs.
CHANNEL TEMPERATURE
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
7
10
1
V
DS = 10 V
= 1 mA
6
5
4
3
2
1
0
I
D
T
A
= −55°C
−25°C
25°C
75°C
125°C
150°C
0.1
0.01
V
DS = 10 V
Pulsed
0.01
0.1
1
10
-75
-25
25
75
125
175
ID - Drain Current - A
Tch - Channel Temperature - °C
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
DRAIN CURRENT
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
8
8
I
D
= 0.25 A
V
GS = 10 V
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Pulsed
Pulsed
0
5
10
15
20
25
30
0.01
0.1
1
10
VGS - Gate to Source Voltage - V
ID - Drain Current - A
4
Data Sheet D17447EJ1V0DS
2SK4035
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
CAPACITANCE vs. DRAIN TO SOURCE VOLTAGE
8
1000
100
10
I
D
= 0.25 A
7
6
5
4
3
2
1
0
Pulsed
C
iss
V
GS = 10 V
C
oss
V
GS = 0 V
C
rss
f = 1 MHz
1
-75
-25
25
75
125
175
0.01
0.1
1
10
100
1000
Tch - Channel Temperature - °C
VDS - Drain to Source Voltage - V
SWITCHING CHARACTERISTICS
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
VDD = 200 V
100
10
1
V
V
GS = 10 V
DD = 125 V
= 10 Ω
200
10
125 V
50 V
R
G
8
6
4
2
0
150
100
50
t
d(off)
t
d(on)
VGS
t
r
t
f
VDS
ID = 0.5 A
0
0.1
1
10
0
1
2
3
4
5
ID - Drain Current - A
QG - Gate Charge - nC
SOURCE TO DRAIN DIODE FORWARD VOLTAGE
10
REVERSE RECOVERY TIME vs.
DIODE FORWARD CURRENT
1000
100
10
di/dt = 100 A/µs
V
GS = 0 V
1
0.1
V
GS = 0 V
Pulsed
0.01
1
0
0.5
1
1.5
0.1
1
10
VF(S-D) - Source to Drain Voltage - V
IF - Diode Forward Current - A
5
Data Sheet D17447EJ1V0DS
2SK4035
•
The information in this document is current as of July, 2005. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC Electronics data sheets or
data books, etc., for the most up-to-date specifications of NEC Electronics products. Not all
products and/or types are available in every country. Please check with an NEC Electronics sales
representative for availability and additional information.
• No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
•
NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
•
• While NEC Electronics endeavors to enhance the quality, reliability and safety of NEC Electronics products,
customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To
minimize risks of damage to property or injury (including death) to persons arising from defects in NEC
Electronics products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment and anti-failure features.
• NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customer-
designated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1) "NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2) "NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E 02. 11-1
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.196311s
