XWM8728EDS

型号:

XWM8728EDS

描述:

24位, 192kHz的立体声DAC,具有音量控制和DSD支持[ 24-bit, 192kHz Stereo DAC with Volume Control and DSD Support ]

品牌:

WOLFSON[ WOLFSON MICROELECTRONICS PLC ]

页数:

28 页

PDF大小:

267 K

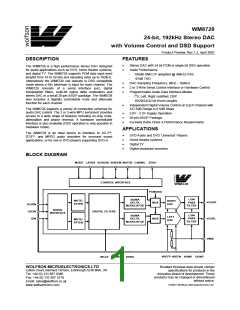

WM8728
24-bit, 192kHz Stereo DAC
with Volume Control and DSD Support
Product Preview, Rev 1.2, April 2001
DESCRIPTION
FEATURES
Stereo DAC with 24 bit PCM or single bit DSD operation
Audio Performance
The WM8728 is a high performance stereo DAC designed
for audio applications such as DVD, home theatre systems,
and digital TV. The WM8728 supports PCM data input word
lengths from 16 to 32-bits and sampling rates up to 192kHz.
Alternatively the WM8728 can operate in DSD compatible
mode where a 64x bitstream is input for each channel. The
-
106dB SNR (‘A’ weighted @ 48kHz) DAC
-97dB THD
-
DAC Sampling Frequency: 8kHz - 192kHz
2 or 3-Wire Serial Control Interface or Hardware Control
Programmable Audio Data Interface Modes
WM8728 consists of
a serial interface port, digital
interpolation filters, multi-bit sigma delta modulators and
stereo DAC in a small 20-pin SSOP package. The WM8728
also includes a digitally controllable mute and attenuate
function for each channel.
-
I2S, Left, Right Justified, DSP
-
16/20/24/32 bit Word Lengths
Independent Digital Volume Control on Each Channel with
127.5dB Range in 0.5dB Steps
The WM8728 supports a variety of connection schemes for
audio DAC control. The 2 or 3-wire MPU serial port provides
access to a wide range of features including on-chip mute,
attenuation and phase reversal. A hardware controllable
interface is also available (DSD operation is only possible in
hardware mode).
3.0V - 5.5V Supply Operation
20-pin SSOP Package
Exceeds Dolby Class A Performance Requirements
APPLICATIONS
The WM8728 is an ideal device to interface to AC-3 ,
DTS , and MPEG audio decoders for surround sound
applications, or for use in DVD players supporting DVD-A.
DVD-Audio and DVD ‘Universal’ Players
Home theatre systems
Digital TV
Digital broadcast receivers
BLOCK DIAGRAM
LATI2S
MUTEB CSBIWL ZERO
SCKDSD SDIDEM
MODE
CONTROL INTERFACE
WM8728
PCM/DSD
MUX
LOW
PASS
FILTER
SIGMA
DELTA
MODULATOR
MUTE/
ATTEN
RIGHT
DAC
VOUTR
VOUTL
BCKIN
LRCIN
DIN
SERIAL
INTERFACE
DIGITAL FILTERS
LOW
PASS
FILTER
SIGMA
DELTA
MODULATOR
LEFT
DAC
MUX
MUTE/
ATTEN
VMID
VREFP VREFN AGND DGND
MCLK
AVDD DVDD
WOLFSON MICROELECTRONICS LTD
Product Preview data sheets contain
specifications for products in the
formative phase of development. These
products may be changed or discontinued
without notice.
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176
Email: sales@wolfson.co.uk
2001 Wolfson Microelectronics Ltd.
www.wolfsonmicro.com
WM8728
Product Preview
PIN CONFIGURATION
ORDERING INFORMATION
DEVICE
TEMP. RANGE
PACKAGE
LRCIN
DIN
1
2
3
4
5
6
7
20
19
18
17
16
15
14
LATI2S
XWM8728EDS
-25 to +85oC
20-pin SSOP
SCKDSD
SDIDEM
MUTEB
MODE
BCKIN
MCLK
ZERO
DGND
DVDD
WM8728
CSBIWL
VREFP
VOUTR
AGND
AVDD
8
13
12
11
VREFN
VMID
9
10
VOUTL
PIN DESCRIPTION
PIN
NAME
TYPE
DESCRIPTION
1
LRCIN
Digital Input
DAC Sample Rate Clock Input: PCM Input Mode
Right Channel DSD Bitstream Input: DSD Input Mode
Serial Audio Data Input: PCM Input Mode
Left Channel DSD Bitstream Input: DSD Input Mode
Audio Data Bit Clock Input
2
DIN
Digital Input
3
4
BCKIN
MCLK
Digital Input
Digital Input
Digital Output (Open drain)
Supply
Master Clock Input
5
ZERO
Infinite ZERO Detect Flag
6
DGND
DVDD
VOUTR
AGND
AVDD
Digital Ground Supply
7
Supply
Digital Positive Supply
8
Analogue Output
Supply
Right Channel DAC Output
9
Analogue Ground Supply
10
11
12
13
14
15
Supply
Analogue Positive Supply
VOUTL
VMID
Analogue Output
Analogue Output
Supply
Left Channel DAC Output
Mid Rail Decoupling Point
VREFN
VREFP
CSBIWL
DAC Negative Reference normally AGND, must not be below AGND
DAC Positive Reference normally AVDD, must not be above AVDD
Software Mode: 3-Wire Serial Control Chip Select
Hardware Mode: Input Word Length
Supply
Digital Input
(pull-up)
16
17
18
MODE
MUTEB
SDIDEM
Digital Input (pull-down)
Digital Bi-directional
Digital Bi-directional
Control Mode Selection (L = Hardware, H = Software)
Mute Control (L = Mute on, H = Mute off, Z = Automute Enabled)
Software Mode: 3 or 2-Wire Serial Control Data Input:
Hardware Mode: De-Emphasis Select
19
20
SCKDSD
LATI2S
Digital Input
(pull-down)
Software Mode: 3 or 2-Wire Serial Control Clock Input
Hardware Mode: DSD Bitstream Operation Select
Software Mode 3-Wire Serial Control Load Input
Hardware Mode: Input Data Format Selection
Digital Input
(pull-up)
Note:
Digital input pins have Schmitt trigger input buffers.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
2
WM8728
Product Preview
ABSOLUTE MAXIMUM RATINGS
Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical
Characteristics at the test conditions specified.
ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible
to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage
of this device.
CONDITION
MIN
-0.3V
MAX
+7V
Digital supply voltage
Analogue supply voltage
-0.3V
+7V
Voltage range digital inputs
Voltage range analogue inputs
Master Clock Frequency
DGND -0.3V
AGND -0.3V
DVDD +0.3V
AVDD +0.3V
50MHz
Operating temperature range, TA
Storage temperature
-25°C
-65°C
+85°C
+150°C
+240°C
+183°C
Package body temperature (soldering 10 seconds)
Package body temperature (soldering 2 minutes)
Note:
Analogue and digital grounds must always be within 0.3V of each other.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
3
WM8728
Product Preview
DC ELECTRICAL CHARACTERISTICS
PARAMETER
SYMBOL
DVDD
TEST CONDITIONS
MIN
3.0
TYP
MAX
UNIT
V
Digital supply range
Analogue supply range
Ground
5.5
5.5
AVDD
3.0
V
AGND, DGND
0
0
V
Difference DGND to AGND
Analogue supply current
Digital supply current
Analogue supply current
Digital supply current
-0.3
+0.3
V
AVDD = 5V
DVDD = 5V
AVDD = 3.3V
DVDD = 3.3V
19
8
mA
mA
mA
mA
18
4
ELECTRICAL CHARACTERISTICS
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Digital Logic Levels (TTL Levels)
Input LOW level
VIL
VIH
0.8
V
V
V
V
Input HIGH level
2.0
Output LOW
VOL
VOH
IOL = 1mA
IOH = 1mA
AGND + 0.3V
Output HIGH
AVDD 0.3V
(VREFP -
Analogue Reference Levels
Reference voltage
VMID
(VREFP -
(VREFP -
V
VREFN)/2 - VREFN)/2 VREFN)/2 +
50mV
50mV
Potential divider resistance
RVMID
12k
ohms
DAC Output (Load = 10k ohms. 50pF)
0dBFs Full scale output voltage
At DAC outputs
1.1 x
AVDD/5
106
Vrms
dB
SNR (Note 1,2,3)
SNR (Note 1,2,3)
SNR (Note 1,2,3)
SNR (Note 1,2,3)
A-weighted,
@ fs = 48kHz
A-weighted
@ fs = 96kHz
A-weighted
100
106
106
105
dB
dB
@ fs = 192kHz
A-weighted,
dB
@ fs = 48kHz
AVDD, DVDD = 3.3V
A-weighted
@ fs = 96kHz
AVDD, DVDD = 3.3V
SNR (Note 1,2,3)
SNR (Note 1,2,3)
103
106
dB
dB
Non Aweighted @ fs
= 48kHz
THD (Note 1,2,3)
1kHz, 0dBFs
-97
106
100
dB
dB
dB
THD+N (Dynamic range, Note 2)
DAC channel separation
Analogue Output Levels
Output level
1kHz, -60dBFs
100
Load = 10k Ohms,
0dBFS
1.1
VRMS
VRMS
Load = 10k Ohms,
0dBFS,
0.726
(AVDD = 3.3V)
Gain mismatch
±1
%FSR
channel-to-channel
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
4
WM8728
Product Preview
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Minimum resistance load
To midrail or a.c.
coupled
1
kohms
To midrail or a.c.
coupled
600
ohms
(AVDD = 3.3V)
Maximum capacitance load
Output d.c. level
5V or 3.3V
100
pF
V
(VREFP -
VREFN)/2
Power On Reset (POR)
POR threshold
2.4
V
Notes:
1. Ratio of output level with 1kHz full scale input, to the output level with all ZEROS into the digital input, over a 20Hz to
20kHz bandwidth.
2. All performance measurements done with 20kHz low pass filter, and where noted an A-weight filter. Failure to use such a
filter will result in higher THD+N and lower SNR and Dynamic Range readings than are found in the Electrical
Characteristics. The low pass filter removes out of band noise; although it is not audible it may affect dynamic specification
values.
3. VMID decoupled with 10uF and 0.1uF capacitors (smaller values may result in reduced performance).
TERMINOLOGY
1. Signal-to-noise ratio (dB) - SNR is a measure of the difference in level between the full-scale output and the output with a
ZERO signal applied. (No Auto-ZERO or Automute function is employed in achieving these results).
2. Dynamic range (dB) - DNR is a measure of the difference between the highest and lowest portions of a signal. Normally a
THD+N measurement at 60dB below full scale. The measured signal is then corrected by adding the 60dB to it. (e.g.
THD+N @ -60dB= -32dB, DR= 92dB).
3. THD+N (dB) - THD+N is a ratio, of the rms values, of (Noise + Distortion)/Signal.
4. Stop band attenuation (dB) - Is the degree to which the frequency spectrum is attenuated (outside audio band).
5. Channel Separation (dB) - Also known as Cross Talk. This is a measure of the amount one channel is isolated from the
other. Normally measured by sending a full-scale signal down one channel and measuring the other.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
5
WM8728
Product Preview
MASTER CLOCK TIMING
tMCLKL
MCLK
tMCLKH
tMCLKY
Figure 1 Master Clock Timing Requirements
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Master Clock Timing Information
MCLK Master clock pulse width high
MCLK Master clock pulse width low
MCLK Master clock cycle time
MCLK Duty cycle
tMCLKH
tMCLKL
tMCLKY
13
13
ns
ns
ns
26
40:60
60:40
DIGITAL AUDIO INTERFACE
tBCH
tBCL
BCKIN
LRCIN
DIN
tBCY
tLRSU
tDS
tLRH
tDH
Figure 2 Digital Audio Data Timing
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Audio Data Input Timing Information
BCKIN cycle time
tBCY
tBCH
tBCL
40
16
16
8
ns
ns
ns
ns
BCKIN pulse width high
BCKIN pulse width low
LRCIN set-up time to
BCKIN rising edge
tLRSU
LRCIN hold time from
BCKIN rising edge
tLRH
tDS
8
8
8
ns
ns
ns
DIN set-up time to BCKIN
rising edge
DIN hold time from BCKIN
rising edge
tDH
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
6
WM8728
Product Preview
DSD AUDIO MONOPHASE INTERFACE
tBCH
tBCL
MCLK
tBCY
DIN/LRCIN
tDS
tDH
Figure 3 Normal DSD timing requirements
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Audio Data Input Timing Information
MCLK cycle time
tBCY
tBCH
tBCL
tDS
344
ns
ns
ns
ns
MCLK pulse width high
MCLK pulse width low
160
160
10
DIN/LRCIN set-up time to
MCLK rising edge
DIN/LRCIN hold time from
MCLK rising edge
tDH
10
ns
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
7
WM8728
Product Preview
DSD AUDIO BIPHASE INTERFACE
tPH
tBCY
BCKIN
tBCH
tBCL
tMCL
tMCH
MCLK
tMCY
tSU
tHD
D0
D1
D1
D2
D2
DIN/LRCIN
Figure 4 Biphase DSD Timing Requirements
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Audio Data Input Timing Information
BCKIN cycle time
tBCY
tBCH
tBCL
tMCY
tMCH
tMCL
tPH
162.8
81.4
ns
ns
ns
ns
ns
ns
ns
BCKIN pulse width high
BCKIN pulse width low
MCLK cycle time
80
80
81.4
325.5
162.8
162.8
MCLK pulse width high
MCLK pulse width low
160
160
Phase shift between BCKIN
and MCLK
20
Data setup time to BCKIN
falling edge
tSU
tHD
10
10
ns
ns
Data hold time to BCKIN
rising edge
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
8
WM8728
Product Preview
MPU 3-WIRE INTERFACE TIMING
CSBIWL
LATI2S
tCSSU
tCSSH
tCSL
tCSH
tSCY
tCSS
tSCS
tSCH
tSCL
SCKDSD
SDIDEM
LSB
tDSU
tDHO
Figure 5 Program Register Input Timing - 3-Wire Serial Control Mode
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Program Register Input Information
SCKDSD rising edge to LATI2S
rising edge
tSCS
40
ns
SCKDSD pulse cycle time
SCKDSD pulse width low
SCKDSD pulse width high
tSCY
tSCL
tSCH
tDSU
80
20
20
20
ns
ns
ns
ns
SDIDEM to SCKDSD set-up
time
SCKDSD to SDIDEM hold time
LATI2S pulse width low
tDHO
tCSL
tCSH
tCSS
tCSSU
tCSSH
20
20
20
20
20
20
ns
ns
ns
ns
ns
ns
LATI2S pulse width high
LATI2S rising to SCKDSD rising
CSBIWL to LATI2S set-up time
LATI2S to CSBIWL hold time
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
9
WM8728
Product Preview
MPU 2-WIRE INTERFACE TIMING
tSCF
tSCY
SCKDSD
tSSU tSHD
tSCH
tDHD tDSU
tDR
tESU
tSCL
tSCR
SDIDEM
tDF
Figure 6 Program Register Input Timing - 2-Wire Serial Control Mode
Test Conditions
AVDD, DVDD = 5V, AGND = 0V, DGND = 0V, TA = +25oC, fs = 48kHz, MCLK = 256fs unless otherwise stated.
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
Program Register Input Information
SCKDSD pulse cycle time
tSCY
tSCL
tSCH
tSSU
80
20
20
10
ns
ns
ns
ns
SCKDSD pulse width low
SCKDSD pulse width high
SDIDEM to SCKDSD data set-
up time for start signal
SDIDEM from SCKDSD data
hold time for start signal
tSHD
tDSU
tDHD
10
20
20
ns
ns
ns
SDIDEM to SCKDSD data set-
up time
SCKDSD to SDIDEM data hold
time
SCKDSD rise time
SCKDSD fall time
SDIDEM rise time
SDIDEM fall time
tSCR
tSCF
tDR
5
5
ns
ns
ns
ns
ns
5
tDF
5
SDIDEM to SCKDSD data set-
up time for stop signal
tESU
10
Notes:
1. The address for the device in the 2-wire mode is 001101X (binary) with the last bit selectable.
2. In the two-wire interface mode, the CSBIWL pin indicates the final bit of the chip address.
3. In 2-wire mode the LATI2S pin should be tied to either DGND or DVSS to avoid noise toggling the interface into 3-wire
mode.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
10
WM8728
Product Preview
DEVICE DESCRIPTION
INTRODUCTION
The WM8728 is a high performance DAC designed for digital consumer audio applications. Its
range of features makes it ideally suited for use in DVD players, AV receivers and other high-end
consumer audio equipment.
WM8728 is a complete 2-channel stereo audio digital-to-analogue converter, including digital
interpolation filter, multi-bit sigma delta with dither, switched capacitor multi-bit stereo DAC and
output smoothing filters. The WM8728 includes an on-chip digital volume control, configurable
digital audio interface and a 2 or 3 wire MPU control interface. It is fully compatible and an ideal
partner for a range of industry standard microprocessors, controllers and DSPs.
Control of internal functionality of the device is by either hardware control (pin programmed) or
software control (2 or 3-wire serial control interface). The MODE pin selects between hardware
and software control. The software control interface may be asynchronous to the audio data
interface. In which case control data will be re-synchronised to the audio processing internally.
Operation using a master clock of 256fs, 384fs, 512fs or 768fs is provided, selection between
clock rates being automatically controlled in hardware mode, or serial controlled when in software
mode. Sample rates (fs) from less than 8ks/s to 96ks/s are allowed, provided the appropriate
master clock is input. Support is also provided for up to 192ks/s using a master clock of 128fs or
192fs.
The audio data interface supports right justified, left justified and I2S (Philips left justified, one bit
delayed) interface formats along with a highly flexible DSP serial port interface. When in hardware
mode, the three serial interface pins become control pins to allow selection of, input data format
type (I2S or right justified), input word length (20 or 24 bit) and de-emphasis functions.
In DSD mode, a separate bitstream data input pin is required for each of the channels, plus a 64fs
dataclock MCLK. These signals are applied via pins DIN and LRCIN and the signals routed
internally into the DAC circuits, under control of the SCKDSD mode select pin (19) See Figure 3.
Additionally a Phase Modulation scheme is supported, whereby the audio data is transmitted as a
Manchester encoded bitstream. This has the advantage of removing the significant spectral audio
energy from the datastream, minimising digital signal corruption of the analogue outputs. In order
to simplify decoding of this Phase modulated data, a 2x speed clock (BCKIN) is used to sample
the incoming data. See Figure 4.
The device is packaged in a small 20-pin SSOP.
CLOCKING SCHEMES
In a typical digital audio system there is only one central clock source producing a reference clock
to which all audio data processing is synchronised. This clock is often referred to as the audio
systems Master Clock. The external master system clock can be applied directly through the
MCLK input pin with no software configuration necessary for sample rate selection.
Note that on the WM8728, MCLK is used to derive clocks for the DAC path. The DAC path
consists of DAC sampling clock, DAC digital filter clock and DAC digital audio interface timing. In
a system where there are a number of possible sources for the reference clock it is recommended
that the clock source with the lowest jitter be used to optimise the performance of the DAC.
WM8728 always acts as a slave and requires clocks to be inputs.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
11
WM8728
Product Preview
DIGITAL AUDIO INTERFACE
Audio data is applied to the internal DAC filters via the Digital Audio Interface. Five popular
interface formats are supported:
Left Justified mode
Right Justified mode
I2S mode
DSP Early mode
DSP Late mode
All five formats send the MSB first and support word lengths of 16, 20, 24 and 32 bits with the
exception that 32 bit data is not supported in right justified mode. DIN and LRCIN maybe
configured to be sampled on the rising or falling edge of BCKIN.
In left justified, right justified and I2S modes, the digital audio interface receives data on the DIN
input. Audio Data is time multiplexed with LRCIN indicating whether the left or right channel is
present. LRCIN is also used as a timing reference to indicate the beginning or end of the data
words. The minimum number of BCKINs per LRCIN period is 2 times the selected word length.
LRCIN must be high for a minimum of word length BCKINs and low for a minimum of word length
BCKINs. Any mark to space ratio on LRCIN is acceptable provided the above requirements are
met
The WM8728 will automatically detect when data with a LRCIN period of exactly 32 BCKINs is
sent, and select 16-bit mode - overriding any previously programmed word length. Word length
will revert to a programmed value only if a LRCIN period other than 32 BCKINs is detected.
In DSP early or DSP late mode, the data is time multiplexed onto DIN. LRCIN is used as a frame
sync signal to identify the MSB of the first word. The minimum number of BCKINs per LRCIN
period is 2 times the selected word length. Any mark to space ratio is acceptable on LRCIN
provided the rising edge is correctly positioned. (See Figure 10 and Figure 11)
LEFT JUSTIFIED MODE
In left justified mode, the MSB is sampled on the first rising edge of BCKIN following a LRCIN
transition. LRCIN is high during the left data word and low during the right data word.
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
DIN
1
2
3
n
n-2 n-1
1
2
3
n
n-2 n-1
MSB
LSB
MSB
LSB
Figure 7 Left Justified Mode Timing Diagram
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
12
WM8728
Product Preview
RIGHT JUSTIFIED MODE
In right justified mode, the LSB is sampled on the rising edge of BCKIN preceding a LRCIN
transition. LRCIN is high during the left data word and low during the right data word.
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
DIN
1
2
3
n
1
2
3
n
n-2 n-1
n-2 n-1
MSB
LSB
MSB
LSB
Figure 8 Right Justified Mode Timing Diagram
I2S MODE
In I2S mode, the MSB is sampled on the second rising edge of BCKIN following a LRCIN
transition. LRCIN is low during the left data word and high during the right data word.
1/fs
LEFT CHANNEL
RIGHT CHANNEL
LRCIN
BCKIN
1 BCKIN
1 BCKIN
DIN
1
2
3
n
1
2
3
n
n-2 n-1
n-2 n-1
LSB
LSB
MSB
MSB
Figure 9 I2S Mode Timing Diagram
DSP EARLY MODE
In DSP early mode, the first bit is sampled on the BCKIN rising edge following the one that
detects a low to high transition on LRCIN. No BCKIN edges are allowed between the data words.
The word order is DIN left, DIN right.
1 BCKIN
1 BCKIN
1/fs
LRCIN
BCKIN
LEFT CHANNEL
RIGHT CHANNEL
NO VALID DATA
DIN
1
2
n
1
2
n
n-1
n-1
MSB
LSB
Input Word Length (IWL)
Figure 10 DSP Early Mode Timing Diagram
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
13
WM8728
Product Preview
DSP LATE MODE
In DSP late mode, the first bit is sampled on the BCKIN rising edge, which detects a low to high
transition on LRCIN. No BCKIN edges are allowed between the data words. The word order is
DIN left, DIN right.
1/fs
LRCIN
BCKIN
LEFT CHANNEL
RIGHT CHANNEL
NO VALID DATA
DIN
1
2
n
1
2
n
1
n-1
n-1
MSB
LSB
Input Word Length (IWL)
Figure 11 DSP Late Mode Timing Diagram
AUDIO DATA SAMPLING RATES
The master clock for WM8728 can range from 128fs to 768fs, where fs is the audio sampling
frequency (LRCIN) typically 32kHz, 44.1kHz, 48kHz, 96kHz or 192kHz. The master clock is used
to operate the digital filters and the noise shaping circuits.
The WM8728 has a master clock detection circuit that automatically determines the relationship
between the master clock frequency and the sampling rate (to within +/- 32 system clocks). If
there is a greater than 32 clocks error, the interface shuts down the DAC and mutes the output.
The master clock should be synchronised with LRCIN, although the WM8728 is tolerant of phase
differences or jitter on this clock. See Table 1
SAMPLING
RATE
MASTER CLOCK FREQUENCY (MHZ) (MCLK)
128fs
192fs
256fs
384fs
512fs
768fs
(LRCIN)
32kHz
44.1kHz
48kHz
4.096
5.6448
6.114
6.144
8.467
8.192
11.2896
12.288
24.576
12.288
16.9340
18.432
36.864
16.384
22.5792
24.576
24.576
33.8688
36.864
9.216
96kHz
12.288
24.576
18.432
36.864
Unavailable Unavailable
192kHz
Unavailable Unavailable Unavailable Unavailable
Table 1 Typical Relationships Between Master Clock Frequency and Sampling Rate
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
14
WM8728
Product Preview
HARDWARE DSD MODE
DSD mode is selected by taking the SCKDSD pin high whilst the MODE pin is low. In this mode
the internal digital filters are bypassed, and the already modulated bitstream data is applied
directly to the Switched Capacitor DAC filter where it is converted and lowpass filtered, see Figure
26 to Figure 29.
Two formats are supported for data transfer, MONOPHASE or BIPHASE MODULATED.
In Monophase mode, DSD data is simply clocked into the device using the rising edge of the 64fs
MCLK signal.
In Biphase mode, the data is supplied in Manchester encoded form (a bit transition occurs during
every data bit, which shapes the spectral energy minimising corruption of the analogue outputs).
A secondary clock BCKIN, at 128fs is used to simplify data recovery, the data simply being
clocked with the falling edge of BCKIN when MCLK is at logic low (0V).
See Figure 3 and Figure 4 for details of DSD interface timing.
HARDWARE CONTROL MODES
When the MODE pin is held low, the following hardware modes of operation are available.
MUTE AND AUTOMUTE OPERATION
In both hardware and software modes, pin 17 (MUTEB) controls the selection of MUTE directly,
and can be used to enable and disable the automute function. This pin becomes an output when
left floating and indicates infinite ZERO detect (IZD) see also pin 5 (ZERO).
MUTEB PIN
DESCRIPTION
0
1
Mute DAC channels
Normal Operation
Floating
Enable IZD, MUTEB becomes an output to indicate when IZD occurs.
L=IZD detected, H=IZD not detected.
Table 2 Mute and Automute Control
Figure 12 shows the application and release of MUTE whilst a full amplitude sinusoid is being
played at 48kHz sampling rate. When MUTE (lower trace) is asserted, the output (upper trace)
begins to decay exponentially from the DC level of the last input sample. The output will decay
towards VMID with a time constant of approximately 64 input samples. When MUTE is de-
asserted, the output will restart almost immediately from the current input sample.
1.5
1
0.5
0
-0.5
-1
-1.5
-2
-2.5
0
0.001
0.002
0.003
0.004
0.005
0.006
Time(s)
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
15
WM8728
Product Preview
Figure 12 Application and Release of Soft Mute
The MUTEB pin is an input to select mute or not mute. MUTEB is active low; taking the pin low
causes the filters to soft mute, ramping down the audio signal over a few milliseconds. Taking
MUTEB high again allows data into the filter.
The automute function detects a series of ZERO value audio samples of 1024 samples long
being applied to both channels. After such an event, a latch is set whose output (AUTOMUTED)
is wire ORed through a 10kohm resistor to the MUTEB pin. Thus if the MUTEB pin is not being
driven, the automute function will assert mute.
If MUTEB is tied high, AUTOMUTED is overridden and will not mute unless the IZD register bit is
set. If MUTEB is driven from a bi-directional source, then both MUTE and automute functions are
available. If MUTEB is not driven, AUTOMUTED appears as a weak output (10kOhm-source
impedance) so can be used to drive external mute circuits. AUTOMUTED will be removed as
soon as any channel receives a non-ZERO input.
A diagram showing how the various Mute modes interact is shown below Figure 13.
IZD (Register Bit)
AUTOMUTED
(Internal Signal)
10k
SOFTMUTE
(Internal
Signal)
MUTEB
PIN
MUT (Register Bit)
Figure 13 Selection Logic for MUTE Modes
INPUT FORMAT SELECTION
In hardware mode, LATI2S (pin 20) and CSBIWL (pin 15) become input controls for selection of
input data format type and input data word length.
LATI2S
CSBIWL
INPUT DATA MODE
24-bit right justified
0
0
1
0
1
0
20-bit right justified
16-bit I2S
24-bit I2S
1
1
Table 3 Input Format Selection
Note:
In 24 bit I2S mode, any width of 24 bits or less is supported provided that LRCIN is high for a
minimum of 24 BCKINs and low for a minimum of 24 BCKINs. If exactly 32 BCKINs occur in one
LRCIN (16 high, 16 low) the chip will auto detect and run a 16 bit data mode.
DE-EMPHASIS CONTROL
In hardware mode, SDIDEM (pin 18) becomes an input control for selection of de-emphasis
filtering to be applied.
SDIDEM
DE-EMPHASIS
0
Off
On
1
Table 4 De-emphasis Control
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
16
WM8728
Product Preview
SOFTWARE CONTROL INTERFACE
The software control interface may be operated using a 2-wire interface compatible or 3-wire (SPI-
compatible) interface.
SELECTION OF CONTROL MODE
The WM8728 may be programmed to operate in hardware or software control modes. This is
achieved by setting the state of the MODE pin.
MODE
INTERFACE FORMAT
Hardware Control Mode
Software Control Mode
0
1
Table 5 Control Interface Mode Selection
3-WIRE (SPI COMPATIBLE) SERIAL CONTROL MODE
In this mode, SDIDEM is used for the program data, SCKDSD is used to clock in the program
data and LATI2S is used to latch in the program data. The 3-wire interface protocol is shown in
Figure 14.
LATI2S
SCKDSD
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
B0
SDIDEM
Figure 14 3-Wire Serial Interface
Notes:
1. B[15:9] are Control Address Bits
2. B[8:0] are Control Data Bits
3. CSBIWL needs to be low during writes see Figure 5
2-WIRE SERIAL CONTROL MODE
In 2-wire mode, which is the default, SDIDEM is used for the program data and SCKDSD is used
to clock in the program data see Figure 15.
WM8728 has an address of 001101X (binary) which represents an audio device. The final
address digit is dependent on pin CSBIWL, which should be tied to either DVDD or DGND. This
allows the device to have a choice of two identification header addresses used in the 2 wire
interface word. This feature allows more than one WM8728 device to be present on the interface
bus.
LATI2S should be tied to either DVDD or DGND, as it is unused. This pin if toggled from low to
high and high to low, will cause the device to enter the 3-wire interface mode and cannot be
placed back into 2-wire mode except by toggling the MODE pin, or powering off the device.
ACK
ACK
ACK
DATA B15-8
R ADDR
R/W
DATA B7-0
SDIDEM
SCKDSD
START
STOP
Figure 15 2-Wire Serial Interface
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
17
WM8728
Product Preview
REGISTER MAP
WM8728 uses a total of 4 program registers, which are 16-bits long. These registers are all loaded through input pin SDIDEM.
Using either 2-wire or 3-wire serial control mode as shown in Figure 14 and Figure 15.
B15
B14
B13
B12
B11
B10
B9
0
B8
B7
B6
LAT6
RAT6
0
B5
LAT5
RAT5
IW2
B4
B3
LAT3
RAT3
IW0
0
B2
LAT2
RAT2
PWDN
ATC
B1
LAT1
RAT1
B0
LAT0
RAT0
M0
M1
M2
M3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
UPDATEL LAT7
UPDATER RAT7
LAT4
RAT4
IW1
0
1
0
0
0
0
0
EEMPH MUT
I2S
0
1
IZD
0
BCP
REV
LRP
ADDRESS
DATA
Table 6 Mapping of Program Registers
REGISTER
ADDRESS
(A3,A2,A1,A0)
0000
BITS
NAME
DEFAULT
DESCRIPTION
[7:0]
8
LAT[7:0] 11111111 (0dB) Attenuation data for left channel in 0.5dB steps, see Table 9
DACL
UPDATEL
0
Attenuation data load control for left channel.
Attenuation
0: Store DACL in intermediate latch (no change to output)
1: Store DACL and update attenuation on both channels.
0001
[7:0]
8
RAT[7:0] 11111111 (0dB) Attenuation data for right channel in 0.5dB steps, see Table 9
DACR
Attenuation
UPDATER
0
0
0
0
Attenuation data load control for right channel.
0: Store DACR in intermediate latch (no change to output)
1: Store DACR and update attenuation on both channels.
Left and right DACs soft mute control.
0: No mute
0010
0
1
2
MUT
DAC Control
1: Mute
DEEMPH
PWDN
De-emphasis control.
0: De-emphasis off
1: De-emphasis on
Left and Right DACs Power-down Control
0: All DACs running, output is active
1: All DACs in power saving mode, output muted
Audio data format select, see Table 14
Audio data format select, see Table 14
Polarity select for LRCIN/DSP mode select.
0: normal LRCIN polarity/DSP late mode
1: inverted LRCIN polarity/DSP early mode
Attenuator Control.
[5:3]
0
IW[2:0]
I2S
0
0
0
0011
Interface
Control
1
LRP
2
ATC
0
0: All DACs use attenuation as programmed.
1: Right channel DACs use corresponding left DAC
attenuation
4
5
REV
BCP
0
0
Output phase reverse.
BCKIN Polarity
0 : normal BCKIN polarity
1: inverted BCKIN polarity
8
IZD
0
Infinite ZERO detection circuit control and automute control
0: Infinite ZERO detect disabled
1: Infinite ZERO detect enabled
Table 7 Register Bit Descriptions
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
18
WM8728
Product Preview
ATTENUATION CONTROL
Each DAC channel can be attenuated digitally before being applied to the digital filter. Attenuation
is 0dB by default but can be set between 0 and 127.5dB in 0.5dB steps using the 8 Attenuation
control bits. All attenuation registers are double latched allowing new values to be pre-latched to
both channels before being updated synchronously. Setting the UPDATE bit on any attenuation
write will cause all pre-latched values to be immediately applied to the DAC channels.
REGISTER
ADDRESS
BITS
LABEL
DEFAULT
DESCRIPTION
0000
[7:0]
LAT[7:0]
11111111 (0dB)
Attenuation data for Left channel DACL in 0.5dB steps.
Attenuation
DACL
8
UPDATEL
0
Controls simultaneous update of all Attenuation Latches
0: Store DACL in intermediate latch (no change to output)
1: Store DACL and update attenuation on all channels.
Attenuation data for Right channel DACR in 0.5dB steps.
0001
[7:0]
8
RAT[7:0]
11111111 (0dB)
0
Attenuation
DACR
UPDATER
Controls simultaneous update of all Attenuation Latches
0: Store DACR in intermediate latch (no change to output)
1: Store DACR and update attenuation on all channels.
Table 8 Attenuation Register Map
Note:
1. The UPDATE bit is not latched. If UPDATE=0, the Attenuation value will be written to the pre-latch but not applied to the
relevant DAC. If UPDATE=1, all pre-latched values and the current value being written will be applied on the next input
sample.
2. Care should be used in reducing the attenuation as rapid large volume changes can introduce zipper noise.
DAC OUTPUT ATTENUATION
Registers LAT and RAT control the left and right channel attenuation. Table 9 shows how the
attenuation levels are selected from the 8-bit words.
XAT[7:0]
ATTENUATION LEVEL
00(hex)
dB (mute)
01(hex)
127.5dB
:
:
:
:
:
:
FE(hex)
FF(hex)
0.5dB
0dB
Table 9 Attenuation Control Levels
MUTE MODES
Setting the MUT register bit will apply a softmute to the input of the digital filters:
REGISTER ADDRESS
0010
BIT
LABEL
DEFAULT
DESCRIPTION
Soft Mute select
0
MUT
0
DAC Control
0 : Normal Operation
1: Soft mute all channels
Table 10 Mute control
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
19
WM8728
Product Preview
DE-EMPHASIS MODE
Setting the DEEMPH register bit puts the digital filters into de-emphasis mode:
REGISTER ADDRESS
0010
BIT
LABEL
DEFAULT
DESCRIPTION
1
DEEMPH
0
De-emphasis mode select:
0 : De-emphasis Off
DAC Control
1: De-emphasis On
Table 11 De-emphasis Control
POWERDOWN MODE
Setting the PWDN register bit immediately connects all outputs to VMID and selects a low power
mode. All trace of the previous input samples is removed, and all control register settings are
cleared. When PWDN is cleared again the first 16 input samples will be ignored, as the FIR will
repeat its power-on initialisation sequence.
REGISTER ADDRESS
0010
BIT
LABEL
DEFAULT
DESCRIPTION
Power Down Mode Select:
0 : Normal Mode
2
PWDN
0
DAC Control
1: Power Down Mode
Table 12 Powerdown control
DIGITAL AUDIO INTERFACE CONTROL REGISTERS
The WM8728 has a fully featured digital audio interface that is a superset of that contained in the
WM8716. Interface format is selected via the IWL[2:0] register bits in register M2 and the I2S
register bit in M3.
REGISTER ADDRESS
0010
BIT
LABEL
DEFAULT
DESCRIPTION
5:3
IWL[2:0]
000000
Interface format Select
DAC Control
0011
0
I2S
0
Interface format Select
Interface Control
Table 13 Interface Format Controls
IW2
I2S
IW1
IW0
AUDIO INTERFACE DESCRIPTION
(NOTE 1)
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
0
1
0
1
0
1
0
1
0
1
0
16 bit right justified mode
20 bit right justified mode
24 bit right justified mode
24 bit left justified mode
16 bit I2S mode
24 bit I2S mode
20 bit I2S mode
20 bit left justified mode
16 bit DSP mode
20 bit DSP mode
24 bit DSP mode
32 bit DSP mode
16 bit left justified mode
Table 14 Audio Data Input Format
Note:
In all modes, the data is signed 2s complement. The digital filters always input 24-bit data. If the
DAC is programmed to receive 16 or 20 bit data, the WM8728 pads the unused LSBs with
ZEROS. If the DAC is programmed into 32-bit mode, the 8 LSBs are treated as zero.
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
20
WM8728
Product Preview
SELECTION OF LRCIN POLARITY
In left justified, right justified or I2S modes, the LRP register bit controls the polarity of LRCIN. If
this bit is set high, the expected polarity of LRCIN will be the opposite of that shown in Figure 7,
Figure 8 and Figure 9. Note that if this feature is used as a means of swapping the left and right
channels, a 1 sample phase difference will be introduced.
REGISTER ADDRESS
0011
BIT
LABEL
DEFAULT
DESCRIPTION
1
LRP
0
LRCIN Polarity (normal)
0 : normal LRCIN polarity
1: inverted LRCIN polarity
Interface Control
Table 15 LRCIN Polarity Control
In DSP modes, the LRCIN register bit is used to select between early and late modes (see Figure
10 and Figure 11.
REGISTER ADDRESS
0011
BIT
LABEL
DEFAULT
DESCRIPTION
1
LRP
0
DSP Format (DSP modes)
0 : Late DSP mode
Interface Control
1: Early DSP mode
Table 16 DSP Format Control
In DSP early mode, the first bit is sampled on the BCKIN rising edge following the one that
detects a low to high transition on LRCIN. In DSP late mode, the first bit is sampled on the BCKIN
rising edge, which detects a low to high transition on LRCIN. No BCKIN edges are allowed
between the data words. The word order is DIN left, DIN right.
ATTENUATOR CONTROL MODE
Setting the ATC register bit causes the left channel attenuation settings to be applied to both left
and right channel DACs from the next audio input sample. No update to the attenuation registers
is required for ATC to take effect.
REGISTER ADDRESS
0011
BIT
LABEL
DEFAULT
DESCRIPTION
2
ATC
0
Attenuator Control Mode:
0 : Right channels use Right
attenuation
Interface Control
1: Right Channels use Left
Attenuation
Table 17 Attenuation Control Select
OUTPUT PHASE REVERSAL
The REV register bit controls the phase of the output signal. Setting the REV bit causes the
phase of the output signal to be inverted.
REGISTER ADDRESS
0011
BIT
LABEL
DEFAULT
DESCRIPTION
Analogue Output Phase
0: Normal
4
REV
0
Interface Control
1: Inverted
Table 18 Output Phase Control
BCKIN POLARITY
By default, LRCIN and DIN are sampled on the rising edge of BCKIN and should ideally change
on the falling edge. Data sources which change LRCIN and DIN on the rising edge of BCKIN can
be supported by setting the BCP register bit. Setting BCP to 1 inverts the polarity of BCKIN to the
inverse of that shown in Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11.
REGISTER ADDRESS
0011
BIT
LABEL
DEFAULT
DESCRIPTION
BCKIN Polarity
5
BCP
0
0 : normal BCKIN polarity
1: inverted BCKIN polarity
Interface Control
Table 19 BCKIN Polarity Control
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
21
WM8728
Product Preview
INFINITE ZERO DETECTION
Setting the IZD register bit determines whether the device is automuted when a sequence of more
than 1024 ZEROS is detected.
REGISTER ADDRESS
0011
BIT
LABEL
DEFAULT
DESCRIPTION
8
IZD
0
Infinite ZERO detection circuit
control and automute control
Interface Control
0: Infinite ZERO detect disabled
1: Infinite ZERO detect enabled
Table 20 IZD Control
DIGITAL FILTER CHARACTERISTICS
PARAMETER
SYMBOL
TEST CONDITIONS
-3dB
MIN
TYP
MAX
UNIT
Passband Edge
Passband Ripple
Stopband Attenuation
0.487fs
f < 0.444fs
f > 0.555fs
±0.05
dB
dB
-60
Table 21 Digital Filter Characteristics
DAC FILTER RESPONSES
0.2
0.15
0.1
0
-20
-40
0.05
0
-60
-0.05
-0.1
-0.15
-0.2
-80
-100
-120
0
0.5
1
1.5
2
2.5
3
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.5
Frequency (Fs)
Frequency (Fs)
Figure 16 DAC Digital Filter Frequency Response
-44.1, 48 and 96kHz
Figure 17 DAC Digital Filter Ripple
-44.1, 48 and 96kHz
0.2
0
-20
-40
-60
-80
0
-0.2
-0.4
-0.6
-0.8
-1
0
0.2
0.4
0.6
0.8
1
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.5
Frequency (Fs)
Frequency (Fs)
Figure 18 DAC Digital Filter Frequency Response
-192kHz
Figure 19 DAC Digital Filter Ripple
-192kHz
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
22
WM8728
Product Preview
DIGITAL DE-EMPHASIS CHARACTERISTICS
0
1
0.5
0
-2
-4
-0.5
-1
-6
-1.5
-2
-8
-2.5
-3
-10
0
2
4
6
8
10
12
14
16
0
2
4
6
8
10
12
14
16
Frequency (kHz)
Frequency (kHz)
Figure 20 De-Emphasis Frequency Response (32kHz)
Figure 21 De-Emphasis Error (32kHz)
0
0.4
0.3
0.2
0.1
0
-2
-4
-6
-0.1
-0.2
-0.3
-0.4
-8
-10
0
5
10
15
20
0
5
10
15
20
Frequency (kHz)
Frequency (kHz)
Figure 22 De-Emphasis Frequency Response (44.1kHz)
Figure 23 De-Emphasis Error (44.1kHz)
0
1
0.8
0.6
0.4
0.2
0
-2
-4
-6
-0.2
-0.4
-0.6
-0.8
-1
-8
-10
0
5
10
15
20
0
5
10
15
20
Frequency (kHz)
Frequency (kHz)
Figure 24 De-Emphasis Frequency Response (48kHz)
Figure 25 De-Emphasis Error (48kHz)
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
23
WM8728
Product Preview
DSD MODE CHARACTERISTICS
5
0
0
-10
-20
-30
-40
-50
-60
-5
-10
-15
-20
-25
-30
-35
-40
-45
0
500
1000
Frequency (kHz)
1500
2000
0
50
100
150
200
250
300
350
400
Frequency (kHz)
Figure 26 DSD Frequency Response - no post filter
Figure 27 DSD Frequency Response - no post filter
0
-20
0
-2
-4
-6
-8
-40
-60
-80
-100
-120
0
50
100
150
200
250
300
350
400
0
10
20
30
40
50
60
Frequency (kHz)
Frequency (kHz)
Figure 28 DSD frequency response - 4th order post filter
Figure 29 DSD frequency response - 4th order post filter
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
24
WM8728
Product Preview
RECOMMENDED EXTERNAL COMPONENTS
DVDD
7
AVDD
+
10
14
DVDD
DGND
AVDD
+
C1
C2
VREFP
6
C3
C4
C5
9
AGND
DGND
13
VREFN
AGND
15
20
19
18
17
CSBIWL
LATI2S
Software I/F or
Hardware Control
SCKDSD
SDIDEM
MUTEB
C6
8
VOUTR
VOUTL
AC-Coupled
VOUTR/L
to External LPF
Software/hardware
control mode select
16
MODE
WM8728
C7
11
1
4
LRCIN
MCLK
3
2
Audio Serial Data I/F
BCKIN
DIN
5
12
ZERO
VMID
+
C8
C9
AGND
Notes:
1. AGND and DGND should be connected as close to the WM8728 as possible.
2. C2, C3, C4 and C8 should be positioned as close to the WM8728 as possible.
3. Capacitor types should be carefully chosen. Capacitors with very low ESR are
recommended for optimum performance.
Figure 30 External Components Diagram
RECOMMENDED EXTERNAL COMPONENTS VALUES
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1 and C5
C2 to C4
C6 and C7
C8
10µF
0.1µF
10µF
0.1µF
10µF
De-coupling for DVDD and AVDD/VREFP
De-coupling for DVDD and AVDD/VREFP
Output AC coupling caps to remove midrail DC level from outputs.
Reference de-coupling capacitors for VMID pin.
C9
Table 22 External Components Description
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
25
WM8728
Product Preview
RECOMMENDED DSD EXTERNAL COMPONENTS
DVDD
AVDD
+
7
6
10
14
DVDD
DGND
AVDD
+
C1
C2
VREFP
C3
C4
C5
9
AGND
DGND
DVDD
13
VREFN
AGND
15
20
19
18
17
CSBIWL
LATI2S
SCKDSD
SDIDEM
MUTEB
MUTE Control
C6
8
VOUTR
VOUTL
AC-Coupled
VOUTR/L
to External LPF
16
MODE
WM8728
C7
11
DGND
1
4
DSD right bitstream
DSD bit clock
LRCIN
MCLK
3
2
BCKIN
DIN
DSD biphase mode clock
DSD left bitstream
5
12
ZERO
VMID
+
C8
C9
AGND
Notes:
1. AGND and DGND should be connected as close to the WM8728 as possible.
2. C2, C3, C4 and C8 should be positioned as close to the WM8728 as possible.
3. Capacitor types should be carefully chosen. Capacitors with very low ESR are
recommended for optimum performance.
4. When using monophase DSD encoding pin 3 BCKIN should be tied to
DVDD. In Biphase DSD encoding BCKIN runs at 2 cycles per bit.
Figure 31 External Connections for DSD Applications
RECOMMENDED EXTERNAL COMPONENTS VALUES FOR DSD
COMPONENT
REFERENCE
SUGGESTED
VALUE
DESCRIPTION
C1 and C5
C2 to C4
C6 and C7
C8
10µF
0.1µF
10µF
0.1µF
10µF
De-coupling for DVDD and AVDD.
De-coupling for DVDD and AVDD.
Output AC coupling caps to remove midrail DC level from outputs.
Reference de-coupling capacitors for VMID pin.
C9
Table 23 External Components for DSD
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
26
WM8728
Product Preview
RECOMMENDED DSD CONNECTIONS
64fs
BCKA
MCLK
LRCIN
DIN
Right Channel Data
DSAR
DSAL
CXD2751Q
WM8728EDS
Left Channel Data
Figure 32 Monophase Mode Connection Diagram
128fs
BCKA
BCKIN
MCLK
LRCIN
DIN
64fs
BCKD
CXD2751Q
WM8728EDS
Right Channel Data
DSAR
DSAL
Left Channel Data
Figure 33 Biphase Mode Connection Diagram
DSD mode is selected with the WM8728 by pulling the SCKDSD pin high while the MODE pin is held low.
DSD mode is hardware only operation.
The CXD2751Q from Sony is a signal processor for Super Audio CD playback.
RECOMMENDED ANALOGUE LOW PASS FILTER FOR PCM DATA FORMAT
(OPTIONAL)
4.7k
4.7k
+VS
_
51
10uF
1.8k
7.5K
+
+
-VS
1.0nF
680pF
47k
Figure 34 Recommended Low Pass Filter (Optional)
WOLFSON MICROELECTRONICS LTD
PP Rev 1.2 April 2001
27
WM8728
Product Preview
PACKAGE DIMENSIONS
DS: 20 PIN SSOP (7.2 x 5.3 x 1.75 mm)
DM0015.A
b
e
20
11
E1
E
GAUGE
PLANE
Θ
1
10
D
0.25
c
L
A1
A A2
-C-
0.10 C
SEATING PLANE
Dimensions
(mm)
NOM
-----
Symbols
MIN
-----
MAX
2.0
-----
1.85
0.38
0.25
7.50
A
A1
A2
b
c
D
e
E
E1
L
0.05
1.65
0.22
0.09
6.90
-----
1.75
-----
-----
7.20
0.65 BSC
7.80
7.40
5.00
0.55
0o
8.20
5.60
0.95
8o
5.30
0.75
4o
θ
REF:
JEDEC.95, MO-150
NOTES:
A. ALL LINEAR DIMENSIONS ARE IN MILLIMETERS.
B. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.
C. BODY DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSION, NOT TO EXCEED 0.20MM.
D. MEETS JEDEC.95 MO-150, VARIATION = AE. REFER TO THIS SPECIFICATION FOR FURTHER DETAILS.
