PXTA64

型号：

PXTA64

描述：

PNP达林顿晶体管[ PNP Darlington transistor ]

品牌：

NXP[ NXP ]

页数：

8 页

PDF大小：

52 K

下载PDF手册

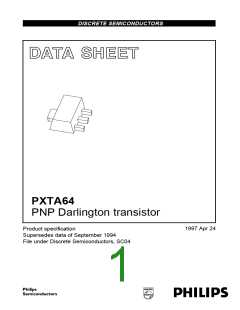

DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
PXTA64
PNP Darlington transistor
1997 Apr 24
Product specification
Supersedes data of September 1994
File under Discrete Semiconductors, SC04
Philips Semiconductors
Product specification
PNP Darlington transistor
PXTA64
FEATURES
PINNING
PIN
• High current (max. 500 mA)
• Low voltage (max. 30 V).
DESCRIPTION
1
2
3
emitter
collector
base
APPLICATIONS
• High input impedance preamplifiers.
handbook, halfpage
DESCRIPTION
3
2
PNP Darlington transistor in a SOT89 plastic package.
NPN complement: PXTA14.
TR1
TR2
MARKING
1
1
2
3
MAM301
TYPE NUMBER
PXTA64
MARKING CODE
Bottom view
p2V
Fig.1 Simplified outline (SOT89) and symbol.
QUICK REFERENCE DATA
SYMBOL
VCBO
VCES
IC
PARAMETER
CONDITIONS
MIN.
MAX.
−30
UNIT
collector-base voltage
collector-emitter voltage
collector current (DC)
total power dissipation
DC current gain
open emitter
VBE = 0
−
−
−
−
V
V
−30
−500
1.3
−
mA
W
Ptot
Tamb ≤ 25 °C
hFE
IC = −10 mA; VCE = −5 V
10000
fT
transition frequency
IC = −100 mA; VCE = −5 V; f = 100 MHz 125
−
MHz
1997 Apr 24
2
Philips Semiconductors
Product specification
PNP Darlington transistor
PXTA64
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
VCBO
VCES
VEBO
IC
PARAMETER
collector-base voltage
collector-emitter voltage
emitter-base voltage
collector current (DC)
peak collector current
base current (DC)
CONDITIONS
open emitter
MIN.
MAX.
−30
UNIT
−
−
−
−
−
−
−
V
V
V
VBE = 0
−30
−10
−500
−1
open collector
mA
A
ICM
IB
−200
1.3
mA
W
Ptot
total power dissipation
storage temperature
junction temperature
operating ambient temperature
Tamb ≤ 25 °C; note 1
Tstg
−65
−
+150
150
+150
°C
°C
°C
Tj
Tamb
−65
Note
1. Device mounted on a printed-circuit board, single sided copper, tinplated, mounting pad for collector 1 cm2.
For other mounting conditions, see “Thermal considerations for the SOT89 in the General part of handbook SC04”.
THERMAL CHARACTERISTICS
SYMBOL
Rth j-a
PARAMETER
CONDITIONS
note 1
VALUE
UNIT
thermal resistance from junction to ambient
thermal resistance from junction to solder point
93
12
K/W
K/W
Rth j-s
Note
1. Device mounted on a printed-circuit board, single sided copper, tinplated, mounting pad for collector 1 cm2.
For other mounting conditions, see “Thermal considerations for the SOT89 in the General part of handbook SC04”.
1997 Apr 24
3
Philips Semiconductors
Product specification
PNP Darlington transistor
PXTA64
CHARACTERISTICS
Tamb = 25 °C unless otherwise specified.
SYMBOL
PARAMETER
CONDITIONS
IE = 0; VCB = −30 V
MIN.
MAX.
UNIT
nA
ICBO
ICES
IEBO
hFE
collector cut-off current
collector cut-off current
emitter cut-off current
DC current gain
−
−
−
−100
−100
−100
−
VBE = 0; VCE = −30 V
nA
nA
IC = 0; VBE = −10 V
IC = −10 mA; VCE = −5 V; see Fig.2
IC = −100 mA; VCE = −5 V; see Fig.2
10000
20000
−
VCEsat
VBEsat
VBEon
fT
collector-emitter saturation voltage IC = −100 mA; IB = −0.1 mA
−
−
−
−1.5
−1.5
−2
V
base-emitter saturation voltage
base-emitter on-state voltage
transition frequency
IC = −100 mA; IB = −0.1 mA
IC = −100 mA; VCE = −5 V
V
V
IC = −100 mA; VCE = −5 V; f = 100 MHz 125
−
MHz
MGD836
100000
h
FE
80000
60000
40000
20000
0
−1
2
3
−10
−10
−10
I
(mA)
C
VCE = −2 V.
Fig.2 DC current gain; typical values.
1997 Apr 24
4
Philips Semiconductors
Product specification
PNP Darlington transistor
PXTA64
PACKAGE OUTLINE
Plastic surface mounted package; collector pad for good heat transfer; 3 leads
SOT89
B
A
D
b
3
E
L
H
E
1
2
3
c
b
2
w
M
b
1
e
1
e
0
2
4 mm
scale
DIMENSIONS (mm are the original dimensions)
L
min.
UNIT
A
b
b
b
c
D
E
e
e
H
E
w
1
2
3
1
1.6
1.4
0.48
0.35
0.53
0.40
1.8
1.4
0.44
0.37
4.6
4.4
2.6
2.4
4.25
3.75
mm
3.0
1.5
0.8
0.13
REFERENCES
JEDEC
EUROPEAN
PROJECTION
OUTLINE
VERSION
ISSUE DATE
IEC
EIAJ
SOT89
97-02-28
1997 Apr 24
5
Philips Semiconductors
Product specification
PNP Darlington transistor
PXTA64
DEFINITIONS
Data Sheet Status
Objective specification
Preliminary specification
Product specification
This data sheet contains target or goal specifications for product development.
This data sheet contains preliminary data; supplementary data may be published later.
This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
1997 Apr 24
6
Philips Semiconductors
Product specification
PNP Darlington transistor
PXTA64
NOTES
1997 Apr 24
7
