IX2R11

型号：

IX2R11

描述：

2A半桥驱动器[ 2A Half-Bridge Driver ]

品牌：

IXYS[ IXYS CORPORATION ]

页数：

6 页

PDF大小：

617 K

下载PDF手册
Preliminary Data Sheet
IX2R11
2A Half-Bridge Driver
Features
General Description
• Floating High Side Driver with boot-strap Power
supply along with a Low Side Driver.
• Fully operational to 650V
The IX2R11 Bridge Driver for N-channel MOSFETs and IGBTs
with a high side and low side output, whose input signals
reference the low side. The High Side driver can control a
MOSFET or IGBT connected to a positive buss voltage up to
650V. The logic input stages are compatible with TTL or
CMOS, have built-in hysteresis and are fully immune to latch
up over the entire operating range. The IX2R11 can withstand
dV/dt on the output side up to ± 50V/ns.
• ± 50V/ns dV/dt immunity
• Gate drive power supply range: 10 - 35V
• Undervoltage lockout for both output drivers
• Separate Logic power supply range: 3.3V to VCL
• Built using the advantages and compatibility
of CMOS and IXYS HDMOSTM processes
• Latch-Up protected over entire
The IX2R11 comes in either the 16-PIN SOIC package
(IX2R11S3) or the 14-PIN DIP through-hole package
(IX2R11P7)
operating range
• High peak output current: 2A
• Matched propagation delay for both outputs
• Low output impedance
• Low power supply current
Applications
• Immune to negative voltage transients
• Driving MOSFETs and IGBTs in half-bridge circuits
• High voltage, high side and low side drivers
• Motor Controls
• Switch Mode Power Supplies (SMPS)
• DC to DC Converters
Warning: The IX2R11 is ESD sensitive.

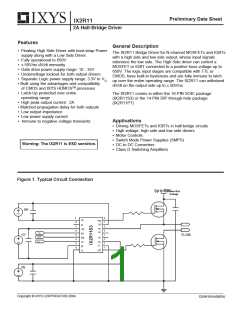

Figure 1. Typical Circuit Connection
• Class D Switching Amplifiers
Copyright © IXYS CORPORATION 2004
DS99165A(08/04)
First Release
IX2R11
Figure 2 - IX2R11 Functional Block Diagram
VDD
VCH
VCH
HGO
Low to
HIN
High
OUT
Gate Current
Output
HIN
RST
IN
HIN
UVCC
Detect
DG
HS
Isolated High Side
VCL
HS
VCL
VDD
LIN
Low to High
Side Delay
Equalizer
and
Shutdown
Gate Current
Output
LGO
Shutdown
Logic
ENB
DG
UVCC
Detect
DG
LS
LS
1 Ohm
Pin Description And Configuration
SYMBOL
VDD
HIN
FUNCTION
Logic Supply
HS Input
DESCRIPTION
Positive power supply for the chip CMOS functions
High side Input signal, TTL or CMOS compatible; HGO in phase
Low side Input signal, TTL or CMOS compatible; LGO in phase
Chip enable. When driven high, both outputs go low.
Logic Reference Ground
LIN
LS Input
ENB
DG
Not Enable
Ground
VCH
HGO
HS
Supply Voltage
Output
High Side Power Supply
High side driver output
Return
High side voltage return pin
VCL
Supply Voltage
Low side power supply. This power supply provides power for
both outputs. Voltage range is from 4.5 to 25V.
Low side driver output
LGO
LS
Output
Ground
Low side return
14-PIN DIP
16-PIN SOIC
8
7
N/C
VDD
HIN
ENB
LIN
HGO
9
6
VCH
HS
10
11
12
13
14
5
4
3
2
1
N/C
VCL
LS
DG
NC
LGO
2
IX2R11
Absolute Maximum Ratings
Symbol
Definition
Min
-25
Max
650
Units
V
VCH
High side floating supply voltage
VHS
VHGO
VCL
High side floating supply offset voltage
High side floating output voltage
Low side fixed supply voltage
Low side output voltage
VCH-200
VHS-.3
-0.3
VCH+.3
VCH+.3
35
V
V
V
V
V
V
V
VLGO
VDD
VDG
VIN
-0.3
VCL+.3
VDG+35
VLS+3.8
VDD+.3
Logic supply voltage
-0.3
Logic supply offset voltage
Logic input voltage(HIN & LIN)
VLS-3.8
VSS-.3
dVS/dt
PD
PD
RTHJA
RTHJc
Allowable offset supply voltage transient
Package power dissipation@ TA ≤ 25C
Package power dissipation@ TC ≤ 25C
Thermal resistance, junction-to-ambient
Thermal resistance, junction-to-case
50
1.25
2.5
100
50
V/ns
W
W
K/W
K/W
TJ
TS
TL
Junction Temperature
150
150
300
oC
oC
oC
Storage temperature
-55
Lead temperature (soldering, 10 s)
Recommended Operating Conditions
Symbol
VCH
Definition
Min
Max
VHS+20
650
VCH+20
20
Units
V
V
V
V
V
V
V
High side floating supply absolute voltage VHS+10
VHS
VHGO
VCL
VLGO
VDD
High side floating supply offset voltage
High side floating output voltage
Low side fixed supply voltage
Low side output voltage
-20
VHS
10
0
VCC
Logic supply voltage
VDG+3
VLS-1
VDG
-40
VDG+20
VLS+1
VDD
VDG
VIN
TA
Logic supply voffset voltage
Logic input voltage(HIN, LIN, ENbar)
Ambient Temperature
V
125
oC
Ordering Information
Part Number
Package Type
IX2R11P7
IX2R11S3
14-PIN DIP
16-PIN SOIC
3
IX2R11
Dynamic Electrical Characteristics
Symbol Definition
Test Conditions
Min
Typ
Max Units
ton
Turn-on propagation delay
VHS= 0V, Cload= 2nF
120
ns
toff
tenb
tr
Turn-off propagation delay
Device Not enable delay
Turn-on rise time
VHS= 600V, Cload= 2nF
87
202
23
ns
ns
ns
ns
Cload= 2nF
Cload= 2nF
tf
Turn-off fall time
22
tdm
Delay matching, HS & LS turn-on/off Cload= 2nF
10
20
ns
Static Electrical Characteristics
Symbol
Definition
Test Conditions
Min
Typ
Max Units
VINH
VINL
Logic “1” input voltage
Logic “0” input voltage
VDD= VCL= 15V
VDD= VCC= 15V
IO= 0A
7.0
V
6
V
V
VHLGO // VHHGO High level output voltage,
VCH-VHGO or VCL-VLGO
0.28
.23
VLLGO // VLHGO High level output voltage,
VHGO or VLGO
IO= 0A
V
IHL
HS to LS bias current.
VHS= VCH= 600V
VIN= 0V or VDD
VIN= 0V or VDD
VIN= 0V or VDD
VIN= VDD
.17
.77
.79
36
2
mA
mA
mA
uA
uA
uA
V
IQHS
IQLS
Quiescent VCH supply current
Quiescent VCL supply current
Quiescent VDD supply current
Logic “1” input bias current
Logic “0” input voltage
IQDD
IIN+
IIN-
VIN= 0V
1
VCHUV
VCHUV
+
-
VCH supply undervoltage positive going threshold.
VCH supply undervoltage negative going threshold.
VCL supply undervoltage positive going threshold
VCL supply undervoltage negative going threshold.
8.3
8.2
8.1
8.0
V
VCLUV
VCLUV
IGO+
IGO-
+
V
-
V
HS or LS Output low short circuit current; VGO= 15V, VIN= 0V, PW<10us +2
HS or LS Output low short circuit current; VGO= 15V, VIN=0V, PW<10us
A
-2
A
Timing Waveform Definitions
ENB
HIN/LIN
ENB
50%
tenb
10%
LGO/HGO
LGO/HGO
Figure 3. INPUT/OUPUT Timing Diagram
Figure 4. ENABLE Waveform Definitions
4
IX2R11
Timing Waveform Definitions
Figure 5. Definitions of Switching Time Waforms
Figure 6. Definitions of Delay Matching Waveforms
50%
tr
50%
50%
50%
HIN
LIN
HIN
LIN
Input Signal
tdoff
90%
tf
tdon
90%
tdm
90%
LGO
HGO
10%
HGO
LGO
LGO
HGO
10%
10%
tdm
Outgoing Signal
15V
C2
10uF
+
C5
0.1uF
U1
9
8
7
6
5
4
3
2
1
HS
NC
HGO
VCH
HS
NC
NC
HGO
HS
OUTPUT MONITOR
HV SCOPE PROBE
10
11
12
13
14
15
16
GND2
GND2
VDD
HIN
ENB
LIN
DG
LS
L1
200uH
D1
DSEI12-10A
100uF/250V
VCL
LS
LGO
C1
+
C3
+
10uF
C6
0.1uF
U2
15V
1
18V
3
Vin
Vout
GND1
V1
dVs/dt > 50v/ns
HV
600V
GND1
BATTERY
15V
V3
C8
0.1uF
C9
10uF
Measure dVdt ( HV Scope Probe )
PULSE
VCC
16
Q1
U3
BNC
2
3
U2
D2
1,8
DSEI12-10A
6,7
OUT
15
2
IXDD414
HCPL-314J
4,5
GND2
14
VEE
IXFP4N100Q
1/2
GND3
-600V
GND3
Figure 7. Test circuit for allowable offset supply voltage transient.
5
IX2R11
IX2R11S3 Package Outline
IX6211P7 Package Outline
IXYS Corporation
IXYS Semiconductor GmbH
3540 Bassett St; Santa Clara, CA 95054
Tel: 408-982-0700; Fax: 408-496-0670
e-mail: sales@ixys.net
Edisonstrasse15 ; D-68623; Lampertheim
Tel: +49-6206-503-0; Fax: +49-6206-503627
e-mail: marcom@ixys.de
www.ixys.com
99165(04/04)
6
