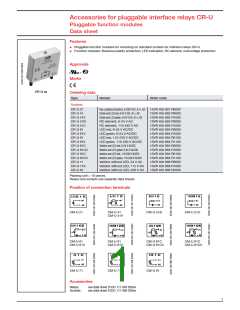

Accessories for pluggable interface relays CR-U
Pluggable function modules
Data sheet
Features
½
½
Pluggable function modules for mounting on standard sockets for interface relays CR-U
Function modules: Reverse polarity protection, LED indication, RC element, overvoltage protection
Approvals
,
Marks
CR-U xx
Ordering data
Type
Version
Order code
Sockets
CR-U 21
Rev. polarity protection, 6-230 V DC, A1+, A2- 1SVR 405 661 R0000
CR-U 41
Diode and LED red, 6-24 V DC, A1+, A2-
Diode and LED green, 6-24 V DC, A1+, A2-
RC element, 6-24 V AC
RC element, 110-240 V AC
LED red, 6-24 V AC/DC
LED green, 6-24 V AC/DC
LED red, 110-230 V AC/DC
LED green, 110-230 V AC/DC
Varistor and LED red, 6-24 V AC/DC
Varistor and LED green, 6-24 V AC/DC
Varistor and LED red, 110-230 V AC/DC
Varistor and LED green, 110-230 V AC/DC
Varistor without LED, 24 V AC
Varistor without LED, 115 V AC
Varistor without LED, 230 V AC
1SVR 405 662 R0000
1SVR 405 662 R1000
1SVR 405 663 R0000
1SVR 405 663 R1000
1SVR 405 664 R0000
1SVR 405 664 R1000
1SVR 405 664 R0100
1SVR 405 664 R1100
1SVR 405 665 R0000
1SVR 405 665 R1000
1SVR 405 665 R0100
1SVR 405 665 R1100
1SVR 405 666 R0000
1SVR 405 666 R1000
1SVR 405 666 R2000
CR-U 41V
CR-U 51B
CR-U 51C
CR-U 61
CR-U 61V
CR-U 91
CR-U 91V
CR-U 61C
CR-U 61CV
CR-U 91C
CR-U 91CV
CR-U 71
CR-U 71A
CR-U 81
Packing unit = 10 pieces.
Relays and sockets see separate data sheets.
Position of connection terminals
CM-U 21
CM-U 41
CM-U 51B
CM-U 51C
CM-U 41V
CM-U 61
CM-U 91
CM-U 61C
CM-U 91C
CM-U 61V
CM-U 91V
CM-U 61CV
CM-U 91CV
CM-U 71
CM-U 71A
CM-U 81
Accessories
Relays:
Sockets:
see data sheet 2CDC 117 003 D02xx
see data sheet 2CDC 117 006 D02xx
1
