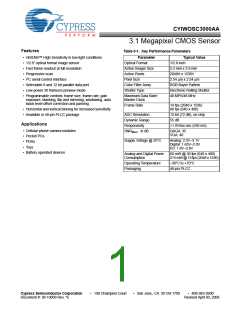

CYIWOSC3000AA

3.1 Megapixel CMOS Sensor

Features

Table 0-1. Key Performance Parameters

• HiSENS™ High Sensitivity in low-light conditions

• 1/2.8” optical format image sensor

• Fast frame readout at full resolution

• Progressive scan

Parameter

Optical Format

Typical Value

1/2.8-inch

Active Imager Size

Active Pixels

5.2 mm x 3.9 mm

2048H x 1536V

• I²C serial control interface

Pixel Size

2.54 μm x 2.54 μm

RGB Bayer Pattern

Electronic Rolling Shutter

48 MPS/48 MHz

• Selectable 8 and 12 bit parallel data port

• Low-power 30 frames/s preview mode

Color Filter Array

Shutter Type

• Programmable controls: frame size, frame rate, gain

exposure, blanking, flip and mirroring, windowing, auto

black level offset correction and panning

Maximum Data Rate/

Master Clock

Frame Rate

14 fps (2048 x 1536)

80 fps (640 x 480)

• Horizontal and vertical binning for increased sensitivity

• Available in 48-pin PLCC package

ADC Resolution

Dynamic Range

Responsivity

12-bit (72 dB), on-chip

55 dB

Applications

>1.0V/lux-sec (550 nm)

• Cellular phone camera modules

• Pocket PCs

SNR_MAXin dB

QXGA: 35

VGA: 40

Supply Voltage @ 25°C

Analog: 2.5V–3.1V

Digital: 1.65V–2.0V

I/O: 1.8V–2.8V

• PDAs

• Toys

• Battery operated devices

Analog and Digital Power

Consumption

60 mW @ 30 fps (640 x 480)

215 mW @ 15 fps (2048 x 1536)

Operating Temperature

Packaging

–30°C to +70°C

48-pin PLCC

Cypress Semiconductor Corporation

Document #: 38-19009 Rev. *E

• 198 Champion Court

• San Jose, CA 95134-1709

• 408-943-2600

Revised April 03, 2006

CYIWOSC3000AA

TABLE OF CONTENTS

FEATURES .............................................................................................................................................................1

APPLICATIONS .....................................................................................................................................................1

1.0 GENERAL DESCRIPTION ...............................................................................................................................4

2.0 PIN DESCRIPTION ..........................................................................................................................................5

3.0 FUNCTIONAL OVERVIEW ..............................................................................................................................6

4.0 SIGNAL DESCRIPTION ...................................................................................................................................7

5.0 PIXEL ARRAY STRUCTURE ...........................................................................................................................8

6.0 DATA FORMATS .............................................................................................................................................9

6.1 Frame Timing ................................................................................................................................................................ 9

6.2 Frames per Second and Integration Time Calculation ................................................................................................ 10

6.3 Output Data Timing ..................................................................................................................................................... 10

7.0 SERIAL BUS DESCRIPTION .........................................................................................................................11

7.1 Serial Bus Protocol ...................................................................................................................................................... 11

7.2 Detailed Timing ............................................................................................................................................................ 11

7.3 Single Random WRITE ................................................................................................................................................ 12

7.4 Multiple WRITE ............................................................................................................................................................ 12

7.5 Single Random READ ................................................................................................................................................. 12

7.6 Multiple Sequential READ ........................................................................................................................................... 12

8.0 REGISTERS ...................................................................................................................................................13

8.1 Register Map ............................................................................................................................................................... 13

8.2 Control Registers ......................................................................................................................................................... 15

8.3 Status Registers .......................................................................................................................................................... 30

9.0 FEATURE DESCRIPTIONS ...........................................................................................................................32

9.1 HiSENS™ .................................................................................................................................................................... 32

9.2 Power Saver Settings .................................................................................................................................................. 32

9.3 Selectable Frame Rate ................................................................................................................................................ 32

9.4 FPN Reduction ............................................................................................................................................................ 33

9.5 Black Level Setting and Averaging .............................................................................................................................. 33

9.6 Digital Gain per Color .................................................................................................................................................. 33

9.7 Exposure Control ......................................................................................................................................................... 33

9.8 Resolution Control ....................................................................................................................................................... 33

9.9 Sub-window Control .................................................................................................................................................... 33

9.10 Analog On-chip Binning ............................................................................................................................................. 33

9.11 Digital On-chip Binning .............................................................................................................................................. 33

9.12 50-/60-Hz Flicker Reduction ...................................................................................................................................... 33

9.13 Blanking Time, PCLK and Sync Polarity .................................................................................................................... 33

9.14 Power-on Reset ......................................................................................................................................................... 34

9.15 On-chip Test Pattern Generation ............................................................................................................................... 34

9.16 Exposure Control Region of Interest (ROI) ................................................................................................................ 34

9.17 Register Setting Sync Control .................................................................................................................................... 34

9.18 Preview and Video Mode ........................................................................................................................................... 34

9.19 Parallel Digital Interface ............................................................................................................................................. 34

10.0 ELECTRICAL SPECIFICATIONS ................................................................................................................35

10.1 Absolute Maximum Ratings ....................................................................................................................................... 35

10.2 Operating Conditions ................................................................................................................................................. 35

11.0 ELECTRICAL CHARACTERISTICS ............................................................................................................35

12.0 48-PIN PLCC PACKAGE DIAGRAM ...........................................................................................................36

12.1 Ordering Information .................................................................................................................................................. 36

Document #: 38-19009 Rev. *E

Page 2 of 37

CYIWOSC3000AA

LIST OF FIGURES

Figure 1-1. Block Diagram ....................................................................................................................................... 4

Figure 2-1. Bond Diagram for 48-PLCC Package.................................................................................................... 5

Figure 3-1. Typical Configuration............................................................................................................................. 6

Figure 5-1. Pixel Array ............................................................................................................................................. 8

Figure 6-1. Frame Timing ........................................................................................................................................ 9

Figure 6-2. Row Timing.......................................................................................................................................... 10

Figure 6-3. Row Timing With Binning .................................................................................................................... 10

Figure 6-4. Pixel Data Timing ................................................................................................................................ 11

Figure 7-2. Single Random Write........................................................................................................................... 11

Figure 7-1. Serial Bus Timing ................................................................................................................................ 11

Figure 7-3. Multiple Write....................................................................................................................................... 12

Figure 7-4. Single Random Read .......................................................................................................................... 12

Figure 7-5. Multiple Sequential Read..................................................................................................................... 12

Figure 9-1. SMPTE Color Bars .............................................................................................................................. 34

Figure 12-1. 48-Pin PLCC Package Diagram ........................................................................................................ 36

LIST OF TABLES

Table 0-1. Key Performance Parameters ...............................................................................................................1

Table 4-1. Signal Description ..................................................................................................................................7

Table 6-1. Embedded Sync ....................................................................................................................................9

Table 8-1. Register Map .......................................................................................................................................13

Table 9-1. Power Modes .......................................................................................................................................32

Table 9-2. Typical Power Consumption in Common Operating Modes ................................................................32

Table 11-1. Environmental Specifications .............................................................................................................35

Table 12-1. Ordering Information ..........................................................................................................................36

Document #: 38-19009 Rev. *E

Page 3 of 37

CYIWOSC3000AA

The megapixel CMOS sensor features Cypress’s HiSENS

circuitry, which dramatically improves low light sensitivity

without increasing the number of transistors used in the pixel

and maintains the fill factor while reducing the cost and

complexity of the sensor.

1.0

General Description

Cypress Semiconductor Corporation’s (Cypress’s) CMOS

sensor is 3.1-megapixel (QXGA) format, 1/2.8-inch

a

active-pixel digital image sensor with an active imaging pixel

array of 2048H x 1536V. The sensor incorporates camera

functions such as frame size/rate, flip, mirroring and binning

for increased sensitivity. The sensor functions are all program-

mable through a I²C serial interface.

An on-chip analog-to-digital converter (ADC) provides 12 bits

per pixel. The sensor can be programmed by the user to meet

the application specific requirements such as windowing, gain,

panning and other parameters. The sensor can output a

QXGA image up to 14 frames per second (fps).

2.8V

Analog Digital

1.8V

RESET

CLK

HSYNC VSYNC PIXCLK

Pixel-Array

2080 x 1568


Processing

Data Out

8/12-bit

ADC

I²C Serial Control

Camera control

processor

Readout sequencer

Figure 1-1. Block Diagram

Document #: 38-19009 Rev. *E

Page 4 of 37

CYIWOSC3000AA

2.0

Pin Description

Figure 2-1. Bond Diagram for 48-PLCC Package

Note: The sensor die is placed in the package so that the array center (optical center) of the die is centered in the

package. The die is offset in the “Y” direction by 1.119 mm to achieve this.

Document #: 38-19009 Rev. *E

Page 5 of 37

CYIWOSC3000AA

3.0

Functional Overview

100K

VDDIO

The sensor is a progressive-scan sensor that generates a

stream of pixel data qualified by HSYNC and VSYNC signals.

In default mode, the data rate (pixel clock) is the same as the

master clock frequency, one pixel is generated every master

clock cycle.

1µF

CLK

RESET_N

SCLK

SDAT

2.8V

PIXCLK

CLK

D[11:0]

RESET_N

SCLK

SDAT

SBIA3

TEST

TCK

D[11:0]

HSYNC

VSYNC

The core of the sensor is an active-pixel array. The timing and

control circuitry sequences through the rows of the array,

resetting and then reading each row. In the time interval

between resetting and reading a row, the pixels in that row

integrate incident light. The exposure is controlled by varying

the time interval between reset and readout. After a row is

read, the data from the columns is sequenced through an

analog signal chain (providing offset correction), and then

through an ADC. The output from the ADC is a 12-bit value for

each pixel in the array. The pixel array contains optically active

and light-shielded “black” pixels. The black pixels are used to

provide data for on-chip offset correction algorithms (black

level control).

VSYNC

1.8V

GND

TMS

TDI

TDO

1µF

VDDA

ANLG3

ANLG2

ANLG1

GNDA

VDDIO

1µF

GNDIO

VDDD

ANLG0

1µF 1µF 1µF

1µF

GNDA

GNDD

The sensor contains a set of 8-bit control and status registers

that can be used to control many aspects of the sensor opera-

tions. These registers can be accessed through a I²C serial

interface. In this document, registers are specified either by

name (e.g., column start) or by register address (e.g.,

Reg0x04). Fields within a register are specified by bit or by bit

range (e.g., Reg0x20[0] or Reg0x0B[13:0]. The control and

status registers are described in Registers, Section 8.0.

Figure 3-1. Typical Configuration

Figure 3-1 shows a typical module wiring diagram. VDDIO can

be connected to either the 1.8V supply or the 2.8V supply (but

not both) to match the voltage requirements of the back-end

processing chip. It is recommended that the 1.8V supply be

used to minimize power consumption. The capacitor for the

VDDIO supply is optional but the capacitors for VDDD and

VDDA are required and must provide sufficient decoupling on

the module to insure clean supply voltages. Note that

ANLG[2:0] must be connected to capacitors to minimize image

noise. ANLG[3] is only for test purposes and should be

unconnected. Note that RESET_N is typically connected with

an RC circuit to hold RESET_N low until both power supplies

have reached their proper level.

The output from the sensor is a Bayer pattern: alternate rows

are a sequence of either green/red pixels or blue/green pixels.

The offset and gain stages of the analog signal chain provide

per-color control of the pixel data.

Document #: 38-19009 Rev. *E

Page 6 of 37

CYIWOSC3000AA

4.0

Signal Description

Table 4-1. Signal Description

1

Function

Vddd

PIXCLK

D6

Type

Power

Note

Digital Core Power (1.8V nominal)

Pixel Clock (data strobe)

Digital Video Out

2

Output

3

Output

4

D7

Output

Digital Video Out

5

D8

Output

Digital Video Out

6

D9

Output

Digital Video Out

7

D10

Output

Digital Video Out

8

D11

Output

Digital Video Out (MSB)

Digital IO Supply (1.8V nominal or 2.8V)

IO Ground

9

Vddio

GNDIO

Vdda

GNDA

ANLG[0]

ANLG[1]

TEST

SBIA3

TDI

Bidirectional

Power

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

Power

Analog Supply to Pixel Array (2.8V nominal)

Analog Ground

Power

Bidirectional

Input

Analog Debug

Test Mode

Input

Serial Bus Interface Address bit 3

JTAG Data In

Input

ANLG[2]

ANLG[3]

RESET_N

GNDD

CLK

Bidirectional

Input

Analog Debug

Reset active low

Power

Digital Ground

Input

Input Clock (up to 48 MHz)

Digital Video Out

D0

Output

D1

Output

Digital Video Out

D2

Output

Digital Video Out

D3

Output

Digital Video Out

D4

Output

Digital Video Out

D5

Output

Digital Video Out

VDDIO

GNDIO

VDDA

GNDA

TCK

Bidirectional

Power

Digital IO Supply (1.8V nominal or 2.8V)

IO Ground

Analog Supply to Pixel Array (2.8V nominal)

Analog Ground

Input

JTAG Clock

TMS

Input

JTAG

VSYNC

HSYNC

TDO

Output

Frame Sync

Output

Line Sync

Output

JTAG Data Out

GPIO

SCLK

SDAT

Bidirectional

Input

General Purpose Digital IO

I²C Serial Communications Clock

I²C Serial Communications Data

Bidirectional

Document #: 38-19009 Rev. *E

Page 7 of 37

CYIWOSC3000AA

to avoid boundary effects during color interpolation and

correction.

5.0

Pixel Array Structure

The sensor device is a camera on a chip CMOS imager with

3-megapixel resolution (QXGA) in a 1/2.8” optical format. This

requires a 2.54-μm square pixel pitch for adequate sensitivity.

Figure 5-1 below shows the layout of the Pixel Array. The 12

outermost rows and columns of the array are covered with

metal and are thus optically black. The black rows can also be

set via internal registers to be read out as valid frame data.

There are 2048H x 1536V optically active pixels surrounded

by an additional 2 Bayer patterns (4 pixels) around the image

The sensor is designed with a mosaic of color filters arranged

in a standard Bayer pattern shown in Figure 5-1. The odd

numbered columns contain green and blue pixels as do the

odd numbered rows. Correspondingly, the even rows and

even columns contain green and red pixels. The imager will

output either all Bayer patterned pixels or all physical pixels

based upon register settings. The Bayer primitive pattern at

the periphery should be used for border interpolation.

Column Readout Direction

12 Columns

12Rows

Row 0

Row 11

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

B

g

B

g

B

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

Row 13

Row 16

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

2048H X 1536V

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

R

G

R

G

R

G

R

G

g

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

B

g

B

g

B

R

G

R

G

R

G

R

G

g

B

g

R

G

R

G

R

G

R

G

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

Row 1551

Row 1554

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

g

B

Row 1556

Row 1567

12 Rows

2080H X 1568V Total Pixels (2056H X 1544V Active Pixels)

Figure 5-1. Pixel Array

Document #: 38-19009 Rev. *E

Page 8 of 37

CYIWOSC3000AA

start of a new row of the image. In this mode PIXCLK only

clocks when there is valid data on the PIXDATA bus.

6.0

Data Formats

The imager is read out in a progressive scan fashion. This

means that each successive row is read out in an increasing

row number. The data is digitized via on chip A/D converters

and the output resolution is selectable at 8 and 12 bits

resolution. The pixel data is output in parallel with synchroni-

zation signals for frame (VSYNC), line (HSYNC), and pixel

(PIXCLK). The frame and line sync signals may be embedded

in the data as set by internal registers. When sync signals are

embedded in the data, the numbers of available colors is

reduced by one value. The embedded SYNC values are

indicated by a pattern of 0xFF, 0x00, 0x00, SYNC_VALUE

where SYNC_VALUE is listed in Table 6-1.

Dark Pixels

Active Pixels

Programmed

Active Region

Table 6-1. Embedded Sync

SYNC_VALUE

Description

Row Start

00

01

02

03

VBLANK Region

Row End

HSYNC

Frame Start

Frame End

DATVAL

Figure 6-1. Frame Timing

To prevent SYNC from being inadvertently indicated in the

active portion of the image, the 0xFF value is remapped to

0xFE when operating in 8-bits/pixel mode. The embedded

sync format follows several industry standards including ITU-R

BT.656.

In DATVAL mode, PIXCLK runs throughout the HBLANKING

period (or optionally free-runs) and the HSYNC signals

becomes a Data Valid signal which tells the back-end

processor when there is valid data on the PIXDATA bus.

With discrete sync signals, the polarity of the HSYNC, VSYNC,

and PIXCLK may be independently inverted with respect to the

active pixel readout. HSYNC and VSYNC toggle even when

embedded syncs are enabled.

Note that if Dark Pixels are enabled to be output or if digital

horizontal binning is used, DATVAL will toggle many times

during a single row. Enabling Embedded Syncs does not

change the row or frame timing. The 4-byte SYNC fields are

inserted into the data stream during the HBLANK time

(HBLANK must be at least 8).

The resolution is set by three factors. The resolution may be

decreased by sub-windowing a smaller region of interest

(ROI), as set in the internal registers. The imager can also be

programmed to sub-sample the array to read out every n^th

Bayer rows and m^thBayer columns. Finally, the imager can be

programmed to bin (combine) adjacent pixels of similar color

in both row and column directions independently with

strengths of 2, 3, or 4.

The timing diagram in Figure 6-2 shows the detailed row

timing of all of the modes that the imager can produce. The

HSYNC signal can be programmed to be either HSYNC or

DATVAL. PIXCLK can be programmed in four different

operating modes. Depending on the back-end processor,

some modes will work better than others. Generally DATVAL

mode with PIXCLDK mode = 10 is the most common mode. In

this mode the HSYNC signal is acting as a DATA VALID pulse.

PIXCLK runs continuously except when invalid data is on the

PIXDATA bus. In the diagram above, CLK 4 is when the dark

pixels are being processed. If the dark pixels were enabled to

be output then CLK 4 would be high. Note that the number of

clocks is significantly reduced in this diagram for ease of

viewing. HSYNC is typically low for 16 or more clocks and

there are 24 dark pixels, not just the one shown here.

The output data can be shifted down by 4 bits to accommodate

back-end processors that want to switch from processing

12-bit data to 8-bit data where the LSBs must remain at bit zero

on the Pixel Bus.

6.1

Frame Timing

A frame of data is comprised of valid image data which is

output when the HSYNC and VSYNC signals are inactive (1).

Frame rate is computed as a function of the CLK frequency,

the row timing, the number of rows and the number of vertical

blanking (VBLANK) rows programmed. The frame timing is

programmable via a number of registers described later in this

document.

The row timing gets more complicated when horizontal binning

or subsampling is enabled (see Figure 6-3). The timing

diagram shows the case where HBIN by 2 is enabled. Note

that since the output format is Bayer patterns, it outputs 2

pixels, then skip (or bin) 2 pixels. Note that when using

DATVAL mode, the DATVAL signal will toggle many times

each row. However, using PIXCLK mode = 01, the backend

processor will not clock in the pixels when DATVAL is low and

thus it looks to the processor like DATVAL is always high when

there is valid data.

Interfacing to a back-end processor involves the control

signals, HSYNC and VSYNC, and the appropriate PIXCLK

timing. The Imager has several programmable modes to allow

interfacing to a wide variety of back-end processors.

Figure 6-2 shows typical interface signals.

There are two basic modes of operation, HSYNC and

DATVAL. In HSYNC mode, the HSYNC signal indicates the

Document #: 38-19009 Rev. *E

Page 9 of 37

CYIWOSC3000AA

1

2

3

4

5

6

7

8

9

10

11

12

13 14

15

16

0

HSYNC

DATVAL

2047

…

0

1

2

3

…

2043 2045 2046 2047

…

PIXDATA

MOD=00

MOD=01

MOD=10

MOD=11

Figure 6-2. Row Timing

1

2

3

4

5

6

7

8

9

10

11

12

13 14

15

16 17

0

18

19

HSYNC

DATVAL

2047

…

0

1

2

3

4

5

6

…

2043 2045 2046 2047

…

PIXDATA

MOD=00

MOD=01

MOD=10

MOD=11

Figure 6-3. Row Timing With Binning

PIXCLK mode = 11 is typically only used in DATVAL mode.

Otherwise, the processor has to clock in every pixel in a frame

and then compute which ones are valid and which ones re not

based on the bin/subsampling modes.

Where Total number of Rows per frame =RowNum(register

0x4 and 0x5 +1)+ VBLANK(0xC and 0xD) + Number of Dark

rows.

The RowNum register will have a value 1 less than actual

number of active rows and hence an addition of 1 in the

formula.

6.2

Frames per Second and Integration Time

Calculation

The Dark rows are the optically black rows located towards the

periphery to calculate the black level. At least 4 rows must be

turned on to properly compute the dark current. By default, the

middle 4 rows are turned on which typically are the best for

computing Dark current. Please refer section 7.2.36.

The number of frames per second taken by the Osprey is

programmable. It can vary from less then 1 fps to 14 fps in full

resolution capture mode (and can be much higher in reduced

resolution modes). The frame rate is dictated by input clk

frequency, the total number of rows output per frame and the

time required to read out a single row. The total number of rows

output and the time required to output a row can be calculated

using simple formula’s based on I²c register reads.

Integration Time Calculation

TINT (in Seconds) = COLCNT (register 0xa8 and 0xa9) *

INTTIME (register 0xE and 0xF) / Clock Frequency

It is recommended that INTTIME should not be set larger than

the Total Number of Rows per Frame.

RowNum register (0x4) stores the number of active rows

output.COLCNT register (0xa8) stores the # of clks required to

read out a single row (hence time required to read out a single

row is COLCNT / CLK FREQ. COLCNT is modified based on

active number of columns output (COLNUM register (0x6) and

the HBLANK register (0x8,0x9), which adds additional clk

cycles onto the end of the row readout). Note that COLCNT is

a 12bit register.

6.3

Output Data Timing

The Pixel Output bus has programmable polarities for the

clock and the sync signals to simplify timing to the back-end

processor. The timing of all of the signals is relative to PIXCLK.

The delay time for HSYNC, VSYNC and the PIXDAT bus to be

valid relative to the selected edge of PIXCLK is a minimum of

0 ns (Ddsmin) and a maximum of 4 ns (Tdsmax).

Frames/Second = Clock Frequency / (Total number of Rows

per frame * COLCNT (register 0xa8 and 0xa9))

Document #: 38-19009 Rev. *E

Page 10 of 37

CYIWOSC3000AA

The SDAT line must only transition when SCLK is low when

data is being transferred. If SDAT transitions while SCLK is

high, then it will be interpreted as either a START or a STOP

condition. Sufficient timing margins must be provided around

the rising and falling edges of SCLK to insure that a START or

STOP condition are not mistakenly recognized.

PIXCLK

The SLAVE ADDRESS is

a sequence of 7 bits, a

READ/WRITE bit and an ACKnowledge bit. Data is always

transmitted MSB first and LSB last as shown in Figure 7-1.

The SLAVE ADDRESS is 7 bits long and must be 1110_x10

(0xE4 or 0xEC) where x is the state of the SBIA3 pin. The

SBIA3 pin allows two CYIWOSC3000AA Image Sensors to be

connected to the same Serial Bus Interface. The LSB of the

SLAVE ADDRESS is the READ/WRITE bit where a high (1)

indicates that a READ cycle will follow and a low (0) indicates

that a write cycle will follow. After the READ/WRITE bit, the

CYIWOSC3000AA Image Sensor will assert SDAT low shortly

after SCLK goes low to acknowledge that the SLAVE

ADDRESS has been recognized and is ready to process the

command that will follow.

Tdsmin

Tdsmax

Figure 6-4. Pixel Data Timing

7.0

Serial Bus Description

The CYIWOSC3000AA includes a serial control interface that

allows the application processor to control the imager using

only two signals. The Serial Bus Interface (SBI) is a simple

bidirectional communication interface based on the I²C

protocol that is in wide use throughout the industry. The serial

bus operates at speeds of up to 400,000 bits per second. The

Interface is a multi-drop protocol which allows multiple devices

to be connected to a single pair of wires and can be used

between numerous standard image processing chips.

If a read transaction has been requested (READ/WRITE is

high), then the imager will begin driving SDAT with the register

data at the current address. If a write transaction has been

requested then the bus master should send the two REG

ADDRESS bytes. The REG ADDRESS bytes specifies which

register in the imager is to be accessed.

The two interface signals are called SCLK and SDAT. SCLK

provides a clock for asserting and sampling the SDAT signal.

SCLK is unidirectional from the bus master, typically an image

processing chip, to the CYIWOSC3000AA image sensor.

SDAT is the data bus and is bidirectional. Both signals are

open-drain and require a pull-up resistor of 1.5K Ohms.

The next byte of data is the write data. Additional bytes of data

can be written and the ADDRESS will be automatically incre-

mented to the next register. Upon completion of all data being

transferred, the master should issue a STOP command to

place the SBI in an idle state. A STOP command is initiated by

first driving SDAT low and SCLK high, then bringing SDAT high

while SCLK remains high.

Data is always transmitted with the Most-Significant-Bit (MSB)

first. Eight bits of data are always transferred and are followed

by a single ACKnowledge bit.

7.2

Detailed Timing

7.1

Serial Bus Protocol

Figure 7-1 shows the detailed timing of each byte of data to be

transferred on the SBI. A transfer begins with the START

condition. This is always followed by 8-bits of data. The

Acknowledge bit always follows the data which is from the

receiver of the data to the transmitter. Additional bytes of data

can then be transferred until either the STOP condition or

another START condition is detected. Data is always trans-

ferred most-significant-bit first.

Data transfer on the Serial Bus Interface is initiated with a

START condition. The START condition is indicated when the

SDAT signal goes low while SCLK remains high. The START

condition may be initiated at anytime during a transfer and the

imager will restart the transfer to begin accepting the SLAVE

ADDRESS which must immediately follow the START.

START

ACK

A

STOP

SDAT

SCLK

6

5

4

3

2

1

0

7

Figure 7-1. Serial Bus Timing

S

SLAVE ADDR 0 A ADDR MSB

A

ADDR LSB

A

DATA

A P

Single Random Write

S

P

A

START

STOP

ACKnowledge from SLAVE

Figure 7-2. Single Random Write

Document #: 38-19009 Rev. *E

Page 11 of 37

CYIWOSC3000AA

S SLAVE ADDR 0

A

ADDR MSB

S

A

ADDR LSB

A

DATA

A

DATA +1

A … DATA +N

A P

Multiple Sequential Write

P

A

ACKnowledge from SLAVE

START

STOP

Figure 7-3. Multiple Write

S SLAVE ADDR

0

A

ADDR MSB

A

ADDR LSB

A

S SLAVE ADDR

1

A

DATA

P

S

P

A

START

STOP

ACKnowledge

from SLAVE

ACKnowledge

from MASTER

Figure 7-4. Single Random Read

slave responds with the ACK bit and then drives the 8 data bits

of the register which has been read. After the eight data bits,

the slave does NOT assert the ACK bit. Instead, it tri-states the

SDAT signal so that the master can either ACK, or assert the

STOP condition.

7.3

Single Random WRITE

A WRITE cycle to any register is accomplished by sending a

START followed by a 7 bit SLAVE ADDRESS, one bit of zero

(the read/write indicator) and an ACK bit (see Figure 7-2).

Then the 16-bit register address must be sent in two bytes,

each with an ACK bit from the slave. Finally the 8-bits of data

are sent and the slave will respond with a final ACK bit. The

master can then either issue a STOP command or write to the

next sequential address by sending additional data bytes.

7.6

Multiple Sequential READ

Multiple sequential registers can be read without having to

resend the SLAVE ADDR and register addresses. To read

multiple registers, simply continue to issue more SCLKs and

the imager will increment to the next higher register address.

After each byte that is transferred, the master must issue an

ACK by driving SDAT low if it wishes to continue to read more

data. The last byte that is read should not ACK, which allows

the master to drive SDAT low before releasing SCLK and then

release SDAT to cause a STOP condition to be recognized.

Alternatively, if the master does not drive SDAT low during the

ACK bit, the imager will release the SDAT line and the state

machine will return to its idle state waiting for the next START

condition.

7.4

Multiple WRITE

Multiple registers can be written in a single stream of data

which reduces the time required to update registers. In

Figure 7-3, DATA would be written to the address given in

ADDR. DATA+1 would be written to ADDR+1 and so on with

each byte of data being written to the next higher register

address.

7.5

Single Random READ

A single random read cycle requires that a dummy write cycle

be done first so that the register address can be set. The first

SLAVE ADDR is followed with a 0 bit which indicates that this

is a write cycle. The register address follows but instead of

sending the data to write, a new START condition is sent which

restarts the SBI state machine but the REG ADDR remains

initialized. The SLAVE ADDR must be sent again but this time

is followed with a 1 bit indicating that this is a read cycle. The

The register ADDR is always retained at the current address

as long as power is applied to the chip. A register read at the

current address can be initiated at any time without having to

send the register ADDR first if the desired register is already

being addressed. Note that the register address is incre-

mented on the rising edge of SCLK at the start of the ACK bit.

S SLAVE ADDR 0

A

ADDR MSB

A

ADDR LSB A S SLAVE ADDR 1

A

DATA

A

DATA +1

A … DATA +N

P

Sequential Read

S

P

A

ACKnowledge from MASTER

START

STOP

ACKnowledge from SLAVE

Figure 7-5. Multiple Sequential Read

Document #: 38-19009 Rev. *E

Page 12 of 37

CYIWOSC3000AA

8.0

8.1

Registers

Register Map

Table 8-1. Register Map

Name

ROWSH^[1]

ADDR

00

01

02

03

04

05

06

07

08

09

0A

0B

0C

0D

0E

0F

10

11

7

6

5

4

3

2

1

0

Description

F

ROWSH

Row Start Address High

Row Start Address Low

ROWSL^[1]

COLSH^[1]

COLSL^[1]

ROWNUMH^[1]

ROWNUML^[1]

COLNUMH^[1]

COLNUML^[1]

HBLANKH

HBLANKL

DEVID

ROWSL

COLSL

M

COLSH

Column Start Address High

Column Start Address Low

Number of Rows High

Number of Rows Low

Number of Columns High

Number of Columns Low

Horizontal Blanking High

Horizontal Blanking Low

Device Identification

ROWNUMH

ROWNUML

COLNUMH

COLNUML

HBLANKH

HBLANKL

DEVID=0x4F(‘O’)

VERSION

VBLANKH

VBLANKL

INTTIMEH

INTTIMEL

RGAINH^[1]

RGAINL^[1]

GrGAINH^[1]

GrGAINL^[1]

GbGAINH^[1]

GbGAINL^[1]

BGAINH^[1]

BGAINL^[1]

GAIN

Silicon Version

VBLANKH

VBLANKL

Vertical Blanking High

Vertical Blanking Low

Integration Time High

Integration Time Low

Red Gain Integer

INTTIMEH

INTTIMEL

RGAINH

RGAINL

GrGAINH

GrGAINL

GbGAINH

Red Gain Fraction

12

13

14

15

16

17

18

1E

1F

20

21

22

23

24

25

26

27

28

Green-red Gain Integer

Green-red Gain fraction

Green-blue Gain Integer

Green-blue Gain fraction

Blue Gain Integer

GbGAINL

BGAINH

BGAINL

Blue Gain fraction

E

Digital Gain Enable

TINTINCH

TINTINVL

ROIXSH^[1]

ROIXSL^[1]

ROIWXH^[1]

ROIWXL^[1]

ROIYSH^[1]

ROIYSL^[1]

ROIWYH^[1]

ROIWYL^[1]

AEMAXH

E

TINTINC

ROIXSH

ROIWXH

ROIYSH

ROIWYH

TINT Increment High

TINT Increment Low

Region Of Interest X Start High

Region Of Interest X Start Low

TINTINC

ROIXSL

ROIWXL

ROIYSL

ROIWYL

Region Of Interest X Width High

Region Of Interest X Width Low

Region Of Interest Y Start High

Region Of Interest Y Start Low

Region Of Interest Y Width High

Region Of Interest Y Width Low

Auto Exposure Maximum High

Auto Exposure Maximum Low

AEMAXH

AEMAXL

29

AEMAXL

Note:

1. Registers controlled by the SYNC bit.

Document #: 38-19009 Rev. *E

Page 13 of 37

CYIWOSC3000AA

Table 8-1. Register Map (continued)

ADDR

2A

Name

AEMINH

7

6

5

4

3

2

1

0

Description

Auto Exposure Minimum High

Auto Exposure Minimum Low

AEMINH

AEMINL

AEAVGH

2B

AEMINL

2C

AEAVGH

AEAVGL

Auto Exposure desired average luminance High

Auto Exposure desired average luminance Low

Exposure Controls

2D

AEAVGL

I

2F

EXPOSURE

E

D

F

30

31

32

33

35

36

37

38

39

3A

3B

3C

3E

3F

BLKLVLH^[1]

BLKLVLL^[1]

DARKMODE

FPNMODE

ABIN

BLKH

Black Level High

BLKL

O

Black Level Low

MOD

Dark Current Subtraction Mode

Fixed Pattern Noise Modes

Analog Binning

HM

ABIN

VM

VBIN

HBIN

S

B

HB1

VBO

W

B

HB2 Horizontal Binning

VBIN Vertical Binning

VBIN

B

P

PIXREPL

DATAFMT

SYNCPOL

TSTPTN

FLIP

T

8

E

D

Pixel Replacement

E

V

F

C

P

Pixel Data Format (8/12 bits)

H

D

MOD VSYNC, HSYNC, PIXCLK polarity

MOD

M

Test Pattern Enable

Flip/Mirror

F

DARKTOPH

DARKTOPL

Top Dark Row Enable High

Top Dark Row Enable Low

60

61

62

63

GPIO

I²CIO

PCLKIO

PIXIO

70

7E

7F

PWRCTL

RESET

SYNC

I

H

T

Power and IO Control

Device Reset register

Register Synchronization

RESET

E

N

V

Status & Statistics Registers

80

81

82

83

84

85

86

87

88

89

GrAVGH

GrAVGL

GbAVGH

GbAVGL

RAVGH

GrAVGH

Green-red Average High

Green-red Average Low

Green-blue Average High

Green-blue Average Low

Red Average High

GrAVGL

GbAVGH

GbAVGL

RAVGH

RAVGL

Red Average Low

BAVGH

Blue Average High

BAVGL

Blue Average Low

LUMAVGH

LUMAVGL

LUMAVGH

LUMAVGL

Luminance Average High

Luminance Average Low

Document #: 38-19009 Rev. *E

Page 14 of 37

CYIWOSC3000AA

Table 8-1. Register Map (continued)

ADDR

A0

Name

REPLPIX

7

6

5

4

3

2

1

0

Description

Number of Pixels Replaced

REPLPIX

CURROW

A1

CURROW

Current Row being output (8 MSBs only)

Dark Noise Variance High

Dark Noise Variance Low

Number of Active Rows High

Number of Active Rows Low

Number of Active Columns High

Number of Active Columns Low

Column Count High

A2

NOISEVARH

NOISEVARL

ACTROWSH

ACTROWSL

ACTCOLSH

ACTCOLSL

COLCNTH

COLCNTL

TINTAEH

NOISEVARH

NOISEVARL

A3

A4

ACTROWSH

ACTROWSL

ACTCOLSH

ACTCOLSL

A5

A6

A7

A8

COLCNT

A9

Column Count Low

AA

AB

TINTAEH

AutoExposure Tint High

TINTAEL

AutoExposure Tint Low

Reserved

FF

DEVID_N

Ones Complement of DEVID (register 0x0A)

7FF Reserved

Reserved for Row Timing Generators.

-

100

8.2

Control Registers

ROWSH(00) & ROWSL(01)

8.2.1

Bit #

15:12 Reserved

11:0 ROWS

Name

DIR

Default

Function

0

RW

12

Starting row address

ROWSH and ROWSL are a register pair that make up a twelve-bit register. The upper 3 bits of ROWSH are reserved. The lower

4 bits of ROWSH make up the 4 most significant bits of the starting row and ROWSL make up the low eight bits. The starting row

address is normally twelve to begin the display with the first row of active pixels. When zooming in, the ROWS registers are used

to start the image in the sub-window area of the image.

8.2.2

Bit #

15:12 Reserved

11:0 COLS

COLSH(02) & COLSL(03)

Name DIR

Default

Function

0

RW

12

Starting Column address

COLSH and COLSL are a register pair that make up a twelve-bit register. The upper 3 bits of COLSH are reserved. The lower 4

bits of COLSH make up the 4 most significant bits of the starting column and COLSL make up the low eight bits. The starting

column address is normally twelve to begin the display with the first column of active pixels. When zooming in, the COLS registers

are used to start the image in the sub-window area of the image.

8.2.3

Bit #

15:12 Reserved

11:0 ROWNUM

ROWNUMH(04) & ROWNUML(05)

Name

DIR

Default

0

Function

RW

1555

Number of active pixels in each column

Document #: 38-19009 Rev. *E

Page 15 of 37

CYIWOSC3000AA

ROWNUMH and ROWNUML are a register pair that make up a twelve-bit register. The upper 4 bits of ROWNUMH are reserved.

The lower 4 bits of ROWNUMH make up the 4 most significant bits of the number of active columns and ROWNUML make up

the low eight bits. The ROWS and COLS register specify the upper left corner of the active window. This register specifies how

high the active window should be. Bit zero should always be zero to insure whole Bayer Patterns are in the window. The number

of rows also affects the frame rate. The fewer columns that are read out, the higher the frame rate.

8.2.4

Bit #

15:12 Reserved

11:0 COLNUM

COLNUMH(06) & COLNUML(07)

Name

DIR

Default

0

Function

Number of active pixels in each row.

RW

2067

COLNUMH and COLNUML are a register pair that make up a twelve-bit register. The upper 4 bits of COLNUMH are reserved.

The lower 4 bits of COLNUMH make up the 4 most significant bits of the number of active pixels in each column and COLNUML

make up the low eight bits. This register specifies how wide the active window should be. Bit zero should always be zero to insure

whole Bayer Patterns are in the window.

Changing the number of columns does not alter the frame rate. The column timing remains constant regardless of the number

of columns programmed in the COLNUM register. However, the data rate will be reduced as only the columns requested will be

clocked out on the pixel data bus.

8.2.5

Bit #

15:11 Reserved

10:0 HBLANK

HBLANKH(08) & HBANKL(09)

Name

DIR

Default

0

Function

RW

TBD

Duration of HBLANK.

HBLANKH and HBLANKL are a register pair that make up an eleven-bit register. The upper 5 bits of HBLANKH are reserved.

The lower 3 bits of HBLANKH make up the 3 most significant bits of the duration of Horizontal Blanking for each row and HBLANKL

makes up the low eight bits. HBLANK can be made larger to lower the data rate however, it will decrease the resolution of the

Integration Time (Tint) so it is recommended to keep HBLANK at its default value. HBLANK must be a minimum of TBD CLKs to

allow for quiet time during certain sampling periods of each row.

8.2.6

Bit #

7:0

DEVID(0A)

Name

DEVID

DIR

Default

Function

R

0x4F

Device ID

The DEVID register provides a unique indicator for software to determine the capabilities of the imager. The CYIWOSC3000AA

Imager value is 0x4F (ASCII ‘O’). The ones-complement of DEVID is also available at address 0xFF. This can be used to verify

a “signature” so the software knows what type of imager it is connected to.

8.2.7

Bit #

7:0

VERSION(0B)

Name

DIR

Default

Function

VERSION

R

1

Silicon Version

The VERSION register is an eight-bit register that specifies what version of silicon this chip is. Some features may not be present

in various versions of the silicon.

8.2.8

Bit #

11:0

VBLANKH(0C) & VBLANKL(0D)

Name

VBLANK

DIR

Default

Function

RW

16

Duration of VBLANK.

VBLANKH and VBLANKL are a register pair that make up a twelve-bit register. VBLANK is the number of rows of vertical blanking

time. The register is a twelve-bit register to allow for a wide range of frame rates. Each VBLANK value decreases the frame rate

by one row. The minimum number of rows is 8, which are required to perform column FPN calculations.

8.2.9

Bit #

11:0

INTTIMEH(0E) & INTTIMEL(0F)

Name

INTTIME

DIR

Default

Function

RW

240

Duration of Integration Time (exposure time).

Document #: 38-19009 Rev. *E

Page 16 of 37

CYIWOSC3000AA

INTTIMEH and INTTIMEL are a register pair that make up a twelve-bit register. The Integration Time is the number of row times

that the pixels are exposed before being read out.

Note that the INTTIME register may be updated at any time during the frame. It is only used by the timing logic when at a specific

point in each frame (when the TINT reset pointer is at the first row of bottom dark pixels). The INTTIMEH register should utilize

the SYNC register so that it only gets updated during VSYNC. Note that when AutoExposure is enabled, this register is ignored.

When the INTTIME value is increased, it must only be increased by the number of bottom dark rows plus the number of VBLANK

rows or a split frame may be output. INTTIME can be decreased by any amount from one frame to the next. When INTTIME is

increased by a large number (the image pans from a bright to a dark scene), the user has the option of accepting the split frame

or increasing TINT by only the amount listed above. You can also increase the number of VBLANK rows to allow a rapid increase

in the number of rows.

8.2.10 RGAINH(10) & RGAINL(11)

Bit #

11:8

7:0

Name

RGAINH

RGAINL

DIR

RW

Default

0x01

0

Function

Red Gain Integer

Red Gain Fraction

The Red Gain is applied only to Red pixels. Each pixel is digitally multiplied by the RGAIN value. The GAIN value is a 4.8 fixed

point integer thus the Red pixels can be digitally gained up by a factor of 16. By default the multiplication factor is 1 (0x100). If

the result of the multiplication is greater than 4095, then the value is saturated to 4095.

8.2.11 GrGAINH(12) & GrGAINL(13)

Bit #

Name

GrGAIN

DIR

Default

Function

11:0

RW

0x100

Green-Red Gain

The Gr Gain is applied only to Green pixels on a red row. Each pixel is digitally multiplied by the GrGAIN value.

8.2.12 GbGAINH(14) & GbGAINL(15)

Bit #

Name

GbGAIN

DIR

Default

Function

11:0

RW

0x100

Green-Blue Gain

The GbGain is applied only to Green pixels on a blue row. Each pixel is digitally multiplied by the GbGAIN value.

8.2.13 BGAINH(16) & BGAINL(17)

Bit #

Name

BGAIN

DIR

Default

Function

11:0

RW

0x100

Blue Gain

The BGain is applied only to Blue pixels. Each pixel is digitally multiplied by the BGAIN value.

8.2.14 GAIN(18)

Bit #

Name

DIR

Default

Function

0

ENB

RW

0

0 = Bypass digital gain

1 = Enable digital gain

The ENB bit of he GAIN register must be a 1 for the following four gain registers to have an effect on the image data. When ENB

is zero, the gain multipliers are bypassed and the data is passed through unaltered.

8.2.15 ROIXSH(20) & ROISXL(21)

Bit #

Name

ROISX

DIR

Default

Function

11:0

R/W

0

Region of Interest Start X

The ROIXSH and ROIXSL registers form a twelve-bit register. The ROIXS register is the starting column of the Region of Interest.

The ROI is the area of the active array where statistics will be collected. The ROI can either be inside or outside of the rectangle

defined by the ROI registers. The ROI does not include the Dark Pixels.

Document #: 38-19009 Rev. *E

Page 17 of 37

CYIWOSC3000AA

8.2.16 TINTINCH(1E) & TINTINCL(1F))

Bit #

Name

DIR

Default

Function

15

ENB

R/W

0

0 = Disable Tint Increment

1 = Enable Tint Increment

14:12

11:0

R

0

Reserved

TINTINC

R/W

Number of rows that TINT can change by

The ENB bit of the TINTINC register enables the 50/60 flicker mode for the Auto Exposure unit. When TINTINC mode is enabled,

Tint is forced to be the nearest increment of the value programmed in TINTINC. If the Auto Exposure unit wants to set Tint to a

value less than TINTINC, it will be set to exactly the desired value. If the Auto Exposure unit wants to set Tint to a value larger

than TINTINC, then it will only set Tint to be an integer multiple of TINTINC.

TINTINC must be programmed with the number of row times that corresponds to either 1/100th of a second or 120th of a second.

This will eliminate flicker that is observed when operating the camera under fluorescent lights.

8.2.17 ROIXSH(20) & ROISXL(21)

Bit #

Name

ROISX

DIR

Default

Function

11:0

R/W

0

Region of Interest Start X

The ROIXSH and ROIXSL registers form a twelve-bit register. The ROIXS register is the starting column of the Region of Interest.

The ROI is the area of the active array where statistics will be collected. The ROI can either be inside or outside of the rectangle

defined by the ROI registers. The ROI does not include the Dark Pixels.

8.2.18 ROIWXH(22) & ROIWXL(23)

Bit #

Name

ROIWX

DIR

Default

Function

11:0

R/W

2063

Width of the Region of Interest End X+1

The ROIWXH and ROIWXL registers form a twelve-bit register. The ROIWX register is the number of columns of the Region of

Interest plus 1. A value of zero will result in an ROI of 1 column. The width should always be programmed to include whole Bayer

patterns. Thus, ROIWX should be odd.

8.2.19 ROIYSH(24) & ROIYSL(25)

Bit #

Name

ROIYS

DIR

Default

Function

11:0

R/W

0

Region of Interest Start Y

The ROIYSH and ROIYSL registers form a twelve-bit register. The ROIYS register is the starting row of the Region of Interest.

8.2.20 ROIWYH(26) & ROIWYL(27)

Bit #

Name

ROIWY

DIR

Default

Function

11:0

R/W

1551

Width of the Region of Interest End Y +1

The ROIWYH and ROIWYL registers form a twelve-bit register. The ROIWY register is the number of rows of the Region of

Interest plus 1.

8.2.21 AEMAXH(28) & AEMAXL(29)

Bit #

Name

AEMAX

DIR

Default

Function

11:0

RW

0

AEMAX is the maximum allowed value for Tint (integration time)

expressed in number of row-times.

AEMAX sets the maximum value for Tint expressed in number of rowtimes. When Auto exposure mode is enabled, this value

forces Tint to always be less than or equal to this value. Auto exposure mode always has the upper 4 bits of Tint to be zero.

8.2.22 AEMINH(2A) & AEMINL(2B)

Bit #

Name

AEMIN

DIR

Default

Function

11:0

RW

0

AEMIN is the minimum allowed value for Tint (integration time) expressed

in number of row-times.

Document #: 38-19009 Rev. *E

Page 18 of 37

CYIWOSC3000AA

AEMIN sets the minimum value for Tint expressed in number of rowtimes. When Auto exposure mode is enabled, this value

forces Tint to always be more than or equal to this value.

8.2.23 AEAVGH(2C) & AEAVGL(2D)

Bit #

Name

AEAVG

DIR

Default

Function

AEAVG is the desired image average.

15:4

RW

0x800

AEAVG is the desired image average. If the current image average is below this value, then Tint will be increased. If the current

image average is below this value then Tint will be decreased.

8.2.24 EXPOSURE(2F)

Bit #

Name

DIR

Default

Function

7

AUTOENB

RW

0

0 = Manual exposure control

1 = Automatic adjustment of Tint

6

0

INSIDE

FAST

RW

0

0 = Statistics are computed inside the ROI

1 = Statistics are computed outside of the ROI

0 = Normal rate of Exposure control

1 = Fast adjust of Tint

AUTOENB causes the value of Tint to be computed based on the current image average. This is a relatively crude automatic

exposure control mode. The image average is computed in the ROI specified in the ROI registers.

INSIDE determines whether the image statistics are to be computed from the area inside the ROI or outside.

FAST determines the rate of adjustment of the auto exposure. When FAST=1, the exposure control is adjusted each frame to ½

of the difference between the current Tint and the calculated new Tint. When FAST=0, tint is adjusted by 1/8^thof the difference.

8.2.25 BLKLVLH(30) & BLKLVLL(31)

Bit #

Name

DIR

Default

Function

0

OVERRIDE

RW

0

0 = Automatic Black Level computation

1 = Override Black Level

15:4

BLKLVL

RW

0

Black Level subtracted from each pixel when enabled.

Pixnew = pix – BLKLVL

In normal operation, BLKLVL is automatically computed by accumulating the value of the first 8096 pixels in the top dark rows.

This value is then subtracted from each pixel to remove the dark current if DARKMODE ENB = 1. The automatic computation of

BLKLVL can be overridden by setting the OVERRIDE bit. In this case, BLKLVL must be written with the desired black level to be

subtracted. The automatic Black Level is enabled by the ENB bit in the DARKMODE register.

8.2.26 DARKMODE(32)

Bit #

Name

DIR

Default

Function

0 = Disable Black Level Subtraction

7

ENB

RW

0

1 = Enable Black Level Subtraction

6

STATUS

R

0 = Dark Subtraction working

1 = Dark Subtraction Error

6:3

2:0

R

0

Reserved

MOD

RW

000

000 = Accumulate 8096 pixels for Dark Current

001 = 4096 Pixels

010 = 2048 Pixels

011 = 1024 Pixels

100 = 512 Pixels

101 = 256 Pixels

110 = 128 Pixels

111 = 64 Pixels (not recommended)

ENB enables an FPN mode where the dark rows across the top of the imager are averaged to compute a Black Level. The Black

Level is then subtracted from each pixel in the rest of the current frame. The dark values are clipped to acceptable values before

being accumulated. The digital gain should be adjusted slightly depending on the Black Level being subtracted to insure that

saturated pixels remain saturated. The Black Level can be manually controlled with the BLKLVL register.

Document #: 38-19009 Rev. *E

Page 19 of 37

CYIWOSC3000AA

The STATUS bit is a flag indicating that there are not enough dark pixels to properly compute the dark current in the current

operating mode. If STATUS = 1, then MOD should be increased until STATUS is 0. Otherwise the dark current subtraction will be

incorrect. Typically MOD will need to be increased when binning or subwindowing in X.

The MOD bits allow for a few different numbers of pixels to be accumulated. When the ABIN register is set to combine pixels in

the horizontal direction, the MOD bits must be changed to reduce the number of pixels used for the dark current subtraction.

There must be at least the desired number of dark pixels or the calculation will be incorrect. When HBIN by 2 is enabled, there

are only 1040 dark pixels per row and MOD must be set to 1. Additional dark rows can also be enabled with the DARKTOP register.

8.2.27 FPNMODE(33)

Bit #

Name

DIR

R

Default

Function

7

6

0

Reserved

FPNFLUSH

TESTSIGCOL

DISPLAYCOL

COLMAX

RW

0 = Normal operation

1 = Rapid stabilizing of Column FPN data

5

4

3

2

1

0

RW

1

0

1

0

0 = Use Dark row for ColFPN data

1 = Use TestSig for ColFPN data

0 = Normal operating mode

1 = Output test column data as pixels

0 = Average Mode Column FPN

1 = MAX mode Column FPN

COLLPF

0 = Column FPN low-pass filter disabled

1 = Column FPN low-pass filter enabled

COLCLIP

0 = Disable clipping in Average Mode Column FPN

1 = Enable clipping in Average Mode Column FPN

FPNCOLENB

0 = Disable Column Fixed Pattern Noise reduction

1 = Enabled Column FPN reduction

Fixed Pattern Noise removal is enabled with the FPNMODE register.

FPNFLUSH mode is typically used to quickly stabilize the Column FPN data when changing modes, especially when switching

to or from one of the binning modes. When FPHFLUSH is a 1, the imager does not output data but will instead output black so

the back-end processor will have to discard all frames when FPNFLUSH is a 1. It it recommended to leave FPHNFLUSH a 1 for

one frame time to insure the Column FPN data is stable.

TESTSIGCOL selects an internal voltage signal as the reference signal for Column FPN data collections. When TESTSIGCOL

is a zero, the data is sourced from one of the bottom dark rows instead of the internal voltage. It is recommended to keep this

signal as a 1.

FPNCOLENB enables a sophisticated column noise removal algorithm. Each column has a value that is sampled from a test

voltage and averaged across all rows of vertical blanking. This accumulated value is stored for each column and is subtracted

from each pixel in that column.

COLMAX enables maximum mode for Column FPN removal. In this mode, the maximum value of the columns is searched for

and kept in a register. Each pixel is then computed with the following equation:

Pixel_out = Pixel_in + FPNmax – FPNcol

Note that this mode is susceptible to outlyers in column FPN data and will tend to oversaturate pixels as it adds a significant

offset. This offset is normally removed by the dark current removal logic later in the image pipeline.

When COLMAX is 0, then Average Mode Column FPN is enabled. This is the recommended mode of operation. In Average mode,

the average value of all of the columns is added to each pixel and the value in the FPN RAM is subtracted from each pixel. In

this mode, pixels are saturated both in the max and min direction.

Pixel_out = Pixel_in = FPNavg – FPNcol

COLCLIP is only used in Average Mode and lowers the saturation clip value for each pixel by the following equation:

Saturate_max = 0xfff – FPNavg

COLLPF is normally left at its default value of 1. The Low-Pass filter insures that the Column FPN data is accumulated slowly

across many frames to compensate for changes in temperature or voltage. COLLPF should be cleared to 0 to initialize the Column

FPN data for at least 1 frame. Otherwise it may take several seconds for the Column FPN data to stabilize to its correct value.

DISPLAYCOL is for testing purposes only and this bit should always remain 0 in normal operation. When 1, the values from the

COLFPN RAM are output on the first row of vertical blanking.

Document #: 38-19009 Rev. *E

Page 20 of 37

CYIWOSC3000AA

8.2.28 ABIN(35)

Bit #

7

Name

DIR

R

Default

0

Function

Reserved

6:4

HBIN

VBIN

RW

000

000 = 1:1 (no binning)

001 = 2:1

010 = Reserved

011 = 4:1

1XX = Reserved

4

R

0

Reserved

2:0

RW

000

000 = 1:1 (no binning

001 = 2:1

010 = 3:1

011 = 4:1

100 = 6:1 (bin by 3 and subsample by 2)

All other values are reserved

The ABIN register sets the analog binning mode.

8.2.29 HBIN(36)

Bit #

Name

DIR

Default

Function

7

SUM

BIN2

RW

0

0 = Average the binned pixel

1 = Sum the binned pixels

6

RW

0

0 = Subsample stage 2

1 = Bin

00 = No 2^ndstage binning/skipping

01 = 2^ndstage bin/skip by 2

10 = 2^ndstage bin/skip by 3

5:4

HBIN2

00

3

2

WEIGHT

BIN1

RW

0

0 = 1:2:1 weighting for binx3

1 = Spatial based weighting for bin X3 and X4

0 = Subsample stage 1

1 = Bin

1:0

HBIN1

00

00 = No Horizontal binning/skip—disabled

01 = Bin/skip every 2 pixels

10 = Bin/skip every 3 pixels

11 = Bin/skip every 4 pixels

The HBIN register enables and sets the value for Horizontal Binning mode or skip mode. In effect, HBIN sets the horizontal zoom

factor. There are two stages of bin/skip. The first stage can bin by 2, 3, or 4 pixels. The second stage can only bin by 2 or 3. Each

stage can either BIN or Skip independently. The BIN1/2 bits determine if subsampling (skip) or binning it to be performed.

Subsampling requires less power but may result in a sparkling of the image if details line up with the active pixel or not. Binning

averages many pixels together which is a fairly compute intensive operation and thus requires more power. Horizontal Binning

is done digitally.

The WEIGHT bit is only used if binning is enabled for X3 or X4. If X3 binning is enabled, then a weighting is applied so that the

average can be obtained with a simple shift operation instead of a divide. When WEIGHT = 1, this weighting is changed for Red

or Green-Blue pixels and for Green–red or Blue pixels. This shifts the weight from the center of the superpixel to a more correct

spatial weighting. In bin X4 mode, if WEIGHT = 1 then a weighting is applied. WEIGHT has no effect on bin X2.

The SUM bit is also only used when binning is enabled. When SUM=1, then the result of the bin is not shifted down after adding

the pixels together. This results in a 2, 3, or 4X gain which can improve images in low-light conditions.

8.2.30 VBIN(37)

Bit #

Name

DIR

Default

Function

7

SUM

BIND

RW

0

0 = Average the binned pixel

1 = Sum the binned pixels

6

RW

0

0 = Subsample Digital

1 = Bin Digital

Document #: 38-19009 Rev. *E

Page 21 of 37

CYIWOSC3000AA

Bit #

Name

VBIND

DIR

Default

Function

5:4

RW

00

00 = No Digital binning

01 = Digital Bin by 2

10 = Digital Bin by 3

3

2

WEIGHT

BINA

RW

0

0 = 1:2:1 weighting for binx3

1 = Spatial based weighting for digital bin X3

0 = Subsample Analog

1 = Bin Analog

1:0

VBINA

00

00 = No Vertical binning—disabled

01 = Bin every 2 pixels together

10 = Bin every 3 pixels together

11 = Bin every 4 pixels together

The VBIN register enables and sets the value for Vertical Binning mode. Vertical Binning causes the number of vertical pixels to

be averaged together. Horizontal and Vertical Binning as normally set to the same value at the same time. Binning causes the

pixels of the same color to be averaged together. This allows a full field-of-view image at a lower resolution to be output without

the “sparkling” effects of a sub-sampled windowing mode. Subsampling will significantly increase the frame rate and reduce the

overall power consumption. The choice of binning or subsampling is independent for both the analog and digital stages.

There are two stages of Vertical Binning, Analog and Digital. Analog Binning is done in the analog domain and Digital Binning is

done digitally. Analog binning requires a number of changes to the timing control registers.

The WEIGHT and SUM bits have the same meaning here as they do for digital binning (see the HBIN register) but only apply to

the digital binning stage. The analog stage is not affected by either the WEIGHT or SUM bits. Independent bits are provided here

but typically they should be set to the same value as the HBIN register.

8.2.31 PIXREPL(38)

Bit #

Name

DIR

Default

Function

1

THRESHOLD

RW

0

0 = Disable Threshold Mode

1 = Enable Threshold Mode

0

PIXREPLENB

RW

0

0 = Disable Pixel Replacement

1 = Enable Pixel Replacement

PIXREPLENB enables the Pixel replacement algorithm that hides normal defects in the image array. Pixel Replacement must be

turned off when Binning or Boosting. Pixel replacement is not needed when Binning since multiple pixels are averaged together.

The maximum error a bad pixel can contribute is only ¼ of a pixel in bin by 3 where the bad pixel is in the center and thus weighted

2X. Do not turn off Pixel Replacement when subsampling.

THRESHOLD enables a 4-bit threshold mode for the pixel replacement algorithm. When THRESHOLD is a one, the difference

between the current pixel and the minimum or maximum of its adjacent same-color pixels must have a magnitude that extends

into the upper 4 bits of the 12-bit pixel. Thus, for a pixel to be replaced, the pixel difference must be more than 1/16th of a the full

scale. This insures that only significantly bad pixels are replaced. When THRESHOLD mode is a zero, then any pixel that is

greater than the maximum or less than the minimum is replaced. This occurs many thousands of time in a typical image.

8.2.32 DATAFMT(39)

Bit #

Name

DIR

Default

Function

7

EMBDSYNC

RW

0

0 = Disable Embedded Sync

1 = Enable Embedded Sync

4

3

2

1

0

CPDFMT

RW

0

0 = Companding format 1

1 = Companding format 2

CONFIGROW

COMPAND

8BMODE

0 = Normal Operation

1 = Include the Configuration Row data

0 = Normal operation

1 = Compand the 12-bit pixel to 8-bits

0 = Normal operating mode

1 = Shift PIXDAT down by 4 bits

DARKENB

0 = Only Active pixels are read out

1 = All pixels are read including all dark pixels

Document #: 38-19009 Rev. *E

Page 22 of 37

CYIWOSC3000AA

EMBDSYNC enables embedded SYNC information to be embedded in the pixel data stream. When EMBDSYNC is disabled, the

HSYNC and VSYNC pulses must be used to identify when a frame or row begins and ends. When EMBDSYNC is enabled, then

the SYNC signals are identified when a pattern of 0xFF, 0x00, 0x00 is seen in the pixel stream. Any color values that are 0xFF

are clipped to 0xFE to insure that the data is not seen as a sync indicator. Following the SYNC pattern the following values indicate

what SYNC is present – 0x00 = Row Start, 0x01 = Row End, 0x02 = Frame Start, 0x03 = Frame End.

CONFIGROW enables a packet of data to be output on the PIXDATA bus during vertical blanking. The data is embedded in the

last row of vertical blanking and is prefixed with the code 0xFF, 0x00, 0x00, 0x0C. The data is always output as bytes of data

regardless of the setting of 8BMODE. Thus, when 8BMODE is 0, the data is broken up as 3 bytes of data every 2 pixels (12 bits).

When 8BMODE is 1, then the config row matches the data width. The following table lists the bytes of data in the config row:

Bit #

Name

SYNC

VALUE

Function

1–3

0xFF

0x00

SYNC indicator. Note that this pattern can occur in the image data unless embedded sync

is enabled.

4

5–6

7

TYPE

0x0C

48

Config Row indicator

Length

VERSION

Key

Number of bytes following these 2 bytes. The most significant 8-bits are sent first.

Version of the Configuration Row

0

8

0x03

Frame Count Key

9–10 FrameCount

11 Key

12–13 Tint

16-bit incrementing frame count. MSBs are sent first.

Integration Time Key

0x06

Integration Time used on this frame. See the INTTIME register for more details. 4 MSBs

are always zero.

14

15–16 AVGRED

17 Key

18–19 AVGGrR

20 Key

21–22 AVGGrB

23 Key

24–25 AVGBLUE

26 Key

27–28 AVGLUM

29 Key

30–31 BLKLVL

32 Key

33–34 NoiseVar

35 Key

36–37 RGAIN

38 Key

39–40 GrGAIN

41 Key

42–43 GbGAIN

44 Key

Key

0x2E

Ox2F

0x30

0x31

0x32

0x33

0x34

0x00

Image Average Red Key

Image Average of the Red Channel. See the RAVG register for more details.

Image Average GreenRed Key

Image Average of the GreenRed Channel

Image Average GreenBlue Key

Image Average of the GreenBlue Channel

Image Average Blue Key

Image Average of the Blue Channel

Image Average Luminance Key

Image Average of the sum of all 4 color Channels

Black Level Key

Black Level that was subtracted from this frame. See the BLKLVL register for more details

Noise Variance key

Noise Variance computed for this frame. See the NOISEVAR register for more details.

RGAIN Key

Red Gain. 4 MSBs are always 0

GrGain Key

GreenRed Gain. 4 MSBs are always 0.

GreenBlue Key

GreenBlue Gain. 4 MSBs are always 0

BGAIN Key

45–46 BGAIN

47–48 EndPkt

Blue Gain. 4 MSBs are always 0.

2 bytes of zero

COMPAND enables a 12-bit to 8-bit non-linear companding of the data. This enhances the dynamic range but allows the

processor to work with 8-bit pixels. Normally the 8-bits are output on the most significant 8-bits unless 8BMODE is 1. There are

two companding functions provided. CMPFMT selects between these two formats.

Document #: 38-19009 Rev. *E

Page 23 of 37

CYIWOSC3000AA

Companding format 1: Modified A-law

12-bit original

8-bit

00wxyzab

010wxyza

011wxyza

100wxyza

101wxyza

110wxyza

111wxyza

12-bit recovered

000000wxyzab

000001wxyzab

00001wxyzabc

0001wxyzabcd

001wxyzabcde

01wxyzabcdef

1wxyzabcdefg

000001wxyza0

00001wxyza00

0001wxyza000

001wxyza0000

01wxyza00000

1wxyza000000

Compa nd M ode 1

256

224

192

160

128

96

64

32

0

256 512

768 1024 1280 1536 1792 2048 2304 2560 2816 3072 3328 3584 3840

Companding format 2: Simple 2-segment

12-bit original

8-bit

0wxyzabc

1xyzaabc

12-bit recovered

00000wxyzabc

1wxyzabc0000

00000wxyzabc

wxyzabcdefgh

Compand Mode 2

256

224

192

160

128

96

64

32

0

256

512 768 1024 1280 1536 1792 2048 2304 2560 2816 3072 3328 3584 3840

8BMODE simply shifts the PIXDAT bus to the right by 4 bits. This allows a linear mapping of 12-bit to 8-bits by simply dividing

the pixel value by 16.

DARKENB enables the dark pixels to be output on the PIXDAT bus as if they were part of the image. This mode is usually used

for testing purposes but can be used to improve noise reduction if black-level correction is turned off and instead the function is

performed by the back-end processor.

Document #: 38-19009 Rev. *E

Page 24 of 37

CYIWOSC3000AA

8.2.33 SYNCPOL(3A)

Bit #

Name

DIR

Default

Function

7

VSYNCPOL

RW

0

0 = VSYNC Active Low

1 = VSYNC Active High

6

5

4

HSYNCPOL

EXTRACLK

DATVAL

RW

0

0 = HSYNC Active Low

1 = HSYNC Active High

0 = PIXLCK only when pixels are present

1 = One extra PIXCLK when a row starts and ends

0 = PIXCLK only clocks when HSYNC is inactive; HSYNC is a SYNC

pulse

1 = PIXCLK clocks continuously; HSYNC is a DATVAL pulse

3

PCLKPOL

RW

0

0 = PIXDATA transitions relative to the falling edge of PIXCLK

1 = PIXDATA transitions relative to the rising edge of PIXCLK

2

Reserved

MOD

R

0

1:0

RW

00

00 = PIXCLK on valid data only

01 = PIXCLK on valid data and on ROWEND

02 = PIXCLK on valid data and when HSYNC inactive

03 = PIXCLK freeruns

The SYNCPOL register provides polarity control of the pixel data output pins. VSYNC will be high during Vertical Blanking time

when VSYNCPOL = 1. HSYNC will be high during the Horizontal Blanking time when HSYNCPOL = 1. The edge that PIXDATA

transitions on can be selected with the PCLKPOL bit. Normally PCLKPOL will want to be zero which sets the rising edge of

PIXCLK in the middle of a clock period where PIXDATA is stable. This will insure sufficient setup and hold times across a flex

cable to the back-end processor. If the back-end processor clocks data in on the falling edge of the clock or if there is a significant

amount of delay of PIXCLK, PCLKPOL may be programmed with a 1.

DATVAL = 1 changes the functionality of the HSYNC pin to be a “Data Valid” signal instead of a synchronization pulse. This mode

is normally used when MOD = 11 as PIXCLK is free-running and the back-end processor needs a signal to tell it when valid data

is present on the PIXDATA bus.

The MOD bits provide four different clocking modes that provide different options for clocking data into the back-end processor.

The simplest mode is MOD=00 where PIXCLK runs only when there is valid data on the PIXDATA bus. The problem with this

mode is that there are no clocks during HSYNC and VSYNC and many back-end processors need a few clocks during this time.

If the back-end processor needs to clock in HSYNC and VSYNC, use MOD = 01. This mode provides one extra clock each row

at the end of a row. This insures that HSYNC and VSYNC are sampled by the back-end processor. Note that this will increase

the size of the image by 1 pixel and this pixel must be ignored when doing image processing.

If PIXCLK needs to free-run during the syncs, use MOD = 10. In this mode it is assumed that the back-end processor knows that

it does not need to clock in the data when HSYNC is active. Note that PIXCLK will skip some pulses during the active portion of

a row if binning is enabled.

If PIXCLK needs to always free-run, then use MOD = 11. In this mode PIXCLK is the same as CLK except that it is delayed by

the internal clock buffers to match the output delay on the PIXDATA bus. In this mode DATVAL is normally set to 1 so that the

back-end processor knows which pixels have valid data or not. Some back-end processors are able to compute where the valid

pixels are in a row but care must be taken to properly align the data.

8.2.34 TSTPTN(3B)

Bit #

Name

TSTPTN

DIR

Default

Function

2:0

RW

00

000 = Test pattern disabled

001 = SMPTE colorbars

010 = Incrementing gradient in X

011 = Incrementing gradient in Y

1XX = Reserved

The TSTPTN register enables a test pattern to be output. There are three test patterns available. The standard SMPTE color bars

pattern, a 12-bit incrementing gradient in X and a 12-bit incrementing gradient in Y.

Document #: 38-19009 Rev. *E

Page 25 of 37

CYIWOSC3000AA

8.2.35 FLIP(3C)

Bit #

Name

DIR

Default

Function

1

MIRROR

RW

0

0 = Normal operation

1 = Mirror image in X

0

FLIP

RW

0

0 = Normal operation

1 = Flip Image in the Y dimension

The MIRROR bit is used to reverse the order that pixels are read out which allows the image to be mirrored in the X dimension.

In this case, the column counter is decremented instead of being incremented. Note that the Dark Rows on the left and right side

of the image are still read out first so they can be used for Row FPN reduction. COLS should be programmed with the rightmost

red column of active pixels to insure proper Bayer pattern alignment.

The FLIP bit is used to reverse the order that rows are read out of the imager. When FLIP = 1, then the ROW counter is

decremented instead of being incremented. This allows the image to be flipped in the Y dimension under software control. Note

that the top Dark Rows are still read out first. ROWS should be programmed with the bottom red row of active pixels to maintain

proper Bayer pattern alignment.

8.2.36 DARKTOPH(3E) & DARKTOPL(3F)

Bit #

Name

DIR

Default

Function

11:0

DARKTOP

RW

0x0F0

Bit mask of valid rows to use for Dark Current Statistics

The DARKTOP registers make up a 12-bit register. Each bit of the register enables the respective dark row at the top of the

imager. If the bit is a 1, then the row is used in the dark current calculation. If the bit is 0, then the row is ignored. DARKTOP[0]

corresponds to row 0, DARKTOP[1] corresponds to row 1 and so on. At least 4 rows must be turned on to properly compute the

dark current. By default, the middle 4 rows are turned on which typically are the best for computing the dark current.

8.2.37 GPIO(60)

Bit #

Name

LEVEL

DIR

Default

Function

7

RW

0

Write = Level driven onto GPIO if enabled

Read = Level on the GPIO pin

6

5

4

3

2

1

0

TRISTATE

KEEP

RW

1

0

1

0

1

0

0 = Drive LEVEL onto the GPIO pin

1 = GPIO is tristate

0 = Bus Keeper is disabled

1 = Bus Keeper enabled

INENB

0 = Input is disabled

1 = Input is enabled

PULLDIR

PULLENB

DRV

0 = Pull down

1 = Pull up

0 = Pull-up/down resistor disabled

1 = Pull-up/down resistor enabled

0 = 8 mA drive

1 = 2 mA drive

VSEL

0 = Vddio 1.8V

1 = Vddio 2.8–3.3V

The GPIO register controls the state of the GPIO pin. The GPIO pin is a general purpose IO pin that is controlled via this register.

The default state of the GPIO pins is for a weak pulldown resistor to pull the pin to ground and insure a proper logic level even if

the pin is left unconnected.

The LEVEL bit is used to set the output level of the GPIO pin when TRISTATE is 0. Note that when this bit is read, it reflects the

current level on the GPIO pin and not the value programmed in the LEVEL bit of this register. Thus, when TRISTATE is a 1, this

bit is effectively a read-only bit that is the current logic level of the GPIO pin.

The TRISTATE bit is used to program the GPIO pin as either an input or an output. When TRISTATE = 0, the GPIO pin is an

output and the value programmed in the LEVEL bit will be driven onto the GPIO pin. If TRISTATE = 1, the GPIO pin is an input.

The KEEP bit will enable a weak bus keeper on the GPIO pin. If TRISTATE = 1 and PULLENB = 0, this pin should be programmed

as a 1 to insure a valid logic level is maintained on the GPIO pin. GPIO should not be allow to float.

The INENB bit enables the input. If TRISTATE=1 this bit should be a 1. This pin also gates the bus keeper function so it has to

be 1 for the bus keeper to be enabled.

Document #: 38-19009 Rev. *E

Page 26 of 37

CYIWOSC3000AA

PULLDIR determines the direction of the optional pull-up resistor. 0 = pull-down, 1 = pull-up.

The PULLENB bit enables an on-chip pull-up or pull-down resistor. PULLDIR selects if a pull-up or pull-down is selected.

DRV selects the drive strength of the output driver. 0 = 8 mA nominal drive, 1 = 2 mA low-power drive. The 2-mA drive strength

is recommended to keep power consumption low.

The VSEL bit must be programmed to match the power supply that Vddio is connected to. If Vddio is connected to a 1.8V supply,

then VSEL must be programmed with a 0. If Vddio is connected to a 2.8 to 3.3V supply, then VSEL must be programmed with a 1.

8.2.38 I²CIO(61)

Bit #

Name

DIR

R

Default

Function

7

6

0

Reserved

PDIRA3

RW

0 = SBIA3 Pulled down

1 = SBIA3 Pulled up

5

4

3

2

1

0

PEA3

RW

1

0

1

0

0 = Disable Pull-up/down on SBIA3

1 = Enable Pull-up/down on SBIA3

KEEP

0 = Disable Bus Keeper on SDAT

1 = Enable Bus Keeper on SDAT

PULLDIR

PULLENB

DRV

0 = Pull down on SCLK, SDAT

1 = Pull up on SCLK, SDAT

0 = Pull-up/down resistor disabled on SCLK, SDAT

1 = Pull-up/down resistor enabled on SCLK, SDAT

0 = 8 mA drive on SDAT

1 = 2 mA drive on SDAT

VSEL

0 = Vddio 1.8V on SDAT

1 = Vddio 2.8–3.3V on SDAT

The I²CIO register controls the IO pin settings of the SBIA3, SCLK and SDAT I²C pins. SCLK and SBIA3 are input only pins but

each pin has its own control bits for a pull-up or pull-down resistor. SCLK and SDAT share the same pull-up/down controls. SDAT

is a bidirectional pin and has an additional 2 control bit for selecting the IO voltage and drive strength as well as a weak Bus

Keeper function.

8.2.39 PCLKIO(62)

Bit #

Name

DIR

R

Default

Function

7

6

0

Reserved

TRISTATE

RW

0 = PIXCLK enabled

1 = PIXCLK tri-stated

5

KEEP

RW

0

0 = Bus Keeper disabled

1 = Bus Keeper enabled

4

3

R

1

0

Reserved

PULLDIR

PULLENB

DRV

RW

0 = Pull Down

1 = Pull Up

2

1

0

RW

0

0 = Pull-up/down resistor disabled

1 = Pull-up/down resistor enabled

0 = 8 mA drive on PIXCLK

1 = 2 mA drive on PIXCLK

VSEL

0 = Vddio 1.8V on PIXCLK

1 = Vddio 2.8–3.3V on PIXCLK

The PCLKIO register controls the IO pin settings of the PIXCLK pin. PIXCLK can operate at up to 48 MHz so individual control

of the IO pin is provided to meet the timing and drive strength needs of the application. The TRISTATE bit will tri-state the PIXCLK

pin. When PIXCLK is tri-state, the KEEP or the PULLENB bit must be set or an external pull-up resistor must be used to insure

that PIXCLK does not float or the pin will draw excess power. The DRV and VSEL bits select the drive strength and Vddio voltage

respectively.

Document #: 38-19009 Rev. *E

Page 27 of 37

CYIWOSC3000AA

8.2.40 PIXIO(63)

Bit #

Name

DIR

R

Default

Function

7

6

0

Reserved

TRISTATE

KEEP

RW

0 = Outputs enabled

1 = Tri-stated

5

RW

0

0 = Bus Keeper disabled

1 = Bus Keeper enabled

4

3

R

1

0

Reserved

PULLDIR

PULLENB

DRV

RW

0 = Pull Down

1 = Pull Up

2

1

0

RW

0

1

0

0 = Pull-up/down resistor disabled

1 = Pull-up/down resistor enabled

0 = 8 mA drive

1 = 2 mA drive

VSEL

0 = Vddio 1.8V on PIXCLK

1 = Vddio 2.8–3.3V on PIXCLK

The PIXIO register controls the IO pin settings of the D[11:0], HSYNC and VSYNC pins. The TRISTATE bit will tri-state the pins.

When the pins are tri-state, the KEEP or the PULLENB bit must be set or an external pull-up resistor must be used to insure that

the pins do not float or there will be excess power consumed. The DRV and VSEL bits select the drive strength and Vddio voltage

respectively.

8.2.41 PWRCTL(70)

Bit #

7:1

0

Name

DIR

R

Default

Function

0

Reserved

IMGDIS

RW

0 = Normal Operation

1 = Disable Image Sensor Logic

The PWRCTL register controls the power consumption of the CYIWOSC3000AA Imager. The Imager powers-up in normal active

mode ready to begin full operation once the registers have been initialized. The default state of PWRCTL corresponds to power

Mode 1 (Active).

Power Mode 2 (Standby) is achieved by setting the TRIIO bits in the PCLKIO and PIXIO registers. This tri-states the IO pins and

reduces power consumption. Power consumption is only slightly reduced however the imager is continuing to accumulate

statistics and ready to take an image on the very next frame.

Power Mode 3 (Full Standby) is achieved by setting the IMGDIS bit to a 1. In this mode, the imager is turned off and no video

data is produced and no statistics are computed. All registers retain their current state and are ready to begin image capture once

IMGDIS is cleared to 0. Power consumption is reduced as the timing signals to the image array are static and no data is flowing

through the digital logic. The PIX bus IOs are static as well. Note that since no statistics are being computed, the exposure control

and FPN algorithms will need several frames to stabilize before a valid image is ready to capture.

8.2.42 RESET(7E)

Bit #

Name

RESET

DIR

Default

Function

Write a 0x52 to reset the entire chip.

7:0

W

Writing a 0x52 to the RESET register causes the entire chip to be reset. Writing any value other than 0x52 (ASCII ‘R’) has no

effect. Note that the reset takes place as soon as the I²C ACK bit is started. Thus, the imager will not ACK the data byte of the

I2C command as it is now in reset and waiting for an I²C START command.

Document #: 38-19009 Rev. *E

Page 28 of 37

CYIWOSC3000AA

8.2.43 SYNC(7F)

Bit #

Name

DIR

Default

Function

0 = Immediate access to all registers

1 = Enable Synchronization mode

7

ENB

RW

0

This bit is automatically cleared once the VSYNC has updated the

registers

6

5

NextVsync

VBLANK

RW

R

0

0 = No updates to the registers

1 = Update all registers on the next VSYNC.

This bit is automatically cleared once the VSYNC has updated the

registers.

0 = Not currently in VBLANK

1 = Imager is currently in VBLANK

Critical configuration registers have a shadow register in their write path. This allows these registers to be loaded with a new

value but it won't take effect until just before the next frame begins. When ENB is 0, the shadow register is disabled and access

is direct to the register. Note that changing many of the row/column registers during an active frame time will cause a bad frame

to be output. When ENB is 1, then any write to a register with a shadow register causes the write to be stored but not take effect

until the NextVsync bit is a 1 and VSYNC begins.

Note that register reads always come from the currently active register. When ENB = 1, after you write to a register, if you

immediately read the register you will get the old value, not the value you just wrote. Once NextVsync = 1 and VSYNC has

occurred, then the new value can be read from the register.

The VBLANK bit may be used to update a small number of registers during the vertical blanking time. This is a read only bit.

Software can simply poll this bit and wait until it is a one (or transitions to a one) and then write a few registers directly without

causing bad frames.

Once the ENB and the NextVsync bit are set, no register writes should be performed until the registers have been updated. The

ENB bit will be cleared to 0 when the registers are updated. There is a small chance that a write to a register will happen just as

the other registers are being updated at VSYNC and the write conflict will result in unpredictable operation.

Usage examples:

1. Initial power-up

a. The imager is currently off and we wish to configure the registers as quickly as possible.

b. ENB = 0, NextVsync = X (don't care but usually 0).

c. Write all configuration registers

d. Enable the back-end processor to begin searching for a VSYNC pulse to begin processing frame data. The first frame may

be a partial frame with bad data.

2. Change from video sub-windowed mode to full image capture mode

a. ENB = 1, NextVsync = 0

b. Write all registers that need to be updated for the new capture mode

c. NextVsync = 1

d. Wait until NextVsync = 0, which indicates that the registers have been updated. The next frame should begin immediately

and be in the new format. Do not write to any other registers while waiting for NextVsync to change to 0.

NOTE: Registers in Table 8-1 labeled with a 1 are controlled by the SYNC bit. Note that many of the other registers are effectively

SYNCed as they are only used by internal logic at specific times during a frame. See the individual register descriptions for more

details.

Document #: 38-19009 Rev. *E

Page 29 of 37

CYIWOSC3000AA

8.3

Status Registers

8.3.1

GrAVGH(80) & GrAVGL(81)

Bit #

15:0

Name

GrAVG

DIR

Default

Function

Green-Red pixel value average

R

The GrAVG registers make up a sixteen-bit register split across two 8-bit registers. The value is the average intensity value in a

12.4 fixed point format for all green pixels on the red row in the area defined by the ROI registers. The upper twelve bits are the

integer portion and the lower four bits provide a fractional value. This register is updated at the end of the active pixels and before

vertical blanking. The register always contains a valid value of the most recent frame.

8.3.2

Bit #

15:0

GbAVGH(82) & GbAVGL(83)

Name

GbAVG

DIR

Default

Function

Green-Blue pixel value average

R

The GbAVG registers are the average intensity value for all green pixels on the blue row in the area defined by the ROI registers.

This register is updated at the end of the active pixels and before vertical blanking. The register always contains a valid value of

the most recent frame.

8.3.3

Bit #

15:0

RAVGH(84) & RAVGL(85)

Name DIR

RAVG

Default

Function

R

Red pixel value average

The RAVG registers are the average intensity value for all red pixels in the area defined by the ROI registers. This register is

updated at the end of the active pixels and before vertical blanking. The register always contains a valid value of the most recent

frame.

8.3.4

Bit #

15:0

BAVGH(86) & BAVGL(87)

Name DIR

Default

Function

BAVG

R

Blue pixel value average

The BAVG registers are the average intensity value for all blue pixels in the area defined by the ROI registers. This register is

updated at the end of the active pixels and before vertical blanking. The register always contains a valid value of the most recent

frame.

8.3.5

Bit #

15:0

LUMAVGH(88) & LUMAVGL(89)

Name

LUMAVG

DIR

Default

Function

R

Pixel value average

The LUMAVG registers are the average intensity value for all pixels in the area defined by the ROI registers. This register is

updated at the end of the active pixels and before vertical blanking. The register always contains a valid value of the most recent

frame.

8.3.6

Bit #

7:0

REPLPIX(A0)

Name

DIR

Default

Function

REPLPIX

R

Number of Pixels Replaced

The REPLPIX register is a count of the number of pixels that have been replaced by the Pixel Replacement algorithm. If more

than 255 pixels have been replaced, the value is clipped to 255.

8.3.7

Bit #

7:0

CURROW(A1)

Name

DIR

Default

Function

CURROW

R

Eight MSBs of the Current row

The CURROW register contains the eight most-significant bits of the 11-bit Row counter. Thus, CURROW indicates where the

imager is currently reading data from the image array. Note that this value may jump quickly from one part of the image to the

Document #: 38-19009 Rev. *E

Page 30 of 37

CYIWOSC3000AA

other when sub-windowed. A value of zero indicates that a new frame has just started. A value above 196 indicates we are in

vertical blanking.

8.3.8

Bit #

15:0

NOISEVARH(A2) & NOISEVARL(A3)

Name

DIR

Default

Function

NOISEVAR

R

Variance of the noise in the Top Dark pixels.

The NOISEVAR register is a 16-bit register which holds the noise variance of the current frame. The noise variance is the square

of the difference of a pixel and the previous frames BLKLVL. The noise variance is accumulated for 214 pixels in the Top Dark

Rows. The noise variance is typically used to assist the image processing software in setting limits on gain to maintain a

reasonable signal-to-noise ratio.

8.3.9

Bit #

11:0

ACTROWSH(A4) & ACTROWSL(A5)

Name

DIR

Default

Function

Number of active pixels per row

ACTROWS

R

The ACTROWS register provides a count of the number of Active Rows per frame. The number of Active Rows per frame depends

on the setting of many registers and may be difficult to compute. This register provides an easy way to determine the number of

Active Rows per frame for the current operating mode.

8.3.10 ACTCOLSH(A6) & ACTCOLSL(A7)

Bit #

Name

DIR

Default

Function

Number of active pixels per column

11:0

ACTCOLS

R

The ACTCOLS register provides a count of the number of Active Pixels per row. The number of Active pixels per row depends

on the setting of many registers and may be difficult to compute. This register provides an easy way to determine the number of

Active pixels per row for the current operating mode.

8.3.11 COLCNT(A8) & COLCNT(A9)

Bit #

Name

DIR

Default

Function

11:0

COLCOUNT

R

Number of clocks per row

The COLCNT register is a read-only register that provides the number of clocks per row. It is a twelve bit register and hence if

more than 4096 clocks/row are programmed the register will reset to 0 and begin the next count.

8.3.12 TINTAEH(AA) & TINTAEL(AB)

Bit #

Name

TINTAE

DIR

Default

Function

11:0

R

Integration time in rows when AutoExposure is enabled

The TINTAE register is a read-only register that provides the current Integration time when the AutoExposure unit is enabled.

The Integration time typically changes every frame when the Auto Exposure unit is enabled. This register is updated just before

the start of a new frame and is the value being used while the frame is being captured.

Document #: 38-19009 Rev. *E

Page 31 of 37

CYIWOSC3000AA

9.3

Selectable Frame Rate

9.0

9.1

Feature Descriptions

HiSENS™

Frame rate can be adjusted by a number of factors. The CLK

frequency sets the basic frame rate and can be as high as

48 MHz. To readout a full 3MP image in 1/14th of a second

requires a 48-MHz CLK. The frame rate can also be adjusted

by varying the number of Vblank rows. The number of Vblank

rows can be up to 4095, allowing for a wide range of frame

rates. Subwindowing will also increase the frame rate as fewer

rows need to be read out. Note that binning does not increase

the frame rate as the imager must still collect all of the pixels

but the data rate out of the pixel data bus is significantly lower

in these modes.

This circuit provides reduced readout noise using circuitry both

inside and peripheral to the imaging area.

9.2

Power Saver Settings

There are three power modes on the sensor to provide a

balance of imager performance and power consumption, as

described in Table 9-1.

The imager default (power-up) setting is in Power Mode 1 but

will inhibit output video until it has stabilized to avoid displaying

bad frame data. Significant power savings can be obtained by

running the imager at a slower clock frequency, reducing the

active pixel area (subwindowing) or by sub-sampling the

image. This allows the imager to run in an active preview mode

at substantially reduced power levels but return briefly to a

high power mode when taking a full 3MP capture.

Windowing into a relatively small number of rows can increase

the frame rate for high-speed auto-focus applications.

Reading out just the middle third of the image area will

increase the frame rate by 3X. Decreasing the number of

columns does not change the frame rate as all pixels in a row

must be read out to keep the row timing consistent.

Table 9-1. Power Modes

Mode

Video Operation

Full functionality

Serial Communication Operation

Active

(Power Mode 1)

Full functionality

Digital video output

Registers retain settings

Standby with exposure

(Power Mode 2)

Imager maintains exposure

No video is output

Read all registers

Write to Power Register only

Registers retain settings

Full Standby

(Power Mode 3)

No Imager operation

No video is output

Read all registers

Write to Power Register only

Registers retain settings

Table 9-2. Typical Power Consumption in Common Operating Modes

Power Mode Operation

Analog and Digital Power Consumption

(V_DDD= 1.8V, V_DDA= 2.8V)

Full Frame

Full Speed

Capture

2048 x 1536

14 fps with 48-MHz Clk

I

_DDA= 59 mA

_DDD= 27 mA

P = 215 mW

Preview Mode

640 x 480

30 fps with 18-MHz Clk

I

_DDA= 15 mA

_DDD= 9 mA

P = 60 mW

Standby/Idle Mode

Reset Low

CLK = 0 Hz

I_DDA= 1μA

I_DDD= 3 μA

P = 8 μW

Document #: 38-19009 Rev. *E

Page 32 of 37

CYIWOSC3000AA

many combinations of resolution/FOV are available to the user

via register setting.

9.4

FPN Reduction

Column Fixed Pattern Noise Reduction: The imager

collects pattern data generated in the dark rows for fixed

pattern noise and computes correction values to reduce this

noise. A test voltage is applied to the ADCs during 16 rows of

VBLANK and the results are accumulated and stored in a

special Row Buffer. This offset is then subtracted digitally. This

subtraction is done to all pixels including the dark pixels.

9.9

Sub-window Control

The imager can be read out at any sub-frame resolution on

Bayer boundaries (odd columns and even rows) down to 2H

X 2V pixels. The blanking time minimums are required. The

size of the sub-window is specified in the registers by setting

the coordinates of the corners. The location of the sub-window

can start at any Bayer boundary.

Point Defect Correction: Pixels operating outside of the

response of their neighbors may be defective. The

CYIWOSC3000AA imager will compare the response of the

neighbor pixels and will replace the defective pixel with the

nearest same color. All of these modes can be disabled via

software.

9.10

Analog On-chip Binning

Binning can be performed in the analog domain to indepen-

dently combine pixels in the horizontal and vertical dimensions

with factors of 2, 3 (Vertical only) and 4 adjacent Bayer pixels.

By combining pixels the low-light signal-to-noise ratio is

increased. The imager architecture was tuned for on-chip

binning factors of 2, 3, and 4. Binning by 3 can only be done

in the vertical dimension. Analog Binning has the advantage

that it increases the frame rate. However, binning by more than

2X is not as flexible in analog as it is in digital. Analog binning

is also lower power than digital binning. Generally, analog

binning by 2 should be used whenever possible.

9.5

Black Level Setting and Averaging

The electronic and dark current induced offsets that cause

black level errors will be removed on-chip. The imager will

collect statistics on the electronic black level from optically

shielded pixels. These statistics will provide an average value

for subtracting from active pixels. The first 8096 pixels in the

top 12 dark rows are accumulated and an average is calcu-

lated. The remaining pixels in the image have this value

subtracted from them. This algorithm has the advantage of

collecting statistics for the current frame and applying them

immediately which will improve quality as it will track changes

in Tint. Pixels that have the upper 4 MSbs set are not included

in the black level calculation. This insures that “hot” pixels are

ignored which might otherwise cause the average to be

unusually high. There is a mask register that allows any of the

12 rows to be not used in the black level calculation. This

allows certain rows to be excluded which are found to not be

truly black. Only four rows are typically needed for the black

level calculation.

9.11

Digital On-chip Binning

The imager provides additional digital binning to support

reduced resolution output modes. Digital binning can be

performed in both the horizontal and vertical dimensions.

Vertical binning is limited to 2X and 4X. Horizontal binning can

be any combination of 2, 3, or 4X in two stages. Thus,

horizontal binning can be 2, 3, 4, 6, 8, 9, 12, or 16X. There are

two pixel weighting modes for digital binning. The weighting for

each pixel can either be the normal 1:1 weighting, or a special

mode where the appropriate color of the Bayer pattern is

weighted more favorably based on the location in the

super-pixel. Subsampling can be performed instead of

binning, which increases the frame rate and lowers power

consumption, however the image may tend to “sparkle” due to

aliasing artifacts. Subsampling in the vertical dimension will

increase the frame rate however subsampling in the horizontal

dimension will not. It is recommended to subsample vertically

wherever possible and always use binning in the horizontal

dimension.

9.6

Digital Gain per Color

A 12x12 multiplier can be applied to each of the four color

channels (R, Gr, Gb and B) individually via registers. The

default is to multiply by 1 which has no effect. These multipliers

provide digital gain typically used correct the responsivity of

the color masks. If the color value exceeds 12 bits after the

multiplication, then the color is saturated to the maximum

value. The multiplication factor is in a 12-bit register with a 4.8

fixed point format. The value is rounded to the nearest by

adding 128 to the result before shifting right by 8.

9.12

50-/60-Hz Flicker Reduction

Flicker reduction involves setting the Integration Time to be a

multiple of either 100 or 120 Hz. This will insure that in

relatively low-light situations where the lighting is likely to be

from fluorescent bulbs, the image does not “beat” with the

flicker of the fluorescent bulbs. Software must perform this

function and properly set the Integration Time to be a multiple

of 100 or 120 Hz.

9.7

Exposure Control

The imager provides for both automatic and manual control of

the exposure or integration period. The exposure control

algorithm sets the imager base integration period to set the

average pixel value at a default or user specified level. In

addition to setting the desired image average, the user may

limit the integration period available to the automatic control.

These registers may be used to prevent the integration from

exceeding motion blur limits in dark environments.

9.13

Blanking Time, PCLK and Sync Polarity

The polarity of the HSYNC, VSYNC, and PCLK signals can be

inverted by setting the proper register. Additional HBlank

pixels and VBlank rows can be added to the image frame by

setting the appropriate registers.

9.8

Resolution Control

The imager contains several blocks to control the output

resolution and field of view (FOV). By combining these blocks,

Document #: 38-19009 Rev. *E

Page 33 of 37

CYIWOSC3000AA

9.14

Power-on Reset

9.16

Exposure Control Region of Interest (ROI)

The CYIWOSC3000AA powers up automatically to default

register mode operation as specified in this document. No

serial communications are required on power-up to initiate

image capture, the imager will output video imagery at full

resolution with associated sync signals. The RESET_N signal

should be asserted until both power supplies have reached

their proper voltage level and the CLK is stable.

The camera includes a region of interest feature that can be

used to influence the automatic control of the integration

period. The region is defined by specifying the upper left and

lower right corners of a rectangle using pixel row and column

numbers. The exposure calculations can generated with pixels

within the region or on those that lie outside the region.

9.17

Register Setting Sync Control

9.15

On-chip Test Pattern Generation

Most of the configuration registers have a shadow register that

will hold the new value until the next VSYNC. This insures that

all of the registers are updated at the same time and no bad

frames are output. See the definition of the SYNC register for

more details.

A test pattern will be output from the imager when set by the

registers to provide a standard SMPTE color bar pattern. This

is to assist with system development and testing. A represen-

tation of the test pattern is shown in Figure 9-1 with RGB

values of 8-bit depth. The output of the test pattern will be in

raw Bayer form and each sample may be adjusted on chip

using the digital gain per color channel registers. A configu-

ration row of data may optionally be inserted into row 0 of the

image. This configuration row contains data such as the

Frame Number. Tint value and other parameters. This mode

is only used for testing and debug.

9.18

Preview and Video Mode

The imager generates a video signal at up to 14 fps (full frame)

with internally generated clocks and synchronization signals.

These synchronization signals are output to other devices

together with the processed image data.

9.19

Parallel Digital Interface

The CYIWOSC3000AA image sensor offers 8 and 12-bit

parallel digital interfaces. This interface is configured to

operate in a variety of modes to maximize compatibility with a

variety of DSP interfaces and other custom applications.

The imager samples and processes 12-bit data. If an 8-bit

output is selected, the 12-bit data is mapped to 8-bit either with

a fixed non-linear curve or linear mapping.

The Parallel Digital Output option will have the following output

modes:

1. 12-bit data out, with HSYNC, VSYNC, PCLK

2. 8-bit data out with HSYNC, VSYNC, PCLK

3. Each of the previously mentioned modes with embedded

sync. The HSYNC and VSYNC are embedded by substitut-

ing raw pixel values of assigned sync levels. This will allow

client devices to sync up to the timing codes in the data

stream.

Figure 9-1. SMPTE Color Bars

Document #: 38-19009 Rev. *E

Page 34 of 37

CYIWOSC3000AA

10.2

Operating Conditions

10.0

10.1

Electrical Specifications

Absolute Maximum Ratings

Supply Voltage: ...........................................2.8 and 1.8VDC

Operating Temperature: ............................... –30°C to +70°C

Stresses beyond those listed under “Absolute Maximum

Ratings” may cause permanent damage to the device. These

are stress ratings only and functional operation of the device

at these or any other conditions beyond those indicated in the

operational sections is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

Storage Temperature: ................................... .–30°C to 85°C

Input Voltage:......................................... –0.2V to V_CC+0.2V

ESD Susceptibility (HBM): ..........................................2000V

11.0

Electrical Characteristics

The following specifications apply for T_A= 25°C Environmental Specifications

Electrical Characteristics

Parameter

Vdd

Description

Digital Supply voltage

Analog Supply voltage

Conditions

Min.

1.65

2.5

Typ.

1.8

2.8

60

Max.

2.0

Unit

V

Vaa

P

3.1

V

Analog and Digital Power

Consumption

@ 30 fps (640 x 480)

@ 14 fps (2048 x1536)

mW

215

Digital I/O

V_OH28

V_OL28

V_OH18

V_OL18

V_IH28

Output level [high]

Output level [low]

Output level [high]

Output level [low]

Input level [high]

Input level [low]

I_OH= –4.0 mA

I_OL= 4.0 mA

Vaa – 0.2

0.2

V

Vdd – 0.2

0.2

V

Vaa – 0.3

–0.3

Vaa + 0.3

V

V_IL28

0.3

Vdd + 0.3

0.3

V

V_IH18

Input level [high]

Input level [low]

Vdd – 0.3

–0.3

V

V_IL18

V

I_LOAD

Input leakage current

Input capacitance

Output capacitance

Pixel Output rate

V_I= 0V to 3.0V

10

μA

pF

MHz

C_IN

V_IN= 0V, f = 1.0 MHz

10

C_OUT

12

PCLK max

48

Table 11-1. Environmental Specifications

Specification

Value

–30°C to +70°C

Comment

Operating Junction

Temperature

See performance specifications for sensitivity de-rating over temperature

Storage Temperature –30°C to 85°C

Dust

100 mg/m³

Junction

-

Document #: 38-19009 Rev. *E

Page 35 of 37

CYIWOSC3000AA

12.0

48-Pin PLCC Package Diagram

TOP VIEW

BOTTOM VIEW

14.22 SQ.

R0.40 0.05

1.00

1.56

1.01 0.05TYP

0.50TYP.

13.00 SQ.

2.00

GLASS LID

C0.20

Ø0.40 0.05TYP.

13.20SQ. 0.05

0.50 0.125

DIMENSIONS IN MILLIMETERS

REFERENCE JEDEC : NA

SIDE VIEW

PACKAGE WEIGHT :TBD

PART # TABLE

WINDOWED PLASTIC LEADLESS CHIP CARRIER (STANDARD)

QP48A

QY48A

001-00453-**

WINDOWED PLASTIC LEADLESS CHIP CARRIER (LEAD FREE)

Figure 12-1. 48-Pin PLCC Package Diagram

12.1

Ordering Information

Table 12-1. Ordering Information

Ordering Code

Package Name

Package Type

48-Pin PLCC Package

CYIWOSC3000AA - QYC

QY48A

Purchase of I²C components from Cypress or one of its sublicensed Associated Companies conveys a license under the Philips

I²C Patent Rights to use these components in an I²C system, provided that the system conforms to the I²C Standard Specification

as defined by Philips.

HiSENS is a trademark of Cypress Semiconductor Corporation. All products and company names mentioned in this document

may be the trademarks of their respective holders.

Document #: 38-19009 Rev. *E

Page 36 of 37

of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be

used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its

products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

CYIWOSC3000AA

Document History Page

Document Title: CYIWOSC3000AA 3.1 Megapixel CMOS Sensor

Document Number: 38-19009

Orig. of

REV. ECN NO. Issue Date Change

Description of Change

**

355657

384066

414413

See ECN

HBH

SYT

New data sheet

*A

*B

Added detail to meet final product specifications

Converted from Preliminary to Final

Changed Optical Format from 1.3” to 1.28 “

Removed 10-bit Parallel Data Port Information

Added Analog and Digital Power Consumption specs

Changed the True Output Dynamic Range from 72 dB to 60 dB

Removed the SNR_MAXfor XGA and QVGA resolutions

Changed the SNR_MAXspec from 42 to 39 and 51.5 to 43 for the QXGA and the VGA

resolutions respectively.

Changed Analog Supply Voltage from 2.65V - 3.1V to 2.5V - 3.1V

I²C made consistent in the whole of the document

Corrected typo in the ROWNUMH/ROWNUML and COLNUMH/COLUMNL descrip-

tions on Page #: 14 and 15

Appended information for RESET(7E) register description on Page# 27

Edited the COLCNT register descriptions on Page # 30

Changed the contents of Table 8.2

Changed Vaa min from 2.52 to 2.5 V in Table #9.1

Included “Frames per Second and Integration Time Calculation” section.

Removed Salt Mist Atmosphere, Chemical Resistance and Humidity specifications

from Table # 10.0

*C

416566

See ECN

SYT

Changed address of Cypress Semiconductor Corporation on Page# 1 from “3901

North First Street” to “198 Champion Court”

Changed the Max Data Rate/Master Clock Rate from 100 MPS/100 MHz to

48 MPS/48 MHz

Changed Frame Rate from 30 fps to 14 fps for 2048 x 1536 mode and from 83 fps

to 80 fps for 640 x 480 mode.

Changed the Dynamic Range from 55 dB to 60 dB

Included unit for SNR_MAX

Changed SNR_MAXfrom 39 to 35 dB for QXGA and from 43 to 40 db for VGA

Changed the Analog and Digital Power consumption spec from 55mW @ 30 fps (640

x 480) to 60 mW and 195 mW @ 15 fps (2048x1536) to 215 mW @ 14 fps.

Changed the clock frequency for Preview mode from 12Mhz to 18 Mhz on Table 8-2

on Page # 31

*D

*E

431055

436607

See ECN

SYT

Added 48-PLCC Package Diagram

QGS

Updated Bond Diagram for 48-PLCC Package on Page # 5.

Added Note on Page # 5.

Changed time required to read out a single row to COLCNT / CLK FREQ from CLK

FREQ / COLCNT on Page # 10.

Added HBLANK register number (0x8, 0x9) on Page 10.

Document #: 38-19009 Rev. *E

Page 37 of 37

厂商	型号	描述	页数
CYPRESS	CYI9530ZXC	PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ]	11 页
CYPRESS	CYI9530ZXCT	PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ]	11 页
CYPRESS	CYI9531OXC	PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ]	10 页
CYPRESS	CYI9531OXCT	PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ]	10 页
CYPRESS	CYI9531ZXC	PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ]	10 页
CYPRESS	CYI9531ZXCT	PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ]	10 页
CYPRESS	CYIA2SC0300AA-BQE	1/3“ VGA格式CMOS图像传感器[ 1/3” VGA-Format CMOS Image Sensor ]	18 页
CYPRESS	CYIFS741BSXBT	[ Clock Generator, 68MHz, CMOS, PDSO8, SOIC-8 ]	19 页
CYPRESS	CYIFS781BSXC	低EMI的扩频时钟[ Low EMI Spectrum Spread Clock ]	12 页
CYPRESS	CYIFS781BSXCT	低EMI的扩频时钟[ Low EMI Spectrum Spread Clock ]	12 页
