QT301

型号：

QT301

描述：

电容ANALOG CONVERTER[ CAPACITANCE TO ANALOG CONVERTER ]

品牌：

QUANTUM[ QUANTUM RESEARCH GROUP ]

页数：

11 页

PDF大小：

264 K

下载PDF手册
k

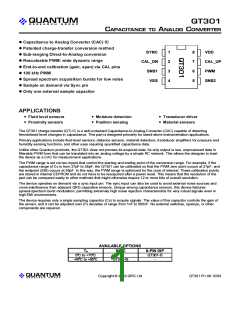

QT301
CAPACITANCE TO
A
NALOG
CONVERTER
ꢀ Capacitance to Analog Converter (CAC) IC
ꢀ Patented charge-transfer conversion method
ꢀ Sub-ranging Direct-to-Analog conversion
ꢀ Rescaleable PWM: wide dynamic range
ꢀ End-to-end calibration (gain, span) via CAL pins
ꢀ 100 kHz PWM
SYNC
CAL_DN
SNS1
1
2
3
4
8
7
6
5
VDD
CAL_UP
PWM
ꢀ Spread spectrum acquisition bursts for low noise
ꢀ Sample on demand via Sync pin
VSS
SNS2
ꢀ Only one external sample capacitor
APPLICATIONS
ꢀ Fluid level sensors
ꢀ Moisture detection
ꢀ Position sensing
ꢀ Transducer driver
ꢀ Material sensors
ꢀ Proximity sensors
The QT301 charge-transfer (QT) IC is a self-contained Capacitance-to-Analog-Converter (CAC) capable of detecting
femotofarad level changes in capacitance. This part is designed primarily for stand-alone instrumentation applications.
Primary applications include fluid level sensors, distance sensors, material detectors, transducer amplifiers for pressure and
humidity sensing functions, and other uses requiring quantified capacitance data.
Unlike other Quantum products, the QT301 does not process its acquired data. Its only output is raw, unprocessed data in
filterable PWM form that can be translated into an analog voltage by a simple RC network. This allows the designer to treat
the device as a CAC for measurement applications.
The PWM range is set via two inputs that control the starting and ending point of the conversion range. For example, if the
capacitance range of Cx is from 27pF to 38pF, the QT301 can be calibrated so that the PWM zero point occurs at 27pF, and
the endpoint (255) occurs at 38pF. In this way, the PWM range is optimized for the zone of interest. These calibration points
are stored in internal EEPROM and do not have to be reacquired after a power reset. This means that the resolution of the
part can be compared easily to other methods that might otherwise require 12 or more bits of overall resolution.
The device operates on demand via a sync input pin. The sync input can also be used to avoid external noise sources and
cross-interference from adjacent QRG capacitive sensors. Unique among capacitance sensors, this device features
spread-spectrum burst modulation, permitting extremely high noise rejection characteristics for very robust signals even in
high EMI environments.
The device requires only a single sampling capacitor (Cs) to acquire signals. The value of this capacitor controls the gain of
the sensor, and it can be adjusted over 2½ decades of range from 1nF to 500nF. No external switches, opamps, or other
components are required.
AVAILABLE OPTIONS
TA
00C to +700C
-400C to +850C
SOIC
-
QT301-IS
8-PIN DIP
QT301-D
-
LQ
Copyright © 2003 QRG Ltd
QT301 R1.06 12/03
Table 1-1 Pin Description
Name Function
SYNC
1 - Overview
The QT301 is a digital burst mode charge-transfer (QT)
capacitance-to-analog converter (CAC). It has a PWM output
designed for applications such as fluid level sensing and
distance gauging; the PWM signal is eight bits in resolution.
The IC features two calibration inputs for end-to-end span
calibration. The output depends on load (Cx) and sampling
capacitor (Cs) values.
Pin
1
Sync Input
2
CAL_DN
SNS1
VSS
Lower Calibration input
Sense 1 line (to electrode)
Negative supply (ground)
Sense 2 line
3
4
5
SNS2
PWM
6
PWM output
1.1 Basic Operation
7
CAL_UP
VDD
Upper Calibration input
Positive supply
The QT301 has internal EEPROM to store the two calibration
points. The sensor acquires the signal from the electrode and
calculates the PWM result using the two calibration points.
The sensor can be calibrated via the two calibration inputs
(see Section 4). The signal can be acquired either
continuously or it can be synchronized on an external signal.
The response time of the PWM depends largely on the
acquisition burst spacing.
8
2 - Signal Acquisition
The QT301 has a power-up delay of 300ms. During this
interval it does not acquire signals or generate a PWM result;
it also ignores calibration inputs. This delay helps to prevent
false calibrations due to signal noise on Vdd during
startup.
Figure 2-1 shows the basic QT301 acquisition timing
parameters. Tbd is the burst duration, Tbs is the
burst spacing from the start of one burst to the start
of the next burst; when there is no Sync signal Tbs =
Tbd+2.5ms.
Figure 1-1 Basic Circuit Diagram
3 to 5.5V
0.1uF
8
VDD
R1
1
2.1 Burst Properties
SYNC
Electrode
The QT301 employs bursts of charge-transfer cycles
to acquire its signal. Burst mode dramatically reduces
RF emissions and lowers susceptibility to EMI.
Upper Cal
Rs
7
2
6
3
5
CAL_UP
CAL_DN
PWM
SNS1
SNS2
Lower Cal
Cs
The acquisition burst operates in a band between
230kHz and 310kHz. The burst is spread-spectrum
modulated within this band to suppress interference
from external noise sources.
Cx
PWM Out
VSS
R3
R2
The QT switches and charge measurement hardware
functions are all internal to the QT301. A 16-bit
single-slope switched capacitor, analog to digital
converter (ADC), includes both the required QT
charge and transfer switches in a configuration that
4
provides direct ADC conversion. The ADC is designed to
dynamically optimize the QT burst length according to the
rate of charge buildup on Cs, which in turn depends on the
values of Cs, Cx, and VDD. VDD is used as the charge
reference voltage.
1.2 Basic Circuit
Figure 1-1 shows a basic circuit diagram for the QT301. The
pin layout of the QT301 is as explained in Table 1-1. In this
particular circuit, C1 should be 100nF and R1, R2 and R3
should all be 10K.
R1 is only required if the synchronization feature is not used
and can be connected to either VDD or VSS.
Cs should be between 1nF and 500nF depending on the
sensitivity required. Use either NPO or PPS capacitors for
best results.
Figure 2-1 Acquisition Burst: No Sync Pulse
Rs is calculated with the following formula:
166%103
Rs <
Cx
where Cx is expressed in pF.
Tbd
Tbs
LQ
2
QT301 R1.06 12/03
Figure 2-2 Acquisition Burst with Sync Signal
2.2 CS / CX Dependency
The signal value is a direct function of Cs and Cx, where Cs
is the fixed sample capacitor, and Cx is the unknown
capacitance. These two values influence device sensitivity,
resolution and response time, making them very important
parameters.
Sync Signal
Sensitivity and resolution are also a function of the size,
shape, and composition of the electrode, the composition
and thickness of any dielectric overlaying the electrode, the
composition and aspect of the object being sensed, and the
degree of mutual coupling between the electrode and the
object being sensed.
Acquisition
Burst
2.3 Burst Length
The burst length (and hence the signal level) is described by
the following formula:
Figure 2-3 Acquisition Burst: Sync Lost
k$CS
BL =
CX
Where ‘k’ is a constant, typically 0.51 (this may vary slightly
from device to device).
Sync Signal
Each doubling of Cs increases the signal level and
differential sensitivity by a factor of two. Likewise, doubling
Cx reduces the signal level and differential sensitivity by a
factor of two (Figures 6-1, 6-2, page 8).
Acquisition
Burst
The device has an internal Cx, Csns, which adds to the Cx in
the formula. This capacitance is about 11pF.
Because the QT301 has an 8-bit PWM output which spans
two calibration endpoints, the PWM output value is
expressed as:
100ms
Figure 2-4 Acquisition Burst: Sync Reacquired
k$C
k$C
S
S
−
−
C
C
C
X2$(CX1−CX)
X
X1
PWM = 255 $
= 255 $
;
k$C
k$C
CX$(CX1−CX2)
S
S
C
C
X1
X2
where:
Cx1 is the capacitance at the lower cal point
Cx2 is the capacitance at the upper cal point, and
Sync Signal
Cx is the measured capacitance between Cx1 and Cx2
Particularly noteworthy is that Cs is not part of this equation;
the PWM result is purely a function of the three Cx values.
Cs only needs to be large enough to prevent granularity
problems (i.e. coarseness or resolution).
Acquisition
Burst
In most cases the result is a nearly-linear response between
the endpoints. Only when the capacitance of the lower cal
point becomes comparable to delta Cx does the result
become substantially non-linear.
For a linear response, make sure that the lower cal point
capacitance is significantly larger than the delta capacitance
between the endpoints. If the delta Cx amounts to 5pF, the
response will be accurate to 2.4% of full scale if the lower cal
point is 50pF. But if the lower cal point is only 20pF and the
delta Cx is 10pF, the error rises to 10% at points. The largest
errors occur near the middle of the Cx span.
Figure 2-5 Sync Overclocked
Sync Signal
An example of the error can be seen in Figure 2-6.
Non-linear errors can be linearized using polynomials or a
piece-wise linear correction method in a microcontroller. A
spreadsheet with the calculations for this equation and the
error terms can be obtained on request.
Acquisition
Burst
LQ
3
QT301 R1.06 12/03
The 2.5ms is the minimum gap between bursts is to
allow Cs to properly discharge; Sync is not possible
during this interval nor is it possible to re-sync during a
burst.
PWM, 0..255
% Error
Figure 2-6 PWM vs Cx, Over Range 100pF...110pF
300
250
200
150
100
50
3%
2%
2%
1%
1%
0%
3 PWM Output
The PWM output is a 100KHz 7% square wave. It
can be filtered using a simple RC circuit, or fed directly
into a timer circuit that can measure its duty cycle with
sufficient resolution. If an RC is used, the resistor
should be at least 10K ohms to reduce pin loading
errors.
The PWM duty cycle is defined as follows:
0
100
101
102
103
104
105
106
107
108
109
110
TPWM_high
Cx, pF
DPWM
=
TPWM_Period
If an RC circuit is used, it is often best to put a voltage
follower circuit on the output of the filter to buffer the output
voltage (Figure 2-7).
2.4 Sync Input
Bursts can be synchronized to external noise sources such
as powerline fields to suppress their interferening effects. A
typical sync circuit is shown in Figure 2-7. By synchronizing
with a noise source, the noise itself becomes highly
correlated with the acquired data, and AC alias components
effectively disappear from the signal. Synchronization works
best on low frequency, highly repeatable signals, such as
mains frequency (50/60 Hz) sources.
Note that the PWM output is not 100% linear with changes in
Cx capacitance from end to end. The transfer function for the
QT301 vs Cx is described in Section 2.3.
During CAL, the PWM output value is locked in place with
the value just prior to when the CAL process was triggered.
Only after CAL is complete is the PWM updated with the new
results.
Figure 2-2 shows the effect of sync pulses on the burst rate.
A sync signal triggers a burst on the rising edge.
4 Calibration
There is a Sync timeout of 100ms as shown in Figure 2-3. If
Sync pulses cease for >100ms, the Sync signal will be
treated as being lost and the device will start to acquire at its
own default rate again. When using the Sync feature it is
important that the Sync pulses are spaced less than 100ms
apart.
The QT301 should be calibrated end to end to have an
effective, properly scaled PWM output. The calibration is
done on a ‘learn by example’ basis. Each end is calibrated
separately while the appropriate end-point signal level is
applied. After the Cal process, the PWM signal will scale
itself to reflect these endpoints with the best resolution
possible.
Figure 2-2 shows the acquisition burst in relation to Sync
pulses. If no rising edge is detected for 100ms, the QT301
will revert to the default timing shown in Figure 2-1. Figure
2-4 shows the sudden start of a train of Sync pulses and the
effect on the acquisition bursts.
4.1 Calibration Pins
The CAL_DN pin should be used to calibrate the signal when
the electrode is at its lowest level of Cx, for example with a
level probe when the fluid is at a minimum.
Should the sync signal overclock the acquisition bursts
(Figure 2-5), the device will trigger on the next rising edge
after a delay of Tbd+2.5ms.
Figure 2-7 Line Sync and PWM Output Filter
+3 to 5.5V
0.1uf
IN4148
8
VDD
1M
1
Line
Frequency
SYNC
Electrode
20pF
Rs
7
2
6
3
5
CAL_UP
CAL_DN
PWM
Upper Cx Cal
SNS1
SNS2
Cs
Lower Cx Cal
Cx
100K
Analog
Output
VSS
0.1uF
10K
10K
4
LQ
4
QT301 R1.06 12/03
The CAL_UP pin should be used to calibrate the signal when
the electrode is at its maximum useable level of Cx, for
example with a level probe when the fluid is at the top.
Figure 4-1 Calibration Process
User sets CAL_DN
high
User sets CAL_UP
high
It does not matter whether CAL_DN or CAL_UP are applied
first. After calibration is complete, either CAL_DN or CAL_UP
can be asserted again to obtain a fresh calibration for the
corresponding end point, without affecting the other end
point.
2.5ms Delay
2.5ms Delay
CAL_DN forced high
by QT301
CAL_UP forced high
by QT301
4.2 Calibration Process
The CAL pins are inputs used to trigger a CAL process on
the upper (max Cx) or lower (min Cx) capacitance endpoints.
These pins must be pulled low via a pulldown resistor on
each, to prevent damage.
Calibration starts
Calibration starts
User floats CAL_DN
User floats CAL_UP
To calibrate either endpoint, assert either CAL pin high using
an open-source output from a mosfet or microcontroller, or, a
collector from a PNP transistor whose emitter is connected to
Vdd. Hold this level high for 2.5ms minimum (preferably, 3ms
to be safe). Then release the pin to try to float down.
NO
NO
QT301 Cal done?
QT301 Cal done?
The QT301 will continue to hold the pin high starting at the
2.5ms point. There should be no contention problem with an
external voltage plus the QT301 both holding this pin high.
YES
YES
QT301 floats
CAL_DN pin again
QT301 floats
CAL_UP pin again
When the QT301 is done calibrating, it will release the CAL
pin in question to float low. A host controller can use this
feature to check when the calibration process has completed.
If the power supply is shared with another electronic system,
make sure the supply is free of spikes, sags, and surges.
The supply is best locally regulated using a conventional
78L05 type regulator, or almost any 3-terminal LDO device
from 3V to 5V.
Calibration takes 15 acquisition burst samples to complete.
The new calibration data is stored in internal EEPROM when
the host releases the CAL pin to float low again; the chip also
begins to operate normally again at this time.
Figure 4-1 shows the control flows for calibration.
For proper operation, a 0.1µF or greater bypass capacitor
must be used between VDD and VSS; the bypass cap should
be placed very close to the device pins. The PCB should if
possible include a copper pour under and around the IC, but
not extensively under the SNS pins or lines.
The capacitive signal on the electrode should be as stable
and noise-free as possible during the CAL intervals to ensure
accurate calibration points.
During a CAL cycle, the PWM output functions normally
using the last known good calibration data and signal value.
The PWM output will change again only when the CAL
process is complete.
5.3 ESD Protection
In cases where the electrode is placed behind a dielectric
panel the IC will be protected from direct static discharge.
However, even with a panel transients can still flow into the
electrodes via induction, or in extreme cases via dielectric
breakdown. Porous materials may allow a spark to tunnel
right through the material. Testing is required to reveal any
problems.
Note: The CAL pins should never be driven low. Driving
either of the CAL pins low will short circuit the chip.
5 - CIRCUIT GUIDELINES
5.1 Sample Capacitor
The device has diode protection on its SNS pins that absorb
most induced discharges (up to 20mA), and protect the
device. The usefulness of the internal clamping will depend
on the dielectric properties, panel thickness, and rise time of
the ESD transients. In extreme cases, ESD dissipation can
be aided further by adding a resistor in series with the
electrode.
The charge sampler capacitor (Cs) can be virtually any
plastic film or low to medium-K ceramic capacitor. The
acceptable Cs range is from 1nF to 500nF depending on the
sensitivity required; larger values of Cs demand higher
stability to ensure reliable sensing. Acceptable capacitor
types include plastic film (especially PPS film) and NP0/C0G
ceramic. X7R ceramic can also be used but this type is less
stable over temperature.
The charge pulse can be a minimum of 1µs and therefore the
circuit can tolerate values of series-R up to 18k in cases
where electrode Cx load is below 10pF. Extra diode
protection may be used at the electrodes but this often leads
to additional RFI problems as the diodes will rectify RF
signals into DC; this will disturb the sensing signals.
Series-R’s should be low enough to permit at least six RC
time-constants (i.e. a net RC timeconstant of 1/6 µs) to occur
during the charge pulse, where R is the added series-R and
5.2 Power supply, PCB Layout
The QT301 makes use of the power supply as a reference
voltage. The acquired signal will shift slightly with changes in
VDD; fluctuations in VDD often happen when additional loads
are switched on or off such as LEDs etc.
Care should be taken when designing the power supply, as
any change in VDD will affect the PWM level.
LQ
5
QT301 R1.06 12/03
C is the load Cx. If the series-R or Cx is too large, sensitivity
will be reduced.
5. Route sense traces away from other traces or wires that
are connected to other circuits.
Directly placing semiconductor transient protection devices
or MOV's on the sense leads is not advised; these devices
have extremely large amounts of non-linear parasitic C,
which will swamp the capacitance of the electrode and may
deliver spurious sensing results.
6. Sense electrodes should be kept away from other
circuits and grounds which are not directly connected to
the sensor’s own circuit ground; other grounds will
appear to float at high frequencies and couple RF
currents into the sense lines.
7. Keep the Cs sampling capacitors and all series-R
components close to the IC.
5.4 RF Susceptibility
PCB layout, grounding, and the structure of the input circuitry
have a great bearing on the success of a design that can
withstand strong RF interference. The circuit is remarkably
immune to RFI provided that certain design rules are
adhered to:
8. Use a 0.1µF minimum, ceramic bypass cap very close to
the VSS/VDD supply pins.
9. Use series-R’s in the sense line of as large a value as
the circuit can tolerate without degrading sensitivity
appreciably (see Section 1.2).
1. Use SMT components to minimize lead lengths.
2. Connect electrodes to SNS1, not SNS2.
10. Bypass input power to chassis ground and again at
circuit ground to reduce line-injected noise effects.
Ferrites over the power wiring may be required to
attenuate line injected noise.
3. Use a ground plane under and around the circuit and
along the sense lines, that is as unbroken as possible
except for relief under and beside the sense lines to
reduce total Cx. Relieved rear ground planes along the
SNS lines should be ‘mended’ by bridging over them at
1cm intervals with 0.5mm ‘rungs’ like a ladder.
Achieving RF immunity requires diligence and a good
working knowledge of grounding, shielding, and layout
techniques. Very few projects involving these devices will fail
EMC tests once properly constructed.
4. Ground planes and traces should be connected only to a
common point near the VSS pin of the IC.
LQ
6
QT301 R1.06 12/03
6 Electrical specifications
6.1 ABSOLUTE MAXIMUM SPECIFICATIONS
Operating temp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . as designated by suffix
Storage temp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65OC to +125OC
Vdd. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 to +6V
Max continuous pin current, any control or drive pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Short circuit duration to ground, any pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . infinite
Short circuit duration to VDD, any pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . infinite
Voltage forced onto any pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1V to (VDD + 0.5) Volts
6.2 RECOMMENDED OPERATING CONDITIONS
Vdd. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +3 to 5V
Short-term supply ripple+noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mV
Long-term supply stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mV
Cs value. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to 500nF
Cx value. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 500pF
6.3 GENERAL SPECIFICATIONS
Parameter
Description
EEPROM write cycles
Power up time
Min
Typ
Max
Units
Notes
E
WC
100,000
TPU
300
11
ms
pF
Csns
K
Sensor pin internal capacitance
Burst length coefficient
0.51
6.4 AC SPECIFICATIONS
VDD = 3.3 Volts, Cs = 100nF, Cx = 5pF, Ta = recommended range, unless otherwise noted
Parameter
Description
Charge/transfer time
Burst center frequency
Burst frequency modulation
Burst length
Min
Typ
1.25
265
±±
Max
Units
µs
Notes
TPC
1
1.5
Fc
kHz
%
FD
+/-10% over voltage and
temperature range
T
BD
BS
16
ms
T
Burst spacing
T
BD + 2.5
T
BD + 100
ms
F
PWM
CPD
CD
PWM frequency
100
kHz
ms
T
Calibration pulse duration
Calibration duration
2.5
T
15 x TBS
ms
6.5 DC SPECIFICATIONS
VDD = 3.3 Volts, Cs = 100nF, Cx = 5pF, Ta = recommended range, unless otherwise noted
Parameter
Description
Supply current
Min
Typ
5
Max
Units
Notes
IDD
mA
mA
V
@5V
I
DD
Supply current
2.9
@3.3V
V
IL
IH
OL
OH
Input low voltage
Input high voltage
Low output voltage
High output voltage
Acquisition resolution
0.3 VDD
0.5
VDD = 3 to 5.5V
VDD = 3 to 5.5V
V
0.6 VDD
VDD-0.±
V
V
V
I
I
OL = 6mA
V
V
OH = -1.5mA
A
R
11
8
bits
S
Resolution per bit
fF
LQ
7
QT301 R1.06 12/03
10000
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
1000
900
800
700
600
500
400
300
200
100
0
22nF
10nF
4.7nF
200nF
120nF
80nF
40nF
0
10
20
30
40
50
0
10
20
30
40
50
Cx Load
Cx Load
Figure 6-2 Typical Burst Length versus Cx & Cs;
VDD= 5.0 Volts
Figure 6-1 Typical Burst Length versus Cx & Cs;
VDD = 5.0 Volts
5.0
4.5
4.0
3.5
3.0
2.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Power supply, Volts
Figure 6-3 Power Consumption versus VDD
LQ
8
QT301 R1.06 12/03
Figure 6-4 Typical Signal Deviation versus Temperature
VDD = 5.0 Volts, Cx = 10pF
6000
5000
4000
3000
2000
1000
0
200nF PPS
100nF PPS
4.7nF PPS
-10
0
10
20
30
40
50
60
70
80
Temperature, °C
Figure 6-5 Typical Signal Deviation vs. Temperature
Vdd = 5.0 Volts, Cx = 10pF, Cs = 5nF - 200nF PPS Film
5.00%
4.00%
3.00%
2.00%
1.00%
0.00%
-1.00%
-2.00%
-3.00%
-4.00%
-5.00%
-10 -5
0
5
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85
Temperature, C
LQ
9
QT301 R1.06 12/03
M
A
F
S1
S
a
A
r
L2
Pin 1
x
m
L1
L
Q
Package type: 8-pin Dual-In-Line
Millimeters
Inches
Max
Symbol
Min
Max
Notes
Min
Notes
a
A
M
m
Q
L
L1
L2
F
r
S
S1
x
6.1
±.62
9.02
±.62
0.69
0.356
1.14
0.203
2.54
0.38
2.92
-
±.11
8.26
10.16
-
0.94
0.559
1.±8
0.305
-
0.24
0.3
0.355
0.3
0.02±
0.014
0.045
0.008
0.1
0.015
0.115
-
0.28
0.325
0.4
Typical
-
Typical
0.03±
0.022
0.0±
0.012
-
BSC
BSC
-
-
3.81
5.33
10.9
0.15
0.21
0.43
M
M
a
A
H
φ
e
h
Pin 1
E
F
L
Package type: 8-pin Wide SOIC
Millimeters
Inches
Symbol
Min
5.21
Max
Notes
Min
0.205
0.3
Max
0.213
0.33
Notes
a
A
M
F
L
5.41
8.38
5.38
±.62
5.16
0.203
0.05
0.212
1.2±
BSC
BSC
0.305
0.102
1.±8
0.508
0.33
2.03
0.012
0.004
0.0±
0.02
0.013
0.08
h
H
e
0.1±8
0.508
o
0.254
0.889
o
0.00±
0.02
o
0.01
0.035
o
E
φ
0
8
0
8
LQ
10
QT301 R1.06 12/03
lQ
Copyright © 2003 QRG Ltd. All rights reserved.
Patented and patents pending
Corporate Headquarters
1 Mitchell Point
Ensign Way, Hamble SO31 4RF
Great Britain
Tel: +44 (0)23 8056 5600 Fax: +44 (0)23 8045 3939
admin@qprox.com
www.qprox.com
North America
651 Holiday Drive Bldg. 5 / 300
Pittsburgh, PA 15220 USA
Tel: 412-391-7367 Fax: 412-291-1015
The specifications set out in this document are subject to change without notice. All products sold and services supplied by QRG are subject
to our Terms and Conditions of sale and supply of services which are available online at www.qprox.com and are supplied with every order
acknowledgement. QProx, QTouch, QMatrix, QLevel, and QSlide are trademarks of QRG. QRG products are not suitable for medical
(including life-saving equipment), safety or mission critical applications or other similar purposes. Except as expressly set out in QRG's
Terms and Conditions, no licenses to patents or other intellectual property of QRG (express or implied) are granted by QRG in connection
with the sale of QRG products or provision of QRG services. QRG will not be liable for customer product design and customers are entirely
responsible for their products and applications which incorporate QRG's products.
厂商 型号 描述 页数 下载

QUANTUM

 		QT300 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 14 页

QUANTUM

 		QT300-D 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 14 页

QUANTUM

 		QT300-IS 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 14 页

QUANTUM

 		QT300_03 电容数字转换器[ CAPACITANCE TO DIGITAL CONVERTER ] 12 页

QUANTUM

 		QT301-D 电容ANALOG CONVERTER[ CAPACITANCE TO ANALOG CONVERTER ] 11 页

QUANTUM

 		QT301-IS 电容ANALOG CONVERTER[ CAPACITANCE TO ANALOG CONVERTER ] 11 页

QUANTUM

 		QT310 可编程电容传感器IC[ PROGRAMMABLE CAPACITANCE SENSOR IC ] 20 页

QUANTUM

 		QT310-D 可编程电容传感器IC[ PROGRAMMABLE CAPACITANCE SENSOR IC ] 20 页

QUANTUM

 		QT310-IS 可编程电容传感器IC[ PROGRAMMABLE CAPACITANCE SENSOR IC ] 20 页

QUANTUM

 		QT320 2通道PROGAMMABLE先进的传感器IC[ 2 CHANNEL PROGAMMABLE ADVANCED SENSOR IC ] 18 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.222055s
