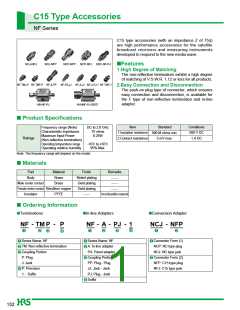

C15 Type Accessories
NF Series
C15 type accessories (with an impedance Z of 75ø)
are high performance accessories for the satellite
broadcast receivers and measuring instruments
developed to respond to the new media wave.
NCJ-NFJ
NCJ-NFP
NCP-NFP
NCP-NFJ HDC-NF-PJ
ꢀFeatures
1.High Degree of Matching
The non-reflective terminators exhibit a high degree
of matching of V.S.W.R. 1.12 or less for all products.
NF-TMJ-P NF-TMP-P NF-A-PP
NF-PA-JJ
NF-A-JJ NF-A-PJ-1 NF-TMP-1
2.Easy Connection and Disconnection
The push-on plug type of connector, which ensures
easy connection and disconnection, is available for
the F type of non-reflective termination and in-line
adapter.
HB-NF-PJ
HI-NNF-PJ-50/75
ꢀꢀProduct Specifications
Item
Standard
500 M ohms min.
5 mV max.
Conditions
500 V DC
1 A DC
Frequency range (Note)
Characteristic impedance
Maximum Input Power
DC to 2.0 GHz
75 ohms
1.Insulation resistance
2.Contact resistance
0.25W
Ratings
(Non-reflective termination)
Operating temperature range
Operating relative humidity
-10ç to +65ç
95% Max.
Note: The frequency range will depend on the model.
ꢀꢀMaterials
Part
Body
Material
Brass
Finish
Nickel plating
Gold plating
Gold plating
----------
Remarks
----------
----------
Male center contact
Brass
Female center contact Beryllium copper
Insulator PTFE
----------
Incombustible material
ꢀꢀOrdering Information
ꢀTerminations
ꢀIn-line Adapters
ꢀConversion Adapter
NF - TM P - P
NF - A - PJ - 1
NCJ - NFP
1
2
1
2
3
4
1
2
3
4
Series Name: NF
Series Name: NF
A: In-line adapter
PA: Panel adapter
Coupling Portion
PP: Plug - Plug
JJ: Jack - Jack
PJ: Plug - Jack
Suffix
Connector Form (1)
NCP: NC type plug
NCJ: NC type jack
Connector Form (2)
NFP: C15 type plug
NFJ: C15 type jack
1
2
3
1
2
1
2
TM: Non-reflective termination
Coupling Portion
P: Plug
3
J: Jack
P: Precision
4
1- : Suffix
4
