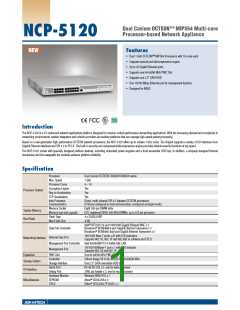

Dual Cavium OCTEON™ MIPS64 Multi-core
Processor-based Network Appliance
NCP-5120
NEW
Features
. Dual 1 GHz OCTEON™ MIPS64 Processors with 16 cores each
. Supports security and de/compression engine
. Up to 20 Gigabit Ethernet ports
. Supports one 64-bit/66 MHz PMC Slot
. Supports one 2.5" SATA HDD
. One 10/100 Mbps Ethernet port for management function
. Designed for NEBS
RoHS
COMPLIANT
2002/95/EC
Introduction
The NCP-5120 is a 1U rackmount network applications platform designed for mission-critical performance-demanding applications. With the increasing demand and complexity in
networking environments, system integrators and solution providers are seeking platforms that can manage high-speed packet processing.
Based on a new generation high-performance OCTEON network processors, the NCP-5120 offers up to sixteen 1 GHz cores. The chipset supports a variety of I/O interfaces from
Gigabit Ethernet interfaces and SPI 4.2 to PCI-X. The built-in security and compression/decompression engine provides reliable security functions at top speed.
The NCP-5120 comes with specially designed platform features, including redundant power supplies and a front-accessible HDD bay. In addition, a uniquely-designed thermal
mechanism and hot-swappable fan modules enhance platform reliability.
Specification
Processor
Dual Cavium OCTEON CN38XX/CN58XX series
Max. Speed
1 GHz
4 – 16
Yes
Yes
Yes
Processor Cores
Encryption Engine
Reg-ex Acceleration
TCP Acceleration
Processor System
Inter Processor
Communication
Direct, multi-channel SPI 4.2 between OCTEON processors
(Primary configured as host and secondary configured as target mode)
Memory Socket
Memory type and capacity
Flash Type
Eight 240-pin DIMM slots
ECC registered DDR2 400 MHz DIMMs, up to 8 G per processor
4 x S29GL01GP
4 GB
System Memory
Boot Flash
Max Flash Size
Intel® IXF1010 10-port 100/1000 Gigabit Ethernet MAC x 2
Broadcom® BCM5488 8-port Gigabit Ethernet Transceiver x 2
Broadcom® BCM5482 dual-port Gigabit Ethernet Transceiver x 2
Data Port Controller
100/1000 Base-T ports x 20 with LED indicators
Supports 802.1Q, 802.1P and 802.3AD in software and CPLD
Ethernet Data Port
Networking Interface
Management Port Controller Intel 82545GM PCI-X 64/66 GbE LAN
10/100/1000Base-T port x 1 with LED indicator
Supports 802.1Q and 802.1P
Management Port
Expansion
PMC Slot
One 64-bit/66 MHz PMC Slot
Controller
Silicon Image SiI 3124-2 SATA PCI 64-bit/66 MHz
One 2.5" SATA removable HDD tray
RJ-45 RS-232 x 2, one for each processor
JTAG pin header x 2, one for each processor
Winbond W83791G x 1
Storage System
Storage Interface
Serial Port
Debug Port
Hardware Monitor
EEPROM
I/O Interface
Miscellaneous
Atmel® AT24C256 x 3
CPLD
Xilinx® XC2C284-7FT256C x 1
