2SK3318

型号:

2SK3318

描述:

硅N沟道功率MOSFET[ Silicon N-channel power MOSFET ]

品牌:

PANASONIC[ PANASONIC ]

页数:

3 页

PDF大小:

71 K

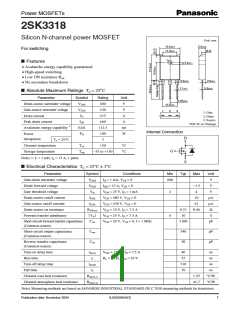

Power MOSFETs
2SK3318
Silicon N-channel power MOSFET
Unit: mm
5.0 0.2
15.0 0.3
11.0 0.2
For switching
(3.2)
Features
φ 3.2 0.1
Avalanche energy capability guaranteed
High-speed switching
Low ON resistance Ron
No secondary breakdown
2.0 0.2
2.0 0.1
0.6 0.2
1.1 0.1
Absolute Maximum Ratings TC = 25°C
Parameter
Symbol
VDSS
VGSS
ID
Rating
Unit
V
5.45 0.3
Drain-source surrender voltage
Gate-source surrender voltage
600
10.9 0.5
2
30
V
1
3
1: Gate
2: Drain
15
A
Drain current
3: Source
TOP-3F-A1 Package
Peak drain current
IDP
60
112.5
100
A
Avalanche energy capability *
EAS
PD
mJ
W
Internal Connection
Power
D
S
dissipation
Ta = 25°C
3
Channel temperature
Storage temperature
Tch
150
°C
°C
G
Tstg
55 to +150
Note) : L = 1 mH, IL = 15 A, 1 pulse
*
Electrical Characteristics TC = 25°C 3°C
Parameter
Gate-drain surrender voltage
Diode forward voltage
Symbol
VDSS
VDSF
Vth
Conditions
Min
Typ
Max
Unit
V
ID = 1 mA, VGS = 0
IDR = 15 A, VGS = 0
VDS = 25 V, ID = 1 mA
VDS = 480 V, VGS = 0
600
1.5
4
V
Gate threshold voltage
2
6
V
Drain-source cutoff current
Gate-source cutoff currentt
Drain-source on resistance
Forward transfer admittance
IDSS
10
µA
µA
IGSS
VGS
=
30 V, VDS = 0
1
RDS(on) VGS = 10 V, ID = 7.5 A
0.33
10
0.46
Yfs
VDS = 25 V, ID = 7.5 A
S
Short-circuit forward transfer capacitance
(Common-source)
Ciss
VDS = 20 V, VGS = 0, f = 1 MHz
3500
pF
Short-circuit output capacitance
(Common-source)
Coss
Crss
340
50
pF
pF
Reverse transfer capacitance
(Common-source)
Turn-on delay time
Rise time
td(on)
tr
td(off)
tf
Rth(ch-c)
Rth(ch-a)
VDD = 150 V, ID = 7.5 A
40
55
ns
ns
RL = 20 , VGS = 10 V
Turn-off delay time
Fall time
310
70
ns
ns
Channel-case heat resistance
Channel-atmosphere heat resistance
1.25
41.7
°C/W
°C/W
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: November 2004
SJG00040AED
1
2SK3318
Safe operation area
PD Ta
103
102
10
120
100
80
60
40
20
0
Non repetitive pulse
TC = 25°C
(1) TC = Ta
(2) Without heat sink
PD = 3 W
(1)
IDP
t = 100 µs
ID
RDS(on) Limited
1 ms
10 ms
1
100 ms
DC
(2)
101
1
10
102
103
0
50
100
150
(
)
V
(
)
Drain-source voltage VDS
Ambient temperature Ta °C
SJG00040AED
2
