2SK3711

型号:

2SK3711

描述:

低导通电阻[ Low on-resistance ]

品牌:

SANKEN[ SANKEN ELECTRIC ]

页数:

9 页

PDF大小:

307 K

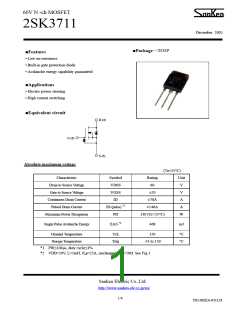

60V N -ch MOSFET
2SK3711
December 2005
Package—TO3P
Features
Low on-resistance
Built-in gate protection diode
Avalanche energy capability guaranteed
Applications
Electric power steering
High current switching
Equivalent circuit
D (2)
G (1)
S (3)
Absolute maximum ratings
(Ta=25°C)
Characteristic
Symbol
VDSS
VGSS
ID
Rating
60
Unit
V
Drain to Source Voltage
Gate to Source Voltage
Continuous Drain Current
Pulsed Drain Current
±20
V
±70A
A
ID (pulse) *1
±140A
130 (Tc=25°C)
A
Maximum Power Dissipation
PD
W
Single Pulse Avalanche Energy
Channel Temperature
EAS *2
468
mJ
Tch
150
°C
°C
Storage Temperature
Tstg
-55 to 150
*1 PW100μs, duty cycle1%
*2 VDD=20V, L=1mH, ILp=25A, unclamped, RG=50. See Fig.1
.
Sanken Electric Co.,Ltd.
http://www.sanken-ele.co.jp/en/
1/9
T02-002EA-051124
60V N -ch MOSFET
2SK3711
December 2005
Electrical characteristics
(Ta=25°C)
Limits
TYP
Characteristic
Symbol
Test Conditions
Unit
MIN
60
MAX
Drain to Source breakdown Voltage
Gate to Source Leakage Current
Drain to Source Leakage Current
Gate Threshold Voltage
Forward Transconductance
Static Drain to Source On-Resistance
Input Capacitance
V(BR)DSS ID=100μA,VGS=0V
V
μA
μA
V
IGSS
IDSS
VGS=±15V
±10
100
4.0
VDS=60V, VGS=0V
VDS=10V, ID=1mA
VDS=10V, ID=35A
VTH
2.0
30
3.0
80
Re(Yfs)
S
RDS(ON) ID=35A, VGS=10V
5.0
6.0
mΩ
Ciss
Coss
Crss
td(on)
tr
8000
1250
1000
110
100
440
160
0.9
VDS=10V
VGS=0V
f=1MHz
Output Capacitance
pF
Reverse Transfer Capacitance
Turn-On Delay Time
ID=35A, VDD20V
RL=0.57,
Rise Time
VGS=10V
ns
Turn-Off Delay Time
td(off)
tf
Rg=22Ω
Refer to Fig. 2
Fall Time
Source-Drain Diode Forward Voltage
VSD
ISD=50A,VGS=0V
1.5
V
ISD=25A,
Source-Drain Diode Recovery Time
trr
100
ns
di/dt=50A/μs
Sanken Electric Co.,Ltd.
T02-002EA-051124
2/9
60V N -ch MOSFET
2SK3711
December 2005
Characteristic Curves
(Tc=25°C)
2SK3711
ID-VDS Characteristic (typical)
2SK3711
RDS(ON)-Tc Characteristic (typical)
80
12.0
10.0
8.0
Ta=25℃
VGS=10V
VGS=10V
ID=35A
70
VGS=5.0V
60
VGS=4.5V
50
40
30
6.0
4.0
20
VGS=4.0V
2.0
10
0.0
0
-100
-50
0
50
100
150
200
0.0
0.5
1.0
1.5
2.0
VDS (V)
Tc (℃)
2SK3711
PD-TC Characteristic
2SK3711
RDS(ON)-ID Characteristic (typical)
140
120
100
80
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
Fin
Ta=25℃
VGS=10V
60
40
20
0
0
50
100
150
0
10
20
30
40
50
60
70
80
Tc (℃)
ID (A)
2SK3711
ID-VGS Characteristic (typical)
2SK3711
VDS-VGS Characteristic (typical)
80
70
60
50
40
30
20
10
0
VDS=10V
1.0
0.8
0.6
0.4
0.2
0.0
Tc=-55℃
Tc=25℃
ID=70A
ID=35A
Tc=150℃
0
5
10
15
20
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
VGS (V)
VGS (V)
Sanken Electric Co.,Ltd.
T02-002EA-051124
3/9
60V N -ch MOSFET
2SK3711
December 2005
Characteristic Curves
(Tc=25°C)
2SK3711
SAFE OPERATING AREA
2SK3711
capacitance-VDS Characteristic (typical)
2SK3711
IDR-VSD Characteristic (typical)
1000
100
10
80
70
60
50
100000
Ta=25℃
VGS=0V
f=1MHz
ID(pulse) max
500μs(1shot
)
10000
Ciss
RDS(on) LIMITED
1ms (1shot)
10ms (1shot)
40
Tc=150℃
30
Tc=25℃
1000
Tc=-55℃
Coss
1
20
Crss
10
0
0.1
0.1
1
10
100
100
0.0
0.2
0.4
0.6
0.8
VSD (V)
1.0
1.2
1.4
0
10
20
30
40
50
VDS [V]
VDS (V)
2SK3711
Transient Thermal Resistance vs Pulse Width
10
1
0.1
0.01
0.0001
0.001
0.01
0.1
1
10
100
PWꢀ(sec)
Sanken Electric Co.,Ltd.
T02-002EA-051124
4/9
60V N -ch MOSFET
2SK3711
December 2005
Fig.1 Unclamped Inductive Test Method
1
V(BR)DSS
V(BR)DSS - VDD
EAS= •L•ILP2•
2
L
V
(BR)DSS
I
L
VDS
I
Lp
VDS
RG
VDD
V
GS
IL
VDD
0V
(a) Test Circuit
(b) Waveforms
Fig.2
Switching Time Test Method
RL
VDD20V
I
D
VDS
ID=35A
RL=0.57Ω
VGS=10V
RG=22Ω
RG
VDD
V
GS
0V
P.W.=10μs
Duty cycle≦1%
(a) Test Circuit
90%
VGS
10%
90%
VDS
10%
td(on)
tr
td(off)
tf
t
on
toff
(b) Waveforms
Sanken Electric Co.,Ltd.
T02-002EA-051124
5/9
60V N -ch MOSFET
2SK3711
December 2005
External Dimensions
MT100 (TO3P )
15.6 ±0.3
14.0 ±0.3
13.6 ±0.2
9.6 ±0.2
5.0 MAX
2.1 MAX
3.2 φ±0.1
+0.2
1.7 -0.3
15.8 ±0.2
+0.2
0.6 -0.1
+0.2
1.0 -0.1
+0.2
2 -0.1
+0.2
3 -0.1
+0.2
2 -0.1
5.45 ±0.1
5.45 ±0.1
(1)
(2) (3)
Mass: Approx. 6.0g
(1) Gate
(2) Drain (Back Side)
(3) Source
Sanken Electric Co.,Ltd.
T02-002EA-051124
6/9
60V N -ch MOSFET
2SK3711
December 2005
<Worldwide Contacts>
Asia Pacific
China
Sanken Electric Hong Kong Co., Ltd.
Suite 1026 Ocean Centre, Canton Road, Tsimshatsui, Kowloon, Hong Kong
Tel: 852-2735-5262
Fax: 852-2735-5494
Sanken Electric (Shanghai) Co., Ltd.
Room3202, Maxdo Centre, Xingyi Road 8, Changning district, Shanghai, China
Tel: 86-21-5208-1177
Fax: 86-21-5208-1757
India
Saket Devices Pvt. Ltd.
Office No.25, 2nd Floor, Bandal - Dhankude Plaza, Near PMT Depot, Paud Road, Kothrud, Pune - 411 038, India
Tel: 91-20-5621-2340
Fax: 91-20-2528-5459
Japan
Sanken Electric Co., Ltd. Overseas Sales Headquaters
Metropolitan Plaza Bldg. 1-11-1 Nishi-Ikebukuro, Toshima-ku, Tokyo 171-0021, Japan
Tel: 81-3-3986-6164
Fax: 81-3-3986-8637
Korea
Sanken Electric Korea Co., Ltd.
Mirae Asset Life Bldg. 6F, 168 Kongduk-dong, Mapo-ku, Seoul, 121-705, Korea
Tel: 82-2-714-3700
Fax: 82-2-3272-2145
Singapore
Sanken Electric Singapore Pte. Ltd.
150 Beach Road, #14-03 The Gateway West, Singapore 189720
Tel: 65-6291-4755
Fax: 65-6297-1744
Taiwan
Taiwan Sanken Electric Co., Ltd.
Room 1801, 18th Floor, 88 Jung Shiau East Road, Sec. 2, Taipei 100, Taiwan R.O.C.
Tel: 886-2-2356-8161
Fax: 886-2-2356-8261
Sanken Electric Co.,Ltd.
T02-002EA-051124
7/9
60V N -ch MOSFET
2SK3711
December 2005
Europe
France
Allegro MicroSystems Europe
Les Pleiades, Park Nord Annecy, 74370 Metz-Tessy, France
Tel: 33-450512359
Fax: 33-450512083
United Kingdom
Allegro MicroSystems Europe Limited
Balfour House, Churchfield Road, Walton-on-Thames, Surrey KT12 2TD, U.K.
Tel: 44-1932-253355
Fax: 44-1932-246622
North America
United States
Allegro MicroSystems, Inc.
115 Northeast Cutoff, Worcester, Massachusetts 01606, U.S.A.
Tel: 1-508-853-5000
Fax: 1-508-853-3353
Allegro MicroSystems, Inc. (Southern California)
14 Hughes Street, Suite B105, Irvine, CA 92618
Tel: 1-949-460-2003
Fax: 1-949-460-7837
Sanken Electric Co.,Ltd.
T02-002EA-051124
8/9
60V N -ch MOSFET
2SK3711
December 2005
CAUTION / WARNING
The information in this publication has been carefully checked and is believed to be accurate; however, no responsibility
is assumed for inaccuracies.
Sanken reserves the right to make changes without further notice to any products herein in the interest of improvements
in the performance, reliability, or manufacturability of its products.
Before placing an order, Sanken advises its customers to obtain the latest version of the relevant information to verify that
the information being relied upon is current.
Application and operation examples described in this catalog are quoted for the sole purpose of reference for the use of
the products herein and Sanken can assume no responsibility for any infringement of industrial property rights,
intellectual property rights or any other rights of Sanken or any third party which may result from its use.
When using the products herein, the applicability and suitability of such products for the intended purpose or object shall
be reviewed at the users’ responsibility.
Although Sanken undertakes to enhance the quality and reliability of its products, the occurrence of failure nd defect of
semiconductor products at a certain rate is inevitable. Users of Sanken products are requested to take, at their own risk,
preventative measures including safety design of the equipment or systems against any possible injury, death, fires or
damages to the society due to device failure or malfunction.
Sanken products listed in this catalog are designed and intended for the use as components in general purpose electronic
equipment or apparatus (home appliances, office equipment, telecommunication equipment, measuring equipment, etc.).
Before placing an order, the user’s written consent to the specifications is requested.
When considering the use of Sanken products in the applications where higher reliability is required (transportation
equipment and its control systems, traffic signal control systems or equipment, fire/crime alarm systems, various safety
devices, etc.), please contact your nearest Sanken sales representative to discuss and obtain written confirmation of your
specifications. The use of Sanken products without the written consent of Sanken in the applications where extremely
high reliability is required (aerospace equipment, nuclear power control systems, life support systems, etc.) is strictly
prohibited.
Anti radioactive ray design is not considered for the products listed herein.
This publication shall not be reproduced in whole or in part without prior written approval from Sanken.
This is notification that you, as purchaser of the products/technology, are not allowed to perform any of the following:
1. Resell or retransfer these products/technology to any party intending to disturb international peace and security.
2. Use these products/technology yourself for activities disturbing international peace and security.
3. Allow any other party to use these products/technology for activities disturbing international peace and security.
Also, as purchaser of these products/technology, you agree to follow the procedures for the export or
transfer of these products/technology, under the Foreign Exchange and Foreign Trade Law, when you
export or transfer the products/technology abroad.
Sanken Electric Co.,Ltd.
T02-002EA-051124
9/9
厂商 型号 描述 页数 下载

PANASONIC

2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス - 小信号FET - 接合形FET ] 3 页

ETC

2SK0065P 晶体管| JFET | N沟道| 12V V( BR ) DSS | 40uA的我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

2SK0065Q 晶体管| JFET | N沟道| 12V V( BR ) DSS | 150UA我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

2SK0198(2SK198) 2SK0198 ( 2SK198 ) - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.185877s
