2SK410

型号：

2SK410

描述：

硅N沟道MOS场效应管（高频/甚高频功率放大器）[ Silicon N-Channel MOS FET (HF/VHF power amplifier) ]

品牌：

HITACHI[ HITACHI SEMICONDUCTOR ]

页数：

10 页

PDF大小：

53 K

下载PDF手册

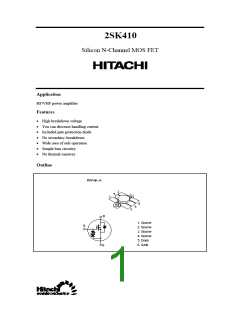

2SK410
Silicon N-Channel MOS FET
Application
HF/VHF power amplifier
Features
·
·
·
·
·
·
·
High breakdown voltage
You can decrease handling current.
Included gate protection diode
No secondary–breakdown
Wide area of safe operation
Simple bias circuitry
No thermal runaway
Outline
2SK410
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDSS
Ratings
180
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
VGSS
±20
V
ID
8
A
Channel dissipation
Channel temperature
Storage temperature
Note: 1. Value at TC = 25°C
Pch*1
Tch
120
W
°C
°C
150
Tstg
–55 to +150
Electrical Characteristics (Ta = 25°C)
Item
Symbol Min
Typ
180
80
Max
—
Unit
W
Test conditions
Power output
Drain efficiency
PO
140
—
VDD = 80 V, f = 28 MHz,
IDQ = 0.1 A, Pin = 5 W
ID = 10 mA, VGS = 0
h
—
%
Drain to source breakdown
voltage
V(BR)DSS 180
—
—
V
Gate to source breakdown
voltage
V(BR)GSS ±20
—
—
V
IG = ±100 µA, VDS = 0
Gate to source cutoff voltage
Drain current
VGS(off)
IDSS
0.5
—
—
3.0
1.0
6.0
V
ID = 1 mA, VDS = 10 V*1
VDS = 140 V, VGS = 0
ID = 4 A, VGS = 10 V*1
—
mA
V
Drain to source saturation
voltage
VDS(on)
—
3.8
Forward transfer admittance
Input capacitance
|yfs|
0.9
—
1.25
440
—
—
S
ID = 3 A, VDS = 20 V*1
Ciss
pF
VGS = 5 V, VDS = 0,
f = 1 MHz
Output capacitance
Coss
—
75
—
pF
VGS = –5 V, VDS = 50 V,
f = 1 MHz
Reverse transfer capacitance
Power output
Crss
PO
—
—
—
0.5
100
17
—
—
—
pF
VGD = –50 V, f = 1 MHz
VDD = 80 V, f = 28 MHz,
WPEP
dB
Power gain
PG
Df = 20 kHz,
IMD £ –30 dB
Note: 1. Pulse Test
CAUTION: OPERATING HAZARDS
Beryllium Oxide Ceramics have been employed in these products.
Since dust or fume of the material is highly poison to the human body, please do not treat them
mechanically or chemically in the manner which might expose them to the air. And it should never be
thrown out with general industrial or domestic waste.
2
2SK410
Figure 1 Power vs. Temperature Derating
Figure 2 Maximum Safe Operation Area
3
2SK410
Figure 3 Typical Output Characteristics
Figure 4 Typical Transfer Characteristics
4
2SK410
Figure 5 Forward Transfer Admittance vs. Drain Current
Figure 6 Input Capacitance vs. Gate to Source Voltage
5
2SK410
Figure 7 Output Capacitance vs. Drain to Source Voltage
Figure 8 Output Power, Drain Efficiency vs. Input Power
6
2SK410
Figure 9 Output Power vs. Input Power (2 Tones)
Figure 10 Inter-Modulation Distortion vs. Output Power
7
2SK410
Figure 11 28 MHz Pout Test Circuit
8
2SK410
Package Dimensions
Unit: mm
9
2SK410
When using this document, keep the following in mind:
1. This document may, wholly or partially, be subject to change without notice.
2. All rights are reserved: No one is permitted to reproduce or duplicate, in any form, the whole or
part of this document without Hitachi’s permission.
3. Hitachi will not be held responsible for any damage to the user that may result from accidents or
any other reasons during operation of the user’s unit according to this document.
4. Circuitry and other examples described herein are meant merely to indicate the characteristics and
performance of Hitachi’s semiconductor products. Hitachi assumes no responsibility for any
intellectual property claims or other problems that may result from applications based on the
examples described herein.
5. No license is granted by implication or otherwise under any patents or other rights of any third party
or Hitachi, Ltd.
6. MEDICAL APPLICATIONS: Hitachi’s products are not authorized for use in MEDICAL
APPLICATIONS without the written consent of the appropriate officer of Hitachi’s sales company.
Such use includes, but is not limited to, use in life support systems. Buyers of Hitachi’s products
are requested to notify the relevant Hitachi sales offices when planning to use the products in
MEDICAL APPLICATIONS.
10
