2SK3019

型号:

2SK3019

描述:

小开关( 30V , 0.1A )[ Small switching (30V, 0.1A) ]

品牌:

ROHM[ ROHM ]

页数:

4 页

PDF大小:

108 K

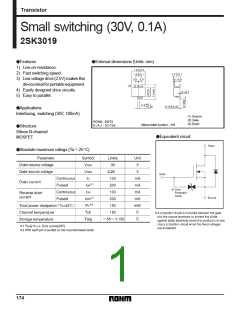

Transistor
Small switching (30V, 0.1A)
2SK3019
FFeatures
FExternal dimensions (Units: mm)
1) Low on-resistance.
2) Fast switching speed.
3) Low voltage drive (2.5V) makes this
deviceidealforportableequipment.
4) Easily designed drive circuits.
5) Easy to parallel.
FApplications
Interfacing, switching (30V, 100mA)
FStructure
Silicon N-channel
MOSFET
FEquivalent circuit
FAbsolute maximum ratings (Ta = 25_C)
174
Transistor
2SK3019
FElectrical characteristics (Ta = 25_C)
FPackaging specifications
FElectrical characteristic curves
Fig.1 Typical output characteristics
Fig.2 Typical transfer characteristics
Fig.3 Gate threshold voltage vs.
channel temperature
175
Transistor
2SK3019
Fig.6 Static drain-source
on-state resistance vs.
gate-source voltage
Fig.7 Static drain-source on-state
resistance vs. channel
temperature
Fig.8 Forward transfer
admittance vs. drain current
Fig.11 Typical capacitance vs.
drain-source voltage
Fig.12 Switching characteristics
(See Figures 13 and 14 for
the measurement circuit
and resultant waveforms)
176
Transistor
2SK3019
FSwitching characteristics measurement circuit
177
