KXPS5

型号：

KXPS5

描述：

入门KXPS5[ Getting Started with the KXPS5 ]

品牌：

ETC[ ETC ]

页数：

6 页

PDF大小：

237 K

下载PDF手册

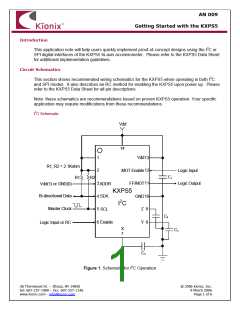

AN 009
Getting Started with the KXPS5
Introduction
This application note will help users quickly implement proof-of-concept designs using the I2C or
SPI digital interfaces of the KXPS5 tri-axis accelerometer. Please refer to the KXPS5 Data Sheet
for additional implementation guidelines.
Circuit Schematics
This section shows recommended wiring schematics for the KXPS5 when operating in both I2C
and SPI modes. It also describes an RC method for enabling the KXPS5 upon power up. Please
refer to the KXPS5 Data Sheet for all pin descriptions.
Note: these schematics are recommendations based on proven KXPS5 operation. Your specific
application may require modifications from these recommendations.
I2C Schematic
Vdd
14
Vdd
1
2
3
4
5
13
MOT Enable12
11
R1, R2 = 2.1Kohm
Logic Input
C1
R1
R2
FF/MOT
Logic Output
Vdd(1) or GND(0)
ADDR
SDA
KXPS5
I2C
Bi-directional Data
Master Clock
GND10
Z
Y
9
8
SCL
C4
6
Enable
Logic Input or RC
X
7
C3
C2
Figure 1. Schematic for I2C Operation
36 Thornwood Dr. – Ithaca, NY 14850
tel: 607-257-1080 – fax: 607-257-1146
www.kionix.com - info@kionix.com
© 2006 Kionix, Inc.
9 March 2006
Page 1 of 6
AN 009
SPI Schematic
Vdd
14
1
2
3
4
5
13
Vdd
MOT Enable 12
11
CS
Logic Input
Logic Input
Logic Output
C1
FF/MOT
SDI
Logic Input
KXPS5
SPI
SDO
SCLK
GND 10
Logic Output
Master Clock
Z
Y
9
8
C4
6
Enable
Logic Input or RC
X
7
C3
C2
Figure 2. Schematic for SPI Operation
RC Enable
A good design practice is to control the KXPS5 Enable pin (6) with a
microprocessor, but it is also possible to enable the KXPS5 using the RC circuit
shown in Figure 3. This circuit will transition the Enable pin high at power on,
properly enabling the accelerometer after power has been supplied. Note that the
RC values are just recommendations, therefore the final schematic may differ
based on application needs.
Vdd
10Kohm
6
Enable
0.1uf
Figure 3. Schematic for RC Enable
© Kionix 2006
9 March 2006
Page 2 of 6
AN 009
Filter Cap Recommendations
To be effective in many applications, such as HDD protection, the KXPS5 needs to respond to
changes in acceleration as quickly as possible. The accelerometer’s bandwidth, and in turn its
response time, is largely determined by the external filter capacitance. Therefore, the filter
capacitance should be as small as the application will allow. Table 1 shows several commonly
used bandwidths and the associated capacitor values for C2, C3, and C4 in the circuits shown
above. For most applications, 500Hz (0.01uF) should be a good starting point. Also, the KXPS5
has an internal 1000Hz 1st order low pass filter that allows for operation without any external
capacitors.
Bandwidth Capacitance
(Hz)
50
250
500
(uF)
0.10
0.02
0.01
Table 1. Bandwidth (Hz) and Capacitance (uF)
Quick Start Implementation
The KXPS5 offers the user a powerful range of operating options and features, mostly controlled
by setting appropriate values in registers. This section is not a comprehensive guide to all of the
options and features. Rather it is intended to guide the user to an implementation of the KXPS5
that will get the device up and running as quickly as possible. Once up and running, the user
should experiment with different setting and options to reach the optimum performance for their
specific application.
The registers shown in Table 2 need to be set to get the KXPS5 up and running:
Address
Recommended Value
Register Name
CTRL_REGB
CTRL_REGC
FF_INT
Hex
Binary
Hex
0x42
Binary
0100 0010
0000 0000
0000 1110
0001 0100
0101 0101
0001 0100
0x0D
0x0C
0x08
0x09
0x0A
0x0B
0000 1101
0000 1100
0000 1000
0000 1001
0000 1010
0000 1011
0x00
0x0E
0x14
0x55
0x14
FF_DELAY
MOT_INT
MOT_DELAY
Table 2. KXPS5 Registers
For each register, a set of initial recommended values is provided that will ensure the KXPS5 is
configured to a known operational state. Note that these conditions just provide a starting point,
and the values should vary as users refine their application requirements.
© Kionix 2006
9 March 2006
Page 3 of 6
AN 009
Register Recommendations
CTRL_REGB
CLKhld ENABLE
ST
0
X
0
X
0
X
0
FFIen
1
XI
0
0
1
Figure 4. Operational Starting Point for CTRL_REGB
CLKhld = 0: The KXPS5 will not hold the I2C clock during A/D conversions.
ENABLE = 1: The KXPS5 is enabled/operational.
ST = 0: The KXPS5 self-test function is not enabled/operational.
FFIen = 1: Free-fall detection interrupt is enabled/operational.
CTRL_REGC
X
0
X
0
X
0
FFLatch MOTLatch
X
0
IntSpd1 IntSpd0
0
0
0
0
Figure 5. Operational Starting Point for CTRL_REGC
FFLatch = 0: The free-fall interrupt output will go high whenever the criterion for free-fall
detection is met. The output will return low when the criterion is not met.
MOTLatch = 0: The motion interrupt output will go high whenever the criterion for motion
detection is met. The output will return low when the criterion is not met.
IntSpd1 and IntSpd0 = 0: The interrupt sampling frequency is 250 samples/second.
Therefore, the interrupt delay times can be calculated using Equation 1.
Free-fall Delay (sec) = FF_Delay (# of samples) / 250 (samples/sec)
High-g Motion Delay (sec) = MOT_Delay (# of samples) / 250 (samples/sec)
Equation 1. Free-fall and Motion Delay Calculations
Thresholds and Delays
The following are some suggested acceleration thresholds and delay (or dwell) times
appropriate for many HDD protection applications. For each suggested parameter the
appropriate register value is provided in binary and hexadecimal.
Free fall
Detection Threshold = 0.4g
FF_INT = (0000 1110 or 0x0E)
Delay Time = 80mS
FF_DELAY = (0001 0100 or 0x14)
High-g Motion
Detection Threshold = 2.5g
MOT_INT = (0101 0101 or 0x55)
© Kionix 2006
9 March 2006
Page 4 of 6
AN 009
Delay Time = 80mS
MOT_DELAY = (0001 0100 or 0x14)
Expected Results
When the registers are loaded with the recommended values and the MOT Enable pin (12) is
pulled high, the KXPS5 becomes armed for HDD protection. This means that the FF/MOT
interrupt will be triggered if the accelerometer experiences an event that exceeds any of the
above described thresholds and delays. In this case, FF/MOT will go high if all accelerometer
axis (X, Y, and Z) simultaneously drop below 0.4g for more than 80mS or if any accelerometer
axis (X, Y, or Z) go rise above 2.5g for more than 80mS. Figures 6 and 7 show how the KXPS5
interrupts will react to a typical event.
By monitoring the interrupt pin (11), or repeatedly reading the status register, CTRL_REGA
(0x0C), the user will be notified of a harmful event and must park/unload the HDD head for
protection. Note that the interrupts are selected to be unlatched, so they will return low after the
event has concluded. For additional information, please refer to the KXPS5 Data Sheet.
© Kionix 2006
9 March 2006
Page 5 of 6
AN 009
Typical Motion Interrupt Example (Unlatched)
255
213
Pos. Motion limit
142
Pos. Freefall limit
128
0g
114
Neg. Freefall limit
43
Neg. Motion limit
0
Motion debounce timer
20
Set to 20 counts.
= 2 counts = 8 ms
Motion Interrupt
Figure 6. Typical Motion Interrupt Example (MOTLatch = 0)
Typical Freefall Interrupt Example (Unlatched)
255
213
Pos. Motion limit
142
Pos. Freefall limit
128
0g
114
Neg. Freefall limit
43
Neg. Motion limit
0
Freefall debounce timer
20
Set to 20 counts.
= 2 counts = 8 ms
Freefall Interrupt
Figure 7. Typical Free-fall Interrupt Example (FFLatch = 0)
© Kionix 2006
9 March 2006
Page 6 of 6
