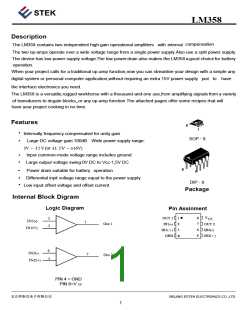

LM358
Description
compensation.
The LM358 contains two independent high gain operational amplifiers with internal
The two op-amps operate over a wide voltage range from a single power supply.Also use a split power supply.
The device has low power supply voltage.The low power drain also makes the LM358 a good choice for battery
operation.
When your project calls for a traditional op-amp function,now you can streanline your design with a simple any
digital system or personal computer application,without requiring an extra 15V power supply just to have
the interface electronics you need.
The LM358 is a versatile,rugged workhorse with a thousand-and-one use,from amplifying signals from a variety
of transducers to dcgain blocks,,or any op-amp function.The attached pages offer some recipes rhat will
have your project cooking in no time.
Features
•
•
Internally frequency compensated for unity gain
-
SOP
8
Large DC voltage gain:100dB Wide power supply range:
3V ~ 32V (or ±1.5V ~ ±16V)
•
•
Input common-mode voltage range includes ground
Large output voltage swing:0V DC to Vcc-1,5V DC
•
Power drain suitable for battery operation
Differential inpit voltage range equal to the power supply
Low input offset voltage and offset current
•
•
-
DIP
8
Package
Internal Block Digram
Logic Diagram
Pin Assinment
PIN 4 = GND
PIN 8=V CC
BEIJING ESTEK ELECTRONICS CO.,LTD
