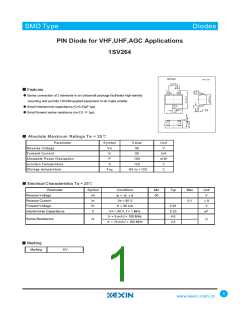

SMD Type
Diodes
PIN Diode for VHF,UHF,AGC Applications
1SV264
Features
Series connection of 2 elements in an ultrasmall package facilitates high-density
mounting and permits 1SV264-applied equipment to be made smaller
Small interterminal capacitance (C=0.23pF typ).
Small forward series resistance (rs=2.5
typ).
Absolute Maxim um Ratings Ta = 25
Param eter
Reverse Voltage
Sym bol
Value
50
Unit
V
VR
IF
Forward Current
50
m A
m W
Allowable Power Dissipation
Junction Tem perature
Storage tem perature
P
100
Tj
125
Tstg
-55 to +125
Electrical Characteristics Ta = 25
Parameter
Reverse Voltage
Symbol
Conditions
IR = 10
Min
50
Typ
Max
0.1
Unit
V
VR
IR
A
Reverse Current
VR = 50 V
IF = 50 mA
A
Forward Voltage
VF
C
0.91
0.23
4.0
V
Interterminal Capacitance
VR = 50 V, f = 1 MHz
IF = 5 mA,f = 100 MHz
IF = 10 mA,f = 100 MHz
pF
Series Resistance
rs
2.5
Marking
Marking
KV
1
