2SK2329-E

型号：

2SK2329-E

描述：

硅N沟道MOS FET[ Silicon N Channel MOS FET ]

品牌：

RENESAS[ RENESAS TECHNOLOGY CORP ]

页数：

7 页

PDF大小：

79 K

下载PDF手册

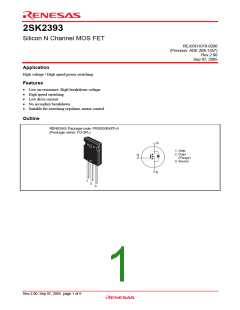

2SK2393
Silicon N Channel MOS FET
REJ03G1010-0200
(Previous: ADE-208-1357)
Rev.2.00
Sep 07, 2005
Application
High voltage / High speed power switching
Features
•
•
•
•
•
Low on-resistance, High breakdown voltage
High speed switching
Low drive current
No secondary breakdown
Suitable for switching regulator, motor control
Outline
RENESAS Package code: PRSS0004ZF-A
(Package name: TO-3PL)
D
1. Gate
2. Drain
(Flange)
3. Source
G
S
1
2
3
Rev.2.00 Sep 07, 2005 page 1 of 6
2SK2393
Absolute Maximum Ratings
(Ta = 25°C)
Item
Drain to source voltage
Gate to source voltage
Drain current
Symbol
VDSS
Ratings
Unit
1500
V
V
VGSS
±20
ID
8
A
1
Drain peak current
ID(pulse)
*
20
A
Body to drain diode reverse drain current
Channel dissipation
IDR
8
200
A
Pch*2
Tch
W
°C
°C
Channel temperature
150
Storage temperature
Tstg
–55 to +150
Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1 %
2. Value at Tc = 25°C
Electrical Characteristics
(Ta = 25°C)
Item
Symbol
V(BR)DSS
IGSS
Min
1500
—
Typ
Max
—
Unit
V
Test Conditions
ID = 10 mA, VGS = 0*1
VGS = ±20 V, VDS = 0
VDS = 1200 V, VGS = 0
ID = 1 mA, VDS = 10 V
ID = 4 A, VGS = 15 V*3
Drain to source breakdown voltage
Gate to source leak current
Zero gate voltage drain current
Gate to source cutoff voltage
—
—
±1
µA
µA
V
IDSS
—
—
500
4.0
2.8
VGS(off)
RDS(on)
2.0
—
—
Static drain to source on state
resistance
1.9
Ω
Forward transfer admittance
Input capacitance
|yfs|
Ciss
Coss
Crss
td(on)
tr
1.8
—
—
—
—
—
—
—
—
—
3.0
4370
560
200
75
—
—
—
—
—
—
—
—
—
—
S
ID = 4 A, VDS = 20 V*3
pF
pF
pF
ns
ns
ns
ns
V
VDS = 10 V, VGS = 0,
f = 1 MHz
Output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
ID = 4 A, VGS = 10 V,
RL = 7.5 Ω
180
260
125
0.9
Turn-off delay time
Fall time
td(off)
tf
Body to drain diode forward voltage
VDF
trr
IF = 8 A, VGS = 0
Body to drain diode reverse
recovery time
6.5
µs
IF = 8 A, VGS = 0,
diF / dt = 100 A / µs
Note: 3. Pulse Test
Rev.2.00 Sep 07, 2005 page 2 of 6
2SK2393
Main Characteristics
Power vs. Temperature Derating
Maximum Safe Operation Area
100
400
300
200
100
30
10
3
1
Operation in
this area is
limited by R
DS(on)
0.3
0.1
Ta = 25°C
0
50
100
150
200
20
50 100 200
500 1000 2000
Case Temperature TC (°C)
Drain to Source Voltage VDS (V)
Typical Output Characteristics
Typical Transfer Characteristics
10
8
5
4
3
2
1
Pulse Test
VDS = 10 V
Pulse Test
15 V
10 V
8 V
7 V
6
4
Tc = 75°C
25°C
6 V
–25°C
2
VGS = 5 V
0
0
10
20
30
40
50
2
4
6
8
10
Drain to Source Voltage VDS (V)
Gate to Source Voltage VGS (V)
Drain to Source Saturation Voltage
vs. Gate to Source Voltage
Static Drain to Source on State
Resistance vs. Drain Current
20
10
5
20
16
12
8
Pulse Test
Pulse Test
VGS = 10 V
15 V
ID = 5 A
2
1
2 A
1 A
0.5
4
0.2
0.1 0.3
1
3
10
30
100
0
4
8
12
16
20
Gate to Source Voltage VGS (V)
Drain Current ID (A)
Rev.2.00 Sep 07, 2005 page 3 of 6
2SK2393
Static Drain to Source on State
Resistance vs. Temperature
Forward Transfer Admittance
vs. Drain Current
10
5
5
4
3
2
1
ID = 5 A
2 A
Pulse Test
Tc = –25°C
1 A
2
1
25°C
75°C
VGS = 15 V
0.5
0.2
0.1
VDS = 20 V
Pulse Test
0
1
0.1 0.2
0.5
2
5
10
–40
0
40
80
120
160
Case Temperature TC (°C)
Drain Current ID (A)
Body to Drain Diode Reverse
Recovery Time
Typical Capacitance vs.
Drain to Source Voltage
50
10000
Ciss
3000
1000
20
10
Coss
Crss
5
2
300
100
30
10
1
di/dt = 100 A/µs
VGS = 0, Ta = 25°C
VGS = 0
f = 1 MHz
0.5
0.1 0.3
1
3
10
0
10
20
30
40
50
Reverse Drain Current IDR (A)
Drain to Source Voltage VDS (V)
Dynamic Input Characteristics
ID = 8 A
Switching Characteristics
2000
1000
1000
800
600
400
200
20
16
12
8
VGS = 10 V, VDD = 30 V
PW = 5 µs, duty < 1 %
VDD = 250 V
400 V
600 V
500
200
t
d(off)
VDS
V
GS
t
f
100
50
t
r
t
d(on)
VDD = 250 V
400 V
600 V
4
0
20
0
80
40
120
160
200
0.1 0.2
0.5
1
2
5
10
Gate Charge Qg (nc)
Drain Current ID (A)
Rev.2.00 Sep 07, 2005 page 4 of 6
2SK2393
Reverse Drain Current vs.
Source to Drain Voltage
10
8
Pulse Test
10 V
5 V
6
VGS = 0, –5 V
4
2
0
0.2
0.4
0.6
0.8
1.0
Source to Drain Voltage VSD (V)
Switching Time Test Circuit
Vin Monitor
Waveforms
Vout
Monitor
90%
D.U.T.
RL
10%
Vin
Vout
10%
10%
VDD
= 30 V
Vin
50 Ω
10 V
90%
90%
t
t
r
t
d(off)
t
f
d(on)
Rev.2.00 Sep 07, 2005 page 5 of 6
2SK2393
Package Dimensions
JEITA Package Code
RENESAS Code
PRSS0004ZF-A
Package Name
MASS[Typ.]
9.9g
Unit: mm
TO-3PL / TO-3PLV
5.0 0.2
20.0 0.3
φ3.3 0.2
1.4
3.0
2.2
1.2
+0.25
–0.1
+0.25
–0.1
0.6
2.8 0.2
5.45 0.5
1.0
5.45 0.5
3.8
7.4
Ordering Information
Part Name
Quantity
Shipping Container
2SK2329-E
500 pcs
Box (Case)
Note: For some grades, production may be terminated. Please contact the Renesas sales office to check the state of
production before ordering the product.
Rev.2.00 Sep 07, 2005 page 6 of 6
