2SK2212-E

型号：

2SK2212-E

描述：

硅N沟道MOS FET[ Silicon N Channel MOS FET ]

品牌：

RENESAS[ RENESAS TECHNOLOGY CORP ]

页数：

7 页

PDF大小：

925 K

下载PDF手册

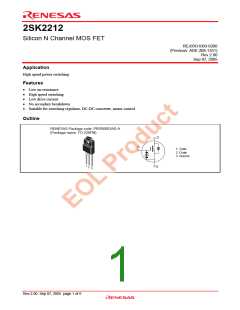

2SK2212
Silicon N Channel MOS FET
REJ03G1003-0200
(Previous: ADE-208-1351)
Rev.2.00
Sep 07, 2005
Application
High speed power switching
Features
•
•
•
•
•
Low on-resistance
High speed switching
Low drive current
No secondary breakdown
Suitable for switching regulator, DC-DC converter, motor control
Outline
RENESAS Package code: PRSS0003AD-A
(Package name: TO-220FM)
D
1. Gate
2. Drain
3. Source
1
2
3
S
Rev.2.00 Sep 07, 2005 page 1 of 6
2SK2212
Absolute Maximum Ratings
(Ta = 25°C)
Item
Drain to source voltage
Gate to source voltage
Drain current
Symbol
VDSS
Ratings
Unit
200
V
V
VGSS
±20
10
ID
A
1
Drain peak current
ID(pulse)
*
40
10
A
Body to drain diode reverse drain current
Channel dissipation
IDR
A
Pch*2
Tch
30
W
°C
°C
Channel temperature
150
Storage temperature
Tstg
–55 to +150
Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1 %
2. Value at Tc = 25°C
Electrical Characteristics
(Ta = 25°C)
Item
Symbol
Min
200
±20
—
Typ
—
Max
—
U
Test conditions
0 mA, VGS = 0
= ±100 µA, VDS = 0
VGS = ±16 V, VDS = 0
VDS = 160 V, VGS = 0
ID = 1 mA, VDS = 10 V
ID = 5 A, VGS = 10 V*1
Drain to source breakdown voltage
Gate to source breakdown voltage
Gate to source leak current
Zero gate voltage drain current
Gate to source cutoff voltage
V(BR)DSS
V(BR)GSS
IGSS
—
—
—
±1
V
IDSS
—
—
VGS(off)
RDS(on)
2.0
—
—
Static drain to source on state
resistance
0.2
Ω
Forward transfer admittance
Input capacitance
|yfs|
Ciss
Coss
Crss
td(on
3.5
—
—
—
—
—
65
—
—
—
—
—
—
—
—
—
—
S
ID = 5 A, VDS = 10 V*1
pF
pF
pF
ns
ns
ns
ns
V
VDS = 10 V, VGS = 0,
f = 1 MHz
Output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
18
ID = 5 A, VGS = 10 V,
RL = 6 Ω
80
Turn-off delay time
Fall time
65
50
Body to drain diode forward vol
rr
1.1
190
IF = 10 A, VGS = 0
Body to drain diode reverse
recovery time
ns
IF = 10 A, VGS = 0,
diF / dt = 100 A / µs
Note: 1. Pulse Test
Rev.2.00 Sep 07, 2005 page 2 of 6
2SK2212
Main Characteristics
Power vs. Temperature Derating
Maximum Safe Operation Area
40
30
20
10
50
20
10
5
2
1
Operation in
this area is
limited by R
DS(on)
0.5
0.2
0.1
Ta = 25°C
0.05
0
50
100
150
200
0.5
1
2
5
10 20 50 100 200 500
Case Temperature TC (°C)
Drain to Source Voltage VDS (V)
Typical Output Characteristics
r Characteristics
20
16
12
8
1
est
10 V
6 V
5.5 V
Tc = 75°C
25°C
4
5 V
–25°C
4.5 V
4
2
VGS = 3.5 V
4
0
0
2
4
6
8
10
4
8
1
Drain to Source (V)
Gate to Source Voltage VGS (V)
Drain to ion Voltage
vs. Gce Voltage
Static Drain to Source on State
Resistance vs. Drain Current
10
5
5
4
3
2
1
Pulse Test
Pulse Test
2
ID = 10 A
1
0.5
5 A
2 A
VGS = 10 V
15 V
0.2
0.1
12
0
4
8
16
20
0.5
1
2
5
10 20
50
Gate to Source Voltage VGS (V)
Drain Current ID (A)
Rev.2.00 Sep 07, 2005 page 3 of 6
2SK2212
Static Drain to Source on State
Resistance vs. Temperature
Forward Transfer Admittance
vs. Drain Current
10
5
1.0
0.8
0.6
0.4
0.2
VGS = 10 V
Pulse Test
Tc = –25°C
25°C
75°C
2
1
ID = 10 A
5 A
0.5
2 A
VDS = 10 V
Pulse Test
0.2
0.1
0
–40
0
40
80
120
160
0.1 0.3
1
3
10
30
100
Case Temperature TC (°C)
Drain Current ID (A)
Body to Drain Diode Reverse
Recovery Time
Tapacitance vs.
urce Voltage
5000
500
200
100
50
Ciss
Coss
100
20
10
5
Crss
di / dt = 100 A / µs
VGS = 0, Ta = 2
VGS = 0
f = 1 MHz
10
5
0
10
20
30
40
50
0.2
0.5
1
2
Reverse Drain C
Drain to Source Voltage VDS (V)
Dynacteristics
Switching Characteristics
500
500
400
300
200
100
20
16
12
8
200
100
50
VDD = 50 V
100 V
150 V
VGS
t
d(off)
t
f
ID = 15 A
t
r
VDS
t
d(on)
20
VDD = 150 V
100 V
4
0
10
5
VGS = 10 V, VDD = 30 V
PW = 5 µs, duty < 1 %
50 V
0
8
16
24
32
40
0.2
0.5
1
2
5
10 20
Gate Charge Qg (nc)
Drain Current ID (A)
Rev.2.00 Sep 07, 2005 page 4 of 6
2SK2212
Reverse Drain Current vs.
Source to Drain Voltage
20
16
12
8
Pulse Test
VGS = 0, –5 V
5 V
10 V
4
0
0.4
Source to Drain Voltage VSD (V)
Normalized Transient Thermal Impedance vs. Pulse th
0.8
1.2
1.6
2.0
3
1
25°C
D = 1
0.5
0.3
0.1
γ
θ
– c(t) = s (t) • ch – c
ch – c = 4.17°C/W, Tc = 25°C
PW
T
P
DM
D =
0.03
0.01
PW
T
10 µ
1
10 m
100 m
1
10
Pulse Width PW (s)
Switching Time Test Circuit
Vin Monitor
Waveforms
90%
Vout
Monitor
D.U.T.
RL
10%
Vin
Vout
10%
10%
VDD
= 30 V
Vin
10 V
50 Ω
90%
90%
t
t
t
t
f
d(on)
r
d(off)
Rev.2.00 Sep 07, 2005 page 5 of 6
2SK2212
Package Dimensions
JEITA Package Code
SC-67
RENESAS Code
Package Name
MASS[Typ.]
1.8g
Unit: mm
PRSS0003AD-A
TO-220FM / TO-220FMV
Ordering Information
Part Name
Quanti
Shipping Container
2SK2212-E
500 pcs
Box (Sack)
Note: For some grades, production med. Please contact the Renesas sales office to check the state of
production before ordering t
Rev.2.00 Sep 07, 2005 page 6 of 6
Sales Strategic Planning Div. Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Keep safety first in your circuit designs!
1. Renesas Technology Corp. puts the maximum effort into making semiconductor products better and more reliable, but there is always the possibility that trouble
may occur with them. Trouble with semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with appropriate measures such as (i) placement of substitutive, auxiliary
circuits, (ii) use of nonflammable material or (iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the Renesas Technology Corp. uct best suited to the customer's
application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renchnology Corp. or a third party.
2. Renesas Technology Corp. assumes no responsibility for any damage, or infringement of any third-party's rights, ore use of any product data,
diagrams, charts, programs, algorithms, or circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts, programs and algorithms n on products at the time of
publication of these materials, and are subject to change by Renesas Technology Corp. without notice due to s or other reasons. It is
therefore recommended that customers contact Renesas Technology Corp. or an authorized Renesas Tecdistributor for the latest product
information before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss rising fror errors.
Please also pay attention to information published by Renesas Technology Corp. by various meanas Technology Corp. Semiconductor
home page (http://www.renesas.com).
4. When using any or all of the information contained in these materials, including product data, dams, and algorithms, please be sure to
evaluate all information as a total system before making a final decision on the applicability oroducts. Renesas Technology Corp. assumes
no responsibility for any damage, liability or other loss resulting from the information contai
5. Renesas Technology Corp. semiconductors are not designed or manufactured for use in at is used under circumstances in which human life
is potentially at stake. Please contact Renesas Technology Corp. or an authorized Rerp. product distributor when considering the use of a
product contained herein for any specific purposes, such as apparatus or systems foular, medical, aerospace, nuclear, or undersea repeater
use.
6. The prior written approval of Renesas Technology Corp. is necessary to reprint or in part these materials.
7. If these products or technologies are subject to the Japanese export control ree exported under a license from the Japanese government and
cannot be imported into a country other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulatiocountry of destination is prohibited.
8. Please contact Renesas Technology Corp. for further details on these cts contained therein.
RENESAS SALES OFFICES
http://www.renesas.com
Refer to "http://www.renesas.com/en/networdetailed information.
Renesas Technology America, Inc.
450 Holger Way, San Jose, CA 95134-1
Tel: <1> (408) 382-7500, Fax: <1> (4
Renesas Technology Europe Li
Dukes Meadow, Millboard Roadinghamshire, SL8 5FH, U.K.
Tel: <44> (1628) 585-100, F5-900
Renesas Technology Hong
7th Floor, North Tower, World Fintre, Harbour City, 1 Canton Road, Tsimshatsui, Kowloon, Hong Kong
Tel: <852> 2265-6688, Fax: <852> 0-6071
Renesas Technology Taiwan Co., Ltd.
10th Floor, No.99, Fushing North Road, Taipei, Taiwan
Tel: <886> (2) 2715-2888, Fax: <886> (2) 2713-2999
Renesas Technology (Shanghai) Co., Ltd.
Unit2607 Ruijing Building, No.205 Maoming Road (S), Shanghai 200020, China
Tel: <86> (21) 6472-1001, Fax: <86> (21) 6415-2952
Renesas Technology Singapore Pte. Ltd.
1 Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632
Tel: <65> 6213-0200, Fax: <65> 6278-8001
Renesas Technology Korea Co., Ltd.
Kukje Center Bldg. 18th Fl., 191, 2-ka, Hangang-ro, Yongsan-ku, Seoul 140-702, Korea
Tel: <82> 2-796-3115, Fax: <82> 2-796-2145
Renesas Technology Malaysia Sdn. Bhd.
Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jalan Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia
Tel: <603> 7955-9390, Fax: <603> 7955-9510
© 2005. Renesas Technology Corp., All rights reserved. Printed in Japan.
Colophon .3.0
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.190182s
