2SK2216

型号:

2SK2216

描述:

硅N沟道MOS FET[ Silicon N-Channel MOS FET ]

品牌:

HITACHI[ HITACHI SEMICONDUCTOR ]

页数:

8 页

PDF大小:

50 K

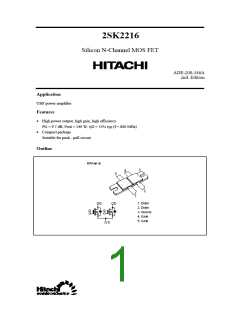

2SK2216
Silicon N-Channel MOS FET
ADE-208-346A
2nd. Edition
Application
UHF power amplifier
Features
·
·
High power output, high gain, high efficiency
PG = 9.7 dB, Pout = 140 W, hD = 55% typ (f = 860 MHz)
Compact package
Suitable for push - pull circuit
Outline
2SK2216
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDSS
Ratings
60
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
VGSS
±10
V
ID
20
A
Channel dissipation
Channel temperature
Storage temperature
Note: 1. Value at TC = 25°C
Pch*1
Tch
150
W
°C
°C
150
Tstg
–55 to +150
Electrical Characteristics (TC = 25°C)
Item
Symbol Min
Typ
Max
1
Unit
mA
µA
V
Test conditions
Drain leakage current*1
Gate leakage current*1
Gate to source cutoff voltage*1
Drain to source voltage*1
Forward transfer admittance*1
Input capacitance*1
IDSS
VDS = 60 V, VGS = 0
VGS = ± 10 V, VDS = 0
VDS = 10 V, ID = 1 mA
VGS = 10 V, ID = 5 A*2
VDS = 10 V, ID = 5 A*2
IGSS
± 3
1.6
2.5
VGS(off)
VDS(on)
|yfs|
0.3
1.2
4.0
250
V
3.0
S
Ciss
pF
VGS = 5 V, VDS = 0
f = 1MHz
Output capacitance*1
Coss
85
pF
VDS = 10V, VGS = 0
f = 1MHz
Output power
POUT
100
140
55
W
%
VDS = 28 V, IDO = 0.4 A
Drain efficiency
hD
f = 860 MHz, Pin = 15 W
Notes: 1. Shows / unit FET
2. Pulse Test
2
2SK2216
3
2SK2216
4
2SK2216
5
2SK2216
6
2SK2216
Package Dimensions
Unit: mm
7
2SK2216
When using this document, keep the following in mind:
1. This document may, wholly or partially, be subject to change without notice.
2. All rights are reserved: No one is permitted to reproduce or duplicate, in any form, the whole or
part of this document without Hitachi’s permission.
3. Hitachi will not be held responsible for any damage to the user that may result from accidents or
any other reasons during operation of the user’s unit according to this document.
4. Circuitry and other examples described herein are meant merely to indicate the characteristics and
performance of Hitachi’s semiconductor products. Hitachi assumes no responsibility for any
intellectual property claims or other problems that may result from applications based on the
examples described herein.
5. No license is granted by implication or otherwise under any patents or other rights of any third party
or Hitachi, Ltd.
6. MEDICAL APPLICATIONS: Hitachi’s products are not authorized for use in MEDICAL
APPLICATIONS without the written consent of the appropriate officer of Hitachi’s sales company.
Such use includes, but is not limited to, use in life support systems. Buyers of Hitachi’s products
are requested to notify the relevant Hitachi sales offices when planning to use the products in
MEDICAL APPLICATIONS.
8
