2SK2413

型号：

2SK2413

描述：

切换N沟道功率MOS FET工业用[ SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ]

品牌：

NEC[ NEC ]

页数：

8 页

PDF大小：

122 K

下载PDF手册

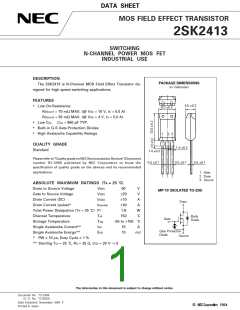

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK2413
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
PACKAGE DIMENSIONS
The 2SK2413 is N-Channel MOS Field Effect Transistor de-
signed for high speed switching applications.
(in millimeter)
FEATURES
4.5 ±±.ꢀ
• Low On-Resistance
8.± ±±.ꢀ
RDS(on)1 = 70 mΩ MAX. (@ VGS = 10 V, ID = 5.0 A)
RDS(on)2 = 95 mΩ MAX. (@ VGS = 4 V, ID = 5.0 A)
• Low Ciss
Ciss = 860 pF TYP.
• Built-in G-S Gate Protection Diodes
• High Avalanche Capability Ratings
1
ꢀ 3
QUALITY GRADE
Standard
1.4 ±±.ꢀ
±.5 ±±.1
1.4 ±±.ꢀ
±.5 ±±.1
Pleasereferto"QualitygradeonNECSemiconductorDevices"(Document
number IEI-1209) published by NEC Corporation to know the
specification of quality grade on the devices and its recommended
±.5 ±±.1
applications.
1. Gate
ꢀ. Drain
3. Source
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Drain to Source Voltage
Gate to Source Voltage
Drain Current (DC)
VDSS
60
V
V
MP-10 (ISOLATED TO-220)
VGSS
±20
±10
±40
1.8
ID(DC)
ID(pulse)
A
Drain
Drain Current (pulse)*
A
Total Power Dissipation (TA = 25 ˚C) PT
W
˚C
Channel Temperature
Tch
Tstg
IAS
150
Body
Diode
Gate
Storage Temperature
–55 to +150 ˚C
Single Avalanche Current**
Single Avalanche Energy**
10
10
A
Gate Protection
EAS
mJ
Diode
Source
*
PW ≤ 10 µs, Duty Cycle ≤ 1 %
** Starting Tch = 25 ˚C, RG = 25 Ω, VGS = 20 V → 0
The information in this document is subject to change without notice.
Document No. TC-2494
(O. D. No. TC-8032)
Date Published November 1994
Printed in Japan
P
1994
©
2SK2413
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
CHARACTERISTIC
Drain to Source On-Resistance
Drain to Source On-Resistance
Gate to Source Cutoff Voltage
Forward Transfer Admittance
Drain Leakage Current
Gate to Source Leakage Current
Input Capacitance
SYMBOL
RDS(on)1
RDS(on)2
VGS(off)
| yfs |
IDSS
MIN.
TYP.
50
MAX.
70
UNIT
mΩ
mΩ
V
TEST CONDITIONS
VGS = 10 V, ID = 5.0 A
VGS = 4 V, ID = 5.0 A
VDS = 10 V, ID = 1 mA
VDS = 10 V, ID = 5.0 A
VDS = 60 V, VGS = 0
VGS = ±20 V, VDS = 0
VDS = 10 V
70
95
1.0
7.0
1.6
12
2.0
S
µA
µA
pF
pF
pF
ns
±10
±10
IGSS
Ciss
860
440
110
15
Output Capacitance
Coss
VGS = 0
Reverse Transfer Capacitance
Turn-On Delay Time
Crss
f = 1 MHz
td(on)
tr
ID = 5.0 A
Rise Time
90
ns
VGS(on) = 10 V
Turn-Off Delay Time
td(off)
tf
75
ns
VDD = 30 V
Fall Time
30
RG = 10 Ω
ns
Total Gate Charge
QG
24
nC
nC
nC
V
ID = 20 A
Gate to Source Charge
Gate to Drain Charge
QGS
3.0
6.0
1.0
95
VDD = 48 V
QGD
VF(S-D)
trr
VGS = 10 V
Body Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
IF = 10 A, VGS = 0
IF = 10 A, VGS = 0
di/dt = 100 A/µs
ns
Qrr
250
nC
Test Circuit 1 Avalanche Capability
Test Circuit 2 Switching Time
D.U.T.
D.U.T.
V
GS
L
R
L
90 %
R
G
= 25 Ω
V
GS
Wave
Form
V
GS (on)
10 %
0
PG.
R
G
PG
R = 10 Ω
G
50 Ω
V
DD
V
DD
90 %
I
D
V
GS = 20 → 0 V
90 %
10 %
I
D
I
D
10 %
0
V
0
GS
BVDSS
I
AS
Wave
Form
V
DS
t
d (on)
t
r
t
d (off)
t
f
I
D
t
VDD
t
on
t
off
µ
t = 1
s
Duty Cycle ≤ 1 %
Starting Tch
Test Circuit 3 Gate Charge
D.U.T.
= 2 mA
R
L
I
G
PG.
50 Ω
V
DD
The application circuits and their parameters are for references only and are not intended for use in actual design-in's.
2
2SK2413
Radial Tape Specification
Dimension (unit: mm)
Item
P2
P
T
∆P
∆h
∆h
Component Body Length along Tape
Component Body Height
Component Body Width
A1
A
T
8.0 ± 0.2
13.0 ± 0.2
4.5 ± 0.2
0.5 ± 0.1
2.5 MIN.
12.7 ± 1.0
12.7 ± 0.3
6.35 ± 0.5
A1
Component Lead Width Dimension
Lead Wire Enclosure
d
I1
Component Center Pitch
Feedhole Pitch
P
P0
P2
Feedhole Center to Center Lead
F1 F2
P0
d
+0.4
2.5
Component Lead Pitch
F1, F2
–0.1
D0
Deflection Front or Rear
Deflection Left or Right
∆h
∆P
±1.0
±1.3
+1.0
18.0
Carrier Strip Width
W
–0.5
Adhesive Tape Width
W0
W1
W2
H0
H1
H
5.0 MIN.
9.0 ± 0.5
0.7 MIN.
16.0 ± 0.5
32.2 MAX.
20.0 MAX.
4.0 ± 0.2
0.7 ± 0.2
Feedhole Location
Adhesive Tape Position
Height of Seating Plane
Feedhole to upper of Component
Feedhole to Bottom of Component
Tape Feedhole Diameter
Overall Taped Package Thickness
D0
t
3
2SK2413
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
100
80
2.0
1.6
1.2
60
40
0.8
0.4
0
20
0
20
40
60
80 100 120 140 160
20
40
60
80 100 120 140 160
Ta - Ambient Temperature - ˚C
Ta - Ambient Temperature - ˚C
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
FORWARD BIAS SAFE OPERATING AREA
100
10
1
50
40
30
20
Pulsed
ID(pulse)
VGS = 10 V
VGS = 6 V
µ
µ
ID (DC)
VGS = 4 V
10
0
TA = 25 ˚C
Single Pulse
0.1
1
10
100
2
4
6
8
10
VDS - Drain to Source Voltage - V
VDS - Drain to Source Voltage - V
FORWARD TRANSFER CHARACTERISTICS
1000
100
Pulsed
VDS = 10 V
TA = –25 ˚C
25 ˚C
10
1
75 ˚C
125 ˚C
0
1
2
3
4
5
6
7
8
VGS - Gate to Source Voltage - V
4
2SK2413
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
1000
100
Rth (ch-a) = 69.4 ˚C/W
10
1
0.1
Single Pulse
100 1000
0.01
µ
µ
10
100
1 m
10 m
100 m
1
10
PW - Pulse Width - s
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
120
100
80
100
10
1
Pulsed
VDS = 10 V
Pulsed
TA = –25 ˚C
25 ˚C
75 ˚C
125 ˚C
60
ID = 5 A
40
20
0
0
10
20
1
10
100
VGS - Gate to Source Voltage - V
ID - Drain Current - A
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
GATE TO SOURCE CUTOFF VOLTAGE vs.
CHANNEL TEMPERATURE
160
140
120
100
80
2.0
1.5
1.0
VDS = 10 V
ID = 1 mA
Pulsed
VGS = 4 V
60
VGS = 10 V
0.5
0
40
20
0
–50
0
50
100
150
1
10
ID - Drain Current - A
100
Tch - Channel Temperature - ˚C
5
2SK2413
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
100
10
Pulsed
120
10 V
VGS = 4 V
80
40
0
VGS = 0
VGS = 10 V
1
ID = 5 A
0.1
0
1.0
2.0
–50
0
50
100
150
Tch - Channel Temperature - ˚C
VSD - Source to Drain Voltage - V
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
SWITCHING CHARACTERISTICS
10000
1000
100
10
VGS = 0
f = 1 MHz
tr
Ciss
Coss
td (off)
1000
100
10
tf
Crss
td (on)
VDD = 30 V
VGS = 10 V
RG = 10 Ω
1.0
0.1
1.0
10
100
1
10
100
VDS - Drain to Source Voltage - V
ID - Drain Current - A
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
80
70
16
14
100
ID = 10 A
VDD = 48 V
60
50
12
10
VGS
VDS
40
30
20
8
6
4
10
0
2
0
di/dt = 50 A/µs
VGS = 0
10
0.1
0
10
20
30
40
1.0
10
100
Qg - Gate Charge - nC
ID - Drain Current - A
6
2SK2413
SINGLE AVALANCHE ENERGY vs.
INDUCTIVE LOAD
SINGLE AVALANCHE ENERGY
DERATING FACTOR
100
10
100
80
VDD = 30 V
RG = 25 Ω
VGS = 20 V → 0
IAS ≤ 10 A
IAS = 10 A
60
40
1.0
20
0
VDD = 30 V
VGS = 20 V → 0
RG = 25 Ω
µ
µ
10
100
1 m
10 m
25
50
75
100
125
150
L - Inductive Load - H
Starting Tch - Starting Channel Temperature - ˚C
REFERENCE
Document Name
Document No.
TEI-1202
IEI-1209
NEC semiconductor device reliability/quality control system.
Quality grade on NEC semiconductor devices.
Semiconductor device mounting technology manual.
Semiconductor device package manual.
IEI-1207
IEI-1213
Guide to quality assurance for semiconductor devices.
Semiconductor selection guide.
MEI-1202
MF-1134
TEA-1034
TEA-1035
TEA-1037
Power MOS FET features and application switching power supply.
Application circuits using Power MOS FET.
Safe operating area of Power MOS FET.
The diode connected between the gate and source of the transistor serves as a protector against ESD. When
this device is actually used, an additional protection circuit is externally required if a voltage exceeding the
rated voltage may be applied to this device.
7
2SK2413
[MEMO]
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this
document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from use of a device described herein or any other liability arising
from use of such device. No license, either express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC Corporation or others.
The devices listed in this document are not suitable for use in aerospace equipment, submarine cables, nuclear
reactor control systems and life support systems. If customers intend to use NEC devices for above applications
or they intend to use "Standard" quality grade NEC devices for applications not intended by NEC, please contact
our sales people in advance.
Application examples recommended by NEC Corporation
Standard: Computer, Office equipment, Communication equipment, Test and Measurement equipment,
Machine tools, Industrial robots, Audio and Visual equipment, Other consumer products, etc.
Special: Automotive and Transportation equipment, Traffic control systems, Antidisaster systems, Anticrime
systems, etc.
M4 92.6
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.190665s
