2SK2482

型号：

2SK2482

描述：

切换N沟道功率MOS FET工业用[ SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ]

品牌：

NEC[ NEC ]

页数：

8 页

PDF大小：

67 K

下载PDF手册

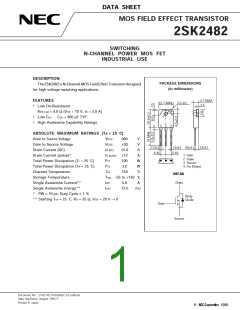

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK2482
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
PACKAGE DIMENSIONS
The 2SK2482 is N-Channel MOS Field Effect Transistor designed
for high voltage switching applications.
(in m illim eter)
FEATURES
4.7 MAX.
1.5
15.7 MAX. 3.2±0.2
4
•
Low On-Resistance
RDS (on) = 4.0 Ω (VGS = 10 V, ID = 3.0 A)
•
•
Low Ciss
Ciss = 900 pF TYP.
High Avalanche Capability Ratings
1
2
3
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Drain to Source Voltage
VDSS
VGSS
ID (DC)
ID (pulse)
PT1
900
±30
±5.0
±12
100
3.0
V
V
Gate to Source Voltage
2.2±0.2
1.0±0.2
0.6±0.1
2.8±0.1
Drain Current (DC)
A
5.45
5.45
1. Gate
Drain Current (pulse)*
A
2. Drain
3. Source
4. Fin (Drain)
Total Power Dissipation (Tc = 25 ˚C)
Total Power Dissipation (TA = 25 ˚C)
Channel Tem perature
W
W
˚C
PT2
Tch
150
MP-88
Storage Tem perature
Tstg –55 to +150 ˚C
Drain
Single Avalanche Current**
Single Avalanche Energy**
IAS
5.0
A
EAS
73.5
m J
*
PW ≤ 10 µs, Duty Cycle ≤ 1 %
Body
Diode
** Starting Tch = 25 ˚C, RG = 25 Ω, VGS = 20 V → 0
Gate
Source
Document No. D10274EJ1V0DS00 (1st edition)
Date Published August 1995 P
Printed in Japan
1995
©
2SK2482
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
CHARACTERISTIC
Drain to Source On-Resistance
Gate to Source Cutoff Voltage
Forward Transfer Adm ittance
Drain Leakage Current
Gate to Source Leakage Current
Input Capacitance
SYMBOL MIN.
TYP.
3.2
MAX.
4.0
UNIT
TEST CONDITIONS
Ω
RDS (on)
VGS = 10 V, ID = 3.0 A
VDS = 10 V, ID = 1 m A
VDS = 20 V, ID = 3.0 A
VDS = VDSS, VGS = 0
VGS = ±30 V, VDS = 0
VDS = 10 V
VGS (off)
| yfs |
IDSS
2.5
1.0
3.5
V
S
µA
100
IGSS
±100
nA
pF
pF
pF
ns
Ciss
900
130
25
Output Capacitance
Coss
Crss
VGS = 0
Reverse Transfer Capacitance
Turn-On Delay Tim e
f = 1 MHz
td (on)
tr
17
ID = 3.0 A
Rise Tim e
8
ns
VGS = 10 V
Turn-Off Delay Tim e
Fall Tim e
td (off)
tf
60
10
ns
VDD = 150 V
RG = 10 Ω
ns
Total Gate Charge
QG
30
5
nC
nC
nC
V
ID = 5.0 A
Gate to Source Charge
Gate to Drain Charge
Body Diode Forward Voltage
QGS
VDD = 450 V
VGS = 10 V
QGD
VF (S-D)
13
1.0
IF = 5.0 A, VGS = 0
Reverse Recovery Tim e
Reverse Recovery Charge
trr
780
4.2
ns
IF = 5.0 A, VGS = 0
di/dt = 50 A/µs
Qrr
µC
Test Circuit 1 Avalanche Capability
Test Circuit 2 Sw itching Tim e
D.U.T.
L
D.U.T.
V
GS
R
L
RG
= 25 Ω
90 %
V
GS
Wave Form
VGS (on)
10 %
R
G
0
PG
GS = 20 - 0 V
PG.
50 Ω
R = 10 Ω
G
VDD
VDD
V
ID
90 %
90 %
10 %
ID
V
GS
BVDSS
10 %
I
D
0
0
Wave Form
IAS
VDS
t
d
(on)
t
r
t
d
(off)
t
f
ID
t
VDD
t
on
t
off
t = 1 us
Duty Cycle ≤ 1 %
Starting Tch
Test Circuit 3 Gate Charge
D.U.T.
I = 2 mA
G
RL
PG.
50
Ω
VDD
The application circuits and their param eters are for references only and are not intended for use in actual design-in's.
2
2SK2482
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
140
120
100
80
100
80
60
60
40
40
20
20
0
20
40
60
80 100 120 140 160
0
20
40
60
80 100 120 140 160
TC
- Case Temperature - ˚C
TC
- Case Temperature - ˚C
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
FORWARD BIAS SAFE OPERATING AREA
100
10
Pulsed
10
ID(pulse)
VGS = 20 V
µ
10 V
8 V
ID(DC)
6 V
5
1
T
C
= 25 ˚C
Single Pulse
0.1
20
40
0
30
10
1
10
100
1000
VDS - Drain to Source Voltage - V
VDS - Drain to Source Voltage - V
FORWARD TRANSFER CHARACTERISTICS
Pulsed
100
10
VDS = 10 V
TA
= –25 ˚C
25 ˚C
75 ˚C
125 ˚C
1.0
0.1
0
5
10
15
VGS - Gate to Source Voltage - V
3
2SK2482
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
1 000
100
10
Rth(ch-a) = 41.7 (˚C/W)
R
th(ch-c) = 1.25 (˚C/W)
1
0.1
0.01
Single Pulse
Tc
= 25 ˚C
0.001
10 µ
100 µ
1 m
10 m
100 m
1
10
100 1 000
PW - Pulse Width - s
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
100
10
V
DS = 20 V
Pulsed
Pulsed
10
TA
= –25 ˚C
25 ˚C
75 ˚C
125 ˚C
ID
= 5 A
2.5 A
1 A
1.0
0.1
5
0.01
0.1
1.0
10
0
10
20
30
ID - Drain Current - A
VGS - Gate to Source Voltage - V
GATE TO SOURCE CUTOFF VOLTAGE vs.
CHANNEL TEMPERATURE
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
8
Pulsed
GS=10 V
VDS = 10 V
V
ID
= 1 mA
7
6
5
4
3
2
1
0
5
0
–50
0
50
100
150
0.1
1.0
10
100
Tch - Channel Temperature - ˚C
ID
- Drain Current - A
4
2SK2482
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
Pulsed
100
10
1
5
VGS = 10 V
VGS = 0 V
VGS = 10 V
ID = 3 A
0.1
0
0
0
–50
1.5
0.5
1.0
100
150
50
Tch - Channel Temperature - ˚C
VSD - Source to Drain Voltage - V
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
SWITCHING CHARACTERISTICS
10 000
1 000
1 000
100
VGS = 0
f = 1 MHz
Ciss
td(on)
tr
td(off)
tf
100
10
10
VDD = 150 V
VGS = 10 V
RG = 10 Ω
Coss
Crss
1.0
0.1
1.0
10
100
1000
1.0
10
100
VDS - Drain to Source Voltage - V
ID - Drain Current - A
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
ID = 5.0 A
10 000
1 000
16
14
12
10
8
di/dt = 50 A/µs
VGS = 0
VDD = 450 V
300 V
150 V
6
100
10
4
2
0
0.1
1.0
10
100
0
4
8
12
16
20
24
28
32
ID - Drain Current - A
Qg - Gate Charge - nC
5
2SK2482
SINGLE AVALANCHE CURRENT vs.
INDUCTIVE LOAD
SINGLE AVALANCHE ENERGY
DERATING FACTOR
100
10
160
140
V
DD = 150 V
= 25 Ω
GS = 20 V → 0
R
G
V
≥
AS 5.0 A
I
120
100
IAS = 5 A
80
60
1.0
0.1
40
VDD = 150 V
VGS = 20 V → 0
RG = 25 Ω
20
0
100 µ
1 m
10 m
100 m
25
50
75
100
125
150
L - Inductive Load - H
Starting Tch - Starting Channel Temperature - ˚C
6
2SK2482
REFERENCE
Docum ent Nam e
Docum ent No.
NEC sem iconductor device reliability/quality control system .
Quality grade on NEC sem iconductor devices.
Sem iconductor device m ounting technology m anual.
Sem iconductor device package m anual.
TEI-1202
IEI-1209
IEI-1207
IEI-1213
Guide to quality assurance for sem iconductor devices.
Sem iconductor selection guide.
MEI-1202
MF-1134
TEA-1034
TEA-1035
TEA-1037
Power MOS FET features and application switching power supply.
Application circuits using Power MOS FET.
Safe operating area of Power MOS FET.
7
2SK2482
[MEMO]
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this
document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from use of a device described herein or any other liability arising
from use of such device. No license, either express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customer must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
“Standard“, “Special“, and “Specific“. The Specific quality grade applies only to devices developed based on
a customer designated “quality assurance program“ for a specific application. The recommended applications
of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each
device before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems or medical equipment for life support, etc.
The quality grade of NEC devices in “Standard“ unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact NEC Sales Representative in advance.
Anti-radioactive design is not implemented in this product.
M4 94.11
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.209752s
