2SK2984

型号：

2SK2984

描述：

切换N沟道功率MOS FET工业用[ SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ]

品牌：

NEC[ NEC ]

页数：

8 页

PDF大小：

66 K

下载PDF手册

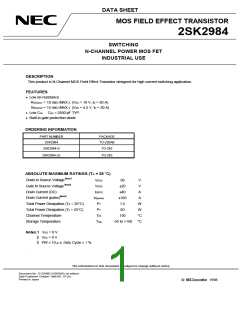

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK2984
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
This product is N-Channel MOS Field Effect Transistor designed for high current switching application.
FEATURES
• Low on-resistance
DS(on)1
DS(on)2
iss
GS
D
R
= 10 mΩ (MAX.) (V = 10 V, I = 20 A)
GS
D
R
= 15 mΩ (MAX.) (V = 4.5 V, I = 20 A)
iss
C
• Low C
= 2850 pF TYP.
• Built-in gate protection diode
ORDERING INFORMATION
PART NUMBER
2SK2984
PACKAGE
TO-220AB
TO-262
2SK2984-S
2SK2984-ZJ
TO-263
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)
Drain to Source Voltage Note1
Gate to Source Voltage Note2
Drain Current (DC)
DSS
V
V
30
±20
V
V
GSS
D(DC)
I
±40
A
Drain Current (pulse)Note3
D(pulse)
I
±160
1.5
A
A
T
P
Total Power Dissipation (T = 25°C)
W
W
°C
°C
c
T
P
Total Power Dissipation (T = 25°C)
60
ch
T
Channel Temperature
Storage Temperature
150
stg
T
−55 to +150
Notes.1 VGS = 0 V
2 VDS = 0 V
3 PW ≤ 10 µ s, Duty Cycle ≤ 1 %
.
The information in this document is subject to change without notice.
Document No. D12356EJ1V0DS00 (1st edition)
Date Published October 1998 NS CP (K)
Printed in Japan
1998
©
2SK2984
ELECTRICAL CHARACTERISTICS (TA = 25 °C)
CHARACTERISTICS
SYMBOL
RDS(on)1
RDS(on)2
VGS(off)
| yfs |
IDSS
TEST CONDITIONS
VGS = 10 V, ID = 20 A
MIN. TYP. MAX. UNIT
Drain to Source On-state Resistance
6.5
8.5
1.5
36
10
13
mΩ
mΩ
V
VGS = 4.5 V, ID = 20 A
VDS = 10 V, ID = 1 mA
VDS = 10 V, ID = 20 A
VDS = 30 V, VGS = 0 V
VGS = ±20 V, VDS = 0 V
Gate to Source Cut-off Voltage
Forward Transfer Admittance
Drain Leakage Current
Gate to Source Leakage Current
Input Capacitance
1.0
18
2.0
S
10
µ A
µ A
pF
pF
pF
ns
IGSS
±10
Ciss
VDS = 10 V
VGS = 0 V
f = 1 MHz
2600
1150
500
70
Output Capacitance
Coss
Reverse Transfer Capacitance
Turn-on Delay Time
Crss
td(on)
ID = 20 A
VGS(on) = 10 V
VDD = 15 V
RG = 10 Ω
Rise Time
tr
1100
210
310
65
ns
Turn-off Delay Time
td(off)
tf
ns
Fall Time
ns
Total Gate Charge
QG
ID = 40 A
nC
nC
nC
V
VDD = 24 V
VGS = 10 V
Gate to Source Charge
Gate to Drain Charge
Body Diode Forward Voltage
QGS
9.5
QGD
12.5
0.8
VF(S-D)
IF = 40 A, VGS = 0 V
Reverse Recovery Time
Reverse Recovery Charge
trr
IF = 40 A, VGS = 0 V
50
ns
di/dt = 100 A /µS
Qrr
100
nC
TEST CIRCUIT 1 SWITCHING TIME
TEST CIRCUIT 2 GATE CHARGE
D.U.T.
D.U.T.
IG = 2 mA
VGS
RL
RL
90 %
VGS
VGS(on)
10 %
Wave Form
0
RG
RG = 10 Ω
PG.
PG.
VDD
VDD
50 Ω
90 %
90 %
ID
ID
VGS
0
10 %
10 %
ID
0
Wave Form
tr
td(on)
td(off)
tf
τ
ton
toff
τ = 1µ s
Duty Cycle ≤ 1 %
2
2SK2984
TYPICAL CHARACTERISTICS (TA = 25 °C)
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
70
60
50
40
30
20
10
100
80
60
40
20
0
20 40 60 80 100 120 140 160
Case Temperature - ˚C
0
20 40 60 80 100 120 140 160
TC - Case Temperature - ˚C
TC -
DRAIN CURRENT vs.
DRAIN TO SOURCE VOLTAGE
FORWARD BIAS SAFE OPERATING AREA
1000
100
Pulsed
125
100
75
I
D(pulse)
VGS =10 V
VGS = 4.5 V
I
D(DC)
50
10
1
T
C
= 25˚C
Single Pulse
0
1.0
VDS - Drain to Source Voltage - V
2.0
0.1
1
10
100
1.5
0.5
VDS - Drain to Source Voltage - V
FORWARD TRANSFER CHARACTERISTICS
Pulsed
1000
100
10
Tch = -25˚C
25˚C
125˚C
1
VDS = 10 V
0
2
6
8
4
VGS - Gate to Source Voltage - V
3
2SK2984
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
1 000
100
10
Rth(ch-a) = 83.3 ˚C/W
Rth(ch-c) = 2.08 ˚C/W
1
0.1
0.01
Single Pulse
TC = 25˚C
0.001
µ
100
µ
10
1 m
10 m
100 m
1
10
100
1 000
PW - Pulse Width - s
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
1000
100
10
30
20
10
VDS = 10 V
Pulsed
Pulsed
Tch = -25˚C
25˚C
75˚C
125˚C
ID = 20 A
1
1
10
100
1000
0
5
10
15
ID- Drain Current - A
VGS - Gate to Source Voltage - V
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
GATE TO SOURCE CUT-OFF VOLTAGE vs.
CHANNEL TEMPERATURE
30
20
10
0
V
DS = 10 V
= 1 mA
Pulsed
2.0
1.5
1.0
I
D
V
GS = 4.5 V
0.5
0
V
GS =10 V
100
1
10
ID - Drain Current - A
- 50
0
50
100
150
T
ch - Channel Temperature - ˚C
4
2SK2984
SOURCE TO DRAIN DIODE FORWARD VOLTAGE
Pulsed
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
100
10
1
20
15
VGS = 0 V
V
GS = 4.5 V
10
5
V
GS = 10 V
0.1
ID
= 20 A
150
0
0
- 50
100
50
0
1.5
1.0
0.5
- Source to Drain Voltage - V
Tch - Channel Temperature - ˚C
VSD
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
SWITCHING CHARACTERISTICS
10000
1000
1000
100
V
GS = 0 V
t
r
f = 1 MHz
t
f
Ciss
t
d(off)
t
d(on)
Coss
Crss
100
10
10
1
V
V
R
DD = 15 V
GS = 10 V
G
= 10 Ω
0.1
1
10
100
0.1
1
10
100
VDS - Drain to Source Voltage - V
ID - Drain Current - A
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
1000
100
40
30
20
10
di/dt = 100 A/µs
GS = 0 V
ID = 40 A
V
14
12
10
8
V
GS
V
DD = 24 V
15 V
6 V
6
10
1
4
2
0
VDS
0.1
1
10
100
0
20
Q
40
60
80
I
F
- Diode Current - A
G
- Gate Charge - nC
5
2SK2984
PACKAGE DRAWINGS (Unit : mm)
1)TO-220AB (MP-25)
2)TO-262 (TO-220 Fin Cut:MP-25S)
4.8 MAX.
1.3±0.2
4.8 MAX.
1.3±0.2
10.6 MAX.
10.0
(10)
4
φ
3.6±0.2
1
2
3
4
1
2 3
1.3±0.2
1.3±0.2
2.8±0.2
0.5±0.2
0.75±0.3
2.54 TYP.
2.54 TYP.
0.75±0.1
2.54 TYP.
0.5±0.2
2.8±0.2
1.Gate
2.Drain
2.54 TYP.
3.Source
4.Fin (Drain)
1.Gate
2.Drain
3.Source
4.Fin (Drain)
3)TO-263 (JEDEC TYPE:MP-25ZJ)
4.8 MAX.
(10)
1.3±0.2
EQUIVALENT CIRCUIT
4
Drain
Body
Diode
Gate
1.4±0.2
0.7±0.2
0.5±0.2
Gate
Protection
Diode
2.54 TYP.
2.54 TYP.
1
2
3
Source
1.Gate
2.Drain
3.Source
4.Fin (Drain)
Remark
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage exceeding
the rated voltage may be applied to this device.
6
2SK2984
[MEMO]
7
2SK2984
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this
document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from use of a device described herein or any other liability arising
from use of such device. No license, either express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customers must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
"Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on
a customer designated "quality assurance program" for a specific application. The recommended applications
of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each
device before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems or medical equipment for life support, etc.
The quality grade of NEC devices is "Standard" unless otherwise specified in NEC’s Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact an NEC sales representative in advance.
Anti-radioactive design is not implemented in this product.
