2SK3349

型号：

2SK3349

描述：

硅N沟道MOS场效应管高速开关[ Silicon N Channel MOS FET High Speed Switching ]

品牌：

HITACHI[ HITACHI SEMICONDUCTOR ]

页数：

8 页

PDF大小：

42 K

下载PDF手册

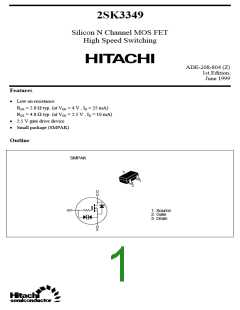

2SK3349
Silicon N Channel MOS FET
High Speed Switching
ADE-208-804 (Z)
1st.Edition.
June 1999
Features
•
Low on-resistance
RDS = 2.8 Ω typ. (at VGS = 4 V , ID = 25 mA)
RDS = 4.8 Ω typ. (at VGS = 2.5 V , ID = 10 mA)
2.5 V gate drive device
•
•
Small package (SMPAK)
Outline
SMPAK
3
1
2
D
G
1. Source
2. Gate
3. Drain
S
2SK3349
Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
VDSS
Ratings
20
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
VGSS
ID
±10
V
50
mA
mA
mA
mW
°C
Note1
Drain peak current
ID(pulse)
200
Body-drain diode reverse drain current IDR
50
Channel dissipation
Pch Note 2
100
Channel temperature
Tch
150
Storage temperature
Tstg
–55 to +150
°C
Note: 1. PW ≤ 10 µs, duty cycle ≤ 1%
2. Value on the alumina ceramic board (12.5x20x0.7 mm)
Electrical Characteristics (Ta = 25°C)
Item
Symbol
Min
Typ
Max
Unit
Test Conditions
Drain to source breakdown
voltage
V(BR)DSS
20
—
—
V
ID = 100 µA, VGS = 0
Gate to source breakdown
voltage
V(BR)GSS
±10
—
—
V
IG = ±100 µA, VDS = 0
Gate to source leak current
IGSS
IDSS
—
—
—
—
±5
µA
µA
VGS = ±8 V, VDS = 0
Zero gate voltege drain
current
1
VDS = 20 V, VGS = 0
Gate to source cutoff voltage VGS(off)
Static drain to source on state RDS(on)
0.8
—
—
56
—
—
—
—
—
—
—
—
1.8
3.6
7.2
—
V
ID = 10 µA, VDS = 5 V
ID = 25 mA,VGS = 4 V Note 3
ID = 10 mA,VGS = 2.5 V Note 3
ID = 25 mA, VDS = 10 V Note 3
VDS = 10 V
2.8
4.8
85
Ω
resistance
RDS(on)
Ω
Forward transfer admittance |yfs|
mS
pF
pF
pF
ns
ns
ns
ns
Input capacitance
Output capacitance
Ciss
6
—
Coss
7
—
VGS = 0
Reverse transfer capacitance Crss
1.2
120
450
480
500
—
f = 1 MHz
Turn-on delay time
Rise time
td(on)
tr
td(off)
tf
—
ID = 25 mA, VGS = 4 V
RL = 400 Ω
—
Turn-off delay time
Fall time
—
—
Note: 3. Pulse test
4. Marking is DN
2
2SK3349
Main Characteristics
Power vs. Temperature Derating
Maximum Safe Operation Area
5
200
150
100
50
2
1.0
0.5
0.2
10 µs
100 µs
1 ms
0.1
0.05
0.02
0.01
Operation in this area
is limited by RDS(on)
0.005
0.002
0.001
0.0005
2
5
0.05 0.1
1.0
10
50
0.2 0.5
20
(V)
0
50
100
150
200
Drain to Source Voltage
V
Ambient Temperature Ta ( °C)
DS
Value on the alumina ceramic boad.(12.5x20x0.7mm)
*Value on the alumina ceramic boad.(12.5x20x0.7mm)
Typical Output Characteristics
5 V
Typical Transfer Characteristics
0.2
0.2
Pulse Test
V
= 10 V
DS
Pulse Test
4 V
3 V
0.16
0.12
0.08
0.04
0.16
0.12
0.08
0.04
25 °C
Tc = –25 °C
75 °C
V
= 2V
(V)
GS
0
0
1
2
3
4
5
2
4
6
8
10
Gate to Source Voltage
V
GS
(V)
Drain to Source Voltage
V
DS
3
2SK3349
Drain to Source Satueation Voltage
vs. Gate to Source Voltage
Static Drain to Source on State
Resistance vs. Drain Current
50
1.0
0.8
0.6
0.4
0.2
Pulse Test
Pulse Test
20
10
2.5 V
5
V
GS
= 4V
2
1.0
0.5
10m A
25m A
I
= 50mA
8
D
V
6
0
2
4
10
0.01
0.02
0.05
I (A)
D
0.1
Drain Current
Gate to Source Voltage
(V)
GS
Forward Transfer Admittance
vs. Drain Current
Static Drain to Source on State
Resistance vs. Temperature
0.5
10
8
V
= 10 V
DS
Tc = –25 °C
Pulse Teat
0.2
0.1
I
= 25m A
D
25 °C
6
V
= 2.5 V
GS
75 °C
0.05
10mA
4
2
0.02
0.01
10,25,50m A
4 V
0
Pulse Test
120 160
0
–40
0.005
0.001
0.002
0.005
0.1
40
80
Drain Current I (A)
D
Case Temperature Tc (°C)
4
2SK3349
Typical Capacitance
vs. Drain to Source Voltage
Switching Characteristics
10
1.0
0.1
10000
1000
Ciss
Coss
t
r
Crss
t
f
t
d(off)
t
100
10
d(on)
V
= 2.5 V, V
= 10 V
V
GS
= 0
GS
PW = 5 µs, duty < 1 %
DD
f = 1 MHz
0.01
0.02
Drain Current
0.1
0.05
(A)
0
4
8
12
16
20
I
Drain to Source Voltage
V
(V)
D
DS
Reverse Drain Current
vs. Source to Drain Voltage
0.2
0.16
0.12
0.08
0.04
10 V
V
= 0,-5V
GS
5 V
Pulse Test
1.6
0
0.4
0.8
1.2
2.0
Source to Drain Voltage
V
(V)
SD
5
2SK3349
Switching Time Test Circuit
Waveforms
Vout
Monitor
Vin Monitor
90%
D.U.T.
R
L
10%
10%
90%
Vin
V
DD
Vin
4 V
Vout
10%
50
= 10 V
90%
td(off)
td(on)
t
f
tr
6
2SK3349
Package Dimensions
Unit: mm
+ 0.1
– 0.05
+ 0.1
– 0.05
0.15
0.3
0 ~ 0.1
+ 0.1
– 0.05
0.2
+ 0.1
– 0.0.5
0.5
0.5
1.0
.1.6
0.2
+ 0.1
– 0.1
+ 0.2
– 0.2
SMPAK
Hitachi Code
EIAJ
–
JEDEC
–
7
2SK3349
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL
NorthAmerica
Europe
: http:semiconductor.hitachi.com/
: http://www.hitachi-eu.com/hel/ecg
Asia (Singapore)
Asia (Taiwan)
: http://www.has.hitachi.com.sg/grp3/sicd/index.htm
: http://www.hitachi.com.tw/E/Product/SICD_Frame.htm
Asia (HongKong) : http://www.hitachi.com.hk/eng/bo/grp3/index.htm
Japan
: http://www.hitachi.co.jp/Sicd/indx.htm
For further information write to:
Hitachi Semiconductor
(America) Inc.
Hitachi Europe GmbH
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower, World Finance Centre,
Harbour City, Canton Road, Tsim Sha Tsui,
Kowloon, Hong Kong
Tel: <852> (2) 735 9218
Fax: <852> (2) 730 0281
Hitachi Asia Pte. Ltd.
16 Collyer Quay #20-00
Hitachi Tower
Singapore 049318
Tel: 535-2100
Electronic components Group
Dornacher Straße 3
D-85622 Feldkirchen, Munich
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
179 East Tasman Drive,
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
Fax: 535-1533
Hitachi Asia Ltd.
Taipei Branch Office
3F, Hung Kuo Building. No.167,
Tun-Hwa North Road, Taipei (105)
Tel: <886> (2) 2718-3666
Fax: <886> (2) 2718-8180
Telex: 40815 HITEC HX
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Copyright © Hitachi, Ltd., 1998. All rights reserved. Printed in Japan.
8
