2SK3391

型号：

2SK3391

描述：

硅N沟道MOS场效应管高频功率放大器[ Silicon N-Channel MOS FET UHF Power Amplifier ]

品牌：

RENESAS[ RENESAS TECHNOLOGY CORP ]

页数：

5 页

PDF大小：

63 K

下载PDF手册

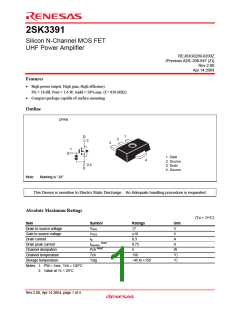

2SK3391
Silicon N-Channel MOS FET
UHF Power Amplifier
REJ03G0209-0200Z
(Previous ADE-208-847 (Z))
Rev.2.00
Apr.14.2004
Features
•
High power output, High gain, High efficiency
PG = 18 dB, Pout = 1.6 W, ηadd = 58% min. (f = 836 MHz)
Compact package capable of surface mounting
•
Outline
UPAK
1
D
2
3
3
1
G
1. Gate
4
2. Source
3. Drain
4. Source
2,4
S
Note:
Marking is “JX“.
This Device is sensitive to Electro Static Discharge. An Adequate handling procedure is requested.
Absolute Maximum Ratings
(Ta = 25°C)
Item
Symbol
VDSS
VGSS
ID
Ratings
Unit
V
Drain to source voltage
Gate to source voltage
Drain current
17
±10
V
0.3
A
Note1
Drain peak current
Channel dissipation
Channel temperature
Storage temperature
Notes: 1. PW < 1sec, Tch < 150°C
2. Value at Tc = 25°C
ID(pulse)
Pch Note2
Tch
0.75
A
5
W
°C
°C
150
Tstg
–45 to +150
Rev.2.00, Apr.14.2004, page 1 of 4
2SK3391
Electrical Characteristics
(Ta = 25°C)
Item
Symbol
IDSS
Min
Typ
Max
Unit
Test Conditions
Zero gate voltage drain
current
—
—
10
µA
VDS = 13.7 V, VGS = 0
Gate to source leak current
IGSS
—
—
—
±5
3.1
—
—
—
µA
V
VGS = ±10 V, VDS = 0
Gate to source cutoff voltage VGS(off)
2.3
—
ID = 1 mA, VDS = 13.7 V
Input capacitance
Output capacitance
Output Power
Ciss
Coss
Pout
10
3.5
—
pF
pF
W
VGS = 5 V, VDS = 0, f = 1 MHz
VDS = 13.7 V, VGS = 0, f = 1 MHz
VDS = 13.7 V, IDO = 0.15 A
—
1.6
f = 836 MHz, Pin = 25.1 mW
VDS = 13.7 V, IDO = 0.15 A
Added Efficiency
ηadd
58
—
—
%
f = 836 MHz, Pin = 25.1 mW
Main Characteristics
Maximum Channel Power
Dissipation Curve
Typical Output Characteristics
1.5
8
6
4
2
10 V
8 V
7 V
1
6 V
5 V
0.5
VGS = 4 V
Pulse Test
0
0
50
100
150
200
2
4
6
8
10
Drain to Source Voltage VDS
(V)
Case Temperature Tc (°C)
Forward Transfer Admittance vs.
Drain Current
Typical Transfer Characteristics
1
0.8
0.6
0.4
0.2
0.0
Tc = 75°C
25°C
Tc = - 25°C
0.3
0.1
- 25°C
25°C
0.03
0.01
75°C
0.003
0.001
VDS = 13.7 V
Pulse Test
VDS = 13.7 V
Pulse Test
2
3
4
5
6
7
0.001 0.003 0.01 0.03
0.1
0.3
1
Gate to Source Voltage VGS (V)
Drain Current ID (A)
Rev.2.00, Apr.14.2004, page 2 of 4
2SK3391
Drain to Source Saturation Voltage vs.
Drain Current
Gate to Source Cutoff Voltage vs.
Ambient Temperature
1
3.6
3.2
2.8
2.4
2.0
1.6
0.3
0.1
75°C
25°C
0.03
0.01
Tc = - 25°C
0.003
0.001
VGS = 10 V
Pulse Test
VDS = 13.7 V
- 25
0.01 0.03 0.1 0.3
1
3
10
0
25
50
75
100 125
Drain Current ID (A)
Ambient Temperature Ta (°C)
Input Capacitance vs.
Gate to Source Voltage
Output Capacitance vs.
Drain to Source Voltage
10.5
10
100
VGS = 0
f = 1 MHz
30
10
9.5
9
3
1
VDS = 0
f = 1 MHz
8.5
-10
0.1
0.3
1
3
10
30
- 6
6
10
- 2
2
Drain to Source Voltage VDS (V)
Gate to Source Voltage VGS (V)
Reverse Transfer Capacitance vs.
Drain to Gate Voltage
Output Power, Added Efficiency vs.
Input Power
2.5
2
100
80
60
40
20
0
10
3
VGS = 0
Pout
f = 1 MHz
ηadd
1.5
1
1
0.3
VDS = 13.7 V
0.5
0
I
DO = 0.15 A
f = 836 MHz
0.1
0.1
0.3
1
3
10
30
0
50
100
150
200
250
Input power Pin (mW)
Drain to Gate Voltage VDG (V)
Rev.2.00, Apr.14.2004, page 3 of 4
2SK3391
Package Dimensions
As of January, 2003
Unit: mm
4.5 ꢀ.ꢁ
ꢁ.8 Max
ꢁ.5 ꢀ.ꢁ
ꢀ.44 Max
(ꢁ.5)
φ
ꢁ
ꢀ.53 Max
ꢀ.48 Max
ꢀ.44 Max
ꢁ.5
ꢁ.5
3.ꢀ
Package Code
JEDEC
UPAK
—
JEITA
Mass (reference value)
Conforms
ꢀ.ꢀ5ꢀ g
Ordering Information
Part Name
Quantity
Shipping Container
2SK3391JX
1000
Taping
Note: For some grades, production may be terminated. Please contact the Renesas sales office to check the state of
production before ordering the product.
Rev.2.00, Apr.14.2004, page 4 of 4
Sales Strategic Planning Div. Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Keep safety first in your circuit designs!
1. Renesas Technology Corp. puts the maximum effort into making semiconductor products better and more reliable, but there is always the possibility that trouble
may occur with them. Trouble with semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with appropriate measures such as (i) placement of substitutive, auxiliary
circuits, (ii) use of nonflammable material or (iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the Renesas Technology Corp. product best suited to the customer's
application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas Technology Corp. or a third party.
2. Renesas Technology Corp. assumes no responsibility for any damage, or infringement of any third-party's rights, originating in the use of any product data,
diagrams, charts, programs, algorithms, or circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts, programs and algorithms represents information on products at the time of
publication of these materials, and are subject to change by Renesas Technology Corp. without notice due to product improvements or other reasons. It is
therefore recommended that customers contact Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor for the latest product
information before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corp. assumes no responsibility for any damage, liability, or other loss rising from these inaccuracies or errors.
Please also pay attention to information published by Renesas Technology Corp. by various means, including the Renesas Technology Corp. Semiconductor
home page (http://www.renesas.com).
4. When using any or all of the information contained in these materials, including product data, diagrams, charts, programs, and algorithms, please be sure to
evaluate all information as a total system before making a final decision on the applicability of the information and products. Renesas Technology Corp. assumes
no responsibility for any damage, liability or other loss resulting from the information contained herein.
5. Renesas Technology Corp. semiconductors are not designed or manufactured for use in a device or system that is used under circumstances in which human life
is potentially at stake. Please contact Renesas Technology Corp. or an authorized Renesas Technology Corp. product distributor when considering the use of a
product contained herein for any specific purposes, such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater
use.
6. The prior written approval of Renesas Technology Corp. is necessary to reprint or reproduce in whole or in part these materials.
7. If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a license from the Japanese government and
cannot be imported into a country other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the country of destination is prohibited.
8. Please contact Renesas Technology Corp. for further details on these materials or the products contained therein.
RENESAS SALES OFFICES
http://www.renesas.com
Renesas Technology America, Inc.
450 Holger Way, San Jose, CA 95134-1368, U.S.A
Tel: <1> (408) 382-7500 Fax: <1> (408) 382-7501
Renesas Technology Europe Limited.
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, United Kingdom
Tel: <44> (1628) 585 100, Fax: <44> (1628) 585 900
Renesas Technology Europe GmbH
Dornacher Str. 3, D-85622 Feldkirchen, Germany
Tel: <49> (89) 380 70 0, Fax: <49> (89) 929 30 11
Renesas Technology Hong Kong Ltd.
7/F., North Tower, World Finance Centre, Harbour City, Canton Road, Hong Kong
Tel: <852> 2265-6688, Fax: <852> 2375-6836
Renesas Technology Taiwan Co., Ltd.
FL 10, #99, Fu-Hsing N. Rd., Taipei, Taiwan
Tel: <886> (2) 2715-2888, Fax: <886> (2) 2713-2999
Renesas Technology (Shanghai) Co., Ltd.
26/F., Ruijin Building, No.205 Maoming Road (S), Shanghai 200020, China
Tel: <86> (21) 6472-1001, Fax: <86> (21) 6415-2952
Renesas Technology Singapore Pte. Ltd.
1, Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632
Tel: <65> 6213-0200, Fax: <65> 6278-8001
© 2004. Renesas Technology Corp., All rights reserved. Printed in Japan.
