2SK3402-Z

型号：

2SK3402-Z

描述：

切换N沟道功率MOSFET[ SWITCHING N-CHANNEL POWER MOSFET ]

品牌：

NEC[ NEC ]

页数：

8 页

PDF大小：

132 K

下载PDF手册

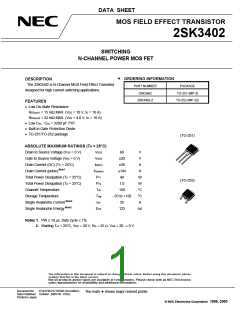

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK3402
SWITCHING
N-CHANNEL POWER MOS FET
★
ORDERING INFORMATION
PART NUMBER
DESCRIPTION
The 2SK3402 is N-Channel MOS Field Effect Transistor
designed for high current switching applications.
PACKAGE
2SK3402
TO-251 (MP-3)
TO-252 (MP-3Z)
2SK3402-Z
FEATURES
• Low On-State Resistance
RDS(on)1 = 15 mΩ MAX. (VGS = 10 V, ID = 18 A)
RDS(on)2 = 22 mΩ MAX. (VGS = 4.0 V, ID = 18 A)
• Low Ciss : Ciss = 3200 pF TYP.
• Built-in Gate Protection Diode
• TO-251/TO-252 package
(TO-251)
(TO-252)
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage (VGS = 0 V)
Gate to Source Voltage (VDS = 0 V)
Drain Current (DC) (TC = 25°C)
Drain Current (pulse) Note1
VDSS
VGSS
ID(DC)
ID(pulse)
PT1
60
V
±20
±36
V
A
±144
40
A
Total Power Dissipation (TC = 25°C)
Total Power Dissipation (TA = 25°C)
Channel Temperature
W
W
°C
°C
A
PT2
1.0
Tch
150
Storage Temperature
Tstg
–55 to +150
35
Single Avalanche Current Note2
Single Avalanche Energy Note2
IAS
EAS
123
mJ
Notes 1. PW ≤ 10 µs, Duty cycle ≤ 1%
2. Starting Tch = 25°C, VDD = 30 V, RG = 25 Ω, VGS = 20 → 0 V
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No.
D14473EJ3V1DS00 (3rd edition)
The mark ★ shows major revised points.
Date Published October 2004 NS CP(K)
Printed in Japan
1999, 2000
2SK3402
ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS
Zero Gate Voltage Drain Current
Gate Leakage Current
SYMBOL
TEST CONDITIONS
MIN. TYP. MAX. UNIT
IDSS
VDS = 60 V, VGS = 0 V
10
±10
2.5
µA
µA
V
IGSS
VGS = ±20 V, VDS = 0 V
VDS = 10 V, ID = 1 mA
VDS = 10 V, ID = 18 A
VGS = 10 V, ID = 18 A
VGS = 4.0 V, ID = 18 A
VDS = 10 V
Gate Cut-off Voltage
VGS(off)
| yfs |
RDS(on)1
RDS(on)2
Ciss
1.5
13
2.0
27
Note
Forward Transfer Admittance
S
Note
Drain to Source On-state Resistance
12
15
22
mΩ
mΩ
pF
pF
pF
ns
ns
ns
ns
nC
nC
nC
V
15
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-on Delay Time
Rise Time
3200
520
270
36
Coss
Crss
VGS = 0 V
f = 1 MHz
td(on)
tr
VDD = 30 V, ID = 18 A
VGS = 10 V
310
170
180
61
Turn-off Delay Time
Fall Time
td(off)
tf
RG = 10 Ω
Total Gate Charge
Gate to Source Charge
Gate to Drain Charge
QG
VDD = 48 V
QGS
QGD
VF(S-D)
trr
VGS = 10 V
8.2
17
ID = 36 A
Note
Body Diode Forward Voltage
IF = 36 A, VGS = 0 V
IF = 36 A, VGS = 0 V
di/dt = 100 A/µs
1.0
48
Reverse Recovery Time
Reverse Recovery Charge
ns
nC
Qrr
89
Note Pulsed
TEST CIRCUIT 1 AVALANCHE CAPABILITY
TEST CIRCUIT 2 SWITCHING TIME
D.U.T.
D.U.T.
L
RG
= 25 Ω
50 Ω
V
GS
R
L
90%
90%
PG.
GS = 20 → 0 V
V
GS
V
GS
10%
V
DD
Wave Form
0
RG
V
PG.
V
DD
90%
I
D
BVDSS
I
D
I
AS
V
0
GS
10%
10%
I
D
0
V
DS
Wave Form
I
D
t
d(on)
t
r
t
d(off)
t
f
V
DD
τ
t
on
t
off
τ = 1 s
µ
Duty Cycle ≤ 1%
Starting Tch
TEST CIRCUIT 3 GATE CHARGE
D.U.T.
I
G
= 2 mA
RL
PG.
V
DD
50 Ω
2
Data Sheet D14473EJ3V1DS
2SK3402
TYPICAL CHARACTERISTICS (TA = 25°C)
DERATING FACTOR OF FORWARD BIAS
SAFE OPERATING AREA
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
70
60
100
80
60
40
20
0
50
40
30
20
10
0
0
20
40 60
80 100 120 140 160
20 40
60
80 100 120 140 160
0
T
ch - Channel Temperature - ˚C
T
C
- Case Temperature - ˚C
FORWARD BIAS SAFE OPERATING AREA
1000
100
10
PW = 10
I
D(pulse)
µ
s
Limited
100
= 10 V)
GS
RDS(on)
µ
I
D(DC)
1 ms
s
10 ms
(at V
P
o
DC
w
er Dissipation
Limited
1
T
C
= 25˚C
Single Pulse
0.1
0.1
1
10
100
V
DS - Drain to Source Voltage - V
TRANSIENT THERMAL RESISTANCE vs. PULSE WIDTH
1000
Rth(ch-A) = 125˚C/W
100
10
Rth(ch-C) = 3.13˚C/W
1
0.1
0.01
Single Pulse
100 1000
µ
10
1 m
10 m
100 m
1
10
100
µ
PW - Pulse Width - s
3
Data Sheet D14473EJ3V1DS
2SK3402
DRAIN CURRENT vs.
FORWARD TRANSFER CHARACTERISTICS
Pulsed
DRAIN TO SOURCE VOLTAGE
200
160
100
10
Pulsed
T
A
= −55˚C
25˚C
120
80
75˚C
V
GS = 10 V
1
0.1
150˚C
4.0 V
40
0
V
DS = 10 V
5
0.01
0
1
2
3
4
6
1
2
3
4
VDS - Drain to Source Voltage - V
V
GS - Gate to Source Voltage - V
FORWARD TRANSFER ADMITTANCE vs.
DRAIN CURRENT
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
GATE TO SOURCE VOLTAGE
50
100
10
V
DS = 10 V
Pulsed
40
30
T
A
= 150˚C
75˚C
25˚C
1
0.1
−55˚C
20
10
0
I
D
= 18 A
0.01
0.01
0
2
4
6
8
10 12 14 16 18 20
0.1
I
1
10
100
VGS - Gate to Source Voltage - V
D
- Drain Current - A
DRAIN TO SOURCE ON-STATE
RESISTANCE vs. DRAIN CURRENT
GATE TO SOURCE THRESHOLD VOLTAGE vs.
CHANNEL TEMPERATURE
3.0
40
35
V
DS = 10 V
= 1 mA
Pulsed
I
D
2.5
30
2.0
1.5
1.0
25
20
15
10
5
V
GS = 4.0 V
10 V
100
0.5
0
0
1
10
1000
−50
0
50
100
150
ID - Drain Current - A
T
ch - Channel Temperature - ˚C
4
Data Sheet D14473EJ3V1DS
2SK3402
SOURCE TO DRAIN DIODE
FORWARD VOLTAGE
DRAIN TO SOURCE ON-STATE RESISTANCE vs.
CHANNEL TEMPERATURE
1000
100
10
30
Pulsed
Pulsed
25
20
V
GS = 4.0 V
10 V
V
GS = 10 V
15
10
V
GS = 0 V
1
5
0
I
D
= 18 A
150
ch - Channel Temperature - ˚C
0.1
0
0.5
1.0
1.5
−50
0
50
100
V
F(S-D) - Body Diode Forward Voltage - V
T
CAPACITANCE vs. DRAIN TO
SOURCE VOLTAGE
SWITCHING CHARACTERISTICS
10000
1000
1000
V
GS = 0 V
t
r
f = 1 MHz
t
f
Ciss
t
d(off)
100
10
1
t
d(on)
C
oss
rss
C
100
10
0.1
1
10
100
0.1
1
10
100
VDS - Drain to Source Voltage - V
I
D
- Drain Current - A
REVERSE RECOVERY TIME vs.
DRAIN CURRENT
DYNAMIC INPUT/OUTPUT CHARACTERISTICS
1000
100
16
80
70
µ
di/dt = 100 A/ s
GS = 0 V
V
14
12
10
V
DD = 48 V
30 V
60
50
V
GS
12 V
8
6
4
2
40
30
V
DS
10
1
20
10
0
I
D
= 36 A
0.1
1
10
100
0
10 20 30
40
50 60
70 80
I
F
- Drain Current - A
Q
G
- Gate Charge - nC
5
Data Sheet D14473EJ3V1DS
2SK3402
SINGLE AVALANCHE ENERGY
DERATING FACTOR
SINGLE AVALANCHE CURRENT vs.
INDUCTIVE LOAD
100
10
160
140
120
100
80
V
R
V
I
DD = 30 V
= 25 Ω
GS = 20 → 0 V
AS ≤ 35 A
G
I
AS = 35A
EAS
=
123
mJ
60
1
40
V
DD = 30V
= 25 Ω
GS = 20→0 V
20
R
G
V
0.1
0
10
µ
100
µ
1m
10m
25
50
75
100
125
150
Starting Tch - Starting Channel Temperature - ˚C
L - Inductive Load - H
6
Data Sheet D14473EJ3V1DS
2SK3402
PACKAGE DRAWINGS (Unit: mm)
1) TO-251 (MP-3)
2) TO-252 (MP-3Z)
2.3±0.2
0.5±0.1
6.5±0.2
6.5±0.2
2.3±0.2
5.0±0.2
4
5.0±0.2
0.5±0.1
4
1
2
3
1
2
3
1.1±0.2
0.9
0.8
1.1±0.2
MAX. MAX.
2.3 2.3
+0.2
0.5-0.1
+0.2
0.5-0.1
0.8
1. Gate
2.3 2.3
2. Drain
3. Source
4. Fin (Drain)
1.Gate
2.Drain
3.Source
4.Fin (Drain)
EQUIVALENT CIRCUIT
Drain
Body
Diode
Gate
Gate
Protection
Diode
Source
Remark The diode connected between the gate and source of the transistor serves as a protector against ESD. When this
device actually used, an additional protection circuit is externally required if a voltage exceeding the rated voltage
may be applied to this device.
7
Data Sheet D14473EJ3V1DS
2SK3402
•
The information in this document is current as of October, 2004. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC Electronics data
sheets or data books, etc., for the most up-to-date specifications of NEC Electronics products. Not
all products and/or types are available in every country. Please check with an NEC Electronics sales
representative for availability and additional information.
• No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
•
NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
•
• While NEC Electronics endeavors to enhance the quality, reliability and safety of NEC Electronics products,
customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To
minimize risks of damage to property or injury (including death) to persons arising from defects in NEC
Electronics products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment and anti-failure features.
• NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customer-
designated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1)
"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2)
"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E 02. 11-1
厂商 型号 描述 页数 下载

PANASONIC

 		2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス － 小信号FET － 接合形FET ] 3 页

ETC

 		2SK0065P 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 40uA的我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

 		2SK0065Q 晶体管| JFET | N沟道| 12V V（ BR ） DSS | 150UA我（ DSS ） | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

 		2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

 		2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

 		2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

 		2SK0198(2SK198) 2SK0198 （ 2SK198 ） - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

 		2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

 		2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.179568s
