2SK3547

型号:

2SK3547

描述:

硅N沟道MOSFET[ Silicon n-channel MOSFET ]

品牌:

PANASONIC[ PANASONIC ]

页数:

3 页

PDF大小:

50 K

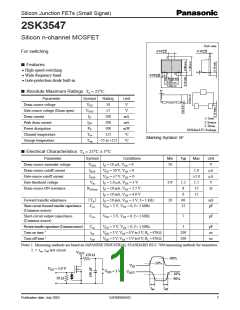

Silicon Junction FETs (Small Signal)
2SK3547
Silicon n-channel MOSFET
Unit: mm
+0.05
–0.02
+0.05
0.33
0.10
–0.02
For switching
3
Features
High-speed switching
Wide frequency band
Gate-protection diode built-in
+0.05
–0.02
1
2
0.23
(0.40)(0.40)
0.80±0.05
1.20±0.05
5˚
Absolute Maximum Ratings Ta = 25°C
Parameter
Drain-source voltage
Symbol
VDS
VGSO
ID
Rating
50
Unit
V
Gate-source voltage (Drain open)
Drain current
±7
V
100
mA
mA
mW
°C
1: Gate
2: Source
3: Drain
Peak drain current
IDP
200
Power dissipation
PD
100
SSSMini3-F1 Package
Channel temperature
Storage temperature
Tch
125
Marking Symbol: 5F
Tstg
55 to +125
°C
Electrical Characteristics Ta = 25°C ± 3°C
Parameter
Drain-source surrender voltage
Drain-source cutoff current
Gate-source cutoff current
Gate threshold voltage
Symbol
VDSS
IDSS
Conditions
Min
Typ
Max
Unit
V
ID = 10 µA, VGS = 0
50
VDS = 50 V, VGS = 0
VGS = ±7 V, VDS = 0
ID = 1.0 µA, VDS = 3 V
1.0
±5.0
1.5
15
µA
µA
V
IGSS
Vth
0.9
20
1.2
8
Drain-source ON resistance
RDS(on) ID = 10 mA, VGS = 2.5 V
ID = 10 mA, VGS = 4.0 V
6
12
Forward transfer admittance
Yfs
ID = 10 mA, VDS = 3 V, f = 1 kHz
60
12
mS
pF
Short-circuit forward transfer capacitance
(Common-source)
Ciss
VDS = 3 V, VGS = 0, f = 1 MHz
Short-circuit output capacitance
(Common-source)
Coss
VDS = 3 V, VGS = 0, f = 1 MHz
7
pF
Reverse transfer capacitance (Common-source)
Turn-on time *
Crss
ton
VDS = 3 V, VGS = 0, f = 1 MHz
3
pF
ns
ns
VDD = 3 V, VGS = 0 V to 3 V, RL = 470 Ω
VDD = 3 V, VGS = 3 V to 0 V, RL = 470 Ω
200
200
Turn-off time *
toff
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. : ton, toff test circuit
*
V
OUT 470 Ω
90%
10%
VIN
VGS = 3.0 V
VDD = 3 V
VOUT
10%
90%
50 Ω
ton
toff
Publication date: July 2003
SJF00038AED
1
2SK3547
PD
Ta
ID
VDS
ID
VGS
250
200
150
100
50
70
60
50
40
30
20
10
0
120
100
80
Ta = 25°C
VDS = 3 V
Ta = −25°C
25°C
VGS = 2.0 V
1.9 V
1.8 V
60
1.7 V
75°C
40
1.6 V
1.5 V
20
0
0
0
0
0
0.5
1.0
1.5
2.0
2.5
3.0
2
4
6
8
10
12
40
80
120
Gate-source voltage VGS (V)
Drain-source voltage VDS (V)
Ambient temperature Ta (°C)
Yfs
VGS
RDS(on)
VGS
VIN
IO
60
50
40
30
20
10
0
0.16
0.14
0.12
0.10
0.08
0.06
0.04
0.02
0
10
ID = 10 mA
VDS = 3 V
f = 1 kHz
Ta = 25°C
VO = 5 V
Ta = 25°C
25°C
Ta = 75°C
25°C
1
0
2
4
6
0
1
2
3
1
10
Output current IO (mA)
100
Gate-source voltage VGS (V)
Gate-source voltage VGS (V)
SJF00038AED
2
Request for your special attention and precautions in using the technical information
and semiconductors described in this material
(1) An export permit needs to be obtained from the competent authorities of the Japanese Government
if any of the products or technologies described in this material and controlled under the "Foreign
Exchange and Foreign Trade Law" is to be exported or taken out of Japan.
(2) The technical information described in this material is limited to showing representative characteris-
tics and applied circuits examples of the products. It neither warrants non-infringement of intellec-
tual property right or any other rights owned by our company or a third party, nor grants any license.
(3) We are not liable for the infringement of rights owned by a third party arising out of the use of the
product or technologies as described in this material.
(4) The products described in this material are intended to be used for standard applications or general
electronic equipment (such as office equipment, communications equipment, measuring instru-
ments and household appliances).
Consult our sales staff in advance for information on the following applications:
Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment,
combustion equipment, life support systems and safety devices) in which exceptional quality and
reliability are required, or if the failure or malfunction of the products may directly jeopardize life or
harm the human body.
Any applications other than the standard applications intended.
(5) The products and product specifications described in this material are subject to change without
notice for modification and/or improvement. At the final stage of your design, purchasing, or use of
the products, therefore, ask for the most up-to-date Product Standards in advance to make sure that
the latest specifications satisfy your requirements.
(6) When designing your equipment, comply with the guaranteed values, in particular those of maxi-
mum rating, the range of operating power supply voltage, and heat radiation characteristics. Other-
wise, we will not be liable for any defect which may arise later in your equipment.
Even when the products are used within the guaranteed values, take into the consideration of
incidence of break down and failure mode, possible to occur to semiconductor products. Measures
on the systems such as redundant design, arresting the spread of fire or preventing glitch are
recommended in order to prevent physical injury, fire, social damages, for example, by using the
products.
(7) When using products for which damp-proof packing is required, observe the conditions (including
shelf life and amount of time let standing of unsealed items) agreed upon when specification sheets
are individually exchanged.
(8) This material may be not reprinted or reproduced whether wholly or partially, without the prior written
permission of Matsushita Electric Industrial Co., Ltd.
2002 JUL
