图片源于供应商或网络,实物可能存在差异,请以实物为准

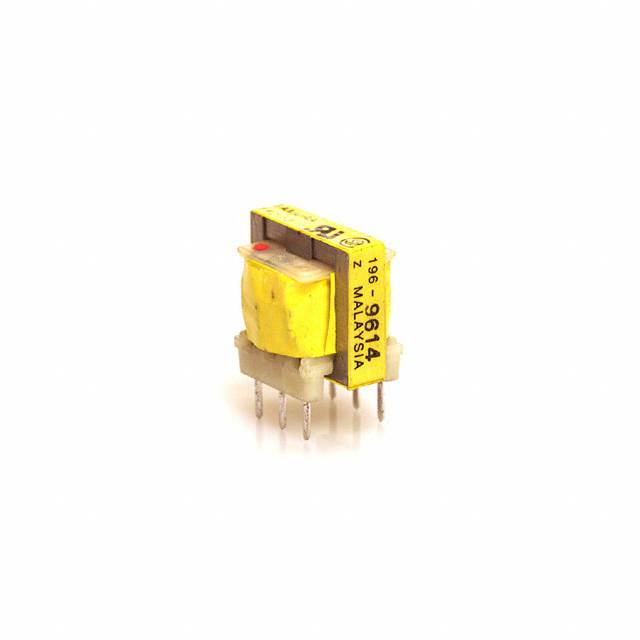

TTC-10

购买数量

总价金额：￥ 0

样品申购

详细描述：600 初级侧阻抗欧姆 600/600 次级侧阻抗欧姆 1：0.736 音频变压器 300Hz ~ 3.5kHz 通孔

产品参数

产品属性	属性值
DC 电阻 (DCR) - 初级侧	57 欧姆
DC 电阻 (DCR) - 次级侧	42 欧姆
制造商	Tamura
功率水平	7dB
包装	散装
匝数比 - 初级:次级	1:0.736
变压器类型	数据、音频耦合
回波损耗	-
大小、尺寸	0.799" 长 x 0.689" 宽（20.30mm x 17.50mm）
安装类型	通孔
工作温度	-
插损	1.2dB 最小值 @ 1kHz
电压 - 隔离	1500VRMS @ 1 分钟
端接样式	PC 引脚
系列	TTC
认证机构	CSA-C22.2 No. 66-M1988，UL1459
重量	-
阻抗 - 初级侧（欧姆）	600
阻抗 - 次级侧（欧姆）	600、600
零件状态	停产
频率响应	±0.5dB
频率范围	300Hz ~ 3.5kHz
高度 - 安装（最大值）	0.752"（19.10mm）

产品概述

暂无产品概述
