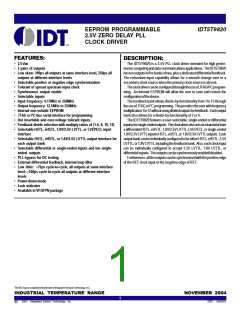

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

IDT5T9820

EEPROM PROGRAMMABLE

2.5V ZERO DELAY PLL

CLOCK DRIVER

FEATURES:

DESCRIPTION:

• 2.5VDD

The IDT5T9820 is a 2.5V PLL clock driver intended for high perfor-

mancecomputinganddata-communicationsapplications. TheIDT5T9820

hastenoutputsinfivebanksoftwo,plusadedicateddifferentialfeedback.

The redundant input capability allows for a smooth change over to a

secondary clock source when the primary clock source is absent.

TheclockdrivercanbeconfiguredthroughtheuseofJTAG/I²Cprogram-

ming. An internal EEPROM will allow the user to save and restore the

configurationofthedevice.

• 5 pairs of outputs

• Low skew: 100ps all outputs at same interface level, 250ps all

outputs at different interface levels

• Selectable positive or negative edge synchronization

• Tolerant of spread spectrum input clock

• Synchronous output enable

• Selectable inputs

• Input frequency: 4.17MHz to 250MHz

• Output frequency: 12.5MHz to 250MHz

• Internal non-volatile EEPROM

The feedbackbankallows divide-by-functionalityfrom1to12through

theuseofJTAGorI Cprogramming. Thisprovidestheuserwithfrequency

multiplication1to12withoutusingdividedoutputsforfeedback. Eachoutput

bank also allows for a divide-by functionality of 2 or 4.

2

• JTAG or I C bus serial interface for programming

• Hot insertable and over-voltage tolerant inputs

• Feedback divide selection with multiply ratios of (1-6, 8, 10, 12)

• Selectable HSTL, eHSTL, 1.8V/2.5V LVTTL, or LVEPECL input

interface

• Selectable HSTL, eHSTL, or 1.8V/2.5V LVTTL output interface for

each output bank

• Selectable differential or single-ended inputs and ten single-

ended outputs

• PLL bypass for DC testing

• External differential feedback, internal loop filter

• Low Jitter: <75ps cycle-to-cycle, all outputs at same interface

level: <100ps cycle-to-cycle all outputs at different interface

levels

The IDT5T9820 features a user-selectable, single-ended or differential

inputtotensingle-endedoutputs. Theclockdriveralsoactsasatranslatorfrom

a differential HSTL, eHSTL, 1.8V/2.5V LVTTL, LVEPECL, or single-ended

1.8V/2.5VLVTTLinputtoHSTL,eHSTL,or1.8V/2.5VLVTTLoutputs. Each

outputbankcanbe individuallyconfiguredtobe eitherHSTL, eHSTL, 2.5V

LVTTL,or1.8VLVTTL,includingthefeedbackbank. Also,eachclockinput

can be individually configured to accept 2.5V LVTTL, 1.8V LVTTL, or

differentialsignals. Theoutputscanbesynchronouslyenabled/disabled.

Furthermore,alltheoutputscanbesynchronizedwiththepositiveedge

of the REF clock input or the negative edge of REF.

• Power-down mode

• Lock indicator

• Available in VFQFPN package

TheIDTlogoisaregisteredtrademarkofIntegratedDeviceTechnology,Inc.

INDUSTRIAL TEMPERATURE RANGE

NOVEMBER 2004

1

c

2004 Integrated Device Technology, Inc.

DSC - 6503/24

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

FUNCTIONALBLOCKDIAGRAM

(TDO)

TDO/ADDR1

(ADDR1)

TMS/ADDR0

TCLK/SCLK

TDI/SDA

JTAG/I2C

PROGRAMMING

SELECTION

AND CONTROL

LOGIC

1sOE

VDDQ1

TRST/SEL

1Q0

Divide

Select

1Q1

2sOE

EEPROM

VDDQ2

2Q0

Divide

Select

2Q1

PD

3sOE

OMODE

VDDQ3

FB

3Q0

/N

Divide

Select

FB/V^REF2

0

1

PLL

3Q1

REF0

0

1

REF0/V^REF0

4sOE

VDDQ4

REF1

4Q0

REF1/V^REF1

Divide

Select

4Q1

5sOE

VDDQ5

REF_SEL

PLL_EN

5Q0

Divide

Select

5Q1

LOCK(φ)

VDDQFB

QFB

Divide

Select

QFB

2

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

PINCONFIGURATION

TRST/SEL

OMODE

V^DD

TDI/SDA

TCLK/SCLK

V^DD

51

50

49

48

47

46

1

2

3sOE

3

V^DDQ3

4

V^DDQ3

REF_SEL

REF1

5

3Q0

6

45

3Q1

V^DD

VDD

REF¹/VREF1

REF0

7

44

43

42

8

REF0/VREF0

GND

9

FB

10

11

12

13

14

15

16

17

VDD

4Q1

FB/V^REF2

41

40

39

V^DD

VDD

⁴Q0

38

VDDQ4

NC

37

36

35

V^DDQ4

4sOE

V^DD

NC

VFQFPN

TOP VIEW

3

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

ABSOLUTEMAXIMUMRATINGS⁽¹⁾

CAPACITANCE(TA = +25°C, f = 1MHz, VIN = 0V)

Symbol

Description

Max

–0.5 to +3.6

–0.5 to VDDQ +0.5

–0.5 to +3.6

150

Unit

V

Parameter Description

Min.

2.5

Typ.

3

Max.

3.5

7

Unit

pF

VDDQN, VDD Power Supply Voltage⁽²⁾

CIN

InputCapacitance

OutputCapacitance

VI

Input Voltage

V

COUT

—

6.3

pF

VO

Output Voltage

V

NOTE:

1. Capacitance applies to all inputs except JTAG/I²C signals, SEL, ADDR0, and ADDR1.

VREF

TJ

Reference Voltage⁽³⁾

Junction Temperature

Storage Temperature

V

°C

TSTG

–65 to +165

NOTES:

1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause

permanent damage to the device. This is a stress rating only and functional operation

of the device at these or any other conditions above those indicated in the operational

sections of this specification is not implied. Exposure to absolute maximum rating

conditions for extended periods may affect reliability.

2. VDDQN and VDD internally operate independently. No power sequencing requirements

need to be met.

3. Not to exceed 3.6V.

RECOMMENDEDOPERATINGRANGE

Symbol

Description

Min.

–40

2.3

Typ.

+25

2.5

Max.

+85

2.7

Unit

°C

V

TA

AmbientOperatingTemperature

InternalPowerSupplyVoltage

(1)

VDD

HSTL Output Power Supply Voltage

Extended HSTL and 1.8V LVTTL Output Power Supply Voltage

1.4

1.65

1.5

1.8

1.6

1.95

V

(1)

VDDQN

2.5VLVTTLOutputPowerSupplyVoltage

TerminationVoltage

VDD

V

VT

VDDQN / 2

NOTE:

1. All power supplies should operate in tandem. If VDD or VDDQN is at maximum, then VDDQN or VDD (respectively) should be at maximum, and vice-versa.

PINDESCRIPTION

Symbol

I/O

Type

Description

REF[1:0]

I

Adjustable⁽¹⁾Clockinput. REF[1:0] isthe"true"sideofthedifferentialclockinput. Ifoperatinginsingle-endedmode, REF[1:0] istheclockinput.

Adjustable⁽¹⁾

REF^[1:0]/

V^REF[1:0]

Complementaryclockinput. REF[1:0]/VREF[1:0] isthe"complementary"sideofREF[1:0] iftheinputisindifferentialmode. Ifoperating

insingle-endedmode,REF[1:0]/VREF[1:0] isleftfloating. Forsingle-endedoperationindifferentialmode,REF[1:0]/VREF[1:0]shouldbeset

tothedesiredtogglevoltageforREF[1:0]:

2.5VLVTTL

1.8VLVTTL,eHSTL

HSTL

V^REF=1250mV(SSTL2compatible)

V^REF= 900mV

V^REF= 750mV

LVEPECL

VREF = 1082mV

FB

I

Adjustable⁽¹⁾Clockinput. FBisthe"true"sideofthedifferentialfeedbackclockinput. Ifoperatinginsingle-endedmode,FBisthefeedbackclockinput.

FB/V^REF2

Adjustable⁽¹⁾Complementaryfeedbackclockinput. FB/VREF2isthe"complementary"sideofFBiftheinputisindifferentialmode. Ifoperatinginsingle-

endedmode,FB/VREF2isleftfloating. Forsingle-endedoperationindifferentialmode, FB/VREF2shouldbesettothedesiredtogglevoltage

for FB:

2.5VLVTTL

1.8VLVTTL,eHSTL

HSTL

V^REF=1250mV(SSTL2compatible)

V^REF= 900mV

V^REF= 750mV

LVEPECL

V^REF= 1082mV

NOTE:

1. Inputs are capable of translating the following interface standards. User can select between:

Single-ended 2.5V LVTTL levels

Single-ended 1.8V LVTTL levels

or

Differential 2.5V/1.8V LVTTL levels

Differential HSTL and eHSTL levels

Differential LVEPECL levels

4

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

PINDESCRIPTION,CONTINUED

Symbol

REF_SEL

nsOE

I/O

Type

LVTTL⁽¹⁾

Description

I

Reference clock select. When LOW, selects REF0 and REF0/VREF0. When HIGH, selects REF1 and REF1/VREF1.

Synchronousoutputenable/disable. Eachoutputs'senable/disablestatecanbecontrolledeitherwiththensOEpinorthroughJTAG

or I²C programming, corresponding bits 52 - 56. When the nsOE is HIGH or the corresponding Bit (52 - 56) is 1, the output will be

synchronouslydisabled.WhenthensOEisLOWandthecorrespondingBit(52-56)is0,theoutputwillbeenabled. (SeeJTAG/I²C

SerialConfigurationtable.)

QFB

O

I

Adjustable⁽²⁾Feedbackclockoutput

Adjustable⁽²⁾Complementaryfeedbackclockoutput

Adjustable⁽²⁾Fivebanksoftwooutputs

nQ[1:0]

PLL_EN

LVTTL⁽¹⁾

PLL enable/disable control. The PLL's enable/disable state can be controlled either with the PLL_EN pin or through JTAG or I²C

programming,correspondingBit57. WhenPLL_ENisHIGHorthecorrespondingBit57is1,thePLLisdisabledandREF[1:0] goes

to all outputs. When PLL_EN is LOW and the corresponding Bit 57 is 0, the PLL will be active.

PD

I

LVTTL⁽¹⁾

Power down control. When PD is LOW, the inputs are disabled and internal switching is stopped. The OMODE pin in conjunction

withthecorrespondingBit59selectswhethertheoutputsaregatedLOW/HIGHortri-stated. WhenOMODEisHIGHorBit59is1,

Bit58determinesthelevelatwhichtheoutputsstop. WhenBit58is0/1,thenQ[1:0] andQFBarestoppedinaHIGH/LOWstate,while

theQFBisstoppedinaLOW/HIGHstate. WhenOMODEisLOWandBit59is0,theoutputsaretri-stated. SetPDHIGHfornormal

operation. (SeeJTAG/I²CSerialConfigurationtable.)

LOCK

O

I

LVTTL

PLL lock indication signal. HIGH indicates lock. LOW indicates that the PLL is not locked and outputs may not be synchronized to

theinputs. Theoutputwillbe2.5VLVTTL. (FormoreinformationonapplicationspecificuseoftheLOCKpin, pleaseseeAN237.)

OMODE

LVTTL⁽¹⁾

Outputdisablecontrol. UsedinconjunctionwithnsOEandPD. Theoutputs'disablestatecanbecontrolledeitherwiththeOMODE

pinorthroughJTAGorI²Cprogramming,correspondingBit59.WhenOMODEisHIGHorthecorrespondingBit59is1,theoutputs'

disable state will be gated and Bit 58 will determine the level at which the outputs stop. When Bit 58 is 0/1, the nQ[1:0] andQFBare

stopped in a HIGH/LOW state, while the QFB is stopped in a LOW/HIGH state. When OMODE is LOW and its corresponding bit

59is0,theoutputsdisablestatewillbethetri-state.(SeeJTAG/I²CSerialConfigurationtable.)

TRST/SEL

I/I

LVTTL/

TRST- Active LOW input to asynchronously reset the JTAG boundary-scan circuit.

LVTTL^(4,5)SEL-Selectprogramminginterfacecontrolforthedual-functionpins. WhenHIGH,thedual-functionpinsaresetforJTAGprogramming.

WhenLOW,thedual-functionpinsaresetforI²CprogrammingandtheJTAGinterfaceisasynchronouslyplacedintheTestLogicReset

state.

TDO/ADDR1 O/I

TMS/ADDR0 I/I

LVTTL/

TDO-Serialdataoutputpinforinstructionsaswellastestandprogrammingdata. DataisshiftedinonthefallingedgeofTCLK. The

pinistri-statedifdataisnotbeingshiftedoutofthedevice.

ADDR1-UsedtodefineauniqueI²Caddressforthisdevice. OnlyforI²Cprogramming. (SeeJTAG/I²CSerialInterfaceDescription.)

3-Level^(3,4,5)

LVTTL/

TMS-InputpinthatprovidesthecontrolsignaltodeterminethetransitionsoftheJTAGTAPcontrollerstatemachine. Transitionswithin

thestatemachineoccurattherisingedgeofTCLK. Therefore,TMSmustbesetupbeforetherisingedgeofTCLK. TMSisevaluated

ontherisingedgeTCLK.

3-Level^(3,4,5)

ADDR0-UsedtodefineauniqueI²Caddressforthisdevice. OnlyforI²Cprogramming. (SeeJTAG/I²CSerialInterfaceDescription.)

TCLK/SCLK I/I

LVTTL/

TCLK - The clock input to the JTAG BST circuitry

LVTTL^(4,5)SCLK - Serial clock for I²C programming

TDI/SDA

I/I

LVTTL/

TDI-Serialinputpinforinstructionsaswellastestandprogrammingdata. DataisshiftedinontherisingedgeofTCLK.

LVTTL^(4,5)SDA - Serial data for I²C programming. (See JTAG/I²C Serial Description table.)

VDDQN

PWR

Power supply for each pair of outputs. When using 2.5V LVTTL, 1.8V LVTTL, HSTL, or eHSTL outputs, VDDQN should be set to its

correspondingoutputs(seeFrontBlockDiagram). Whenusing2.5VLVTTLoutputs,VDDQNshouldbeconnectedtoVDD.

VDD

PWR

Powersupplyforphaselockedloop,lockoutput,inputs,andotherinternalcircuitry

Ground

GND

NOTES:

1. Pins listed as LVTTL inputs can be configured to accept 1.8V or 2.5V signals through the use of the I²C/JTAG programming, bit 61. (See JTAG/I²C Serial Description.)

2. Outputs are user selectable to drive 2.5V, 1.8V LVTTL, eHSTL, or HSTL interface levels when used with the appropriate VDDQN voltage.

3. 3-level inputs are static inputs and must be tied to VDD or GND or left floating. These inputs are not hot-insertable or over voltage tolerant.

4. The JTAG (TDO, TMS, TCLK, and TDI) and I²C (ADDR1, ADDR0, SCLK, and SDA) signals share the same pins (dual-function pins) for which the TRST/SEL pin will select between

the two programming interfaces.

5. JTAG and I²C pins accept 2.5V signals. The JTAG input pins (TMS, TCLK, TDI, TRST) will also accept 1.8V signals.

5

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

JTAG/ I²C SERIAL DESCRIPTION

Bit

Description

95:62 Reserved Bits. Set bits 95:62 to '0'.

61

Input Interface Selection for control pins (REF_SEL, PD, PLL_EN, OMODE, nsOE ). When bit 61 is ‘1’, the control pins are 2.5V LVTTL. When bit 61 is ‘0’,

thecontrolpinsare1.8VLVTTL.

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

NOTE:

VCO Frequency Range. When ‘0’, range is 50MHz-125MHz. When ‘1’, range is 100MHz-250MHz.

Output’sDisableState. SeecorrespondingexternalpinOMODEinPinDescriptiontable.

Positive/NegativeEdgeControl. When‘0’/’1’, theoutputsaresynchronizedwiththenegative/positiveedgeofthereferenceclock.

PLL Enable/Disable. SeecorrespondingexternalpinPLL_ENinPinDescriptiontable.⁽¹⁾

OutputEnable/Disablefor1Q[1:0] outputs. Seecorrespondingexternalpin1sOEinPinDescriptiontable.

OutputEnable/Disablefor2Q[1:0] outputs. Seecorrespondingexternalpin2sOEinPinDescriptiontable.

OutputEnable/Disablefor3Q[1:0] outputs. Seecorrespondingexternalpin3sOEinPinDescriptiontable.

OutputEnable/Disablefor4Q[1:0] outputs. Seecorrespondingexternalpin4sOEinPinDescriptiontable.

OutputEnable/Disablefor5Q[1:0] outputs. Seecorrespondingexternalpin5sOEinPinDescriptiontable.

FB Divide-by-N selection

Output drive strength selection for 2.5V LVTTL, 1.8V LVTTL, or HSTL/eHSTL on bank 1

Output drive strength selection for 2.5V LVTTL, 1.8V LVTTL, or HSTL/eHSTL on bank 2

Output drive strength selection for 2.5V LVTTL, 1.8V LVTTL, or HSTL/eHSTL on bank 3

Output drive strength selection for 2.5V LVTTL, 1.8V LVTTL, or HSTL/eHSTL on bank 4

Output drive strength selection for 2.5V LVTTL, 1.8V LVTTL, or HSTL/eHSTL on bank 5

FB output drive strength selection for 2.5V LVTTL, 1.8V LVTTL, or HSTL/eHSTL on FB bank

REF0Inputinterfaceselectionfor2.5VLVTTL,1.8VLVTTL,orDifferential

REF1inputinterfaceselectionfor2.5VLVTTL,1.8VLVTTL,orDifferential

FBinputinterfaceselectionfor2.5VLVTTL,1.8VLVTTL,orDifferential

Divideselectionforbank1

Divideselectionforbank2

1. Only for EEPROM operation; bit 57 must be set to 0 to enable the PLL for proper EEPROM operation. The EEPROM access times are based on the VCO frequency of the PLL

(refer to the EEPROM Operation section).

6

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

JTAG/ I²C SERIAL DESCRIPTION, CONT.

Bit

20

19

18

17

16

15

14

13

12

11

10

9

Description

Divideselectionforbank2

Divideselectionforbank3

Divideselectionforbank4

Divideselectionforbank5

Divide selection for FB bank

8

7

6

5

4

3

2

1

0

JTAG/ I²C SERIAL CONFIGURATIONS:

POWERDOWN

JTAG/ I²C SERIAL CONFIGURATIONS:

OUTPUTENABLE/DISABLE

PD

H

Bit 59 (OMODE)

X(X)

Output

NormalOperation

Tri-Sate

Bit 59 (OMODE)

X(X)

Bit 56-52 (nsOE)

0 and (L)

Output

NormalOperation

Tri-Sate

L

0 and (L)

1 or (H)

0 and (L)

1 or (H)

L

Gated⁽¹⁾

1 or (H)

Gated⁽¹⁾

NOTE:

1. OMODE and its corresponding Bit 59 selects whether the outputs are gated LOW/

HIGH or tri-stated. When OMODE is HIGH or the corresponding Bit 59 is 1, the outputs'

disable state will be gated. Bit 58 determines the level at which the outputs stop.

When Bit 58 is 0/ 1, the nQ[1:0] and QFB are stopped in a HIGH/LOW state, while the

QFB is stopped in a LOW/HIGH state. When OMODE is LOW and its corresponding

Bit 59 is 0, the outputs' disable state will be the tri-state.

1. OMODE and its corresponding Bit 59 selects whether the outputs are gated LOW/

HIGH or tri-stated. When OMODE is HIGH or the corresponding Bit 59 is 1, the outputs'

disable state will be gated. Bit 58 determines the level at which the outputs stop.

When Bit 58 is 0/ 1, the nQ[1:0] and QFB are stopped in a HIGH/LOW state, while the

QFB is stopped in a LOW/HIGH state. When OMODE is LOW and its corresponding

Bit 59 is 0, the outputs' disable state will be the tri-state.

JTAG/ I²C SERIAL CONFIGURATIONS:

OUTPUTDRIVESTRENGTH

SELECTION⁽¹⁾

JTAG/ I²C SERIAL CONFIGURATIONS:

CLOCKINPUTINTERFACESELEC-

TION⁽¹⁾

Bit 37, 39, 41,

Bit 36, 38, 40,

Bit 31, 33, 35

Bit 30, 32, 34

Interface

Differential⁽²⁾

2.5VLVTTL

1.8VLVTTL

43, 45, 47

42, 44, 46

Interface

2.5VLVTTL

1.8VLVTTL

HSTL/eHSTL

0

1

0

1

0

1

0

1

0

NOTES:

1. All other states that are undefined in the table will be reserved.

2. Differential input interface for HSTL/eHSTL, LVEPECL (2.5V), and 2.5V/1.8V LVTTL.

NOTE:

1. All other states that are undefined in the table will be reserved.

7

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

JTAG/ I²C SERIAL CONFIGURATIONS: SKEW OR FREQUENCY SELECT⁽¹⁾

Bit 4, 9, 14,

19, 24, 29

Bit 3, 8, 13,

18, 23, 28

Bit 2, 7, 12,

17, 22, 27

Bit 1, 6, 11,

16, 21, 26

Bit 0, 5, 10,

15, 20, 25

Output Skew

0

1

0

1

0

1

0

Zero Skew

Inverted

Divide-by-2

Divide-by-4

NOTE:

1. All other states that are undefined in the table will result in zero skew.

JTAG/ I²C SERIAL CONFIGURATIONS: FB DIVIDE-BY-N⁽¹⁾

Bit51

Bit50

Bit49

Bit48

Divide-by-N

Permitted Output Divide-by-N connected to FB and FB/VREF2 ⁽²⁾

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

2

1, 2, 4

1, 2

1

3

4

1, 2

1

5

6

8

10

12

1

NOTES:

1. All other states that are undefined in the table will be reserved.

2. Permissible output division ratios connected to FB and FB/VREF2. The frequencies of the REF[1:0] and REF [1:0]/VREF[1:0] inputs will be Fvco/N when the parts are

configured for frequency multiplication by using an undivided output for FB and FB/VREF2 and setting N (N = 1-6, 8, 10, 12).

INPUT/OUTPUTSELECTION⁽¹⁾

EXTERNALDIFFERENTIALFEEDBACK

Input

Output⁽²⁾

By providing a dedicated external differential feedback, the IDT5T9820

gives users flexibility with regard to divide selection. The FB and FB/

VREF2 signals are compared with the input REF[1:0] and REF[1:0]/VREF[1:0]

signals at the phase detector in order to drive the VCO. Phase differ-

ences cause the VCO of the PLL to adjust upwards or downwards

accordingly.

2.5V LVTTL SE

1.8V LVTTL SE

2.5V LVTTL DSE

1.8V LVTTL DSE

LVEPECL DSE

eHSTL DSE

2.5VLVTTL,

1.8VLVTTL,

HSTL,

eHSTL

An internal loop filter moderates the response of the VCO to the

phase detector. The loop filter transfer function has been chosen to

provide minimal jitter (or frequency variation) while still providing accu-

rate responses to input frequency changes.

HSTL DSE

2.5V LVTTL DIF

1.8V LVTTL DIF

LVEPECL DIF

eHSTL DIF

MASTERRESETFUNCTIONALITY

HSTL DIF

NOTES:

The IDT5T9820 performs a reset of the internal output divide circuitry

when all five output banks are disabled by toggling the nSOE pins

HIGH. When one or more banks of outputs are enabled by toggling the

nSOE LOW (if the corresponding nSOE programming bits are also set

LOW), the divide circuitry starts again from a known state. In the case

that the FB output is selected for divide-by-2 or divide-by-4, the FB

output will stop toggling while all five nSOE pins and bits are LOW, and

loss of lock will occur.

1. The INPUT/OUTPUT SELECTION Table describes the total possible combinations

of input and output interfaces. Single-Ended (SE) inputs in a single-ended mode require

the REF[1:0] /VREF[1:0] and FB/VREF2 pins to be left floating. Differential Single-Ended

(DSE) is for single-ended operation in differential mode, requiring VREF[1:0] and VREF2.

Differential (DIF) inputs are used only in differential mode.

2. For each output bank.

8

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGE

Symbol

VIHH

Parameter

Test Conditions

Min.

Max

Unit

V

Input HIGH Voltage Level⁽¹⁾

Input MID Voltage Level⁽¹⁾

InputLOWVoltageLevel⁽¹⁾

3-Level Inputs Only

V^IN= VDD

VDD – 0.4

—

VIMM

VDD/2 – 0.2 VDD/2 + 0.2

V

VILL

—

0.4

200

+50

—

V

HIGH Level

MID Level

LOW Level

I3

3-LevelInputDCCurrent

(ADDR0, ADDR1)

VIN = VDD/2

–50

–200

–100

µA

VIN = GND

I^PU

InputPull-UpCurrent

VDD = Max., VIN = GND

—

NOTE:

1. These inputs are normally wired to V^DD, GND, or left floating. Internal termination resistors bias unconnected inputs to VDD/2. If these inputs are switched dynamically after powerup,

the function and timing of the outputs may be glitched, and the PLL may require additional tLOCK time before all datasheet limits are achieved.

DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFORHSTL⁽¹⁾

Symbol

Parameter

Test Conditions

Min.

Typ.⁽⁷⁾

Max

Unit

InputCharacteristics

IIH

IIL

Input HIGH Current

VDD = 2.7V

VI = VDDQN/GND

VI = GND/VDDQN

—

±5

µA

InputLOWCurrent

—

VIK

ClampDiodeVoltage

VDD = 2.3V, IIN = -18mA

- 0.7

- 1.2

+3.6

—

V

VIN

VDIF

VCM

VIH

VIL

DCInputVoltage

- 0.3

0.2

V

DCDifferentialVoltage^(2,8)

DC Common Mode Input Voltage^(3,8)

DC Input HIGH^(4,5,8)

DC Input LOW^(4,6,8)

Single-EndedReferenceVoltage^(4,8)

V

680

750

900

mV

VREF + 100

—

VREF - 100

—

V^REF

—

OutputCharacteristics

VOH

V^OL

V^OX

Output HIGH Voltage

IOH = -8mA

IOH = -100µA

IOL = 8mA

VDDQN - 0.4

—

V

VDDQN - 0.1

OutputLOWVoltage

—

0.4

0.1

IOL = 100µA

FB/FB Output Crossing Point

VDDQN/2 - 150 VDDQN/2 VDDQN/2 + 150

mV

NOTES:

1. See RECOMMENDED OPERATING RANGE table.

2. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode

only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching

to a new state.

3. V^CMspecifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.

4. For single-ended operation, in differential mode, REF[1:0]/VREF[1:0] is tied to the DC voltage VREF[1:0].

5. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.

6. Voltage required to maintain a logic LOW, single-ended operation in differential mode.

7. Typical values are at VDD = 2.5V, VDDQN = 1.5V, +25°C ambient.

8. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. (See Input/Output Selection table.)

9

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

POWERSUPPLYCHARACTERISTICSFORHSTLOUTPUTS⁽¹⁾

Symbol

Parameter

Test Conditions⁽²⁾

Typ.

Max

Unit

I^DDQ

Quiescent VDD Power Supply Current⁽³⁾

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDD = Max., PD = LOW, nSOE = LOW, PLL_EN = HIGH

VDD = Max., VDDQN = Max., CL = 0pF

112

150

mA

I^DDQQ

Quiescent VDDQN Power Supply Current⁽³⁾

3

75

µA

IDDPD

Power Down Current

0.7

22

3

mA

I^DDD

Dynamic VDD Power Supply

CurrentperOutput

30

µA/MHz

I^DDDQ

I^TOT

Dynamic VDDQN Power Supply

VDD = Max., VDDQN = Max., CL = 0pF

18

30

µA/MHz

mA

CurrentperOutput

Total Power VDD Supply Current^(4,5)

VDDQN = 1.5V, FVCO = 100MHz, CL = 15pF

VDDQN = 1.5V, FVCO = 250MHz, CL = 15pF

VDDQN = 1.5V, FVCO = 100MHz, CL = 15pF

V^DDQN= 1.5V, FVCO = 250MHz, CL = 15pF

280

320

130

225

400

450

200

330

I^TOTQ

Total Power VDDQN Supply Current^(4,5)

mA

NOTES:

1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.

2. The termination resistors are excluded from these measurements.

3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.

4. Bit 60 = 1.

5. All outputs are at the same interface level.

DIFFERENTIAL INPUT AC TEST CONDITIONS FOR HSTL

Symbol

VDIF

Parameter

Value

Units

InputSignalSwing⁽¹⁾

1

V

mV

V

VX

DifferentialInputSignalCrossingPoint⁽²⁾

InputTimingMeasurementReferenceLevel⁽³⁾

InputSignalEdgeRate⁽⁴⁾

750

VTHI

CrossingPoint

1

t^R, tF

V/ns

NOTES:

1. The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC)

specification under actual use conditions.

2. A 750mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification under

actual use conditions.

3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.

4. The input signal edge rate of 1V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.

10

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFOReHSTL⁽¹⁾

Symbol

Parameter

Test Conditions

Min.

Typ.⁽⁷⁾

Max

Unit

InputCharacteristics

IIH

IIL

Input HIGH Current

VDD = 2.7V

VI = VDDQN/GND

VI = GND/VDDQN

—

±5

µA

InputLOWCurrent

—

VIK

ClampDiodeVoltage

VDD = 2.3V, IIN = -18mA

- 0.7

- 1.2

+3.6

—

V

VIN

VDIF

VCM

VIH

VIL

DCInputVoltage

- 0.3

0.2

V

DCDifferentialVoltage^(2,8)

DC Common Mode Input Voltage^(3,8)

DC Input HIGH^(4,5,8)

DC Input LOW^(4,6,8)

Single-EndedReferenceVoltage^(4,8)

V

800

900

1000

—

mV

VREF + 100

—

VREF - 100

—

V^REF

—

OutputCharacteristics

V^OH

V^OL

V^OX

Output HIGH Voltage

IOH = -8mA

IOH = -100µA

IOL = 8mA

VDDQN - 0.4

—

V

VDDQN - 0.1

OutputLOWVoltage

—

0.4

0.1

V

IOL = 100µA

V

FB/FB Output Crossing Point

VDDQN/2 - 150 VDDQN/2 VDDQN/2 + 150

mV

NOTES:

1. See RECOMMENDED OPERATING RANGE table.

2. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode

only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching

to a new state.

3. V^CMspecifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.

4. For single-ended operation, in a differential mode, REF[1:0]/VREF[1:0] is tied to the DC voltage VREF[1:0].

5. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.

6. Voltage required to maintain a logic LOW, single-ended operation in differential mode.

7. Typical values are at V^DD= 2.5V, VDDQN = 1.8V, +25°C ambient.

8. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. (See Input/Output Selection table.)

11

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

POWERSUPPLYCHARACTERISTICSFOReHSTLOUTPUTS⁽¹⁾

Symbol

Parameter

Test Conditions⁽²⁾

Typ.

Max

Unit

I^DDQ

Quiescent VDD Power Supply Current⁽³⁾

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDD = Max., PD = LOW, nSOE = LOW, PLL_EN = HIGH

VDD = Max., VDDQN = Max., CL = 0pF

112

150

mA

I^DDQQ

Quiescent VDDQN Power Supply Current⁽³⁾

3

75

µA

IDDPD

Power Down Current

0.7

22

3

mA

I^DDD

Dynamic VDD Power Supply

CurrentperOutput

30

µA/MHz

I^DDDQ

I^TOT

Dynamic VDDQN Power Supply

VDD = Max., VDDQN = Max., CL = 0pF

22

30

µA/MHz

mA

CurrentperOutput

Total Power VDD Supply Current^(4,5)

VDDQN = 1.8V, FVCO = 100MHz, CL = 15pF

VDDQN = 1.8V, FVCO = 250MHz, CL = 15pF

VDDQN = 1.8V, FVCO = 100MHz, CL = 15pF

V^DDQN= 1.8V, FVCO = 250MHz, CL = 15pF

280

320

160

280

400

450

250

400

I^TOTQ

Total Power VDDQN Supply Current^(4,5)

mA

NOTES:

1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.

2. The termination resistors are excluded from these measurements.

3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.

4. Bit 60 = 1.

5. All outputs are at the same interface level.

DIFFERENTIAL INPUT AC TEST CONDITIONS FOR eHSTL

Symbol

VDIF

Parameter

Value

Units

InputSignalSwing⁽¹⁾

1

V

mV

V

VX

DifferentialInputSignalCrossingPoint⁽²⁾

InputTimingMeasurementReferenceLevel⁽³⁾

InputSignalEdgeRate⁽⁴⁾

900

VTHI

CrossingPoint

1

tR, tF

V/ns

NOTES:

1. The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC)

specification under actual use conditions.

2. A 900mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification under

actual use conditions.

3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.

4. The input signal edge rate of 1V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.

12

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFOR

LVEPECL⁽¹⁾

Symbol

Parameter

Test Conditions

Min.

Typ.⁽²⁾

Max

Unit

InputCharacteristics

IIH

IIL

Input HIGH Current

VDD = 2.7V

VDD = 2.3V, IIN = -18mA

VI = VDDQN/GND

—

±5

µA

InputLOWCurrent

VI = GND/VDDQN

VIK

ClampDiodeVoltage

—

- 0.7

—

- 1.2

3.6

V

VIN

VCM

VREF

VIH

V^IL

DCInputVoltage

- 0.3

915

—

V

DC Common Mode Input Voltage^(3,5)

Single-EndedReferenceVoltage^(4,5)

DC Input HIGH

1082

—

1248

—

mV

1275

555

1620

875

DC Input LOW

—

NOTES:

1. See RECOMMENDED OPERATING RANGE table.

2. Typical values are at V^DD= 2.5V, +25°C ambient.

3. V^CMspecifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.

4. For single-ended operation while in differential mode, REF^[1:0]/VREF[1:0] is tied to the DC voltage VREF[1:0].

5. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. (See Input/Output Selection table.)

DIFFERENTIALINPUTACTESTCONDITIONSFORLVEPECL

Symbol

VDIF

Parameter

Value

Units

mV

V

InputSignalSwing⁽¹⁾

732

VX

DifferentialInputSignalCrossingPoint⁽²⁾

InputTimingMeasurementReferenceLevel⁽³⁾

InputSignalEdgeRate⁽⁴⁾

1082

CrossingPoint

1

VTHI

t^R, tF

V/ns

NOTES:

1. The 732mV peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the V^DIF(AC)

specification under actual use conditions.

2. A 1082mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification

under actual use conditions.

3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.

4. The input signal edge rate of 1V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.

13

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFOR2.5V

LVTTL⁽¹⁾

Symbol

Parameter

Test Conditions

Min.

Typ.⁽⁸⁾

Max

Unit

InputCharacteristics

IIH

IIL

Input HIGH Current

InputLOWCurrent

ClampDiodeVoltage

DCInputVoltage

VDD = 2.7V

VI = VDDQN/GND

VI = GND/VDDQN

—

±5

µA

VIK

V^IN

VDD = 2.3V, IIN = -18mA

—

- 0.7

- 1.2

+3.6

V

- 0.3

Single-Ended Inputs⁽²⁾

VIH

DC Input HIGH

DC Input LOW

1.7

—

V

V^IL

0.7

DifferentialInputs

VDIF

VCM

VIH

DCDifferentialVoltage^(3,9)

DC Common Mode Input Voltage^(4,9)

DC Input HIGH^(5,6,9)

DC Input LOW^(5,7,9)

Single-EndedReferenceVoltage^(5,9)

0.2

1150

—

1350

V

1250

mV

VREF + 100

—

VIL

VREF - 100

—

V^REF

—

OutputCharacteristics

VOH

VOL

Output HIGH Voltage

IOH = -12mA

IOH = -100µA

IOL = 12mA

I^OL= 100µA

VDDQN - 0.4

—

V

VDDQN - 0.1

OutputLOWVoltage

—

0.4

0.1

NOTES:

1. See RECOMMENDED OPERATING RANGE table.

2. For 2.5V LVTTL single-ended operation, Bits 35/34, 33/32, 31/30 = 0/1 or 1/0, and REF[1:0]/VREF[1:0] is left floating. If Bits 47 - 36 = 0, FB/VREF2 should be left floating.

3. V^DIFspecifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode

only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching

to a new state.

4. V^CMspecifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.

5. For single-ended operation, in differential mode, REF^[1:0]/VREF[1:0] is tied to the DC voltage VREF[1:0].

6. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.

7. Voltage required to maintain a logic LOW, single-ended operation in differential mode.

8. Typical values are at VDD = 2.5V, VDDQN = VDD, +25°C ambient.

9. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. (See Input/Output Selection table.)

14

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

POWERSUPPLYCHARACTERISTICSFOR2.5VLVTTLOUTPUTS⁽¹⁾

Symbol

Parameter

Test Conditions⁽²⁾

Typ.

Max

Unit

I^DDQ

Quiescent VDD Power Supply Current⁽³⁾

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDD = Max., PD = LOW, nSOE = LOW, PLL_EN = HIGH

VDD = Max., VDDQN = Max., CL = 0pF

112

150

mA

I^DDQQ

Quiescent VDDQN Power Supply Current⁽³⁾

20

75

µA

IDDPD

Power Down Current

0.7

19

3

mA

I^DDD

Dynamic VDD Power Supply

CurrentperOutput

30

µA/MHz

I^DDDQ

I^TOT

Dynamic VDDQN Power Supply

CurrentperOutput

Total Power VDD Supply Current^(4,5)

VDD = Max., VDDQN = Max., CL = 0pF

32

40

µA/MHz

mA

VDDQN = 2.5V., FVCO = 100MHz, CL = 15pF

VDDQN = 2.5V., FVCO = 250MHz, CL = 15pF

VDDQN = 2.5V., FVCO = 100MHz, CL = 15pF

V^DDQN= 2.5V., FVCO = 250MHz, CL = 15pF

275

315

215

355

400

450

320

530

I^TOTQ

Total Power VDDQN Supply Current^(4,5)

mA

NOTES:

1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.

2. The termination resistors are excluded from these measurements.

3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.

4. Bit 60 = 1.

5. All outputs are at the same interface level.

DIFFERENTIAL INPUT AC TEST CONDITIONS FOR 2.5V LVTTL

Symbol

VDIF

Parameter

Value

VDD

Units

InputSignalSwing⁽¹⁾

V

VX

DifferentialInputSignalCrossingPoint⁽²⁾

InputTimingMeasurementReferenceLevel⁽³⁾

InputSignalEdgeRate⁽⁴⁾

VDD/2

VTHI

CrossingPoint

2.5

V

tR, tF

V/ns

NOTES:

1. A nominal 2.5V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VDIF

(AC) specification under actual use conditions.

2. A nominal 1.25V crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the V^Xspecification

under actual use conditions.

3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.

4. The input signal edge rate of 2.5V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.

SINGLE-ENDED INPUT AC TEST CONDITIONS FOR 2.5V LVTTL

Symbol

VIH

Parameter

Value

VDD

0

Units

V

Input HIGH Voltage

VIL

InputLOWVoltage

V

VTHI

InputTimingMeasurementReferenceLevel⁽¹⁾

InputSignalEdgeRate⁽²⁾

VDD/2

2

V

t^R, tF

V/ns

NOTES:

1. A nominal 1.25V timing measurement reference level is specified to allow constant, repeatable results in an automatic test equipment (ATE) environment.

2. The input signal edge rate of 2V/ns or greater is to be maintained in the 10% to 90% range of the input waveform.

15

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGEFOR1.8V

LVTTL⁽¹⁾

Symbol

Parameter

Test Conditions

Min.

Typ.⁽⁸⁾

Max

Unit

InputCharacteristics

IIH

IIL

Input HIGH Current

InputLOWCurrent

ClampDiodeVoltage

DCInputVoltage

VDD = 2.7V

VI = VDDQN/GND

VI = GND/VDDQN

—

±5

µA

VIK

V^IN

VDD = 2.3V, IIN = -18mA

—

- 0.7

- 1.2

V

- 0.3

VDDQN + 0.3

Single-Ended Inputs⁽²⁾

VIH

DC Input HIGH

DC Input LOW

1.073⁽¹⁰⁾

—

0.683⁽¹¹⁾

V

V^IL

DifferentialInputs

VDIF

VCM

VIH

DCDifferentialVoltage^(3,9)

DC Common Mode Input Voltage^(4,9)

DC Input HIGH^(5,6,9)

DC Input LOW^(5,7,9)

Single-EndedReferenceVoltage^(5,9)

0.2

825

—

975

V

900

mV

VREF + 100

—

VIL

VREF - 100

—

V^REF

—

OutputCharacteristics

VOH

VOL

Output HIGH Voltage

IOH = -6mA

IOH = -100µA

IOL = 6mA

VDDQN - 0.4

—

V

VDDQN - 0.1

OutputLOWVoltage

—

0.4

0.1

I^OL= 100µA

NOTES:

1. See RECOMMENDED OPERATING RANGE table.

2. For 1.8V LVTTL single-ended operation, Bits 35 - 30 = 0 and REF[1:0]/VREF[1:0] is left floating. If Bits 47/46, 45/44, 43/42, 41/40, 39/38, 37/36 = 0/1, FB/VREF2 should be left floating.

3. VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level. Differential mode

only. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC differential voltage must be achieved to guarantee switching

to a new state.

4. V^CMspecifies the maximum allowable range of (VTR + VCP) /2. Differential mode only.

5. For single-ended operation in differential mode, REF[1:0]/VREF[1:0] is tied to the DC voltage VREF[1:0]. The input is guaranteed to toggle within ±200mV of VREF[1:0] when VREF[1:0]

is constrained within +600mV and VDDI-600mV, where VDDI is the nominal 1.8V power supply of the device driving the REF[1:0] input. To guarantee switching in voltage range

specified in the JEDEC 1.8V LVTTL interface specification, VREF[1:0] must be maintained at 900mV with appropriate tolerances.

6. Voltage required to maintain a logic HIGH, single-ended operation in differential mode.

7. Voltage required to maintain a logic LOW, single-ended operation in differential mode.

8. Typical values are at VDD = 2.5V, VDDQN = 1.8V, +25°C ambient.

9. The reference clock input is capable of HSTL, eHSTL, LVEPECL, 1.8V or 2.5V LVTTL operation independent of the device output. (See Input/Output Selection table.)

10. This value is the worst case minimum VIH over the specification range of the 1.8V power supply. The 1.8V LVTTL specification is VIH = 0.65 * VDD where VDD is 1.8V ± 0.15V.

However, the LVTTL translator is supplied by a 2.5V nominal supply on this part. To ensure compliance with the specification, the translator was designed to accept the calculated

worst case value ( V^IH= 0.65 * [1.8 - 0.15V]) rather than reference against a nominal 1.8V supply.

11. This value is the worst case maximum VIL over the specification range of the 1.8V power supply. The 1.8V LVTTL specification is VIL = 0.35 * VDD where VDD is 1.8V ± 0.15V.

However, the LVTTL translator is supplied by a 2.5V nominal supply on this part. To ensure compliance with the specification, the translator was designed to accept the calculated

worst case value ( VIL = 0.35 * [1.8 + 0.15V]) rather than reference against a nominal 1.8V supply.

16

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

POWERSUPPLYCHARACTERISTICSFOR1.8VLVTTLOUTPUTS⁽¹⁾

Symbol

Parameter

Test Conditions⁽²⁾

Typ.

Max

Unit

I^DDQ

Quiescent VDD Power Supply Current⁽³⁾

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDDQN = Max., REF = LOW, PD = HIGH, nSOE = LOW,

PLL_EN = HIGH, Outputs enabled, All outputs unloaded

VDD = Max., PD = LOW, nSOE = LOW, PLL_EN = HIGH

VDD = Max., VDDQN = Max., CL = 0pF

112

150

mA

I^DDQQ

Quiescent VDDQN Power Supply Current⁽³⁾

3

75

µA

IDDPD

Power Down Current

0.7

18

3

mA

I^DDD

Dynamic VDD Power Supply

CurrentperOutput

30

µA/MHz

I^DDDQ

I^TOT

Dynamic VDDQN Power Supply

VDD = Max., VDDQN = Max., CL = 0pF

19

30

µA/MHz

mA

CurrentperOutput

Total Power VDD Supply Current^(4,5)

VDDQN = 1.8V., FVCO = 100MHz, CL = 15pF

VDDQN = 1.8V., FVCO = 250MHz, CL = 15pF

VDDQN = 1.8V., FVCO = 100MHz, CL = 15pF

V^DDQN= 1.8V., FVCO = 250MHz, CL = 15pF

275

310

135

200

400

450

200

300

I^TOTQ

Total Power VDDQN Supply Current^(4,5)

mA

NOTES:

1. These power consumption characteristics are for all the valid input interfaces and cover the worst case input and output interface combinations.

2. The termination resistors are excluded from these measurements.

3. If the differential input interface is used, the true input is held LOW and the complementary input is held HIGH.

4. Bit 60 = 1.

5. All outputs are at the same interface level.

DIFFERENTIAL INPUT AC TEST CONDITIONS FOR 1.8V LVTTL

Symbol

VDIF

Parameter

Value

VDDI

Units

InputSignalSwing⁽¹⁾

V

mV

V

VX

DifferentialInputSignalCrossingPoint⁽²⁾

InputTimingMeasurementReferenceLevel⁽³⁾

InputSignalEdgeRate⁽⁴⁾

VDDI/2

VTHI

CrossingPoint

1.8

t^R, tF

V/ns

NOTES:

1. V^DDIis the nominal 1.8V supply (1.8V ± 0.15V) of the part or source driving the input. A nominal 1.8V peak-to-peak input pulse level is specified to allow consistent, repeatable

results in an automatic test equipment (ATE) environment. This device meets the VDIF (AC) specification under actual use conditions.

2. A nominal 900mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This device meets the VX specification

under actual use conditions.

3. In all cases, input waveform timing is marked at the differential cross-point of the input signals.

4. The input signal edge rate of 1.8V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.

SINGLE-ENDED INPUT AC TEST CONDITIONS FOR 1.8V LVTTL

Symbol

VIH

Parameter

Value

VDDI

0

Units

V

Input HIGH Voltage⁽¹⁾

VIL

InputLOWVoltage

V

VTHI

InputTimingMeasurementReferenceLevel⁽²⁾

InputSignalEdgeRate⁽³⁾

VDDI/2

2

mV

V/ns

t^R, tF

NOTES:

1. VDDI is the nominal 1.8V supply (1.8V ± 0.15V) of the part or source driving the input.

2. A nominal 900mV timing measurement reference level is specified to allow constant, repeatable results in an automatic test equipment (ATE) environment.

3. The input signal edge rate of 2V/ns or greater is to be maintained in the 10% to 90% range of the input waveform.

17

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

ACELECTRICALCHARACTERISTICSOVEROPERATINGRANGE

Alloutputsatthesameinterfacelevel

Symbol

FNOM

tRPW

Parameter

Min.

Typ.

Max

Unit

VCO Frequency Range

see JTAG/I²C Serial Configurations: VCO Frequency Range table

Reference Clock Pulse Width HIGH or LOW

Feedback Input Pulse Width HIGH or LOW

Output Matched Pair Skew^(1,2,4)

OutputSkew(Rise-Rise,Fall-Fall,Nominal)^(1,3)

MultipleFrequencySkew(Rise-Rise,Fall-Fall,Nominal-Divided,Divided-Divided)^(1,3,4)

MultipleFrequencySkew(Rise-Fall,Nominal-Divided,Divided-Divided)^(1,3,4)

InvertingSkew(Nominal-Inverted)^(1,3)

InvertingSkew(Rise-Rise,Fall-Fall,Rise-Fall,Inverted-Divided)^(1,3,4)

Process Skew^(1,3.5)

REF Input to FB Static Phase Offset⁽⁶⁾

1

—

50

—

ns

ps

tFPW

tSK(B)

—

-100

-375

-275

—

50

tSK(O)

100

400

300

100

375

275

1.2

1

tSK1(ω)

tSK2(ω)

tSK1(INV)

tSK2(INV)

tSK(PR)

t(φ)

t^ODCV

Output Duty Cycle Variation from 50%⁽⁷⁾

HSTL / eHSTL / 1.8V LVTTL

2.5VLVTTL

t^ORISE

t^OFALL

OutputRiseTime⁽⁸⁾

HSTL / eHSTL / 1.8V LVTTL

2.5VLVTTL

ns

OutputFallTime⁽⁸⁾

HSTL / eHSTL / 1.8V LVTTL

2.5VLVTTL

1.2

1

tL

Power-upPLLLockTime⁽⁹⁾

PLLLockTimeAfterInputFrequencyChange⁽⁹⁾

PLL Lock Time After Change in REF_SEL ^(9,11)

PLLLockTimeAfterChangeinREF_SEL(REF1 andREF0aredifferentfrequency)⁽⁹⁾

PLL Lock Time After Asserting PD Pin⁽⁹⁾

Cycle-to-CycleOutputJitter(peak-to-peak)⁽¹⁰⁾

PeriodJitter(peak-to-peak)⁽¹⁰⁾

4

ms

µs

ms

ps

tL(ω)

1

tL(REFSEL1)

tL(REFSEL2)

tL(PD)

100

1

tJIT(CC)

tJIT(PER)

75

ps

tJIT(HP)

tJIT(DUTY)

V^OX

Half Period Jitter (peak-to-peak, QFB/QFB only)^{(10, 12)}

DutyCycleJitter(peak-to-peak)⁽¹⁰⁾

125

100

ps

HSTLandeHSTLDifferentialTrueandComplementaryOutputCrossingVoltageLevel

QFB/QFB only⁽¹²⁾

VDDQN/2 - 150 VDDQN/2 VDDQN/2 + 150 mV

NOTES:

1. Skew is the time between the earliest and latest output transition among all outputs when all outputs are loaded with the specified load.

2. tSK(B) is the skew between a pair of outputs (nQ0 and nQ1) when all outputs are selected as the same class.

3. The measurement is made at VDDQN/2.

4. There are three classes of outputs: nominal (zero delay), inverted, and divided (divide-by-2 or divide-by-4 mode).

5. tSK(PR) is the output to corresponding output skew between any two devices operating under the same conditions (VDD and VDDQN, ambient temperature, air flow, etc.).

6. t(φ) is measured with REF and FB the same type of input, the same rise and fall times. For 1.8V / 2.5V LVTTL input and output, the measurement is taken from V^THIon REF

to VTHI on FB. For HSTL / eHSTL input and output, the measurement is taken from the crosspoint of REF/REF to the crosspoint of FB/FB. All outputs are set to zero delay,

FB input divider set to divide-by-one, and Bit 60 = 1.

7. tODCV is measured with all outputs selected for zero delay.

8. Output rise and fall times are measured between 20% to 80% of the actual output voltage swing.

9. t^L, tL(ω), tL(REFSEL1), tL(REFSEL2), and tL(PD) are the times that are required before the synchronization is achieved. These specifications are valid only after VDD/VDDQN is stable and

within the normal operating limits. These parameters are measured from the application of a new signal at REF or FB, or after PD is (re)asserted until t(φ) is within specified

limits.

10. The jitter parameters are measured with all outputs selected for zero delay, FB input divider is set to divide-by-one, and Bit 60 = 1.

11. Both REF inputs must be the same frequency, but up to ±180° out of phase.

12. For HSTL/eHSTL outputs only.

18

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

ACELECTRICALCHARACTERISTICSOVEROPERATINGRANGE

Alloutputsatthedifferentinterfacelevels

Symbol

FNOM

tRPW

Parameter

Min.

Typ.

Max

Unit

VCO Frequency Range

see JTAG/I²C Serial Configurations: VCO Frequency Range table

Reference Clock Pulse Width HIGH or LOW

Feedback Input Pulse Width HIGH or LOW

Output Matched Pair Skew^(1,2,4)

OutputSkew(Rise-Rise,Fall-Fall,Nominal)^(1,3)

MultipleFrequencySkew(Rise-Rise,Fall-Fall,Nominal-Divided,Divided-Divided)^(1,3,4)

MultipleFrequencySkew(Rise-Fall,Nominal-Divided,Divided-Divided)^(1,3,4)

InvertingSkew(Nominal-Inverted)^(1,3)

InvertingSkew(Rise-Rise,Fall-Fall,Rise-Fall,Inverted-Divided)^(1,3,4)

Process Skew^(1,3.5)

REF Input to FB Static Phase Offset⁽⁶⁾

1

—

ns

ps

tFPW

tSK(B)

—

-200

-475

-375

—

200

250

500

400

200

475

375

1.2

1

tSK(O)

tSK1(ω)

tSK2(ω)

tSK1(INV)

tSK2(INV)

tSK(PR)

t(φ)

t^ODCV

Output Duty Cycle Variation from 50%⁽⁷⁾

OutputRiseTime⁽⁸⁾

HSTL / eHSTL / 1.8V LVTTL

2.5VLVTTL

t^ORISE

t^OFALL

HSTL / eHSTL / 1.8V LVTTL

2.5VLVTTL

ns

OutputFallTime⁽⁸⁾

HSTL / eHSTL / 1.8V LVTTL

2.5VLVTTL

1.2

1

tL

Power-upPLLLockTime⁽⁹⁾

PLLLockTimeAfterInputFrequencyChange⁽⁹⁾

PLL Lock Time After Change in REF_SEL ^(9,11)

PLLLockTimeAfterChangeinREF_SEL(REF1 andREF0aredifferentfrequency)⁽⁹⁾

PLL Lock Time After Asserting PD Pin⁽⁹⁾

Cycle-to-CycleOutputJitter(peak-to-peak)⁽¹⁰⁾

PeriodJitter(peak-to-peak)⁽¹⁰⁾

4

ms

µs

ms

ps

tL(ω)

1

tL(REFSEL1)

tL(REFSEL2)

tL(PD)

100

1

tJIT(CC)

tJIT(PER)

100

150

200

150

ps

tJIT(HP)

tJIT(DUTY)

V^OX

Half Period Jitter (peak-to-peak, QFB/QFB only)^{(10, 12)}

DutyCycleJitter(peak-to-peak)⁽¹⁰⁾

ps

HSTLandeHSTLDifferentialTrueandComplementaryOutputCrossingVoltageLevel

QFB/QFB only⁽¹²⁾

VDDQN/2 - 150 VDDQN/2 VDDQN/2 + 150 mV

NOTES:

1. Skew is the time between the earliest and latest output transition among all outputs when all outputs are loaded with the specified load.

2. tSK(B) is the skew between a pair of outputs (nQ0 and nQ1) when all outputs are selected as the same class.

3. The measurement is made at VDDQN/2.

4. There are three classes of outputs: nominal (zero delay), inverted, and divided (divide-by-2 or divide-by-4 mode).

5. tSK(PR) is the output to corresponding output skew between any two devices operating under the same conditions (VDD and VDDQN, ambient temperature, air flow, etc.).

6. t(φ) is measured with REF and FB the same type of input, the same rise and fall times. For 1.8V / 2.5V LVTTL input and output, the measurement is taken from VTHI on REF

to V^THIon FB. For HSTL / eHSTL input and output, the measurement is taken from the crosspoint of REF/REF to the crosspoint of FB/FB. All outputs are set to zero delay,

FB input divider set to divide-by-one, and Bit 60 = 1.

7. t^ODCVis measured with all outputs selected for zero delay.

8. Output rise and fall times are measured between 20% to 80% of the actual output voltage swing.

9. tL, tL(ω), tL(REFSEL1), tL(REFSEL2), and tL(PD) are the times that are required before the synchronization is achieved. These specifications are valid only after VDD/VDDQN is stable and

within the normal operating limits. These parameters are measured from the application of a new signal at REF or FB, or after PD is (re)asserted until t(φ) is within specified

limits.

10. The jitter parameters are measured with all outputs selected for zero delay, FB input divider is set to divide-by-one, and Bit 60 = 1.

11. Both REF inputs must be the same frequency, but up to ±180° out of phase.

12. For HSTL/eHSTL outputs only.

19

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

ACDIFFERENTIALINPUTSPECIFICATIONS⁽¹⁾

Symbol

Parameter

Min.

Typ.

—

Max

—

Unit

t ^W

Reference/FeedbackInputClockPulseWidthHIGHorLOW(HSTL/eHSTLoutputs)⁽²⁾

Reference/Feedback Input Clock Pulse Width HIGH or LOW (2.5V / 1.8V LVTTL outputs)⁽²⁾

1

ns

—

HSTL/eHSTL/1.8V LVTTL/2.5V LVTTL

VDIF

VIH

ACDifferentialVoltage⁽³⁾

AC Input HIGH^(4,5)

AC Input LOW^(4,6)

400

Vx + 200

—

mV

VIL

Vx - 200

LVEPECL

VDIF

ACDifferentialVoltage⁽³⁾

AC Input HIGH⁽⁴⁾

AC Input LOW⁽⁴⁾

400

1275

—

mV

VIH

VIL

875

NOTES:

1. For differential input mode, Bits 35 - 30 = 1.

2. Both differential input signals should not be driven to the same level simultaneously. The input will not change state until the inputs have crossed and the voltage range defined

by VDIF has been met or exceeded.

3. Differential mode only. VDIF specifies the minimum input voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is the "complement" input level.

The AC differential voltage must be achieved to guarantee switching to a new state.

4. For single-ended operation, REF[1:0]/VREF[1:0] is tied to the DC voltage VREF[1:0]. Refer to each input interface's DC specification for the correct VREF[1:0] range.

5. Voltage required to switch to a logic HIGH, single-ended operation only.

6. Voltage required to switch to a logic LOW, single-ended operation only.

20

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

AC TIMING DIAGRAM⁽¹⁾

tRPWL

tRPWH

REF

tFPWH

tFPWL

tODCV

FB

tODCV

Q

tSK(O),

tSK(B)

tSK(O),

tSK(B)

OTHER Q

tSK1(INV)

INVERTED Q

Q DIVIDED BY 2

Q DIVIDED BY 4

tSK2(ω),

tSK2(INV)

tSK2(ω)

tSK1(ω)

tSK1(ω),

tSK2(INV)

NOTE:

1. The AC TIMING DIAGRAM applies to Bit 58 = 1. For Bit 58 = 0, the negative edge of FB aligns with the negative edge of REF[1:0], divided outputs change on the negative

edge of REF[1:0], and the positive edges of the divide-by-2 and divide-by-4 signals align.

21

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

JITTERANDOFFSETTIMINGWAVEFORMS

QFB

nQ[1:0], QFB

tcycle n + 1

tcycle n

=

tjit(cc) tcycle n

tcycle n+1

Cycle-to-Cycle jitter

REF[1:0]

FB

t(Ø)n + 1

t(Ø)n

n = N

∑

1

t(Ø)n

=

t(Ø)

(N is a large number of samples)

N

Static Phase Offset

NOTE:

1. Diagram for Bit 58 = 1 and HSTL / eHSTL input and output.

QFB

nQ[1:0], QFB

tW(MIN)

tW(MAX)

tJIT(DUTY) = tW(MAX) - tW(MIN)

Duty-Cycle Jitter

22

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

Q^FB

nQ[1:0], QFB

tcycle n

QFB

nQ[1:0], QFB

1

f

o

1

=

tjit(per) tcycle n

f

o

Period jitter

NOTE:

1. 1/fo = average period.

QFB

thalf period n + 1

thalf period n

QFB

1

f

o

1

2*f

=

tjit(hper) thalf period n

o

Half-Period jitter

NOTE:

1. 1/fo = average period.

23

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

TESTCIRCUITSANDCONDITIONS

VDDI

R1

R2

3 inch, ~50Ω

Transmission Line

VIN

VDDQN

VDD

VDDI

REF[1:0]

D.U.T.

Pulse

Generator

R1

R2

REF[1:0]

3 inch, ~50Ω

Transmission Line

VIN

Test Circuit for Differential Input⁽¹⁾

DIFFERENTIALINPUTTESTCONDITIONS

Symbol

VDD = 2.5V ± 0.2V

Unit

R1

100

Ω

R2

VDDI

VCM*2

V

HSTL: Crossing of REF[1:0] and REF[1:0]

eHSTL: Crossing of REF[1:0] and REF[1:0]

LVEPECL: Crossing of REF[1:0] and REF[1:0]

1.8V LVTTL: V^DDI/2

VTHI

V

2.5V LVTTL: V^DD/2

NOTE:

1. This input configuration is used for all input interfaces. For single-ended testing,

the REF[1:0] must be left floating. For testing single-ended in differential input

mode, the VIN should be floating.

24

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

VDDQN

R1

VDDQN

VDD

VDDQN

VDD

R1

R2

REF[1:0]

R2

CL

REF[1:0]

nQ[1:0]

VDDQN

QFB

D.U.T.

FB

QFB

R1

CL

QFB

FB

QFB

R2

CL

SW1

Test Circuit for Outputs

Test Circuit for Differential Feedback

DIFFERENTIALFEEDBACKTEST

CONDITIONS

OUTPUTTESTCONDITIONS

Symbol

VDD = 2.5V ± 0.2V

VDDQN = Interface Specified

15

Unit

Symbol

VDD = 2.5V ± 0.2V

Unit

VDDQN = Interface Specified

CL

R1

pF

Ω

V

CL

R1

15

100

pF

Ω

100

R2

100

R2

100

V^OX

HSTL: Crossing of QFB and QFB

eHSTL: Crossing of QFB and QFB

1.8V LVTTL: VDDQN/2

2.5V LVTTL: VDDQN/2

1.8V/2.5V LVTTL

HSTL/eHSTL

VTHO

SW1

VDDQN/2

V

1.8V/2.5V LVTTL

HSTL/eHSTL

Open

Closed

VTHO

V

SW1

Open

Closed

25

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

TheIDT5T9820I²CinterfacesupportsStandard-Mode(100kHz)andFast-

Mode(400kHz)datatransferrates. Dataistransferredinbytesinsequential

orderfromthelowesttohighestbyte. AftergeneratingaSTARTcondition,the

bus master broadcasts a 7-bit slave address followed by a read/write bit.

JTAG/ I²C SERIAL CONFIGURATIONS:

VCOFREQUENCYSELECT

Bit60

Min.

Max.

0

1

50Mhz

100MHz

125MHz

250Mhz

I²CADDRESS

A7

A6

A5

A4

A3

A2

A1

I²CSERIALINTERFACECONTROL

The I²C interface permits the configuration of the IDT5T9820. The

IDT5T9820isaread/writeslavedevicemeetingPhilipsI²Cbusspecifications.

The I²C bus is controlled by a master device that generates the serial clock

SCLK,controlsbusaccess,andgeneratestheSTARTandSTOPconditions

while the device works as a slave. Both master and slave can operate as a

transmitter and receiver but the master device determines which mode is

activated.

1

0

1

X

AddressA0istheread/writebitandissetto‘0’forwritesand‘1’forreads.

The ADDR0 and ADDR1 tri-level pins allow the last three bits of the 7-bit

address to be defined by the user.

ADDR1

LOW

MID

ADDR0

LOW

MID

A3

0

A2

0

A1

0

1

HIGH

LOW

MID

0

1

0

BUS CONDITIONS

0

1

Datatransferonthebuscanonlybeinitiatedwhenthebusisnotbusy. During

datatransfer,thedataline(SDA)mustremainstablewhenevertheclockline

(SCLK) is high. Changes in the data line while the clock line is high will be

interpretedbythedeviceasaSTARTorSTOPcondition. Thefollowingbus

conditions are defined by the I²C bus protocol and are illustrated in figure 1.

MID

1

0

MID

HIGH

LOW

MID

1

0

1

HIGH

1

0

1

HIGH

1

0

NOT BUSY

Boththedata(SDA)andclock(SCLK)linesremainhightoindicatethebus

is not busy.

WRITE OPERATION

(see I²C Interface Definition for ProgWrite)

Toinitiateawriteoperation(ProgWrite),theread/writebitissetto‘0’. During

thewriteoperation,thefirsttwobytestransferredmustbetheDeviceAddress

followedbytheCommandCode. Theinternalprogrammingregistersofthe

deviceignorethesefirsttwobytes. ThesubsequentbytesaretheDataBytes,

whichtotaltwelve. AlltwelveDataBytesmustbewrittenintothedeviceduring

the write operation in order for the internal programming registers to be

updated. IfaSTOPconditionisgeneratedbeforethe12^thDataByte,theinternal

programming registers will remain unchanged to prevent an invalid PLL

configuration. AnAcknowledgebythedevicebetweeneachbytemustoccur

before the next byte is sent. After the transfer of the 12^thData Byte, an

Acknowledgesignalwillbesenttothebusmasterafterwhichitwillgenerate

a STOP condition. Once the STOP condition has occurred, the internal

programmingregistersofthedevicewillbeupdated.

STARTDATATRANSFER

AhightolowtransitionoftheSDAlinewhiletheSCLKinputishighindicates

aSTARTcondition. AllcommandstothedevicemustbeprecededbyaSTART

condition.

STOPDATATRANSFER

AlowtohightransitionoftheSDAlinewhileSCLKisheldhighindicatesa

STOP condition. All commands to the device must be followed by a STOP

condition.

DATAVALID

ThestateoftheSDAlinerepresentsvaliddataiftheSDAlineisstablefor

thedurationofthehighperiodoftheSCLKlineafteraSTARTconditionoccurs.

The data on the SDA line must be changed only during the low period of the

SCLKsignal. Thereisoneclockpulseperdatabit. Eachdatatransferisinitiated

by a START condition and terminated with a STOP condition.

READOPERATION

(see I²C Interface Definition for ProgRead)

Toinitiateareadoperation(ProgRead),theread/writebitissetto‘1’. During

thereadoperation,therewillbeatotaloffourteendatabytesreturnedfollowing

anAcknowledgeofthedeviceaddress. ThefirsttwodatabytesaretheIDByte

andaReservedByte,inthatorder. Thesubsequentbytesarethesametwelve

Data Bytes that were written during the write operation. The read back can

ACKNOWLEDGE

When addressed, the receiving device is required to generate an

Acknowledgeaftereachbyteisreceived. Themasterdevicemustgenerate

anextraclockpulsetocoincidewiththeAcknowledgebit. Theacknowledging

device must pull the SDA line low during the high period of the master

acknowledgeclockpulse. Setupandholdtimesmustbetakenintoaccount.

beterminatedatanytimebyissuingaSTOPcondition.

I²C ID BYTE

I²C BUS OPERATION

ID7

ID6

ID5

ID4

ID3

ID2

ID1

ID0

0

1

0

26

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

EEPROMOPERATION

(see I²C Interface Definition for the EEPROM instructions)

TheIDT5T9820canalsostoreitsconfigurationininternalEEPROM. Thecontentsofthedevice’sinternalprogrammingregisterscanbesavedtotheEEPROM

by issuing a save instruction (ProgSave) and can be loaded back to the internal programming registers by issuing a restore instruction (ProgRestore). To

initiateasaveorrestore,onlytwobytesaretransferred. TheDeviceAddressisissuedwiththeread/writebitsetto‘0’followedbytheappropriateCommand

Code. ThesaveorrestoreinstructionexecutesaftertheSTOPconditionisreceived,duringwhichtimetheIDT5T9820willnotgenerateAcknowledgebits.

ThedeviceisreadytoacceptanewprogramminginstructiononceitAcknowledgesits7-bitaddress. Thetimeittakesforthesaveandrestoreinstructions

to complete depends on the PLL oscillator frequency, FVCO. The restore time, TRESTORE, and the save time, TSAVE, can be calculated as follows:

TRESTORE = 1.23X10⁹/FVCO

(mS)

9

T^SAVE

F^VCO+ 52

(mS)

= 3.09X10 /

Inorderforthesaveandrestoreinstructionstofunctionproperly,theIDT5T9820mustnotbeinpower-downmode(PDmustbeHIGH),andthePLLmust

be enabled (PLL_EN must be LOW and Bit 57 = 0).

Onpower-upoftheIDT5T9820,anautomaticrestoreisperformedtoloadtheEEPROMcontentsintotheinternalprogrammingregisters. Theauto-restore

will not function properly if the device is in power-down mode (PDmust be HIGH). The device’s auto-restore feature will function regardless of the state of

the PLL_EN pin or Bit 57. The IDT5T9820 will be ready to accept a programming instruction once it acknowledges its 7-bit I²C address. The time it takes

forthedevicetocompletetheauto-restoreisapproximately3ms.

PROGRAMMINGNOTES

OncetheIDT5T9820hasbeenprogrammedeitherwithaProgWriteorProgRestoreinstruction,thedevicewillattempttoachievephaselockusingthenew

PLLconfiguration. IfthereisavalidREFandFBinputclockconnectedtothedeviceanditdoesnotachievelock,theusershouldissueaProgReadinstruction

toconfirmthatthePLLconfigurationdataisvalid.

Onpower-upandbeforetheautomaticProgRestoreinstructionhascompleted,theinternalprogrammingregisterswillcontainthevalueof‘0’forallbits95:0.

ThePLLwillremainattheminimumfrequencyandwillnotachievephaselockuntilaftertheautomaticrestoreiscompleted. Iftheoutputsareenabledbythe

nSOEpins,theoutputswilltoggleattheminimumfrequency. IftheoutputsaredisabledbythenSOEpinsandtheOMODEpinissetHIGH,thenQ[1:0]and

QFB are stopped HIGH, while QFB is stopped LOW.

SCLK

tSU:START

t^HD:START

tSU:STOP

SDA

Address or data

valid

Data can

change

START

STOP

tR

tF

tHIGH

tLOW

SCLK

tHD:START

tHD:DATA

tSU:DATA

tSU:START

tSU:STOP

SDA IN

tBUF

tOVD

SDA OUT

Figure 1: I²C Timing Data

27

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

I²CINTERFACEDEFINITION

Device Address

Command Code

8'bxxxxxx00

Data

W

0

ProgWrite

S

7'b1101xxx

A

Data Byte 1 (Bits 95 - 88) A . . .

Data Byte 2

Data Byte 3

A

. . .

P

M

S

B

L

S

B

M

S

B

L

S

B

Data Byte 4

Data Byte 5

Data Byte 6

ID Byte:

ID

00000100

Data Byte 7

Part #

5T9820

Data Byte 8

Data Byte 9

Data Byte 10

Data Byte 11

Data Byte 12 (Bits 7 - 0)

Device Address

7'b1101xxx

R

1

ID Byte

A

ProgRead

S

8'b00000100

A

. . .

Reserved Byte

Data Byte 1 (Bits 95 - 88) A . . .

Data Byte 2

Data Byte 3

A

. . .

P

Data Byte 4

Data Byte 5

Data Byte 6

Data Byte 7

Data Byte 8

Data Byte 9

Data Byte 10

Data Byte 11

Data Byte 12 (Bits 7 - 0)

Device Address

7'b1101xxx

W

0

Command Code

8'bxxxxxx01

ProgSave

S

A

P

Device Address

7'b1101xxx

W

0

Command Code

8'bxxxxxx10

ProgRestore

A

P

28

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

I²C BUS DC CHARACTERISTICS

Symbol

VIH

Parameter

Conditions

Min

Typ

Max

Unit

V

Input HIGH Level

InputLOWLevel

Hysteresis of Inputs

InputLeakageCurrent

OutputLOWVoltage

0.7 * VDD

VIL

0.3 * VDD

V

VHYS

IIN

0.05 * VDD

V

±1.0

0.4

µA

V

VOL

IOL = 3 mA

I²C BUS AC CHARACTERISTICS FOR STANDARD MODE

Symbol

FSCLK

tBUF

Parameter

Min

0

Typ

Max

Unit

KHz

µs

ns

Serial Clock Frequency (SCLK)

Bus free time between STOP and START

SetupTime,START

100

4.7

4

tSU:START

tHD:START

tSU:DATA

tHD:DATA

tOVD

HoldTime, START

SetupTime, datainput(SDA)

Hold Time, data input (SDA)⁽¹⁾

Outputdatavalidfromclock

Capacitive Load for Each Bus Line

Rise Time, data and clock (SDA, SCLK)

Fall Time, data and clock (SDA, SCLK)

HIGH Time, clock (SCLK)

LOW Time, clock (SCLK)

SetupTime, STOP

250

0

µs

pF

3.45

400

CB

tR

1000

300

ns

tF

ns

tHIGH

4

4.7

4

µs

tLOW

t^SU:STOP

NOTE:

1. A device must internally provide a hold time of at least 300ns for the SDA signal (referred to the V^IHMINof the SCLK signal) to bridge the undefined region of the falling edge of

SCLK.

I²C BUS AC CHARACTERISTICS FOR FAST MODE

Symbol

FSCLK

tBUF

Parameter

Min

0

Typ

Max

Unit

KHz

µs

ns

Serial Clock Frequency (SCLK)

Bus free time between STOP and START

SetupTime,START

400

1.3

0.6

100

0

tSU:START

tHD:START

tSU:DATA

tHD:DATA

tOVD

HoldTime, START

SetupTime, datainput(SDA)

Hold Time, data input (SDA)⁽¹⁾

Outputdatavalidfromclock

Capacitive Load for Each Bus Line

Rise Time, data and clock (SDA, SCLK)

Fall Time, data and clock (SDA, SCLK)

HIGH Time, clock (SCLK)

LOW Time, clock (SCLK)

SetupTime, STOP

µs

pF

0.9

400

300

CB

tR

20 + 0.1 * CB

ns

tF

20 + 0.1 * CB

ns

tHIGH

0.6

1.3

0.6

µs

tLOW

t^SU:STOP

NOTE:

1. A device must internally provide a hold time of at least 300ns for the SDA signal (referred to the VIHMIN of the SCLK signal) to bridge the undefined region of the falling edge of

SCLK.

29

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

JTAGINTERFACE

TheStandardJTAGinterfaceconsistsoffourbasicelements:

• Test Access Port (TAP)

• TAP controller

• Instruction Register (IR)

Five additional pins (TDI, TDO, TMS, TCLK and TRST) are provided to

supporttheJTAGboundaryscaninterface.TheIDT5T9820 incorporatesthe

necessarytapcontrollerandmodifiedpadcellstoimplementtheJTAGfacility.

NotethatIDTprovidesappropriateBoundaryScanDescriptionLanguage

programfilesforthesedevices.

• Data Register Port (DR)

The following sections provide a brief description of each element. For a

completedescriptionrefertotheIEEEStandardTestAccessPortSpecification

(IEEEStd. 1149.1-1990).

MUX

Device ID Reg.

Boundary Scan Reg.

Bypass Reg.

TDO

TDI

TAP

TMS

clkDR, ShiftDR

TAP

Controller

UpdateDR

TCLK

TRST

Instruction Decode

clkLR, ShiftLR

UpdateLR

Instruction Register

Control Signals

Boundary Scan Architecture

TEST ACCESS PORT (TAP)

THETAPCONTROLLER

The Tap interface is a general-purpose port that provides access to the

TheTapcontrollerisasynchronousfinitestatemachinethatrespondsto

internaloftheprocessor.Itconsistsoffourinputports(TCLK,TMS,TDI,TRST) TMSandTCLKsignalstogenerateclockandcontrolsignalstotheInstruction

and one output port (TDO). and Data Registers for capture and update of data.

30

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

1

Test-Logic

Reset

0

1

0

1

Run-Test/

Idle

Select-

DR-Scan

Select-

IR-Scan

0

1

Capture-DR

Capture-IR

0

Shift-DR

Shift-IR

1

Exit1-DR

Exit1-IR

0

Pause-DR

Pause-IR

1

0

Exit2-DR

Exit2-IR

1

Update-DR

Update-IR

0

1

0

TAP Controller State Diagram

NOTES:

1. Five consecutive TCLK cycles with TMS = 1 will reset the TAP.

2. TAP controller must be reset before normal PLL operations can begin.

RefertotheIEEEStandardTestAccessPortSpecification(IEEEStd.1149.1)

forthefullstatediagram

Capture-IRInthiscontrollerstate,theshiftregisterbankintheInstruction

Register parallel loads a pattern of fixed values on the rising edge of TCLK.

All state transitions within the TAP controller occur at the rising edge of The last two significant bits are always required to be “01”.

theTCLKpulse.TheTMSsignallevel(0or1)determinesthestateprogression Shift-IR In this controller state, the instruction register gets connected

thatoccursoneachTCLKrisingedge.TheTAPcontrollertakesprecedence betweenTDIandTDO, andthecapturedpatterngetsshiftedoneachrising

over the PLL and must be reset after power up of the device. See TRST edgeofTCLK.TheinstructionavailableontheTDIpinisalsoshiftedintothe

descriptionformoredetailsonTAPcontrollerreset.

instructionregister.

Test-Logic-ResetAlltestlogicisdisabledinthiscontrollerstateenabling

Exit1-IRThisisacontrollerstatewhereadecisiontoentereitherthePause-

thenormaloperationoftheIC.TheTAPcontrollerstatemachineisdesigned IRstateorUpdate-IRstateismade.

insuchawaythat,nomatterwhattheinitialstateofthecontrolleris,theTest-

Pause-IRThisstateisprovidedinordertoallowtheshiftingofinstruction

Logic-ResetstatecanbeenteredbyholdingTMSathighandpulsingTCLK registertobetemporarilyhalted.

five times. This is the reason why the Test Reset (TRST) pin is optional.

Exit2-DRThisisacontrollerstatewhereadecisiontoentereithertheShift-

Run-Test-IdleInthiscontrollerstate, thetestlogicintheICisactiveonly IRstateorUpdate-IRstateismade.

ifcertaininstructionsarepresent.Forexample,ifaninstructionactivatesthe

Update-IRInthiscontrollerstate,theinstructionintheinstructionregister

selftest,thenitwillbeexecutedwhenthecontrollerentersthisstate.Thetest islatchedintothelatchbankoftheInstructionRegisteroneveryfallingedge

logic in the IC is idles otherwise.

Select-DR-ScanThisisacontrollerstatewherethedecisiontoenterthe

DataPathortheSelect-IR-Scanstateismade.

ofTCLK.Thisinstructionalsobecomesthecurrentinstructiononceitislatched.

Capture-DRInthiscontrollerstate,thedataisparallelloadedintothedata

registers selected by the current instruction on the rising edge of TCLK.

Shift-DR, Exit1-DR, Pause-DR, Exit2-DR and Update-DR These

Select-IR-Scan This is a controller state where the decision to enter the

InstructionPathismade. TheControllercanreturntotheTest-Logic-Reset controllerstatesaresimilartotheShift-IR,Exit1-IR,Pause-IR,Exit2-IRand

stateotherwise. Update-IRstatesintheInstructionpath.

31

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

THE INSTRUCTION REGISTER

path. Whenthebypassregisterisselectedbyaninstruction,theshiftregister

stageissettoalogiczeroontherisingedgeofTCLKwhentheTAPcontroller

isintheCapture-DRstate.

The operation of the bypass register should not have any effect on the

operationofthedeviceinresponsetotheBYPASSinstruction.

TheInstructionregisterallowsaninstructiontobeshiftedinseriallyintothe

processor at the rising edge of TCLK.

The Instruction is used to select the test to be performed, or the test data

register to be accessed, or both. The instruction shifted into the register is

latchedatthecompletionoftheshiftingprocesswhentheTAPcontrollerisat

Update-IRstate.

THE BOUNDARY-SCAN REGISTER

Theinstructionregistermustcontain4bitinstructionregister-basedcells

whichcanholdinstructiondata.Thesemandatorycellsarelocatednearestthe

serialoutputstheyaretheleastsignificantbits.

TheBoundaryScanRegisterallowsserialdataTDIbeloadedintoorread

outoftheprocessorinput/outputports.TheBoundaryScanRegisterisapart

oftheIEEE1149.1-1990StandardJTAGImplementation.

TESTDATAREGISTER

THE DEVICE IDENTIFICATION REGISTER

TheTestDataregistercontainsthreetestdataregisters:theBypass,the

Boundary Scan register and Device ID register.

Theseregistersareconnectedinparallelbetweenacommonserialinput

andacommonserialdataoutput.

The following sections provide a brief description of each element. For a

completedescription,refertotheIEEEStandardTestAccessPortSpecification

(IEEEStd. 1149.1-1990).

The Device Identification Register is a Read Only 32-bit register used to

specify the manufacturer, part number and version of the processor to be

determinedthroughtheTAPinresponsetotheIDCODEinstruction.

IDTJEDECIDnumberis0xB3. Thistranslatesto0x33whentheparityis

dropped in the 11-bit Manufacturer ID field.

For the IDT5T9820, the Part Number field is 0x3A6.

TEST BYPASS REGISTER

TheregisterisusedtoallowtestdatatoflowthroughthedevicefromTDI

toTDO.Itcontainsasinglestageshiftregisterforaminimumlengthinserial

JTAGDEVICEIDENTIFICATION

REGISTER

31 (MSB)

28 27

Partnumber

(16-bit)

12 11

ManufacturerID

(11-bit)0X33

1 0(LSB)

Version(4bits)

0X0

1

JTAGINSTRUCTIONREGISTER

TheInstructionregisterallowsinstructiontobeseriallyinputintothedevice

whentheTAPcontrollerisintheShift-IRstate.Theinstructionisdecodedto

performthefollowing:

•Selecttestdataregistersthatmayoperatewhiletheinstructioniscurrent.

Theothertestdataregistersshouldnotinterferewithchipoperationandthe

selecteddataregister.

•Definetheserialtestdataregisterpaththatisusedtoshiftdatabetween

TDI and TDO during data register scanning.

The Instruction Register is a 4-bit field (i.e.IR3, IR2, IR1, IR0) to decode

sixteendifferentpossibleinstructions.Instructionsaredecodedasfollows.

JTAGINSTRUCTIONREGISTERDECODING

IR (3)

IR (2)

IR (1)

IR (0)

Instruction

Function

0

1

0

1

0

1

0

1

0

1

0

1

X

0

1

0

1

0

1

0

1

0

1

X

EXTEST

Selectboundaryscanregister

SAMPLE/PRELOAD

IDCODE

Selectchipidentificationdataregister

Reserved

PROGWRITE

PROGREAD

PROGSAVE

PROGRESTORE

CLAMP

Writingtothevolatileprogrammingregisters

Readingfromthevolatileprogrammingregisters

SavingthecontentsofthevolatileprogrammingregisterstotheEEPROM

LoadingtheEEPROMcontentsintothevolatileprogrammingregisters

JTAG

HIGHZ

JTAG

BYPASS

Selectbypassregister

BYPASS

32

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

Thefollowingsectionsprovideabriefdescriptionofeachinstruction.Fora

completedescriptionrefertotheIEEEStandardTestAccessPortSpecification

(IEEEStd. 1149.1-1990).

ThePROGRESTOREinstructionisforloadingtheIDT5T9820configuration

datafromtheEEPROMtothedevice’svolatileprogrammingregisters. This

instructionselectstheBYPASSregisterpathforshiftingdatafromTDItoTDO

duringdataregisterscanning.

EXTEST

TherequiredEXTESTinstructionplacestheICintoanexternalboundary-

testmodeandselectstheboundary-scanregistertobeconnectedbetween

TDIandTDO. Duringthisinstruction,theboundary-scanregisterisaccessed

todrivetestdataoff-chipthroughtheboundaryoutputs,andrecievetestdata

off-chipthroughtheboundaryinputs. Assuch,theEXTESTinstructionisthe

workhorseofIEEE.Std1149.1,providingforprobe-lesstestingofsolder-joint

opens/shortsandoflogicclusterfunction.

DuringtheexecutionofaPROGSAVEorPROGRESTOREinstruction,the

IDT5T9820willnotacceptanewprogramminginstruction(read,write,save,

orrestore). Allnon-programmingJTAGinstructionswillfunctionproperly,but

theusershouldwaituntilthesaveorrestoreiscompletebeforeissuinganew

programminginstruction. Thetimeittakesforthesaveandrestoreinstructions

tocompletedependsonthePLLoscillatorfrequency,FVCO. Therestoretime,

TRESTORE, andthesavetime, TSAVE, canbecalculatedasfollows:

TRESTORE = 1.23X10⁹/FVCO

(mS)

SAMPLE/PRELOAD

TherequiredSAMPLE/PRELOADinstructionallowstheICtoremainina

normalfunctionalmodeandselectstheboundary-scanregistertobeconnected

betweenTDIandTDO.Duringthisinstruction,theboundary-scanregistercan

beaccessedviaadatascanoperation,totakeasampleofthefunctionaldata

entering and leaving the IC.

9

T^SAVE

F^VCO+ 52

(mS)

= 3.09X10 /

If a new programming instruction is issued before the save or restore

completes, the new instruction is ignored, and the BYPASS register path

remainsineffectforshiftingdatafromTDItoTDOduringdataregisterscanning.

IDCODE

InorderfortheProgSaveandProgRestoreinstructionstofunctionproperly,

the IDT5T9820 must not be in power-down mode (PD must be HIGH), and

the PLL must be enabled (PLL_EN = LOW and Bit 57 = 0).

TheoptionalIDCODEinstructionallowstheICtoremaininitsfunctionalmode

andselectstheoptionaldeviceidentificationregistertobeconnectedbetween

TDI and TDO. The device identification register is a 32-bit shift register

containing information regarding the IC manufacturer, device type, and

versioncode. Accessingthedeviceidentificationregisterdoesnotinterfere

withtheoperationoftheIC.Also,accesstothedeviceidentificationregister

shouldbeimmediatelyavailable,viaaTAPdata-scanoperation,afterpower-

up of the IC or after the TAP has been reset using the optional TRST pin or

byotherwisemovingtotheTest-Logic-Resetstate.

Onpower-upoftheIDT5T9820,anautomaticrestoreisperformedtoload

the EEPROM contents into the internal programming registers. The auto-

restorewillnotfunctionproperlyifthedeviceisinpower-downmode(PDmust

beHIGH). Thedevice'sauto-restorefeaturewillfunctionregardlessofthestate

of the PLL_EN pin or Bit 57. The time it takes for the device to complete the

auto-restoreisapproximately3ms.

PROGWRITE

CLAMP

The PROGWRITE instruction is for writing the IDT5T9820 configuration

datatothedevice’svolatileprogrammingregisters. Thisinstructionselectsthe

programmingregisterpathforshiftingdatafromTDItoTDOduringdataregister

scanning. The programming register path has 112 registers (14 bytes)

between TDI and TDO. The 12 configuration data bytes are scanned in

throughTDIfirst,startingwithBit0. Afterscanninginthelastconfigurationbit,

Bit95,sixteenadditionalbitsmustbescannedintoplacetheconfigurationdata

intheproperlocation. Thelastsixteenregistersintheprogrammingpathare

reserved, read-only registers.

TheoptionalCLAMPinstructionloadsthecontentsfromtheboundary-scan

registerontotheoutputsoftheIC,andselectstheone-bitbypassregisterto

be connected between TDI and TDO. During this instruction, data can be

shifted through the bypass register from TDI to TDO without affecting the

conditionoftheICoutputs.

HIGH-IMPEDANCE

TheoptionalHigh-Impedanceinstructionsetsalloutputs(includingtwo-state

aswellasthree-statetypes)ofanICtoadisabled(high-impedance)stateand

selectstheone-bitbypassregistertobeconnectedbetweenTDIandTDO.

PROGREAD

ThePROGREADinstructionisforreadingouttheIDT5T9820configuration Duringthisinstruction,datacanbeshiftedthroughthebypassregisterfromTDI

datafromthedevice’svolatileprogrammingregisters. Thisinstructionselects toTDOwithoutaffectingtheconditionoftheICoutputs.

theprogrammingregisterpathforshiftingdatafromTDItoTDOduringdata

registerscanning. Theprogrammingregisterpathhas112registersbetween BYPASS

TDI and TDO, and the first bit scanned out through TDO will be Bit 0 of the

configurationdata.

The required BYPASS instruction allows the IC to remain in a normal

functional mode and selects the one-bit bypass register to be connected

between TDI and TDO. The BYPASS instruction allows serial data to be

transferredthroughtheICfromTDItoTDOwithoutaffectingtheoperationof

PROGSAVEandPROGRESTORE(EEPROMOPERATION)

The PROGSAVE instruction is for copying the IDT5T9820 configuration theIC.

datafromthedevice’svolatileprogrammingregisterstotheEEPROM. This

instructionselectstheBYPASSregisterpathforshiftingdatafromTDItoTDO

duringdataregisterscanning.

33

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

PROGRAMMINGNOTES

OncetheIDT5T9820hasbeenprogrammedeitherwithaProgWriteorProgRestoreinstruction,thedevicewillattempttoachievephaselockusingthenew

PLLconfiguration. IfthereisavalifREFandFBinputclockconnectedtothedevice,anditdoesnotachievelock,theusershouldissueaProgReadinstruction

toconfirmthatthePLLconfigurationdataisvalid.

Onpower-upandbeforetheautomaticProgRestoreinstructionhascompleted,theinternalprogrammingregisterswillcontainthevalueof'0'forallbits95:0.

ThePLLwillremainattheminimumfrequencyandwillnotachievephaselockuntilaftertheautomaticrestoreiscompleted. Iftheoutputsareenabledbythe

nSOEpins,theoutputswilltoggleattheminimumfrequency. Iftheoutputsaredisabledbythe nSOEpins,andtheOMODEpinissethigh,thenQ[1:0]and

QFB are stopped HIGH, while QFB is stopped LOW.

tTCLK

t4

t2

t1

TCLK

t3

TDI/TMS

tDS

tDH

TDO

tDO

t6

TRST

t5

Standard JTAG Timing

NOTE:

t1 = tTCLKLOW

t2 = tTCLKHIGH

t3 = tTCLKFALL

t4 = tTCLKRISE

t5 = tRST (reset pulse width)

t6 = tRSR (reset recovery)

JTAG

ACELECTRICALCHARACTERISTICS

SYSTEMINTERFACEPARAMETERS

Symbol

Parameter

Min.

100

40

Max.

Units

Symbol

Parameter

DataOutput⁽¹⁾

Min.

Max.

Units

tTCLK

JTAG Clock Input Period

JTAG Clock HIGH

JTAG Clock Low

—

ns

tDO

—

20

ns

tDOH

tDS

DataOutputHold⁽¹⁾

DataInput, tRISE =3ns

DataInput, tFALL =3ns

0

—

ns

tTCLKHIGH

tTCLKLOW

tTCLKRISE

tTCLKFALL

tRST

—

ns

40

—

ns

10

—

ns

JTAG Clock Rise Time

JTAG Clock Fall Time

JTAGReset

—

5⁽¹⁾

—

ns

tDH

10

—

ns

—

ns

NOTE:

1. 50pF loading on external output signals.

50

ns

tRSR

JTAG Reset Recovery

50

—

ns

NOTE:

1. Guaranteed by design.

34

IDT5T9820

INDUSTRIALTEMPERATURERANGE

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

RECOMMENDEDLANDINGPATTERN

NL 68 pin

NOTE: All dimensions are in millimeters.

35

IDT5T9820

EEPROMPROGRAMMABLE2.5VZERODELAYPLLCLOCKDRIVER

INDUSTRIALTEMPERATURERANGE

ORDERINGINFORMATION

X

XXXXX

XX

Package Package

IDT

Device Type

I

-40°C to +85°C (Industrial)

NL

Thermally Enhanced Plastic Very Fine

Pitch Quad Flat No Lead Package

VFQFPN - Green

NLG

5T9820

EEPROM Programmable 2.5V Zero Delay

PLL Clock Driver

CORPORATE HEADQUARTERS

6024 Silver Creek Valley Road

San Jose, CA 95138

for SALES:

800-345-7015 or 408-284-8200

fax: 408-284-2775

www.idt.com

for Tech Support:

clockhelp@idt.com

36

厂商	型号	描述	页数
IDT	5T9010BBGI8	[ PLL Based Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), PBGA144, LEAD FREE, PLASTIC, BGA-144 ]	25 页
IDT	5T9050PGI	[ Low Skew Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, TSSOP-28 ]	7 页
IDT	5T905PGI	[ Low Skew Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, TSSOP-28 ]	17 页
IDT	5T9070PAGI8	[ Low Skew Clock Driver, 5T Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO48, GREEN, TSSOP-48 ]	9 页
IDT	5T9070PAI	[ Clock Driver, CMOS, PDSO48 ]	9 页
IDT	5T9070PAI8	[ Clock Driver, CMOS, PDSO48 ]	9 页
IDT	5T907PAI	[ Clock Driver, 5T Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO48, TSSOP-48 ]	19 页
IDT	5T907PAI8	[ Clock Driver, PDSO48 ]	19 页
IDT	5T9110BBGI8	[ PLL Based Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), PBGA144, GREEN, PLASTIC, BGA-144 ]	23 页
IDT	5T915PAI	[ Clock Driver, CMOS, PDSO48 ]	19 页
