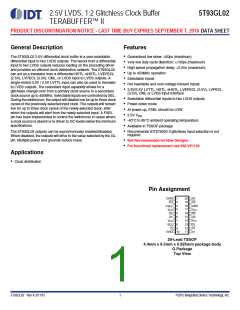

2.5V LVDS, 1:2 Glitchless Clock Buffer
TERABUFFER™ II
5T93GL02
PRODUCT DISCONTINUATION NOTICE - LAST TIME BUY EXPIRES SEPTEMBER 7, 2016 DATA SHEET
General Description
Features
The 5T93GL02 2.5V differential clock buffer is a user-selectable
differential input to two LVDS outputs. The fanout from a differential
input to two LVDS outputs reduces loading on the preceding driver
and provides an efficient clock distribution network. The 5T93GL02
can act as a translator from a differential HSTL, eHSTL, LVEPECL
(2.5V), LVPECL (3.3V), CML, or LVDS input to LVDS outputs. A
single-ended 3.3V / 2.5V LVTTL input can also be used to translate
to LVDS outputs. The redundant input capability allows for a
glitchless change-over from a primary clock source to a secondary
clock source up to 450MHz. Selectable inputs are controlled by SEL.
During the switchover, the output will disable low for up to three clock
cycles of the previously-selected input clock. The outputs will remain
low for up to three clock cycles of the newly-selected clock, after
which the outputs will start from the newly-selected input. A FSEL
pin has been implemented to control the switchover in cases where
a clock source is absent or is driven to DC levels below the minimum
specifications.
• Guaranteed low skew: <50ps (maximum)
• Very low duty cycle distortion: <100ps (maximum)
• High speed propagation delay: <2.2ns (maximum)
• Up to 450MHz operation
• Selectable inputs
• Hot insertable and over-voltage tolerant inputs
• 3.3V/2.5V LVTTL, HSTL, eHSTL, LVEPECL (2.5V), LVPECL
(3.3V), CML or LVDS input interface
• Selectable differential inputs to two LVDS outputs
• Power-down mode
• At power-up, FSEL should be LOW
• 2.5V VDD
• -40°C to 85°C ambient operating temperature
• Available in TSSOP package
The 5T93GL02 outputs can be asynchronously enabled/disabled.
When disabled, the outputs will drive to the value selected by the GL
pin. Multiple power and grounds reduce noise.
• Recommends IDT5T9302 if glitchless input selection is not
required
• Not Recommended for New Designs
• For functional replacement use 8SLVP1102
Applications
• Clock distribution
Pin Assignment
A2
A2
GND
PD
1
2
20
19
GND
VDD
3
4
18
17
FSEL
VDD
5
6
16 Q2
15 Q2
Q1
Q1
VDD
GL
A1
VDD
7
14
13
12
11
8
SEL
G
GND
9
10
A1
20-Lead TSSOP
4.4mm x 6.5mm x 0.925mm package body
G Package
Top View
5T93GL02 Rev A 3/11/15
1
©2015 Integrated Device Technology, Inc.
5T93GL02 DATA SHEET
Block Diagram
GL
G
Q1
Q1
OUTPUT
CONTROL
PD
Q2
Q2
OUTPUT
CONTROL
A1
A1
1
0
A2
A2
SEL
FSEL
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
2
Rev A 3/11/15
5T93GL02 DATA SHEET
Table 1. Pin Descriptions
Name
Type
Description
A[1:2]
Input
Input
Adjustable (1, 4) Clock input. A[1:2] is the "true" side of the differential clock input.
Complementary clock inputs. A[1:2] is the complementary side of A[1:2].
For LVTTL single-ended operation, A[1:2] should be set to the desired toggle voltage
Adjustable (1, 4) for A[1:2]:
A[1:2]
3.3V LVTTL VREF = 1650mV
2.5V LVTTL VREF = 1250mV
Gate control for differential outputs Q1 and Q1 through Q2 and Q2. When G is LOW,
G
Input
Input
LVTTL
LVTTL
the differential outputs are active. When G is HIGH, the differential outputs are
asynchronously driven to the level designated by GL(2)
.
Specifies output disable level. If HIGH, "true" outputs disable HIGH and
"complementary" outputs disable LOW. If LOW, "true" outputs disable LOW
and "complementary" outputs disable HIGH.
GL
Q[1:2]
Q[1:2]
Output
Output
LVDS
LVDS
Clock outputs.
Complementary clock outputs.
Reference clock select. When LOW, selects A2 and A2.
When HIGH, selects A1 and A1.
SEL
PD
Input
Input
Input
LVTTL
LVTTL
LVTTL
Power-down control. Shuts off entire chip. If LOW, the device goes into low power
mode. Inputs and outputs are disabled. Both "true" and "complementary" outputs will
pull to VDD. Set HIGH for normal operation.(3)
At a rising edge, FSEL forces select to the input designated by SEL.
Set LOW for normal operation. At power-up, FSEL should be LOW.
FSEL
VDD
Power
Power
Power supply for the device core and inputs.
Ground.
GND
NOTES:
1.
Inputs are capable of translating the following interface standards:
Single-ended 3.3V and 2.5V LVTTL levels
Differential HSTL and eHSTL levels
Differential LVEPECL (2.5V) and LVPECL (3.3V) levels
Differential LVDS levels
Differential CML levels
2.
3.
4.
Because the gate controls are asynchronous, runt pulses are possible. It is the user's responsibility to either time the gate control
signals to minimize the possibility of runt pulses or be able to tolerate them in down stream circuitry.
It is recommended that the outputs be disabled before entering power-down mode. It is also recommended that the outputs remain
disabled until the device completes power-up after asserting PD.
The user must take precautions with any differential input interface standard being used in order to prevent instability when there is
no input signal.
Table 2. Pin Characteristics (TA = +25°C, F = 1.0MHz)
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
CIN
Input Capacitance
3
pF
NOTE: This parameter is measured at characterization but not tested.
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
3
Rev A 3/11/15
5T93GL02 DATA SHEET
Function Tables
Table 3A. Gate Control Output Table
Control Output
Outputs
GL
0
G
0
1
0
1
Q[1:2]
Q[1:2]
Toggling
HIGH
Toggling
LOW
0
1
Toggling
HIGH
Toggling
LOW
1
Table 3B. Input Selection Table
Selection SEL pin
Inputs
A2/A2
A1/A1
0
1
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of product at these conditions or any conditions beyond those listed in the DC Characteristics or AC
Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Item
Rating
Power Supply Voltage, VDD
Input Voltage, VI
-0.5V to +3.6V
-0.5V to +3.6V
Output Voltage, VO
Not to exceed 3.6V
-0.5 to VDD +0.5V
Storage Temperature, TSTG
Junction Temperature, TJ
-65C to 150C
150C
Recommended Operating Range
Symbol
TA
Description
Minimum
Typical
+25
Maximum
+85
Units
C
Ambient Operating Temperature
Internal Power Supply Voltage
-40
2.3
VDD
2.5
2.7
V
Rev A 3/11/15
4
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5T93GL02 DATA SHEET
DC Electrical Characteristics
Table 4A. LVDS Power Supply DC Characteristics(1), TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Quiescent VDD
Power Supply Current
VDD = Max., All Input Clocks = LOW(2)
Outputs enabled
;
IDDQ
240
mA
Total Power
VDD Supply Current
VDD = 2.7V;
FREFERENCE Clock = 450MHz
ITOT
IPD
250
5
mA
mA
Total Power Down
Supply Current
PD = LOW
NOTE 1: These power consumption characteristics are for all the valid input interfaces and cover the worst case conditions.
NOTE 2: The true input is held LOW and the complementary input is held HIGH.
Table 4B. LVTTL DC Characteristics(1), TA = -40°C to 85°C
Symbol Parameter
Test Conditions
VDD = 2.7V
Minimum
Typical(2)
Maximum
Units
µA
µA
V
IIH
Input High Current
5
5
IIL
Input Low Current
VDD = 2.7V
VIK
VIN
VIH
VIL
VTHI
Clamp Diode Voltage
DC Input Voltage
VDD = 2.3V, IIN = -18mA
-0.7
-1.2
3.6
-0.3
1.7
V
DC Input High Voltage
DC Input Low Voltage
DC Input Threshold Crossing Voltage
V
0.7
V
VDD/2
1.65
V
3.3V LVTTL
2.5V LVTTL
V
VREF
Single-Ended Reference Voltage (3)
1.25
V
NOTE 1: See Recommended Operating Range table.
NOTE 2: Typical values are at VDD = 2.5V, +25°C ambient.
NOTE 3: For A[1:2] single-ended operation, A[1:2] is tied to a DC reference voltage.
Table 4C. Differential DC Characteristics(1), TA = -40°C to 85°C
Symbol
IIH
Parameter
Test Conditions
VDD = = 2.7V
Minimum
Typical(4)
Maximum
Units
µA
µA
V
Input High Current
5
5
IIL
Input Low Current
VDD = = 2.7V
VIK
Clamp Diode Voltage
VDD = 2.3V, IIN = -18mA
-0.7
-1.2
3.6
VIN
DC Input Voltage
-0.3
0.1
V
VDIF
VCM
DC Differential Voltage(2)
DC Common Mode Input Voltage(3)
V
0.05
VDD
V
NOTE 1: See Recommended Operating Range table.
NOTE 2: VDIF specifies the minimum input differential voltage (VTR - VCP) required for switching where VTR is the "true" input level and VCP is
the "complement" input level. The DC differential voltage must be maintained to guarantee retaining the existing HIGH or LOW input. The AC
differential voltage must be achieved to guarantee switching to a new state.
NOTE 3: VCM specifies the maximum allowable range of (VTR + VCP) /2.
NOTE 4: Typical values are at VDD = 2.5V, +25°C ambient.
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5
Rev A 3/11/15
5T93GL02 DATA SHEET
Table 4D. LVDS DC Characteristics(1), TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical(2)
Maximum
Units
Differential Output Voltage for
the True Binary State
VOT(+)
247
454
mV
Differential Output Voltage for
the False Binary State
VOT(–)
VOT
VOS
247
454
50
mV
mV
V
Change in VOT Between
Complementary Output States
Output Common Mode Voltage
(Offset Voltage)
1.125
1.2
1.375
Change in VOS Between
Complementary Output States
VOS
IOS
50
24
12
mV
mA
mA
Outputs Short Circuit Current
VOUT+ and VOUT– = 0V
VOUT+ = VOUT–
12
6
Differential Outputs Short Circuit
Current
IOSD
NOTE 1: See Recommended Operating Range table.
NOTE 2: Typical values are at VDD = 2.5V, +25°C ambient.
AC Electrical Characteristics
Table 5A. HSTL Differential Input AC Characteristics, TA = -40°C to 85°C
Symbol
VDIF
VX
Parameter
Input Signal Swing(1)
Differential Input Signal Crossing Point(2)
Value
Units
V
1
750
50
mV
%
DH
Duty Cycle
VTHI
tR / tF
Input Timing Measurement Reference Level(3)
Input Signal Edge Rate(4)
Crossing Point
2
V
V/ns
NOTE 1.The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE)
environment. This device meets the VDIF (AC) specification under actual use conditions.
NOTE 2.A 750mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment.
This device meets the VX specification under actual use conditions.
NOTE 3.In all cases, input waveform timing is marked at the differential cross-point of the input signals.
NOTE 4.The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
Rev A 3/11/15
6
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5T93GL02 DATA SHEET
Table 5B. eHSTL AC Differential Input Characteristics, TA = -40°C to 85°C
Symbol
VDIF
VX
Parameter
Input Signal Swing(1)
Differential Input Signal Crossing Point(2)
Value
Units
V
1
900
mV
%
DH
Duty Cycle
50
VTHI
tR / tF
Input Timing Measurement Reference Level(3)
Input Signal Edge Rate(4)
Crossing Point
2
V
V/ns
NOTE 1.The 1V peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE)
environment. This device meets the VDIF (AC) specification under actual use conditions.
NOTE 2.A 900mV crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment.
This device meets the VX specification under actual use conditions.
NOTE 3.In all cases, input waveform timing is marked at the differential cross-point of the input signals.
NOTE 4.The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
Table 5C. LVEPECL (2.5V) and LVPECL (3.3V) Differential Input AC Characteristics, TA = -40°C to 85°C
Symbol
Parameter
Input Signal Swing(1)
Maximum
Units
mV
mV
mV
%
VDIF
732
LVEPECL
LVPECL
1082
VX
Differential Input Cross Point Voltage(2)
1880
DH
Duty Cycle
50
VTHI
tR / tF
Input Timing Measurement Reference Level(3)
Input Signal Edge Rate(4)
Crossing Point
2
V
V/ns
NOTE 1.The 732mV peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE)
environment. This device meets the VDIF (AC) specification under actual use conditions.
NOTE 2.A 1082mV LVEPECL (2.5V) and 1880mV LVPECL (3.3V) crossing point level is specified to allow consistent, repeatable results in an
automatic test equipment (ATE) environment. This device meets the VX specification under actual use conditions.
NOTE 3.In all cases, input waveform timing is marked at the differential cross-point of the input signals.
NOTE 4.The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
Table 5D. LVDS Differential Input AC Characteristics, TA = -40°C to 85°C
Symbol
VDIF
VX
Parameter
Input Signal Swing(1)
Differential Input Cross Point Voltage(2)
Maximum
Units
mV
V
400
1.2
DH
Duty Cycle
50
%
VTHI
tR / tF
Input Timing Measurement Reference Level(3)
Input Signal Edge Rate(4)
Crossing Point
2
V
V/ns
NOTE 1.The 400mV peak-to-peak input pulse level is specified to allow consistent, repeatable results in an automatic test equipment (ATE)
environment. This device meets the VDIF (AC) specification under actual use conditions.
NOTE 2.A 1.2V crossing point level is specified to allow consistent, repeatable results in an automatic test equipment (ATE) environment. This
device meets the VX specification under actual use conditions.
NOTE 3.In all cases, input waveform timing is marked at the differential cross-point of the input signals.
NOTE 4.The input signal edge rate of 2V/ns or greater is to be maintained in the 20% to 80% range of the input waveform.
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
7
Rev A 3/11/15
5T93GL02 DATA SHEET
Table 5E. AC Differential Input Characteristics(1), TA = -40°C to 85°C
Symbol
VDIF
VX
Parameter
Minimum
0.1
Typical
Maximum
3.6
Units
AC Differential Voltage(2)
Differential Input Cross Point Voltage
Common Mode Input Voltage Range(3)
Input Voltage
V
V
V
V
0.05
VDD
VCM
VIN
0.05
VDD
-0.3
3.6
NOTE 1.The output will not change state until the inputs have crossed and the minimum differential voltage range defined by VDIF has been
met or exceeded.
NOTE 2.VDIF specifies the minimum input voltage (VTR – VCP) required for switching where VTR is the “true” input level and VCP is the
“complement” input level. The AC differential voltage must be achieved to guarantee switching to a new state.
NOTE 3.VCM specifies the maximum allowable range of (VTR + VCP) /2.
Table 5F. AC Characteristics(1,5), TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Same Device Output
Pin-to-Pin Skew (2)
tsk(o)
50
ps
tsk(p)
tsk(pp)
tpLH
tpHL
fo
Pulse Skew(3)
Part-to-Part Skew(4)
100
300
2.2
ps
ps
Propagation Delay, Low-to-High
Propagation Delay, High-to-Low
Frequency Range(6)
1.5
1.5
ns
A Crosspoint to Qn/Qn
Crosspoint
2.2
ns
450
MHz
Output Gate Enable Crossing
VTHI-to-Qn/Qn Crosspoint
tPGE
3.5
3.5
ns
ns
µS
Output Gate Enable Crossing
VTHI-to-Qn/Qn Crosspoint
Driven to GL Designated Level
tPGD
PD Crossing VTHI-to-Qn = VDD
Qn = VDD
,
tPWRDN
100
Output Gate Disable Crossing
VTHI to Qn/Qn Driven to
Designated Level
Output Rise/Fall Time(6)
tPWRUP
tR / tF
100
500
µS
ps
20% to 80%
100
NOTE: Characterized at 300MHz, unless otherwise noted.
NOTE 1. AC propagation measurements should not be taken within the first 100 cycles of startup.
NOTE 2. Skew measured between crosspoints of all differential output pairs under identical input and output interfaces, transitions and load
conditions on any one device.
NOTE 3. Skew measured is the difference between propagation delay times tpHL and tpLH of any differential output pair under identical input
and output interfaces, transitions and load conditions on any one device.
NOTE 4. Skew measured is the magnitude of the difference in propagation times between any single differential output pair of two devices,
given identical transitions and load conditions at identical VDD levels and temperature.
NOTE 5. All parameters are tested with a 50% input duty cycle.
NOTE 6. Guaranteed by design but not production tested.
Rev A 3/11/15
8
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5T93GL02 DATA SHEET
Differential AC Timing Waveforms
Output Propagation and Skew Waveforms
1/fo
+ VDIF
VDIF = 0
- VDIF
A[1:2] - A[1:2]
tPHL
tPLH
+ VDIF
VDIF = 0
- VDIF
Qn - Qn
tSK(O)
tSK(O)
+ VDIF
VDIF = 0
- VDIF
Qm - Qm
NOTE 1: Pulse skew is calculated using the following expression:
tsk(p) = |tpHL – tpLH|
Note that the tpHL and tpLH shown above are not valid measurements for this calculation because they are not taken from the same pulse.
NOTE 2: AC propagation measurements should not be taken within the first 100 cycles of startup.
Differential Gate Disabled/Endable Showing Runt Pulse Generation
+ VDIF
VDIF = 0
- VDIF
A[1:2] - A[1:2]
VIH
VTHI
VIL
GL
G
tPLH
VIH
VTHI
VIL
tPGE
tPGD
+ VDIF
VDIF = 0
- VDIF
Qn - Qn
NOTE 1: As shown, it is possible to generate runt pulses on gate disable and enable of the outputs. It is the user’s responsibility to time the G
signal to avoid this problem.
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
9
Rev A 3/11/15
5T93GL02 DATA SHEET
Glitchless Output Operation with Switching Input Clock Selection
+ VDIF
VDIF = 0
- VDIF
A1 - A1
+ VDIF
VDIF = 0
- VDIF
A2 - A2
SEL
VIH
VTHI
VIL
+ VDIF
VDIF = 0
- VDIF
Qn - Qn
1. When SEL changes, the output clock goes LOW on the falling edge of the output clock up to three cycles later. The output then stays LOW
for up to three clock cycles of the new input clock. After this, the output starts with the rising edge of the new input clock.
2. AC propagation measurements should not be taken within the first 100 cycles of startup.
FSEL Operation for When Current Clock Dies
1. When the differential on the selected clock goes below the minimum DC differential, the outputs clock goes to an unknown state. When this
happens, the SEL pin should be toggled and FSEL asserted in order to force selection of the new input clock. The output clock will start up
after a number of cycles of the newly-selected input clock.
2. The FSEL pin should stay asserted until the problem with the dead clock can be fixed in the system.
3. It is recommended that the FSEL be tied HIGH for systems that use only one input. If this is not possible, the user must guarantee that the
unused input have a differential greater than or equal to the minimum DC differential specified in the datasheet.
Rev A 3/11/15
10
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5T93GL02 DATA SHEET
FSEL Operation for When Opposite Clock Dies
1. When the differential on the non-selected clock goes below the minimum DC differential, the outputs clock goes to an unknown state. When
this happens, the FSEL pin should be asserted in order to force selection of the new input clock. The output clock will start up after a number
of cycles of the newly-selected input clock.
2. The FSEL pin should stay asserted until the problem with the dead clock can be fixed in the system.
3. It is recommended that the FSEL be tied HIGH for systems that use only one input. If this is not possible, the user must guarantee that the
unused input have a differential greater than or equal to the minimum DC differential specified in the datasheet.
Selection of Input While Protecting Against When Opposite Clock Dies
+VDIF
A1 - A1
A2 - A2
FSEL
SEL
VDIF=0
-VDIF
+VDIF
VDIF=0
-VDIF
VIH
VTHI
VIL
VIH
VTHI
VIL
+VDIF
VDIF=0
-VDIF
Qn - Qn
1. If the user holds FSEL HIGH, the output will not be affected by the deselected input clock.
2. The output will immediately be driven to LOW once FSEL is asserted. This may cause glitching on the output. The output will restart with
the input clock selected by the SEL pin.
3. If the user decides to switch input clocks, the user must de-assert FSEL, then assert FSEL after toggling the SEL input pin. The output will
be driven LOW and will restart with the input clock selected by the SEL pin.
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
11
Rev A 3/11/15
5T93GL02 DATA SHEET
Power Down Timing
+VDIF
VDIF=0
-VDIF
A1 - A1
+VDIF
VDIF=0
-VDIF
A2 - A2
VIH
VTHI
VIL
G
VIH
VTHI
VIL
PD
+VDIF
VDIF=0
-VDIF
Qn - Qn
NOTE 1: It is recommended that outputs be disabled before entering power-down mode. It is also recommended that the outputs remain
disabled until the device completes power-up after asserting PD.
NOTE 2: The Power Down Timing diagram assumes that GL is HIGH.
NOTE 3: It should be noted that during power-down mode, the outputs are both pulled to VDD. In the Power Down Timing diagram this is
shown when Qn/Qn goes to VDIF = 0.
Rev A 3/11/15
12
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5T93GL02 DATA SHEET
Test Circuits and Conditions
Test Circuit for Differential Input
~50
VIN
Transmission Line
VDD/2
A
A
D.U.T.
Pulse
Generator
~50
VIN
Transmission Line
-VDD/2
Scope
50
50
Table 6A. Differential Input Test Conditions
Symbol
VDD = 2.5V 0.2V
Unit
VTHI
Crossing of A and A
V
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
13
Rev A 3/11/15
5T93GL02 DATA SHEET
Test Circuit for DC Outputs and Power Down Tests
VDD
A
A
Qn
Qn
Pulse
Generator
RL
RL
D.U.T.
VOS
VOD
Test Circuit for Propagation, Skew, and Gate Enable/Disable Timing
VDD/2
SCOPE
CL
Z = 50
A
A
Qn
Qn
Pulse
Generator
50
50
D.U.T.
Z = 50
CL
-VDD/2
Table 6B. Differential Input Test Conditions
Symbol
VDD = 2.5V 0.2V
Unit
pF
pF
0(1)
8(1,2)
50
CL
RL
NOTE 1: Specifications only apply to “Normal Operations” test condition. The TIA/EIA specification load is for reference only.
NOTE 2: The scope inputs are assumed to have a 2pF load to ground. TIA/EIA – 644 specifies 5pF between the output pair.
With CL = 8pF, this gives the test circuit appropriate 5pF equivalent load.
Rev A 3/11/15
14
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
5T93GL02 DATA SHEET
Ordering Information
Table 7. Ordering Information
XXXXX
XX
X
Device Type
Package
Process
I
-40°C to + 85°C (Industrial)
TSSOP - Green
PGG
2.5V LVDS 1:2 Glitchless Clock Buffer
5T93GL02
Terabuffer™ II
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
15
Rev A 3/11/15
5T93GL02 DATA SHEET
Revision History Sheet
Rev
Table
Page
Description of Change
Date
T3A
T3B
4
4
Added Gate Control Output Table.
Added Input Selection Table.
Converted datasheet format.
B
8/17/09
T5F
T7
8
1
Added NOTE: Characterized at 300MHz, unless otherwise noted.
NRND - Not Recommended for New designs
B
B
B
1/18/13
3/11/15
3/10/16
15
Ordering Information - removed leaded device, PDN N-13-11
Updated data sheet format
1
Product Discontinuation Notice - last time buy expires September 7, 2016.
PDN N-16-02
Rev A 3/11/15
16
2.5V LVDS, 1:2 GLITCHLESS CLOCK BUFFER TERABUFFER™ II
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
Sales
Tech Support
email: clocks@idt.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes no responsibility for either its use or for the infringement of any patents or
other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal commercial applications. Any other applications, such as
those requiring extended temperature ranges, high reliability or other extraordinary environmental requirements are not recommended without additional processing by IDT. IDT reserves the right to change any
circuitry or specifications without notice. IDT does not authorize or warrant any IDT product for use in life support devices or critical medical instruments.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected
names, logos and designs, are the property of IDT or their respective third party owners.
Copyright ©2015 Integrated Device Technology, Inc.. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		5T9010BBGI8 [ PLL Based Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), PBGA144, LEAD FREE, PLASTIC, BGA-144 ] 25 页

IDT

 		5T9050PGI [ Low Skew Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, TSSOP-28 ] 7 页

IDT

 		5T905PGI [ Low Skew Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, TSSOP-28 ] 17 页

IDT

 		5T9070PAGI8 [ Low Skew Clock Driver, 5T Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO48, GREEN, TSSOP-48 ] 9 页

IDT

 		5T9070PAI [ Clock Driver, CMOS, PDSO48 ] 9 页

IDT

 		5T9070PAI8 [ Clock Driver, CMOS, PDSO48 ] 9 页

IDT

 		5T907PAI [ Clock Driver, 5T Series, 10 True Output(s), 0 Inverted Output(s), CMOS, PDSO48, TSSOP-48 ] 19 页

IDT

 		5T907PAI8 [ Clock Driver, PDSO48 ] 19 页

IDT

 		5T9110BBGI8 [ PLL Based Clock Driver, 5T Series, 5 True Output(s), 0 Inverted Output(s), PBGA144, GREEN, PLASTIC, BGA-144 ] 23 页

IDT

 		5T915PAI [ Clock Driver, CMOS, PDSO48 ] 19 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.253059s
