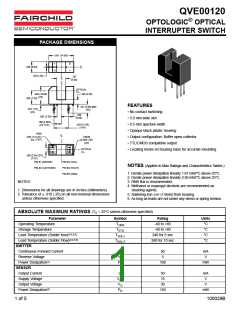

QVE00120
OPTOLOGIC® OPTICAL
INTERRUPTER SWITCH
PACKAGE DIMENSIONS
.551 (14.00)
+
D
+
C
.236 (6.00)
L
E
.020 (.50)
.197
(5.00)
C
L
C
L
OPTICAL
C.L.
.394 (10.00)
(2X)
.100 (2.50)
.295 (7.50)
FEATURES
• No contact switching
.197 (5.00) MIN
(4X)
.027 (.70)
(2X)
.260
(6.60)
.092 (2.35)
• 5.0 mm wide slot
.160 (4.064)
(2X TYP)
• 0.5 mm aperture width
.320 (8.128)
(TYP)
• Opaque black plastic housing
• Output configuration: Buffer open-collector
• TTL/CMOS compatible output
• Locating knobs on housing base for accurate mounting
PINS
.020 (.51) (4x)
SQ. (TYP)
C
L
KNOB
Ø.026 (.66)
(2X)
2
1
3
4
5
OPTICAL
C.L.
.100 (2.54) (2X)
(TYP)
PIN #1 (ANODE)
PIN #3 (VCC)
PIN #4 (VOUT)
PIN #5 (GND)
NOTES (Applies to Max Ratings and Characteristics Tables.)
PIN #2 (CATHODE)
1. Derate power dissipation linearly 1.67 mW/°C above 25°C.
2. Derate power dissipation linearly 2.50 mW/°C above 25°C.
3. RMA flux is recommended.
NOTES:
4. Methanol or isopropyl alcohols are recommended as
cleaning agents.
5. Soldering iron 1/16” (1.6mm) from housing.
6. As long as leads are not under any stress or spring tension.
1. Dimensions for all drawings are in inches (millimeters).
2. Tolerance of ± .010 (.25) on all non-nominal dimensions
unless otherwise specified.
(T = 25°C unless otherwise specified)
ABSOLUTE MAXIMUM RATINGS
A
Parameter
Operating Temperature
Storage Temperature
Lead Temperature (Solder Iron)(3,4,5,6)
Lead Temperature (Solder Flow)(3,4,5,6)
EMITTER
Symbol
TOPR
Rating
Units
°C
-40 to +85
TSTG
-40 to +85
°C
TSOL-I
TSOL-F
240 for 5 sec
260 for 10 sec
°C
°C
Continuous Forward Current
Reverse Voltage
Power Dissipation(1)
IF
50
5
mA
V
VR
PD
100
mW
SENSOR
Output Current
IO
VCC
VO
50
16
mA
V
Supply Voltage
Output Voltage
30
V
Power Dissipation(2)
PD
150
mW
1 of 5
100029B
QVE00120
OPTOLOGIC® OPTICAL
INTERRUPTER SWITCH
(TA =25°C)
ELECTRICAL / OPTICAL CHARACTERISTICS
PARAMETER
TEST CONDITIONS
SYMBOL
MIN.
TYP.
MAX.
UNITS
Operating Supply Voltage
INPUT DIODE
VCC
4.5
16
V
Forward Voltage
IF = 20 mA
VR = 5 V
VF
IR
1.7
10
V
Reverse Leakage Current
COUPLED
µA
Operating Supply Current
Low Level Output Voltage
High Level Output Current
Turn on Threshold Current
Turn off Threshold Current
Hysteresis Ratio
IF = 15 mA or 0 mA, VCC = 16 V
IF = 15 mA, VCC = 5 V, RL = 360 !
IF = 0 mA, VCC = 5 V, VOH = 30 V
VCC = 5 V, RL = 360 !
ICC
VOL
5
mA
V
0.4
100
15
IOH
µA
mA
mA
IF(+)
VCC = 5 V, RL = 360 !
IF(-)
0.50
IF(+) / IF(-)
tPLH, tPHL
tr, tf
1.2
5
Propagation Delay
VCC = 5 V, RL = 360 !
VCC = 5 V, RL = 360 !
µs
ns
Output Rise and Fall Time
70
TYPICAL PERFORMANCE CURVES
Fig. 1 Output Voltage vs. Input Current
Fig. 2 Normalized Threshold Current vs. Shield Distance
6
10
Black Shield
Black Shield
V
= 5 V
CC
RL = 270 !
= 25˚C
V
OH
5
4
3
2
1
0
d
0
T
A
+
E
D
+
d
0
Normalized to:
= 5 V
V
I
CC
= 20 mA Pulsed
I
F (OFF)
F (ON)
I
F
Pulse Width = 100 µs
Duty Cycle = 0.1%
1
V
OL
0
1
2
3
4
5
0
1
2
3
4
5
6
7
8
I
- Input Current (mA)
d - Distance (mm)
F
2 of 5
100029B
QVE00120
OPTOLOGIC® OPTICAL
INTERRUPTER SWITCH
Fig. 4 Normalized Threshold Current
vs. Ambient Temperature
Fig. 3 Normalized Threshold Current vs. Supply Voltage
1.6
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
Normalized to:
Turn ON Threshold
Normalized to:
V
T
= 5 V
CC
= 25˚C
1.4
V
= 5 V
CC
A
T
= 25˚C
A
1.2
1.0
0.8
0.6
0.4
0.2
0.0
I
I
I
I
F (OFF)
F (ON)
F (ON)
I
F (ON)
F (OFF)
I
F (OFF)
0
2
4
6
8
10
12
14
16
-40
-20
0
20
40
60
80
100
V
CC
- Supply Voltage (V)
T
- Ambient Temperature (˚C)
A
Fig. 5 Forward Current vs. Forward Voltage
Fig. 6 Low Output Voltage vs. Output Current
100
80
60
40
20
0
1
V
= 5 V
CC
= 25˚C
T
= 25˚C
A
T
A
I
= 0 mA
F
0.1
0.01
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1
10
V
F
- Forward Voltage (V)
I
- Output Current (mA)
O
Fig. 7 Response Time vs. Forward Current
5
V
= 5 V
CC
RL = 270 !
= 25˚C
T
A
4
3
2
1
0
I
Pulsed
F
T
PLH
T=10 ms
Duty Cycle = 50%
T
PHL
0
5
10
- Forward Current (mA)
15
20
I
F
3 of 5
100029B
QVE00120
OPTOLOGIC® OPTICAL
INTERRUPTER SWITCH
Fig. 8 Switching Speed Test Circuit
Fig. 9 Typical Operating Circuit
VCC
C2
5V
RIN
RL
R1
R2
.1 uf
.1 uf
+
VO
bypass
bypass
VIN
-
Pulse
C1
Generator
GND
V
= 5V
O
f = 10 KHz
d.c. = 50%
GND
R1= 270
R2= 360
!
!
C1= 15 pf
C2= 20 pf
C1and C2include probe and
stray wire capacitance
Fig. 10 Switching Test Curve for Buffers
Fig. 11 Switching Test Curve for Inverters
Input
Signal
VOLTAGE
REGULATOR
50%
VCC (3)
ANODE (1)
0 mA
LA
VOUT (4)
GND (5)
tPLH
tPHL
CATHODE (2)
VOH
90%
10%
10%
90%
Output
VO
50%
1.4 V
VOL
tr
tf
4 of 5
100029B
QVE00120
OPTOLOGIC® OPTICAL
INTERRUPTER SWITCH
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, and (c) whose failure to
perform when properly used in accordance with
instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of the
user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
© 2000 Fairchild Semiconductor Corporation
5 of 5
100029B
