QVE00033_05

型号：

QVE00033_05

描述：

光电晶体管光表面贴装断路器开关[ Phototransistor Optical Surface Mount Interrupter Switch ]

品牌：

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数：

6 页

PDF大小：

91 K

下载PDF手册

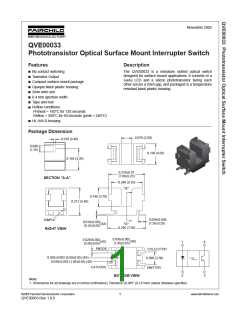

November 2005
QVE00033
Phototransistor Optical Surface Mount Interrupter Switch
Features
Description
■ No contact switching
■ Transistor Output
The QVE00033 is a miniature slotted optical switch
designed for surface mount applications. It consists of a
GaAs LED and a silicon phototransistor facing each
other across a 2mm gap, and packaged in a temperature
resistant black plastic housing.
■ Compact surface mount package
■ Opaque black plastic housing
■ 2mm wide slot
■ 0.4 mm aperture width
■ Tape and reel
■ Reflow conditions:
Preheat = 160°C for 120 seconds
Reflow = 200°C for 60 seconds (peak = 240°C)
■ HL-94V-0 housing
Package Dimension
0.079 (2.00)
0.159 (4.05)
0.016 (0.40)
0.049
(1.25)
0.165 (4.20)
0.276 0.01
(7.00 0.25)
0.240 (6.10)
"A"
SECTION "A-A"
0.146 (3.70)
0.213 (5.40)
0.059 0.008
(1.50 0.20)
DIMPLE
0.010 0.002
(4X)
"A"
0.295 (7.50)
(0.25 0.05)
RIGHT VIEW
0.039 0.002
(4X)
0.020 0.002
(4X)
1
2
4
(1.00 0.05)
(0.50 0.05)
ANODE
COLLECTOR
0.099 (2.50)
0.020 0.002 (0.50 0.05) (4X)
0.039 0.002 (1.00 0.05) (4X)
CATHODE
EMITTER
3
BOTTOM VIEW
Note:
1. Dimensions for all drawings are in inches (millimeters). Tolerance ±0.005" (0.127mm) unless othewise specified.
©2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
QVE00033 Rev. 1.0.0
Absolute Maximum Ratings (T = 25°C unless otherwise specified)
A
Parameter
Symbol
Rating
Units
T
Operating Temperature
Storage Temperature
-55 to +100
-55 to +100
240 for 5 sec
260 for 10 sec
100
°C
°C
OPR
T
STG
(2,3,4)
(2,3)
T
°C
Soldering Temperature (Iron)
SOL-I
T
°C
Soldering Temperature (Flow)
Total Power Dissipation
SOL-F
P
mW
TOT
Emitter
I
Continuous Forward Current
50
6
mA
V
F
V
Reverse Voltage
R
(1)
P
75
mW
Power Dissipation
D
Sensor
V
Collector-Emitter Voltage
30
4.5
20
75
V
V
CEO
V
Emitter-Collector Voltage
Collector Current
ECO
I
mA
mW
C
(1)
P
Power Dissipation
D
Electrical/Optical Characteristics (T = 25°C unless otherwise specified)
A
Parameter
Test Conditions
Symbol
Min.
Typ.
Max.
Units
Emitter
I = 20 mA
V
Forward Voltage
—
—
—
1.2
—
1.4
10
—
V
F
F
V = 4 V
I
Reverse Current
µA
nm
R
R
I = 20 mA
l
Peak Emission Wavelength
940
F
PE
Sensor
V
= 20 V, I = 0 mA
I
Dark Current
—
—
100
nA
CE
F
CEO
Coupled
I = 5 mA, V = 5 V
I
Collector Current
Collector Emitter
100
—
—
—
7
600
0.4
µA
V
F
CE
C(ON)
I = 10 mA, I = 40 µA
V
F
C
CE (SAT)
V
= 5 V, R = 1000 Ω
t
Rise Time
Fall Time
—
150
150
µs
µs
CC
L
r
I = 100 µA
t
—
7
C
f
Notes:
1. Derate power dissipation linearly 1.67 mW/°C above 25°C.
2. RMA flux is recommended.
3. Methanol or isopropyl alcohols are recommended as cleaning agents.
4. Soldering iron tip 1/16" (1.6mm) from housing.
2
www.fairchildsemi.com
QVE00033 Rev. 1.0.0
Typical Performance Characteristics
TA=25°C
IF=5mA
TA=25°C
IF=5mA
1.0
.8
1.0
Normalized to
value with shield
removed
V
CE=5V
V
CE=5V
Normalized to
value with shield
removed
.8
.6
.6
Black Shield
.4
.4
Black Shield
+
E
D
+
d2
0
d1
0
.2
.2
0.0
0.0
0
1
2
3
4
0
1
2
3
4
d1-Shield Distance (mm)
d2-Shield Distance (mm)
Figure 2. Normalized Collector Current Vs. Shield Distance
Figure 1. Normalized Collector Current Vs. Shield Distance
18
16
14
12
10
1.4
T =25°C
A
IF=20mA
1.2
1.0
.8
T =25°C
CE
A
V
8
6
4
2
0
.6
=5V
IF=10mA
Normalized to
I =5mA
.4
F
IF=5mA
.2
IF=1mA
0.0
0
2
4
6
8
10
12
0
10
20
IF-Forward Current (mA)
Figure 4. Normalized Collector Current Vs. Forward Current
30
40
50
VCE (V)
Figure 3. Collector Current Vs. Collector-Emitter Voltage
8
T =25°C
A
1.0
.8
PW=300µs
PRR=100µs
VCC=5V
T(on)
6
T(off)
Normalized
to RL=1k
T =25°C
A
4
2
0
PW=300µs
PRR=100µs
VCC=5V
.6
.4
.2
Normalized
to RL=1k
0
2
4
6
8
10
0
2
4
6
8
10
RL (kΩ)
Figure 5. Rise Time vs. Load Resistance
RL (kΩ)
Figure 6. Fall Time vs. Load Resistance
3
www.fairchildsemi.com
QVE00033 Rev. 1.0.0
Recommended Printed Circuit Board Pattern (For Reference Only)
Mounting Center
0.62
1.11
0.85
2.50
1.92
1.85
4
www.fairchildsemi.com
QVE00033 Rev. 1.0.0
Tape and Reel Dimensions
0.65 [16.5]
R0.24 [R6.0]
0.24 [6.00]
R6.5 [R165.0]
R6.3 [R160.0]
B
R0.31 [R8.0]
3.94 [100.0]
Ø3.54 [Ø90.0]
R1.97 [R50.0]
R2.17 [R55.0]
R5.16 [R131.0]
0.83 [21.10]
0.09 [2.3]
R0.27 0.047 [R6.75 1.20]
0.43 [10.75]
VIEW B
0.256 [6.50] Max
A
0.059 [1.50]
0.30 [7.60]
0 [0] min
0.157 [4.00]
Ø0.059 MIN
0.069 [1.75]
0.232 [5.90]
0.014 [0.35]
0.295 [7.50]
0.476 [12.10]
Max
0.630 [16.00]
0.005
[0.127] max
0.185
[4.70]
0.079 [2.00]
DIMPLE
0.472 [12.00]
0.378 [9.60] Max
ANODE (PIN1)
FACING SPROCKET HOLE
0.213
[5.40]
COVER TAPE
USER DIRECTION
EMBOSSMENT
Quantitiy of units per reel is 800.
QVE00033 ASSEMBLY
VIEW A
SCALE: 2:1
UNIT IN CAVITY
5
www.fairchildsemi.com
QVE00033 Rev. 1.0.0
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
FAST®
FASTr™
FPS™
FRFET™
GlobalOptoisolator™
GTO™
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic®
TINYOPTO™
TruTranslation™
UHC™
ACEx™
PowerSaver™
PowerTrench®
QFET®
ISOPLANAR™
LittleFET™
MICROCOUPLER™
MicroFET™
MicroPak™
MICROWIRE™
MSX™
ActiveArray™
Bottomless™
Build it Now™
CoolFET™
CROSSVOLT™
DOME™
EcoSPARK™
E2CMOS™
EnSigna™
FACT™
QS™
QT Optoelectronics™
Quiet Series™
RapidConfigure™
RapidConnect™
µSerDes™
ScalarPump™
SILENT SWITCHER®
SMART START™
SPM™
HiSeC™
UltraFET®
I2C™
MSXPro™
OCX™
OCXPro™
UniFET™
VCX™
Wire™
i-Lo™
ImpliedDisconnect™
IntelliMAX™
OPTOLOGIC®
OPTOPLANAR™
PACMAN™
POP™
FACT Quiet Series™
Across the board. Around the world.™
The Power Franchise®
Programmable Active Droop™
Stealth™
SuperFET™
SuperSOT™-3
Power247™
PowerEdge™
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVESTHE RIGHTTO MAKE CHANGES WITHOUTFURTHER NOTICETOANY
PRODUCTS HEREINTO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOTASSUMEANYLIABILITY
ARISING OUTOFTHEAPPLICATION OR USE OFANYPRODUCTOR CIRCUITDESCRIBED HEREIN; NEITHER DOES IT
CONVEYANYLICENSE UNDER ITS PATENTRIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILDíS PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUTTHE EXPRESS WRITTENAPPROVALOF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Product Status
Definition
Advance Information
Formative or
In Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary
First Production
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed
Obsolete
Full Production
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. I17
6
www.fairchildsemi.com
QVE00033 Rev. 1.0.0
