XU1003-BD-000V

型号:

XU1003-BD-000V

描述:

19.0-26.0 GHz的砷化镓MMIC变送器[ 19.0-26.0 GHz GaAs MMIC Transmitter ]

品牌:

MIMIX[ MIMIX BROADBAND ]

页数:

7 页

PDF大小:

220 K

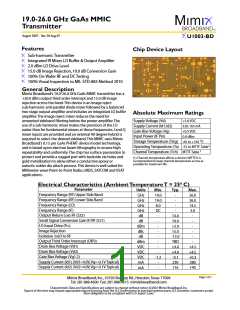

19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
Features
Chip Device Layout
Sub-harmonic Transmitter
Integrated IR Mixer, LO Buffer & Output Amplifier
2.0 dBm LO Drive Level
15.0 dB Image Rejection, 10.0 dB Conversion Gain
100% On-Wafer RF and DC Testing
100% Visual Inspection to MIL-STD-883 Method 2010
General Description
Mimix Broadband’s 19.0-26.0 GHz GaAs MMIC transmitter has a
+20.0 dBm output third order intercept and 15.0 dB image
rejection across the band.This device is an image reject
sub-harmonic anti-parallel diode mixer followed by a balanced
two stage output amplifier and includes an integrated LO buffer
amplifier.The image reject mixer reduces the need for
unwanted sideband filtering before the power amplifier.The
use of a sub-harmonic mixer makes the provision of the LO
easier than for fundamental mixers at these frequencies. I and Q
mixer inputs are provided and an external 90 degree hybrid is
required to select the desired sideband.This MMIC uses Mimix
Broadband’s 0.15 µm GaAs PHEMT device model technology,
and is based upon electron beam lithography to ensure high
repeatability and uniformity.The chip has surface passivation to
protect and provide a rugged part with backside via holes and
gold metallization to allow either a conductive epoxy or
eutectic solder die attach process.This device is well suited for
Millimeter-wave Point-to-Point Radio, LMDS, SATCOM and VSAT
applications.
Absolute Maximum Ratings
Supply Voltage (Vd)
+5.0 VDC
Supply Current (Id1,Id2)
Gate Bias Voltage (Vg)
Input Power (IF Pin)
Storage Temperature (Tstg)
Operating Temperature (Ta)
Channel Temperature (Tch)
320, 165 mA
+0.5 VDC
0.0 dBm
-65 to +165 OC
1
-55 to MTTF Table
1
MTTF Table
(1) Channel temperature affects a device's MTTF. It is
recommended to keep channel temperature as low as
possible for maximum life.
Electrical Characteristics (AmbientTemperatureT = 25o C)
Parameter
Frequency Range (RF) Upper Side Band
Frequency Range (RF) Lower Side Band
Frequency Range (LO)
Units
GHz
GHz
GHz
GHz
dB
Min.
19.0
19.0
8.0
DC
-
-
-
-
-
-
-
Typ.
-
-
-
-
14.0
10.0
+2.0
15.0
-12.0
TBD
+4.0
+4.0
-0.1
230
116
Max.
26.0
26.0
14.5
3.0
-
-
-
-
-
Frequency Range (IF)
Output Return Loss RF (S22)
Small Signal Conversion Gain IF/RF (S21)
LO Input Drive (PLO)
Image Rejection
Isolation 2xLO to RF
Output Third Order Intercept (OIP3)
Drain Bias Voltage (Vd1)
Drain Bias Voltage (Vd2)
Gate Bias Voltage (Vg1,2)
Supply Current (Id1) (Vd1=4.0V,Vg=-0.1V Typical)
Supply Current (Id2) (Vd2=4.0V,Vg=-0.1V Typical)
dB
dBm
dBc
dB
dBm
VDC
VDC
VDC
mA
-
+4.5
+4.5
+0.3
280
140
-
-1.2
-
-
mA
Page 1 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
Transmitter Measurements
XU1003-BD: Vd1 = 4 V, Vd2 = 4 V, Id1 = 230 mA, Id2 = 216 mA, USB
XU1003-BD: Vd1 = 4 V, Vd2 = 4 V, Id1 = 230 mA, Id2 = 216 mA, USB
LO = +2 dBm, IF = 2 GHz, IF = -15 dBm, ~125 devices
LO = + 2 dBm, IF = 2 GHz, IF = -15 dBm, ~125 devices
20
0
-5
18
16
14
12
10
8
-10
-15
-20
-25
-30
-35
-40
6
4
2
0
19
20
21
22
23
24
25
26
19
20
21
22
23
24
25
26
RF Frequency (GHz)
RF Frequency (GHz)
Max
Median
Mean
-3sigma
Max
Median
Mean
-3sigma
XU1003-BD: Vd1 = 4 V, Vd2 = 4 V, Id1 = 230 mA, Id2 = 216 mA, LSB
LO = +2 dBm, IF = 2 GHz, IF = -15 dBm, ~125 devices
XU1003-BD: Vd1 = 4 V, Vd2 = 4 V, Id1 = 230 mA, Id2 = 216 mA, LSB
LO = +2 dBm, IF = 2 GHz, IF = -15 dBm, ~125 devices
20
18
16
14
12
10
8
0
-5
-10
-15
-20
-25
-30
-35
-40
6
4
2
0
19
20
21
22
RF Frequency (GHz)
Median Mean
23
24
25
26
19
20
21
22
23
24
25
26
RF Frequency (GHz)
Max
-3sigma
Max
Median
Mean
-3sigma
XU1003-BD: Vd1 = 4 V, Vd2 = 4 V, Id1 = 230 mA, Id2 = 216 mA,
LO = +2 dBm, IF = 2 GHz, IF = -15 dBm, ~125 devices
XU1003-BD: Vd1 = 4 V, Vd2 = 4 V, Id1 = 230 mA, Id2 = 216 mA,
LO = +2 dBm, IF = 2 GHz, IF = -15 dBm, ~125 devices
0
0
-5
-2
-4
-10
-15
-20
-25
-30
-35
-40
-6
-8
-10
-12
-14
-16
-18
-20
19
20
21
22
23
24
25
26
17
18
19
20
21
22
23
24
25
26
27
28
RF Frequency (GHz)
2xLO Frequency (GHz)
Max
Median
Mean
-3sigma
Max
Median
Mean
-3sigma
Page 2 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
1.678
2.478
3.278
Mechanical Drawing
(0.066)
(0.098)
(0.129)
1.945
(0.077)
4
2
3
1.608
1
(0.063)
1.487
5
(0.059)
10
9
8
7
6
0.0
1.678
2.478
3.077 3.278
(0.121) (0.129)
3.677
3.970
0.0
(0.066)
(0.098)
(0.145)
(0.156)
(Note: Engineering designator is 22TX0523)
Units: millimeters (inches) Bond pad dimensions are shown to center of bond pad.
Thickness: 0.110 +/- 0.010 (0.0043 +/- 0.0004), Backside is ground, Bond Pad/Backside Metallization: Gold
All DC/IF Bond Pads are 0.100 x 0.100 (0.004 x 0.004). All RF Bond Pads are 0.100 x 0.200 (0.004 x 0.008).
Bond pad centers are approximately 0.109 (0.004) from the edge of the chip.
Dicing tolerance: +/- 0.005 (+/- 0.0002). Approximate weight: 4.787 mg.
Bond Pad #1 (RF Out) Bond Pad #3 (IF1)
Bond Pad #5 (LO)
Bond Pad #6 (Vg2b)
Bond Pad #7 (Vg2)
Bond Pad #8 (Vg2a)
Bond Pad #9 (IF2)
Bond Pad #10 (Vg1)
Bond Pad #2 (Vd1)
Bond Pad #4 (Vd2)
Bias Arrangement
Bypass Capacitors - See App Note [2]
Vd2
Vd1
Vd2
IF1
IF1
Vd1
4
2
3
1
RF
RF
5
LO
LO
XU1003-BD
10
9
8
7
6
IF2
Vg1
Vg2
IF2
Vg2
Vg1
Page 3 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
App Note [1] Biasing - As shown in the bonding diagram, this device is operated by separately biasing Vd1 and Vd2
with Vd1=4.0V, Id1=230mA and Vd2=4.0V, Id2=116mA. It is also recommended to use active biasing to keep the currents
constant as the RF power and temperature vary; this gives the most reproducible results. Depending on the supply
voltage available and the power dissipation constraints, the bias circuit may be a single transistor or a low power
operational amplifier, with a low value resistor in series with the drain supply used to sense the current.The gate of the
pHEMT is controlled to maintain correct drain current and thus drain voltage.The typical gate voltage needed to do this
is -0.3V.Typically the gate is protected with Silicon diodes to limit the applied voltage. Also, make sure to sequence the
applied voltage to ensure negative gate bias is available before applying the positive drain supply.
App Note [2] Bias Arrangement - Each DC pad (Vd1,2 and Vg1,2) needs to have DC bypass capacitance (~100-200 pF)
as close to the device as possible. Additional DC bypass capacitance (~0.01 uF) is also recommended.
MTTFTables (TBD)
These numbers were calculated based on accelerated life test information and thermal model analysis received from the fabricating foundry.
Backplate
Channel
Rth
MTTF Hours
FITs
Temperature
Temperature
55 deg Celsius
75 deg Celsius
95 deg Celsius
deg Celsius
deg Celsius
deg Celsius
C/W
C/W
C/W
E+
E+
E+
E+
E+
E+
Bias Conditions: Vd1=4.0V,Vd2=4.0V, Id1=230 mA, Id2=116 mA
Typical Application
XP1013-BD
XU1003-BD
XB1004-BD
Sideband
Reject
RF Out
21.2-23.6 GHz
IF IN
2 GHz
LO(+2.0dBm)
9.6-10.8 GHz (USB Operation)
11.6-12.8 GHz (LSB Operation)
Mimix Broadband MMIC-based 19.0-26.0 GHz Transmitter Block Diagram
(Changing LO and IF frequencies as required allows design to operate as high as 26 GHz)
Mimix Broadband's 19.0-26.0 GHz XU1003-BD GaAs MMIC Transmitter can be used in saturated radio applications and
linear modulation schemes up to 16 QAM.The transmitter can be used in upper and lower sideband applications from
19.0-26.0 GHz.
Page 4 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
App Note [3] USB/LSB Selection -
LSB
USB
For Upper Side Band operation (USB):
With IF1 and IF2 connected to the
direct port (0º) and coupled port (90º)
respectively as shown in the diagram,
the USB signal will reside on the
isolated port. The input port must be
loaded with 50 ohms.
For Lower Side Band operation (LSB):
With IF1 and IF2 connected to the
direct port (0º) and coupled port (90º)
respectively as shown in the diagram,
the LSB signal will reside on the input
port. The isolated port must be loaded
with 50 ohms.
IF2
IF1
An alternate method of Selection of USB or LSB:
LSB
In Phase Combiner
-90o
USB
In Phase Combiner
-90o
IF2
IF1
IF2
IF1
Page 5 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
Device Schematic
Block Diagram
Vd1
IF1
Vd2
LO Buffer
Vg2
Output Amp
IR Mixer
RF Out
RF Out
RF In
RF
LO
LO Out
LO In
LO
Vg1
IF2
Page 6 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
19.0-26.0 GHz GaAs MMIC
Transmitter
August 2007 - Rev 20-Aug-07
U1003-BD
Handling and Assembly Information
CAUTION! - Mimix Broadband MMIC Products contain gallium arsenide (GaAs) which can be hazardous to the human body and the
environment. For safety, observe the following procedures:
• Do not ingest.
• Do not alter the form of this product into a gas, powder, or liquid through burning, crushing, or chemical processing as these
by-products are dangerous to the human body if inhaled, ingested, or swallowed.
• Observe government laws and company regulations when discarding this product.This product must be discarded in accordance
with methods specified by applicable hazardous waste procedures.
Life Support Policy - Mimix Broadband's products are not authorized for use as critical components in life support devices or
systems without the express written approval of the President and General Counsel of Mimix Broadband. As used herein: (1) Life
support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain
life, and whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury to the user. (2) A critical component is any component of a life support device or
system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its
safety or effectiveness.
ESD - Gallium Arsenide (GaAs) devices are susceptible to electrostatic and mechanical damage. Die are supplied in antistatic
containers, which should be opened in cleanroom conditions at an appropriately grounded anti-static workstation. Devices need
careful handling using correctly designed collets, vacuum pickups or, with care, sharp tweezers.
Die Attachment - GaAs Products from Mimix Broadband are 0.100 mm (0.004") thick and have vias through to the backside to
enable grounding to the circuit. Microstrip substrates should be brought as close to the die as possible.The mounting surface should
be clean and flat. If using conductive epoxy, recommended epoxies are Tanaka TS3332LD, Die Mat DM6030HK or DM6030HK-Pt cured
in a nitrogen atmosphere per manufacturer's cure schedule. Apply epoxy sparingly to avoid getting any on to the top surface of the
die. An epoxy fillet should be visible around the total die periphery. For additional information please see the Mimix "Epoxy
Specifications for Bare Die" application note. If eutectic mounting is preferred, then a fluxless gold-tin (AuSn) preform, approximately
0.0012 thick, placed between the die and the attachment surface should be used. A die bonder that utilizes a heated collet and
provides scrubbing action to ensure total wetting to prevent void formation in a nitrogen atmosphere is recommended.The gold-tin
eutectic (80% Au 20% Sn) has a melting point of approximately 280 ºC (Note: Gold Germanium should be avoided).The work station
temperature should be 310 ºC +/- 10 ºC. Exposure to these extreme temperatures should be kept to minimum.The collet should be
heated, and the die pre-heated to avoid excessive thermal shock. Avoidance of air bridges and force impact are critical during
placement.
Wire Bonding - Windows in the surface passivation above the bond pads are provided to allow wire bonding to the die's gold bond
pads.The recommended wire bonding procedure uses 0.076 mm x 0.013 mm (0.003" x 0.0005") 99.99% pure gold ribbon with 0.5-2%
elongation to minimize RF port bond inductance. Gold 0.025 mm (0.001") diameter wedge or ball bonds are acceptable for DC Bias
connections. Aluminum wire should be avoided.Thermo-compression bonding is recommended though thermosonic bonding may
be used providing the ultrasonic content of the bond is minimized. Bond force, time and ultrasonics are all critical parameters. Bonds
should be made from the bond pads on the die to the package or substrate. All bonds should be as short as possible.
Ordering Information
Part Number for Ordering
XU1003-BD-000V
XU1003-BD-EV1
Description
Where“V”is RoHS compliant die packed in vacuum release gel paks
XU1003 die evaluation module
Page 7 of 7
Mimix Broadband, Inc., 10795 Rockley Rd., Houston,Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice. ©2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
厂商 型号 描述 页数 下载

ETC

XU1-N18PP340 REFLEXLICHTTASTER VERDRAHTET RLS INLINE\n[ REFLEXLICHTTASTER VERDRAHTET RLS INLINE ] 4 页

ETC

XU1-N18PP340W REFLEXLICHTTASTER VERDRAHTET RLS 90\n[ REFLEXLICHTTASTER VERDRAHTET RLS 90 ] 4 页

MIMIX

XU1000 17.0-27.0 GHz的砷化镓MMIC变送器[ 17.0-27.0 GHz GaAs MMIC Transmitter ] 5 页

MIMIX

XU1000-BD-000W [ Up Converter, ROHS COMPLIANT, PLASTIC, DIE-5 ] 5 页

MIMIX

XU1001 33.0-40.0 GHz的砷化镓MMIC变送器[ 33.0-40.0 GHz GaAs MMIC Transmitter ] 8 页

MIMIX

XU1001-BD 33.0-40.0 GHz的砷化镓MMIC变送器[ 33.0-40.0 GHz GaAs MMIC Transmitter ] 8 页

MIMIX

XU1001-BD-000V 33.0-40.0 GHz的砷化镓MMIC变送器[ 33.0-40.0 GHz GaAs MMIC Transmitter ] 8 页

MIMIX

XU1001-BD-000W 33.0-40.0 GHz的砷化镓MMIC变送器[ 33.0-40.0 GHz GaAs MMIC Transmitter ] 8 页

MIMIX

XU1001-BD-EV1 33.0-40.0 GHz的砷化镓MMIC变送器[ 33.0-40.0 GHz GaAs MMIC Transmitter ] 8 页

MIMIX

XU1002 18.0-25.0 GHz的砷化镓MMIC变送器[ 18.0-25.0 GHz GaAs MMIC Transmitter ] 8 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.212431s
