5SGA06D4502

型号:

5SGA06D4502

描述:

不对称的门关断晶闸管[ Asymmetric Gate turn-off Thyristor ]

品牌:

ABB[ THE ABB GROUP ]

页数:

5 页

PDF大小:

391 K

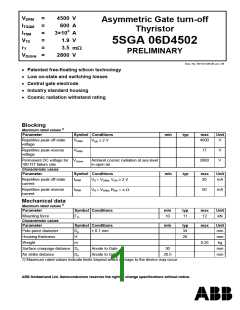

VDRM
ITGQM
ITSM
VT0
=
=
=
=
=
=
4500 V
600 A
Asymmetric Gate turn-off
Thyristor
3×103 A
1.9 V
5SGA 06D4502
rT
3.5
m
PRELIMINARY
VDclink
2800 V
Doc. No. 5SYA1236-00 Jun. 04
Patented free-floating silicon technology
Low on-state and switching losses
Central gate electrode
Industry standard housing
Cosmic radiation withstand rating
Blocking
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
max
Unit
Repetitive peak off-state
voltage
VDRM
4500
V
VGR 2 V
Repetitive peak reverse
voltage
VRRM
17
V
V
Permanent DC voltage for VDclink
100 FIT failure rate
Ambient cosmic radiation at sea level
in open air.
2800
Characteristic values
Parameter
Symbol Conditions
min
typ
max
Unit
Repetitive peak off-state
current
IDRM
20
mA
VD = VDRM, VGR 2 V
Repetitive peak reverse
current
IRRM
50
mA
VR = VRRM, RGK = ∞ Ω
Mechanical data
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
max
Unit
Mounting force
Characteristic values
Parameter
Fm
10
11
12
kN
Symbol Conditions
min
typ
34
max
Unit
mm
mm
kg
Pole-piece diameter
Housing thickness
Weight
Dp
H
± 0.1 mm
26
m
0.25
Surface creepage distance Ds
Air strike distance Da
Anode to Gate
Anode to Gate
30
mm
mm
20.5
1) Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SGA 06D4502
GTO Data
On-state
Maximum rated values 1)
Parameter
Symbol Conditions
IT(AV)M Half sine wave, TC = 85 °C
min
typ
max
Unit
Max. average on-state
current
210
A
Max. RMS on-state current IT(RMS)
330
3.1×103
A
A
Max. peak non-repetitive
surge current
ITSM
tp = 8.3 ms, Tvj = 125°C, sine wave
After Surge: VD = VR = 0 V
Limiting load integral
I2t
40×103
3×103
A2s
A
Max. peak non-repetitive
surge current
ITSM
tp = 10 ms, Tvj = 125°C, sine wave
After Surge: VD = VR = 0 V
Limiting load integral
I2t
45×103
6×103
A2s
A
Max. peak non-repetitive
surge current
ITSM
tp = 1 ms, Tvj = 125°C, sine wave
After Surge: VD = VR = 0 V
Limiting load integral
Characteristic values
Parameter
I2t
18×103
A2s
Symbol Conditions
min
typ
max
4
Unit
V
On-state voltage
Threshold voltage
Slope resistance
Holding current
VT
V(T0)
rT
IT = 600 A, Tvj = 125°C
Tvj = 125°C
IT = 200...600 A
1.9
3.5
V
mΩ
IH
Tvj = 25°C
20
A
Turn-on switching
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
max
Unit
Critical rate of rise of on-
state current
diT/dtcr
400
A/µs
Tvj = 125°C,
IT = 600 A, IGM = 20 A,
f = 200 Hz
f = 1 Hz
Critical rate of rise of on-
state current
diT/dtcr
ton
600
A/µs
µs
diG/dt = 20 A/µs
Min. on-time
80
Characteristic values
Parameter
Symbol Conditions
min
typ
max
1.5
3
Unit
µs
µs
J
Turn-on delay time
Rise time
td
VD = 0.5 VDRM, Tvj = 125 °C
IT = 600 A, di/dt = 200 A/µs,
IGM = 20 A, diG/dt = 20 A/µs,
tr
Turn-on energy per pulse
Eon
0.8
CS = 1 µF, RS = 10 Ω
Turn-off switching
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
typ
max
Unit
Max. controllable turn-off
current
ITGQM
600
A
VDM VDRM, VD = 0.5 VDRM
diGQ/dt = 20 A/µs, CS = 1 µF,
VDSP LS 0.15 µH, RCD Snubber
Spike Voltage
V
650
Min. off-time
toff
80
µs
Characteristic values
Parameter
Symbol Conditions
min
max
15
Unit
µs
µs
J
Storage time
tS
tf
VD = 0.5 VDRM, Tvj = 125 °C
VDM VDRM, diGQ/dt = 20 A/µs,
Fall time
5
ITGQ = ITGQM
,
Turn-on energy per pulse
Peak turn-off gate current
Eoff
IGQM
1.9
300
RS = 10 , CS = 1 µF, LS = 0.15 µH
A
RCD Snubber
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1236-00 Jun. 04
page 2 of 5
5SGA 06D4502
Gate
Maximum rated values 1)
Parameter
Symbol Conditions
min
min
typ
max
Unit
Repetitive peak reverse
voltage
VGRM
17
V
Repetitive peak reverse
current
IGRM
20
mA
VGR = VGRM
Characteristic values
Parameter
Symbol Conditions
typ
1
max
Unit
V
Gate trigger voltage
Gate trigger current
VGT
IGT
Tvj = 25°C,
VD = 24 V, RA = 0.1 Ω
2
A
Thermal
Maximum rated values 1)
Parameter
Symbol Conditions
min
0
typ
typ
max
Unit
Junction operating temperature
Tvj
125
125
°C
°C
Storage temperature range
Characteristic values
Parameter
Tstg
0
Symbol Conditions
min
max
50
Unit
K/kW
K/kW
K/kW
K/kW
K/kW
Thermal resistance junction to case
Rth(jc) Double side cooled
Rth(jc)A Anode side cooled
Rth(jc)C Cathode side cooled
Rth(ch) Single side cooled
Rth(ch) Double side cooled
85
122
16
Thermal resistance case to heatsink
(Double side cooled)
8
Analytical function for transient thermal
impedance:
n
Z
thJC(t) = R
i
(1-e-t/τ i )
i=1
i
1
2
3
4
Ri(K/kW)
τi(s)
15.000
0.4610
5.200
0.0950
7.500
0.100
0.0120 0.0010
Fig. 1 Transient thermal impedance, junction to
case.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1236-00 Jun. 04
page 3 of 5
5SGA 06D4502
Fig. 2 General current and voltage waveforms with GTO-specific symbols.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1236-00 Jun. 04
page 4 of 5
5SGA 06D4502
Fig. 3 Outline drawing. All dimensions are in millimeters and represent nominal values unless stated otherwise.
Reverse avalanche capability
In operation with an antiparallel freewheeling diode, the GTO reverse voltage VR may exceed the rate value VRRM
due to stray inductance and diode turn-on voltage spike at high di/dt. The GTO is then driven into reverse
avalanche. This condition is not dangerous for the GTO provided avalanche time and current are below 10 µs
and 1000 A respectively. However, gate voltage must remain negative during this time. Recommendation :
VGR = 10…15 V.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1236-00 Jun. 04
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
