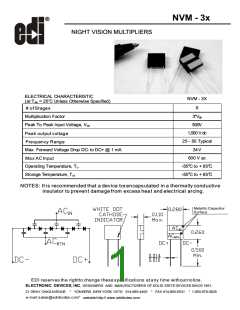

NVM - 3x
NIGHT VISION MULTIPLIERS
ELECTRICAL CHARACTERISTIC
NVM - 3X
O
(at TAir = 25 C Unless Otherwise Specified)
6
3*Vpp
# of Stages
Multiplication Factor
Peak To Peak Input Voltage, Vpp
500V
1,500 V dc
25 - 50 Typical
24 V
Peak output voltage
Frequency Range
Max. Forward Voltage Drop DC- to DC+ @ 1 mA
Max ACInput
Operating Temperature, To
Storage Temperature, Tst
600 V ac
O
O
-55 C to + 85 C
O
O
-55 C to + 85 C
NOTES: It is recommended that a device be encapsulated in a thermally conductive
insulator to prevent damage from excess heat and electrical arcing.
Metallic Capacitor
Surface
EDI reserves the rightto change these specifications at any time without notice.
