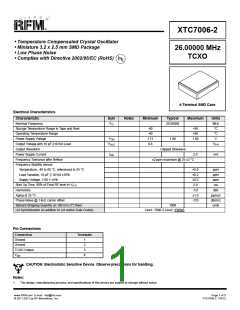

XTC7006-2
• Temperature Compensated Crystal Oscillator
• Miniature 3.2 x 2.5 mm SMD Package
• Low Phase Noise
26.00000 MHz
TCXO
• Complies with Directive 2002/95/EC (RoHS)
P
b
4-Terminal SMD Case
Electrical Characteristics
Characteristic
Sym
Notes
Minimum
Typical
Maximum
Units
MHz
°C
FO
Nominal Frequency
26.00000
Storage Temperature Range in Tape and Reel
Operating Temperature Range
Power Supply Voltage
-40
-40
+85
+80
1.89
°C
VDD
1.71
0.8
1.80
V
VOUT
VP-P
Output Voltage with 10 pF ||10 KLoad
Output Waveform
Clipped Sinewave
IDD
Power Supply Current
2.0
mA
Frequency Tolerance after Reflow
Frequency Stability versus:
±2 ppm maximum @ 25 ±2 °C
Temperature, -40 to 80 °C, referenced to 25 °C
Load Variation, 10 pF || 10 K±10%
Supply Voltage, 1.80 V ±5%
±5.0
ppm
ppm
±0.2
±0.2
2.0
ppm
Start Up Time, 90% of Final RF level in VP-P
ms
Harmonics
-5.0
±1.0
-125
dBc
Aging at 25 °C
ppm/yr
dBc/Hz
units
Phase Noise @ 1 kHz carrier offset
Stanard Shipping Quantity on 180 mm (7”) Reel
Lid Symbolization (in addition to Lot and/or Date Codes)
1000
Line1: 7006-2 Line2: YWWS
Pin Connections
Connection
Ground
Terminals
1
2
3
4
Ground
TCXO Output
VDD
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
Notes:
1.
The design, manufacturing process, and specifications of this device are subject to change without notice.
www.RFM.com E-mail: info@rfm.com
© 2011-2012 by RF Monolithics, Inc.
Page 1 of 3
XTC7006-2 7/9/12
