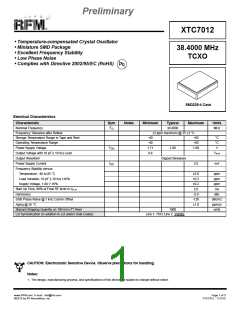

Preliminary
XTC7012
• Temperature-compensated Crystal Oscillator
• Miniature SMD Package
• Excellent Frequency Stability
• Low Phase Noise
38.4000 MHz
TCXO
• Complies with Directive 2002/95/EC (RoHS)
P
b
SM3225-4 Case
Electrical Characteristics
Characteristic
Sym
Notes
Minimum
Typical
Maximum
Units
F
Nominal Frequency
38.4000
±2 ppm maximum @ 25 ±2 °C
+85
MHz
O
Frequency Tolerance after Reflow
Storage Temperature Range in Tape and Reel
Operating Temperature Range
-40
-40
°C
°C
V
+85
V
Power Supply Voltage
1.71
0.8
1.80
1.89
DD
V
Output Voltage with 10 pF || 10 KΩ Load
Output Waveform
P-P
Clipped Sinewave
I
Power Supply Current
2.0
mA
DD
Frequency Stability versus:
Temperature, -40 to 85 °C
Load Variation, 10 pF || 10 KΩ ±10%
Supply Voltage, 1.80 V ±5%
±5.0
±0.2
±0.2
2.0
ppm
ppm
ppm
Start Up Time, 90% of Final RF level in V
ms
P-P
Harmonics
-5.0
-126
±1.0
dBc
SSB Phase Noise @ 1 kHz Carrier Offset
Aging @ 25 °C
dBc/Hz
ppm/yr
units
Stanard Shipping Quantity on 180 mm (7”) Reel
Lid Symbolization (in addition to Lot and/or Date Codes)
1000
Line 1: 7012 Line 2: YWWS
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
Notes:
1. The design, manufacturing process, and specifications of this device are subject to change without notice.
www.RFM.com E-mail: info@rfm.com
©2010 by RF Monolithics, Inc.
Page 1 of 3
XTC7012 - 11/3/10
